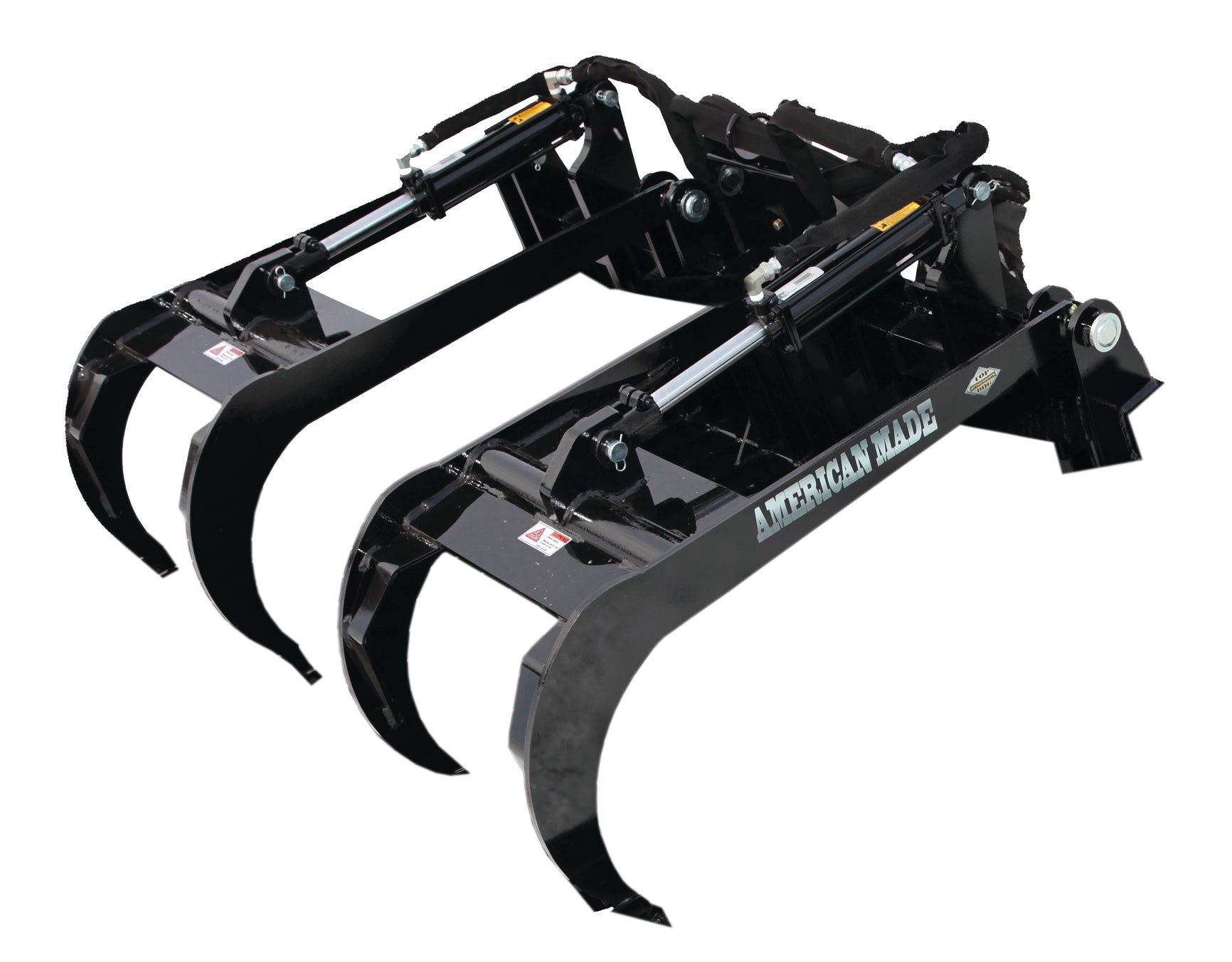

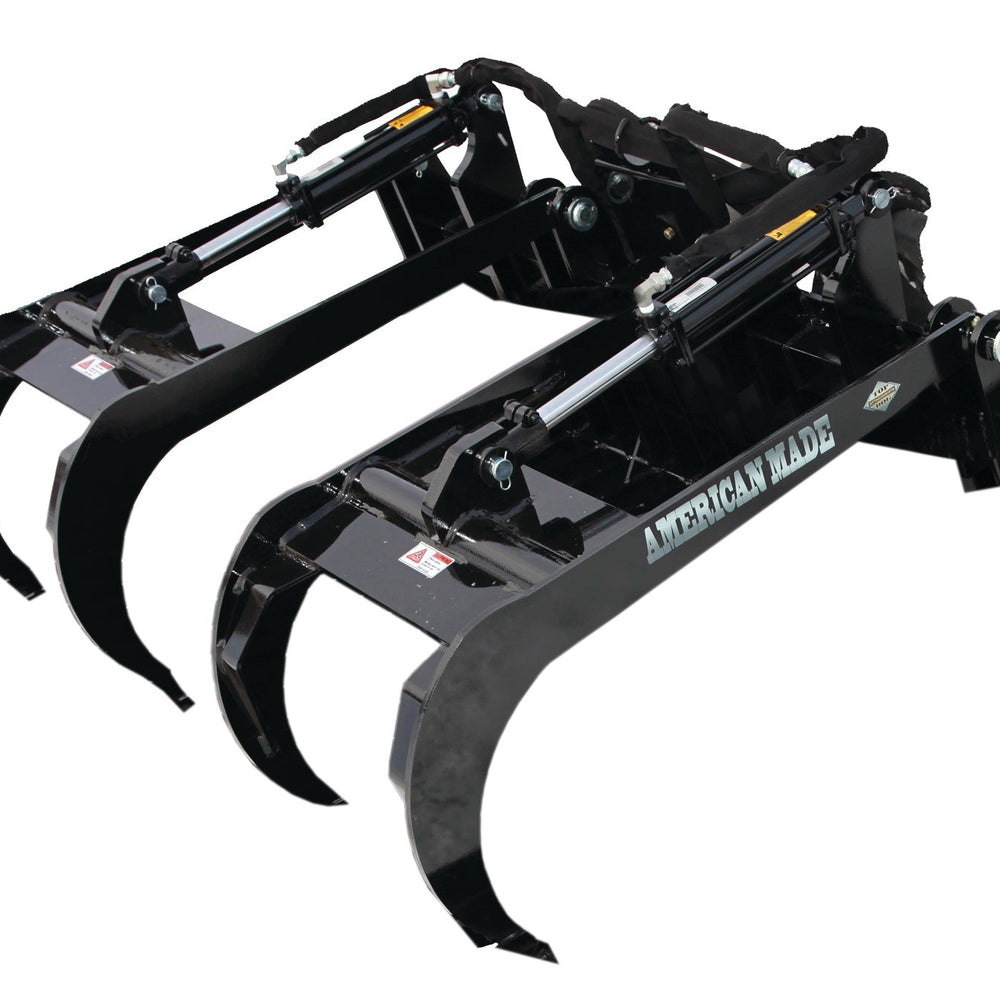

Top Dog Attachments Weld On Grapple:
American-Made, Durable, and Versatile
Description:
The Top Dog Attachments Weld On Grapple. This grapple is designed with high-quality GR-50 steel. This attachment comes fully assembled with hydraulics and hoses, which makes for an easy and quick installation process. We recommend welding this onto a tube that is at least 3" X 3" in size. Make sure to weld at each ear location, on top and bottom of the angle iron.
Here are the key dimensions of the Weld On Grapple:
- Overall Depth: 36"
- Width: 59.5"
- Inside Depth: 41.5"
- Weight: 342 LBS
- Cylinders: 2" x 8" Tie Rod Cylinders
- Max PSI: 3000 PSI
- Steel: GR50
- Arm Plate thickness: 1/2"
