Description
DESCRIPTION

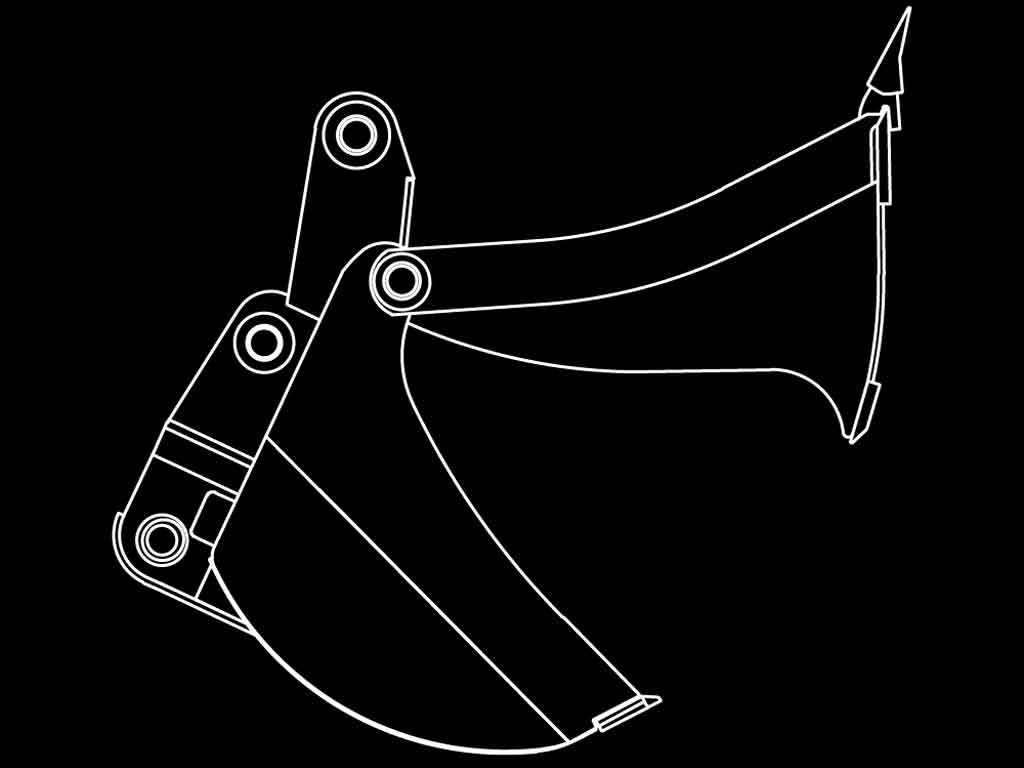

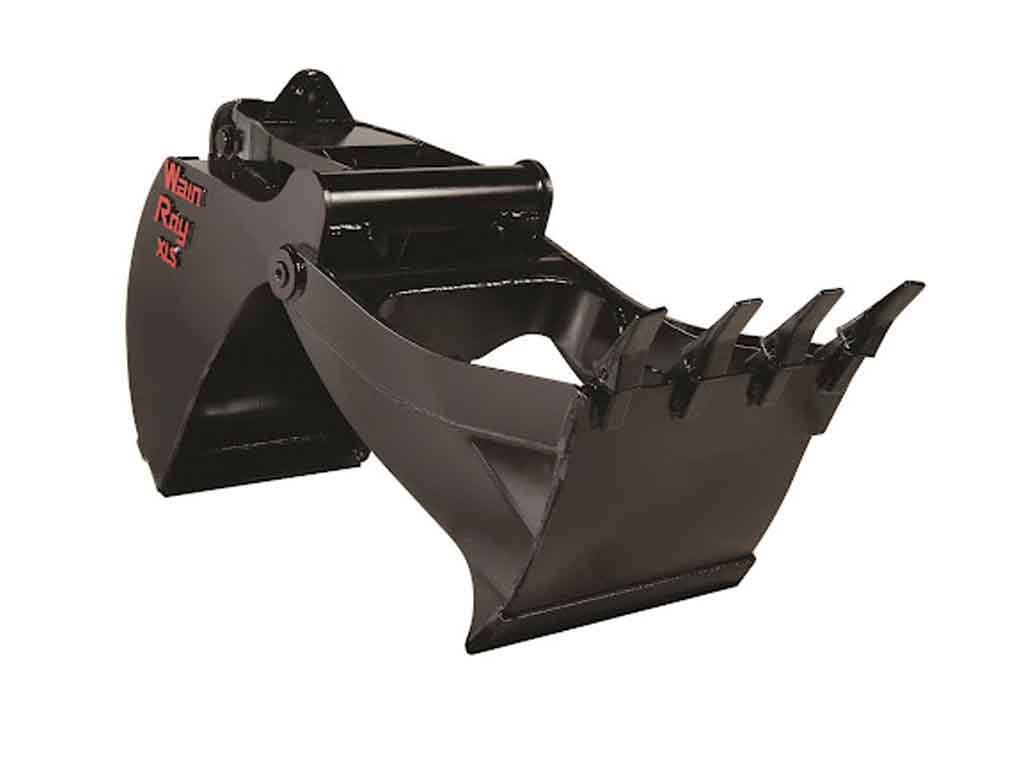

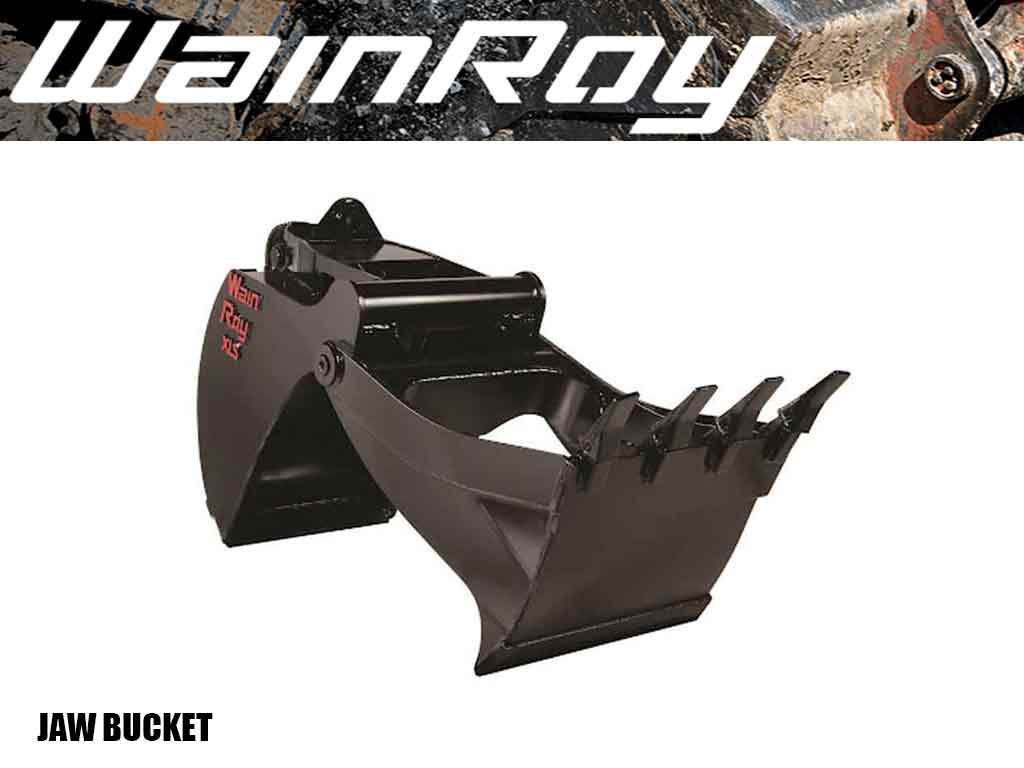

WAIN ROY JAW BUCKETS
Jaw Buckets provide the versatility of a trenching bucket and a thumb in one unit without having to weld thumb brackets onto the boom. Jaw Buckets are effective jobsite trenchers and haulers of cumbersome materials. Remove, load, and backfill material with the front jaw in the closed position and then use the hydraulically actuated jaw to pick and place large objects such as boulders, stumps, pipe, logs, concrete slabs and other debris. Jaw Buckets are an effective multi-use tool for construction applications.
12500 - 20000 lbs. mini excavators
CARRIER WEIGHT
|
JAW BUCKET OEM PIN ON |
WIDTH | CAPACITY (CU. FT.) | LBS | OPENING | TEETH |
| JB1PO-18 | 18" | 5.4 | 570 | 41" | 4 |
| JB1PO-24 | 24" | 7.6 | 660 | 41" | 4 |
| JB1PO-30 | 30" | 9.7 | 740 | 41" | 4 |
|
JAW BUCKET WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP |
WIDTH | CAPACITY (CU. FT.) | LBS | OPENING | TEETH |
| JB1QC-24 | 24" | 7.6 | 650 | 41" | 4 |
| JB1QC-30 | 30" | 9.7 | 730 | 41" | 4 |
FITS
| MAKE | MODELS: 8 TON, 12500-20000 LB EXCAVATOR |
| BOBCAT | 442, 442S, E85 |
| CASE | CX60C, CX75C SR, CX75SR, CX80C |
| CAT | 306, 307D, 307EX, 308D CR, 308D CR-SB |
| COYOTE | CE60, DX80, DX85R-3 |
| DOOSAN | DX60R, DX80, DX85R-3, S075-V, S70-V, S75-V |
|
GEHL MUSTANG |
Z80 GEN: 2 | 800Z NXT2 |
| HITACHI | ZX75US‑5, ZX85USB‑5 |
| HYUNDIA | R60CR-9, R60CR-9A, R80CR-9, R80CR-9A |
| IHI KATO | 60V-40, 70Z |
| JCB | 67C-1, 86C-1, 85Z |
| JOHN DEERE | 70, 70D, 75C,80, 80C, 85, 190E |
| KOBELCO |
70SR, 80CS |
| KOMATSU |
PC78MR-6, PC78US-6, PC78US-8, PC78US-10, PC78UU-6 |
| KUBOTA |
KX057‑4 |
| LIUGONG | CLG906D |
| MECALAC | 6MCR, 8MCR, 8MCR RR |
| NEW HOLLAND |
EH70, EH80 |
| SANY |
SY75C‑TIER 2, SY75C‑TIER 3, SY75C‑TIER 3 (EU), SY75C‑TIER 3 (US), SY75C‑TIER 4F, SY80C-9S |
| TAKEUCHI |
TB68S, TB070 |
| TEREX | TC75 (HR32) |
| THOMAS | T75 |
| VERMEER | |
| VOLVO | ERC88 |
| YANMAR |
B7 5A, SV100-2A, Vi08 |
