Description

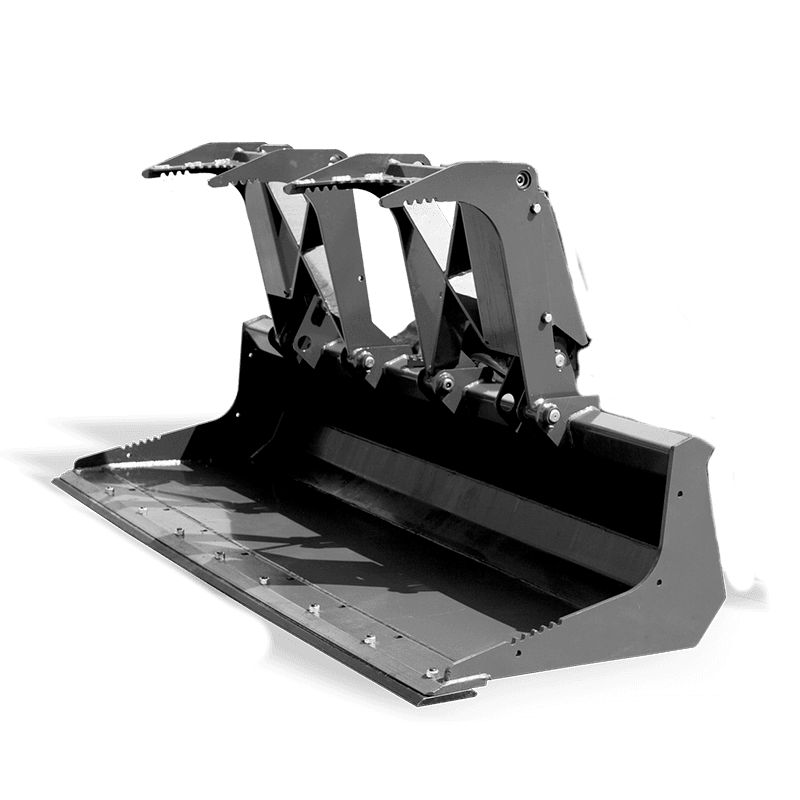

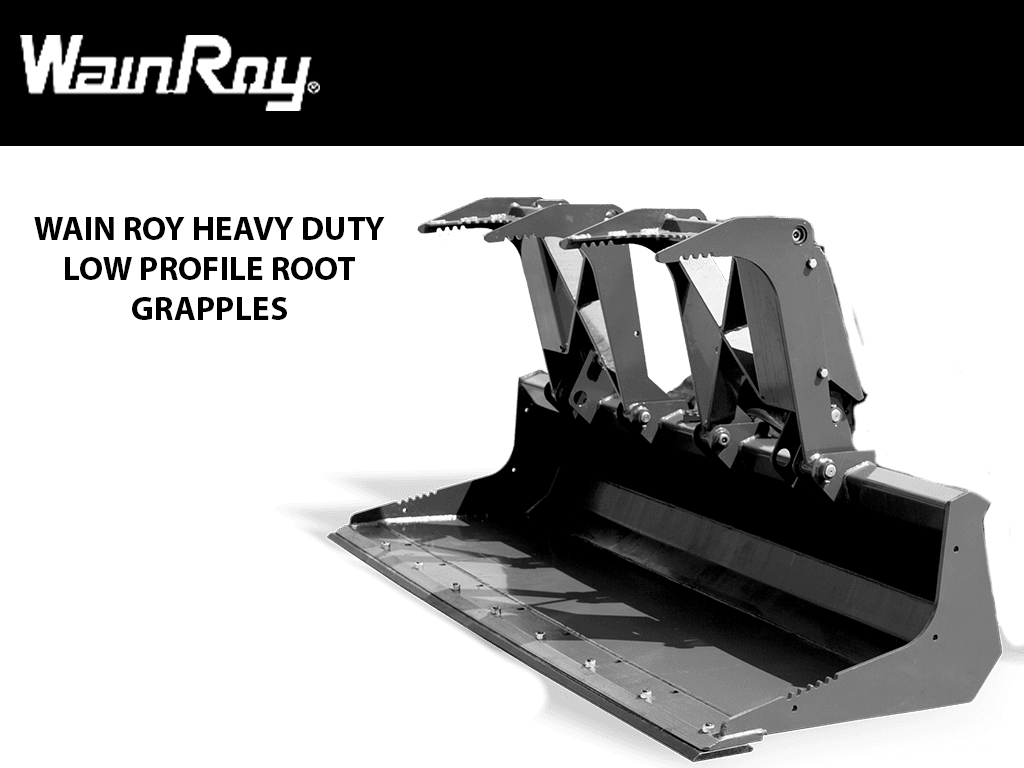

Experience unmatched performance with the WAIN ROY Heavy Duty Low Profile Root Grapples for skid steers. Engineered for durability and efficiency, this root grapple is an essential tool for any landscaping, construction, or agricultural project.
Key Features:
- Designed with a Skid Steer (SAE J2513) Quick Attach System for seamless compatibility.
- Constructed from grade 80 steel, making it 2x stronger than mild steel while reducing overall weight.
- Features a proprietary serrated cutting edge that grips trees and debris securely.
- Unique design that allows for smooth grading of surfaces post debris removal.
- Twin hydraulic cylinders enable independent clamping on uneven materials, enhancing functionality.
- Standard cylinder stroke control ensures a long cylinder life, while cylinder guards protect rods and hoses.
- Optional slat kit available for increased versatility with reduced tine spacing.
- Includes greasable pivots and hydraulic hoses with quick disconnect couplers (per ISO 16028).
This grapple boasts a SAE Rated Operating Capacity of up to 4800 lbs, ensuring it can tackle even the toughest jobs. With a length of 34” and a height of 27”, the grapple opening measures 37” with a width of 19”. The robust clamping force reaches up to 3,000 lbs. @ 3,000 psi, making it a powerhouse in any application.
CARRIER WEIGHT
| Model | Root Grapple Width | Tines X Spacing | Weight (lbs) |
|---|---|---|---|
| HLRG65 | 65" | 10 X 6.75" | 660 |
| HLRG72 | 72" | 11 X 6.75" | 680 |
| HLRG79 | 79" | 12 X 6.75" | 700 |
| HLRG86 | 86" | 13 X 6.75" | 720 |
SPECS
Upgrade your equipment today with the WAIN ROY Heavy Duty Low Profile Root Grapples for skid steers and experience unparalleled efficiency and durability. Order now and take your projects to the next level!
