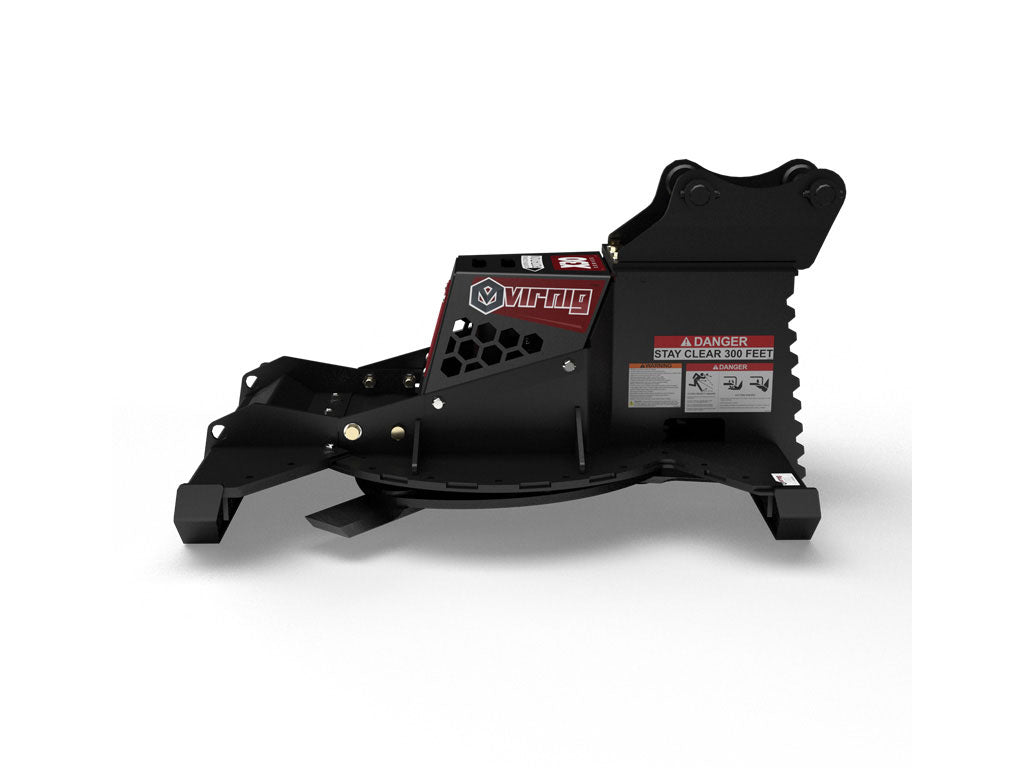

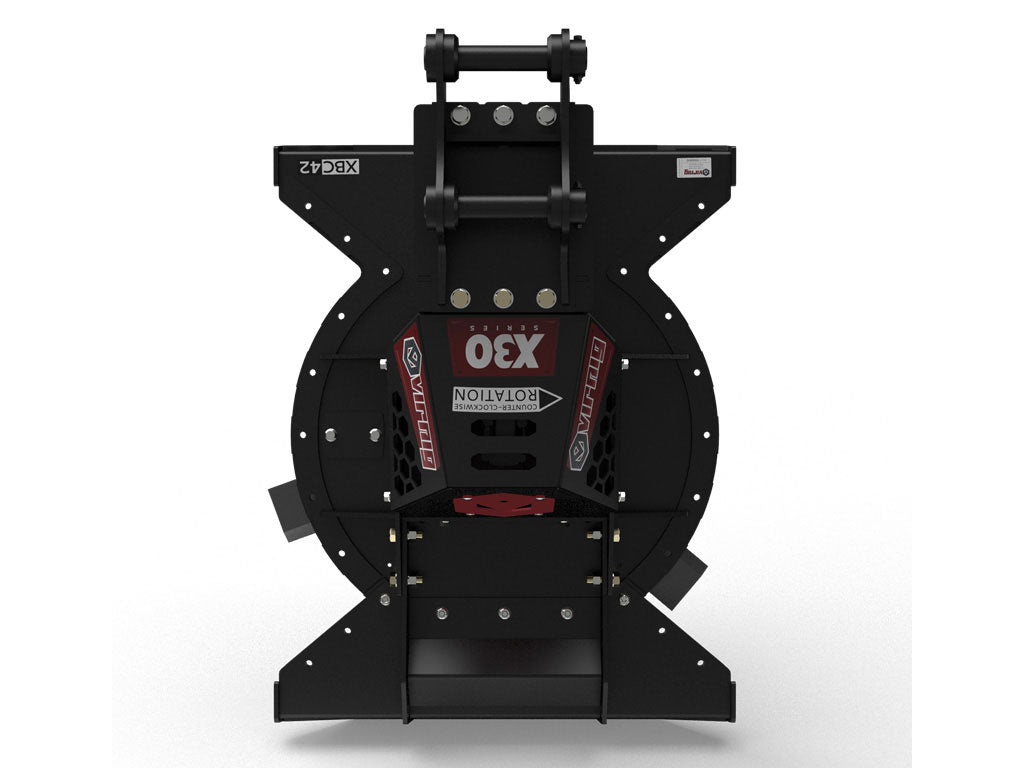

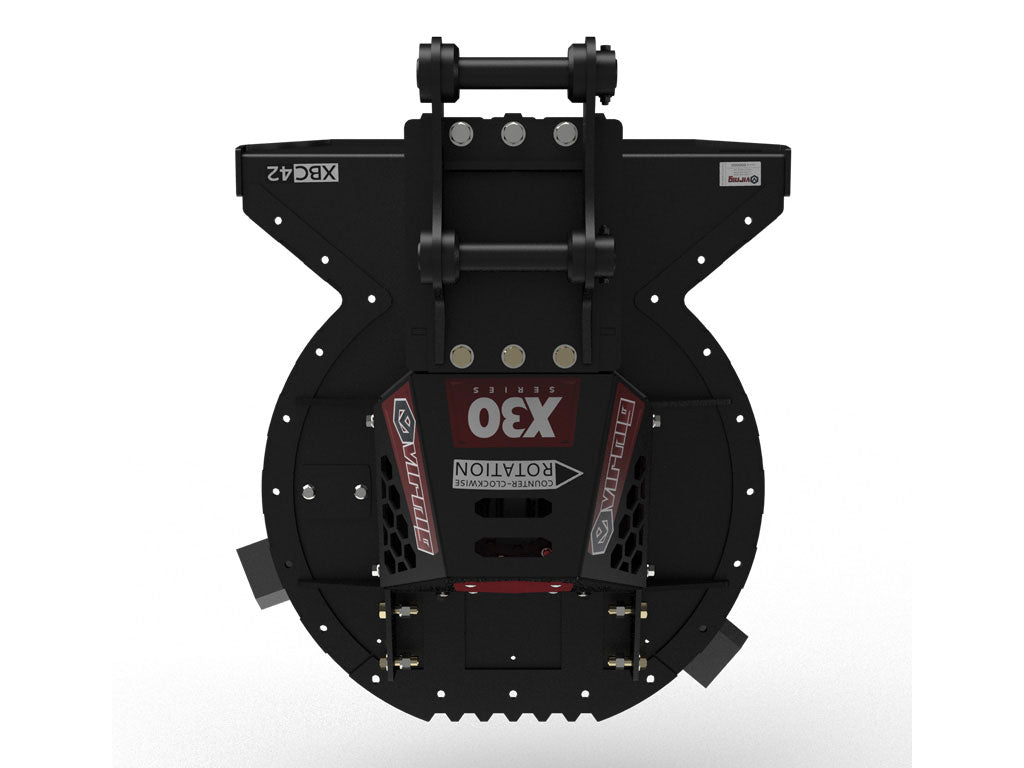

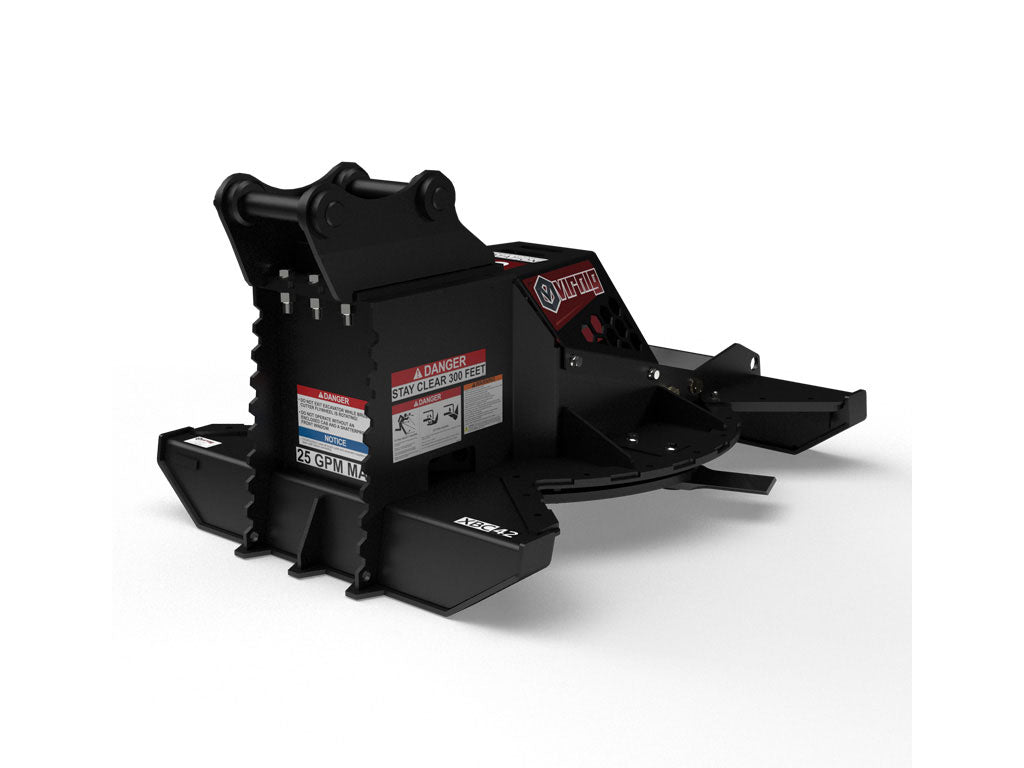

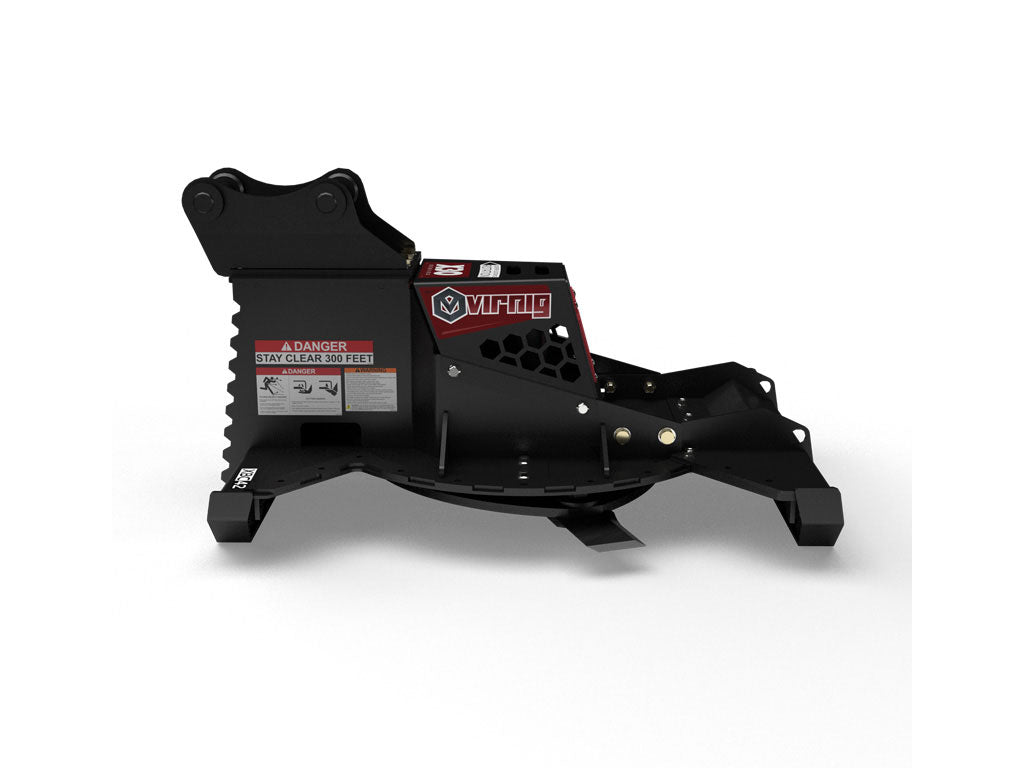

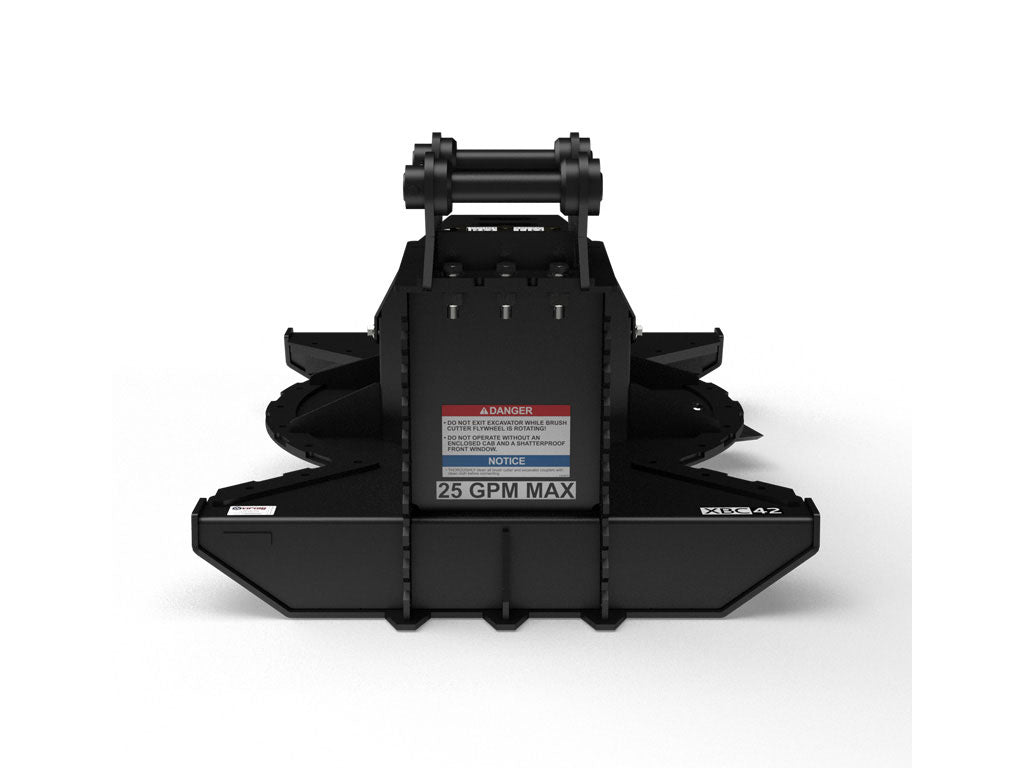

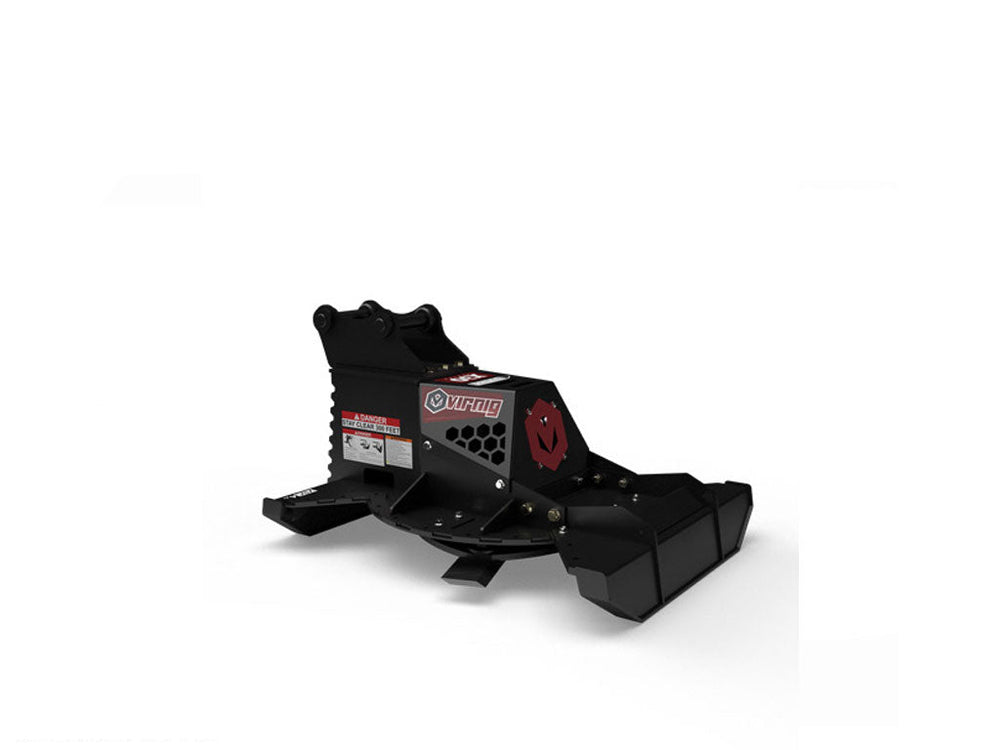

X30 Mini Excavator Rotary Brush Cutter

Cut up to 4″ diameter trees and access hard to reach areas for a maintained finish.

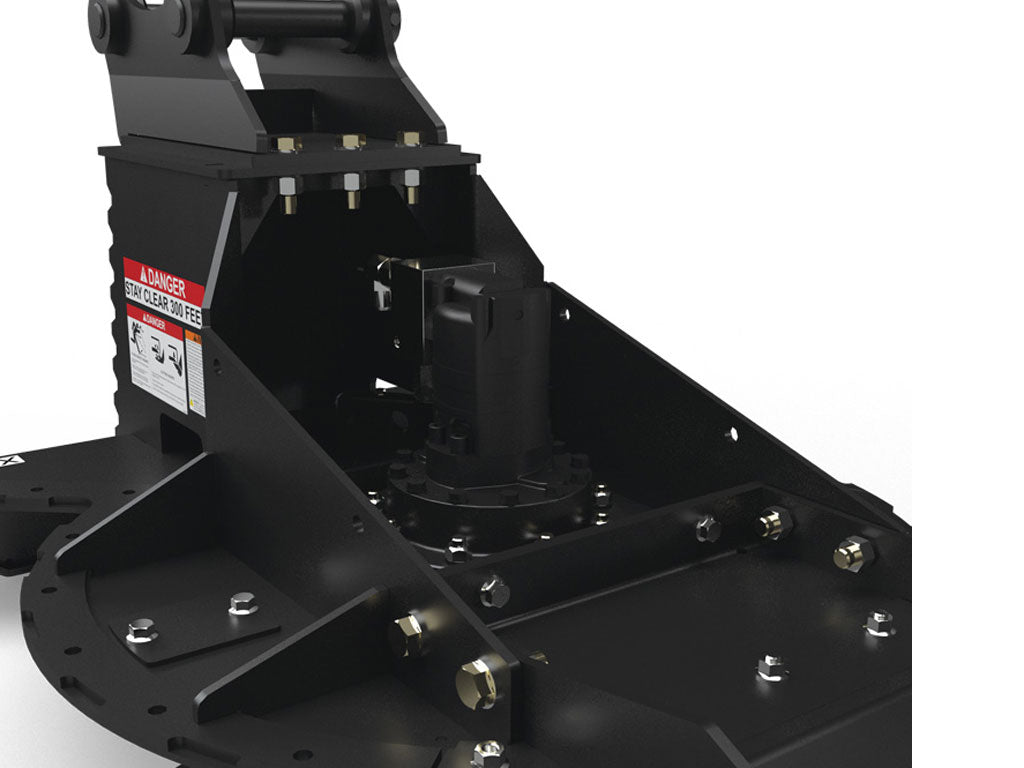

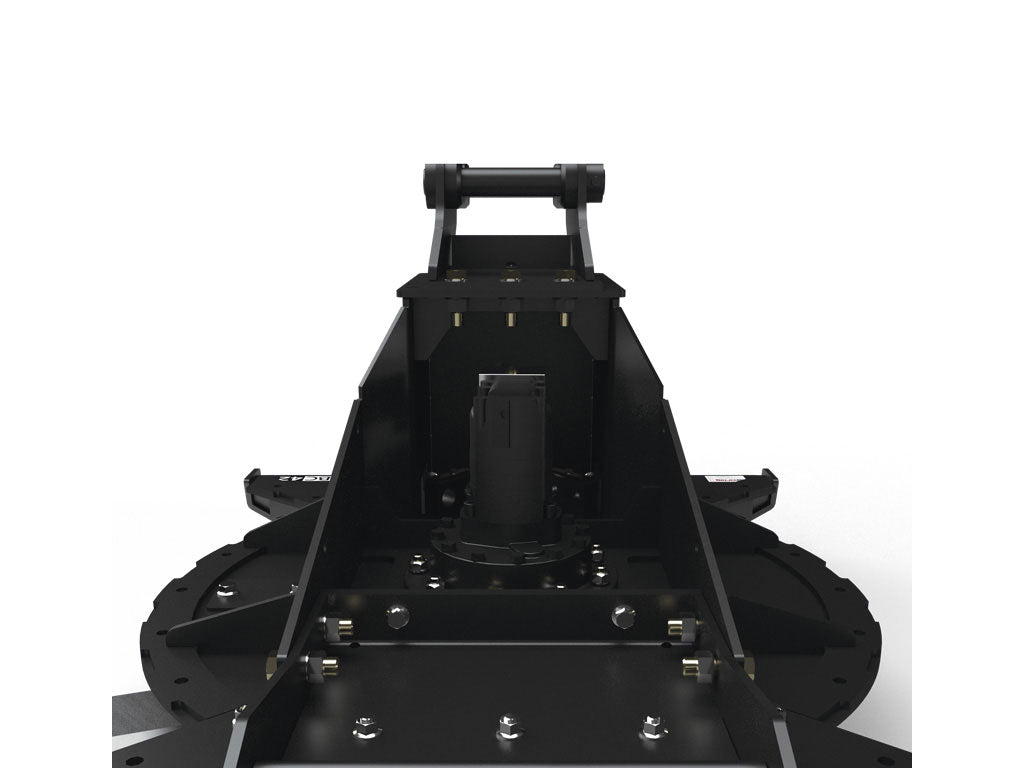

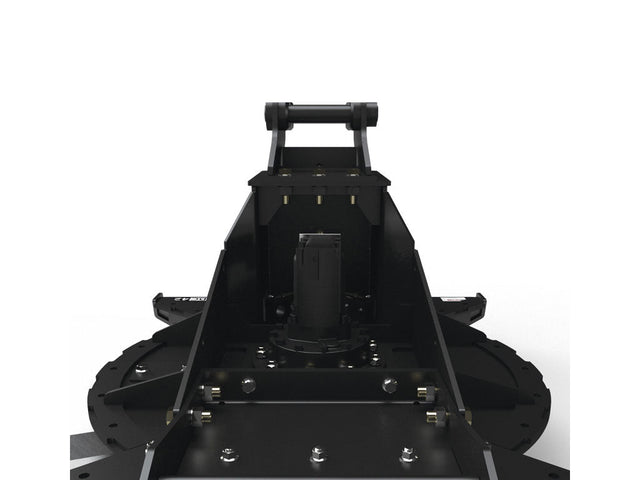

NO CASE DRAIN REQUIRED. DIRECT DRIVE EATON® MOTOR WITH RELIEF VALVE PROTECTION

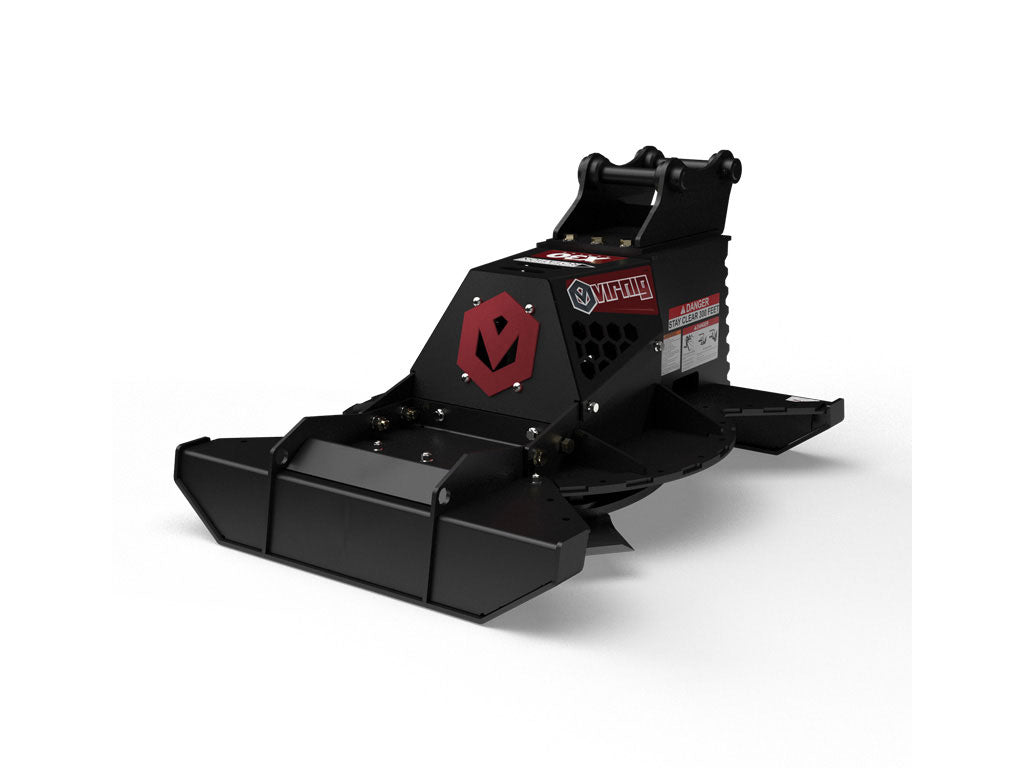

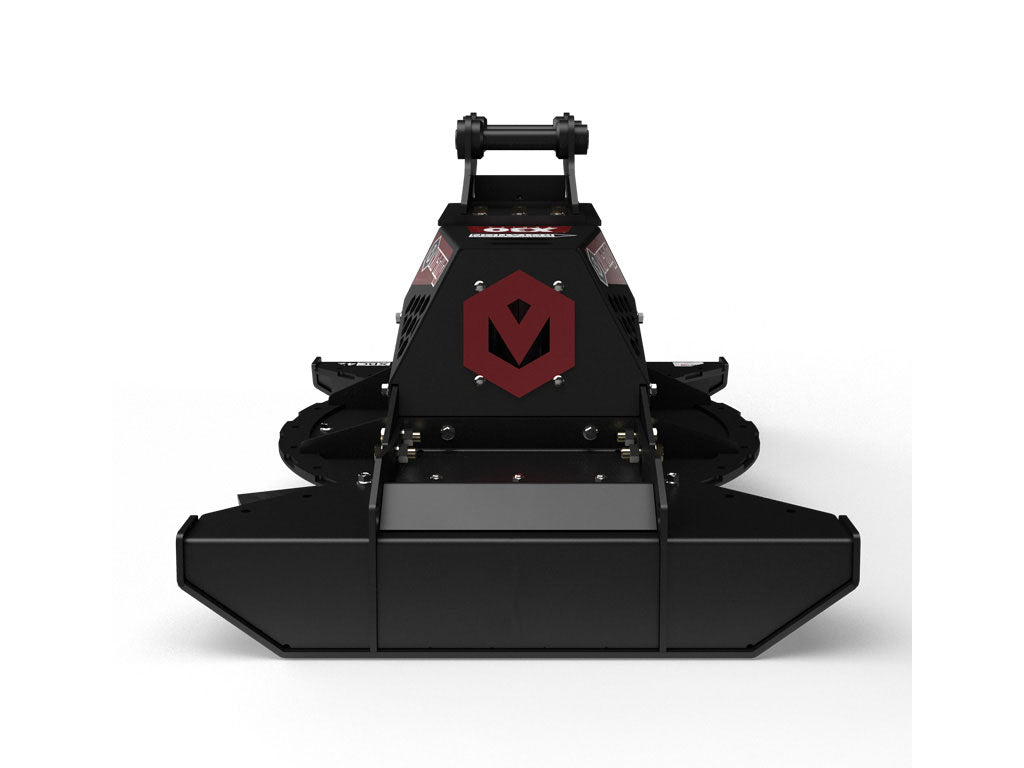

UNIQUE BOLT-ON FRONT DECK. REMOVE FOR 270-DEGREE BLADE ENGAGEMENT
BOLT-ON MOUNTING INTERFACE FOR QUICKLY CHANGING HANGER BRACKETS

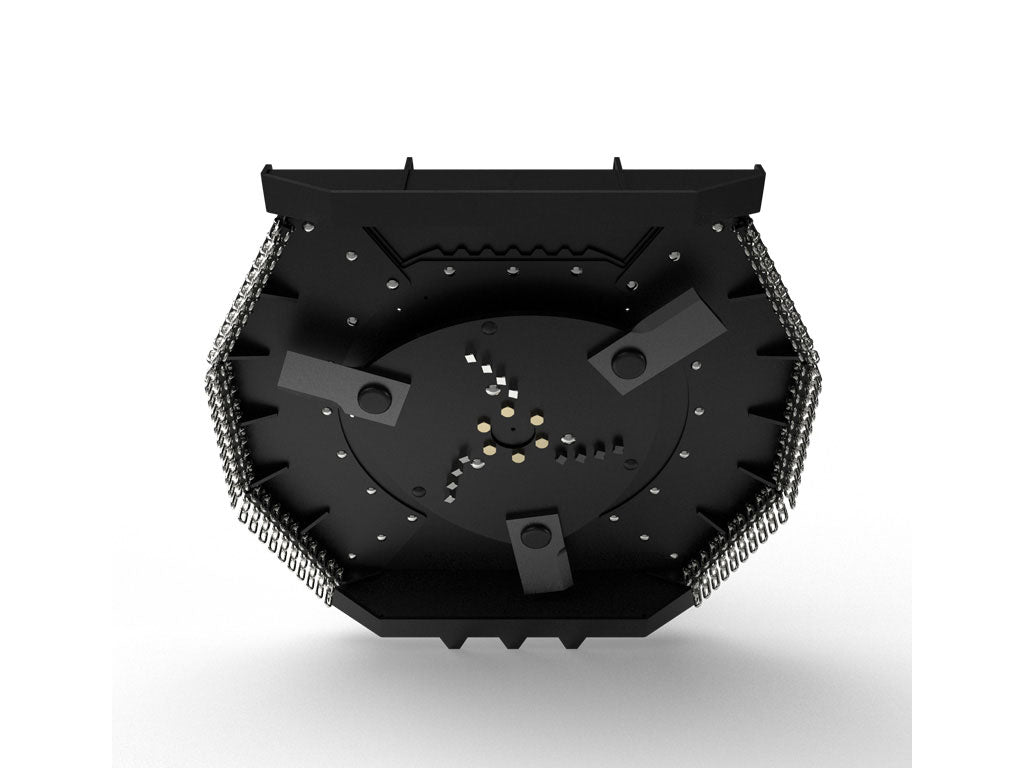

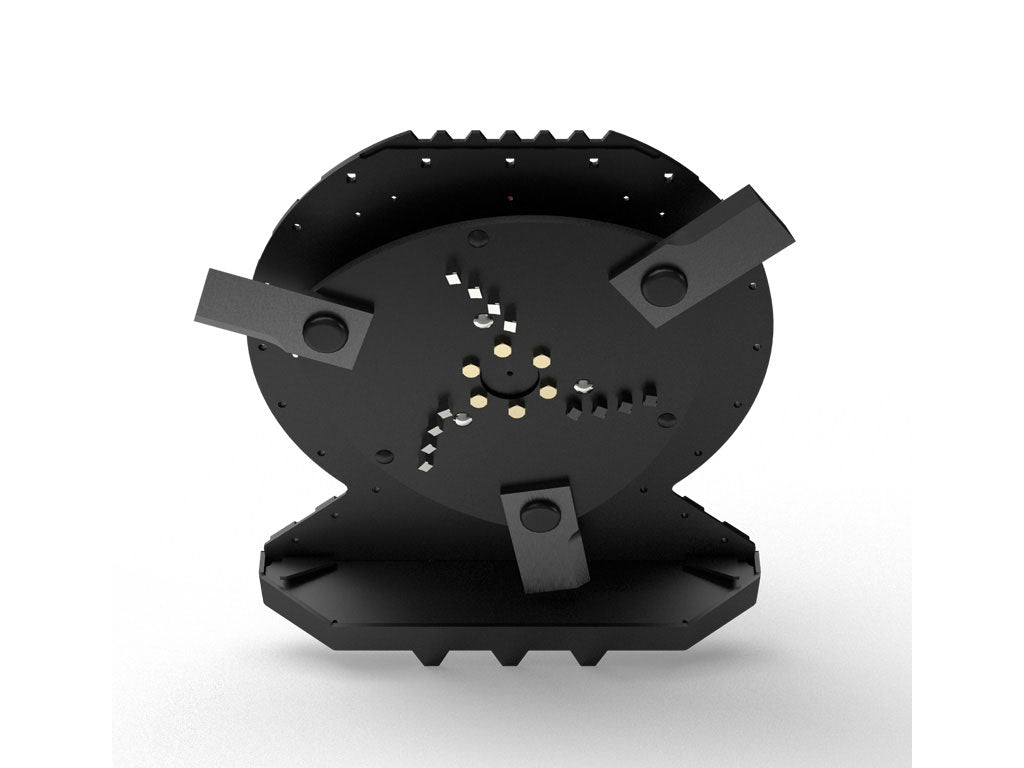

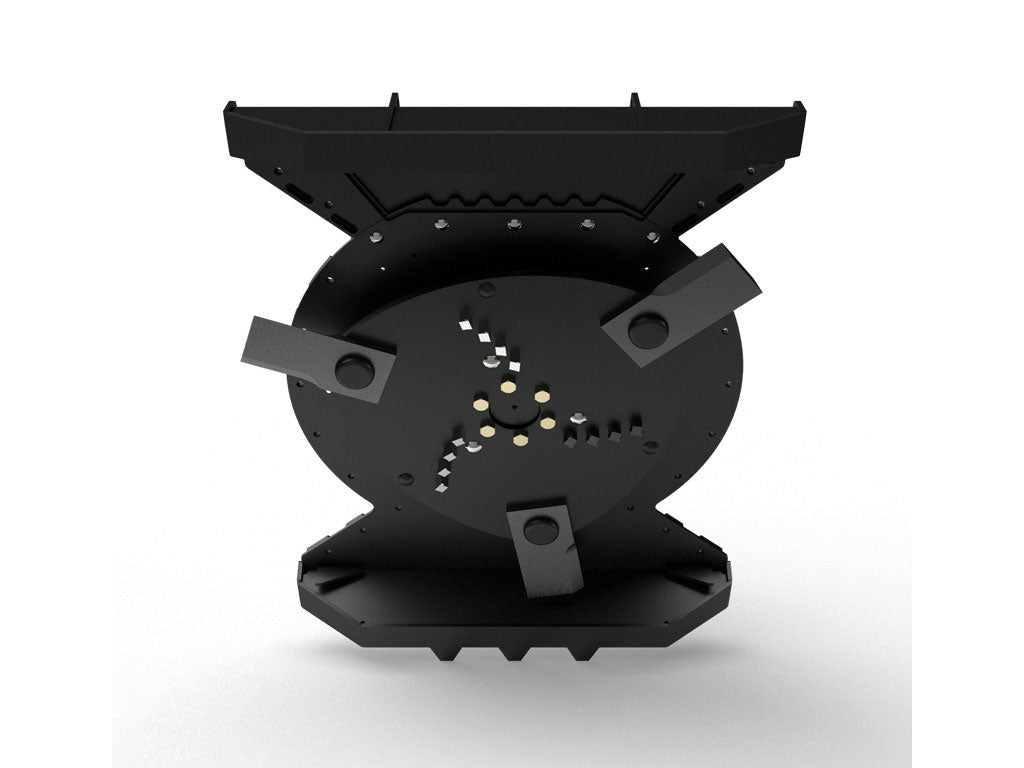

ROUNDED FLYWHEEL WITH 3 DOUBLE-SIDED BLADES BOUNCES OFF STUMPS

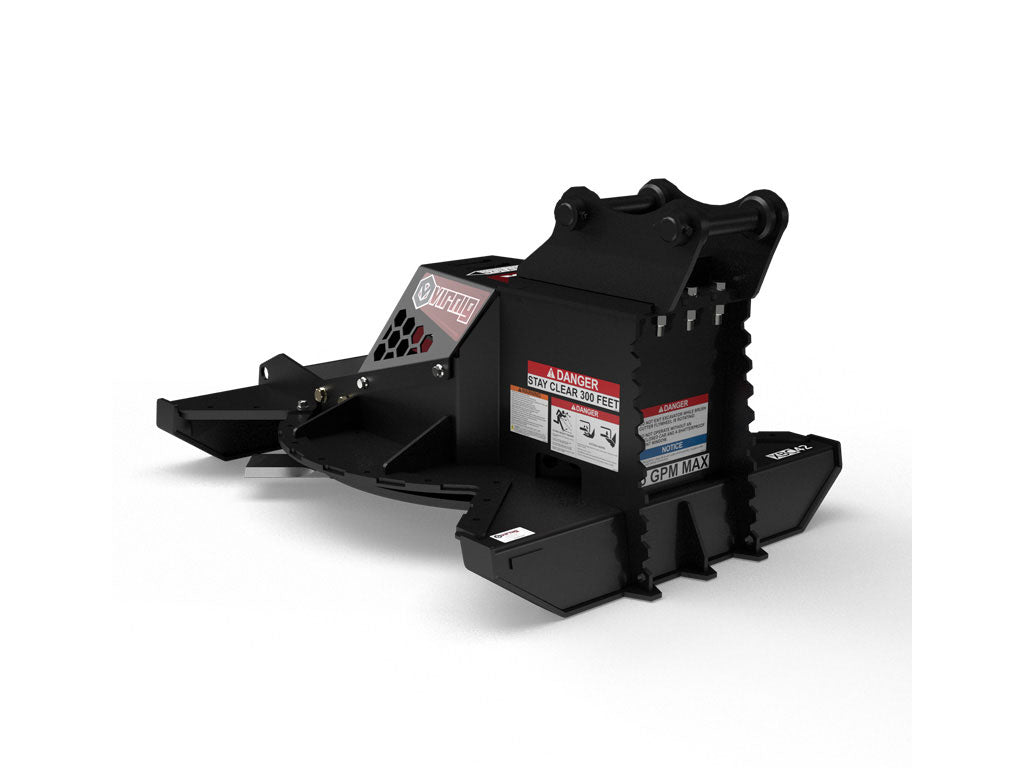

SERRATED REAR DECK FOR BACK DRAGGING BRUSH & GRUBBING STUMPS
STANDARD MOTOR GUARD & SPINDLE GUARD
VARIOUS HANGER BRACKETS AVAILABLE TO FIT MOST EXCAVATOR BRANDS
DO NOT OPERATE CUTTER WITHOUT A SHATTERPROOF CAB ON MACHINE. PROTECT THE OPERATOR AND THE PEOPLE AROUND THE MACHINE.

SPECS

MODEL	XBC42
Cut Width (Inches)	42.0
Overall Width Without Sides / With Sides (Inches)	38.8 / 52.0
Overall Height (Inches)	20.5
Overall Depth (Inches)	52.5
Deck Height (Inches)	5.8
Minimum Cut Height with Bolt-On Front (Inches)	2.0
Cutting Capacity, Diameter (Inches)	4.0
Deck Thickness: Top/Side (Inches)	0.25¹
Recommended Flow Rate (GPM)	15-25 / 22-28
Approximate Weight Without Sides / With Sides (Pounds)	700 / 830
Recommended Mini-Excavator Lift Capacity Over Side at Max Reach (Pounds)	Greater than 700 pounds²
Recommended Mini-Excavator Weight (Pounds)	8,900-26,000
Number of Teeth (Optional)	12

¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
²Greater than 765 pounds with one side curtain and 830 pounds with both side curtains.

BLADE TIP SPEEDS (FPM)

STANDARD FLOW MODEL

MODEL	15 GPM	22 GPM	25 GPM	28 GPM
XBC42-25	9,525	13,970	15,875	–
XBC42-28	–	9,010	10,240	11,470

Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).

OPTIONS

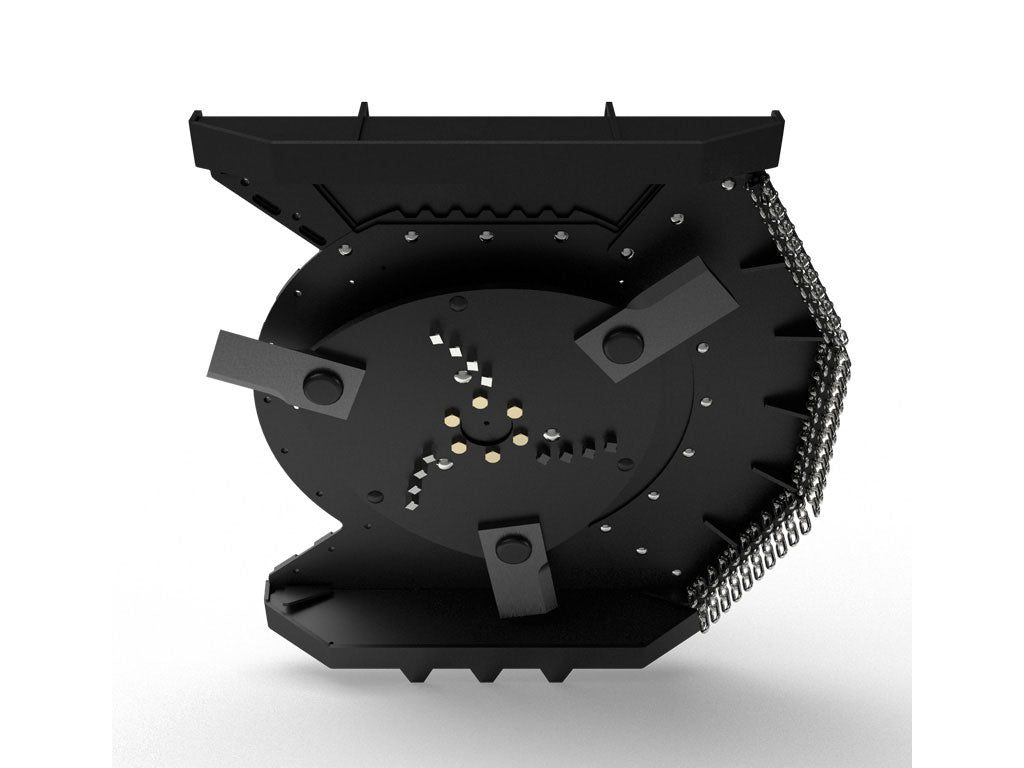

ONE BOLT-ON SIDE CURTAIN

Installed on the left side to reduce debris thrown toward the operator.

one side curtain

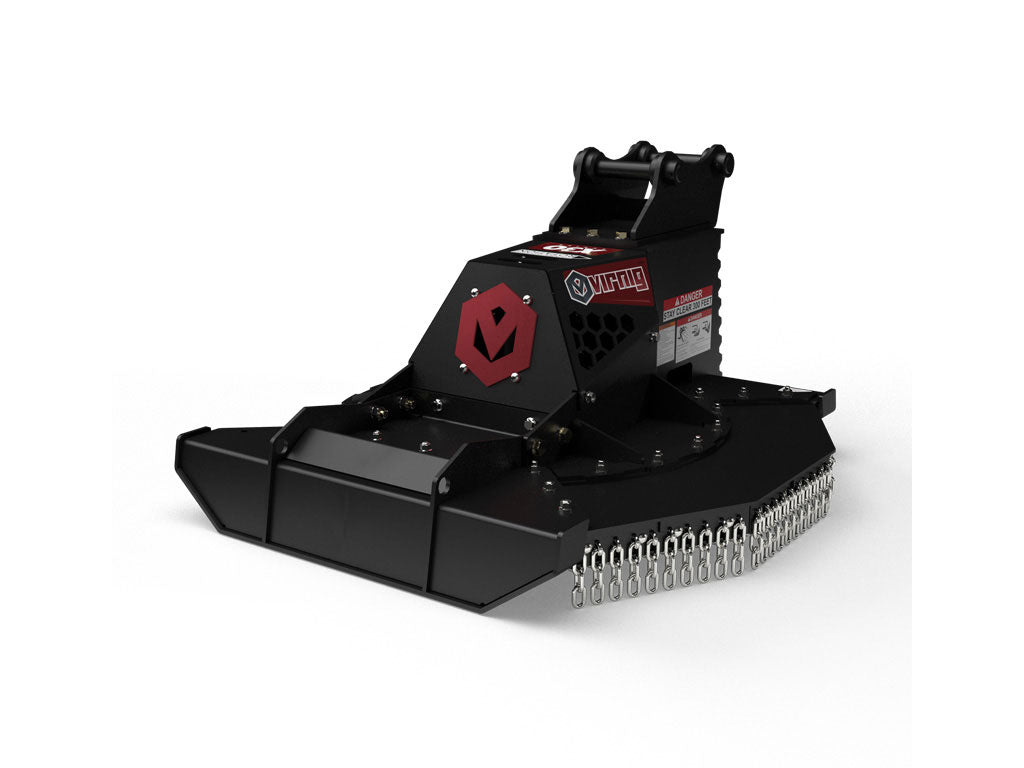

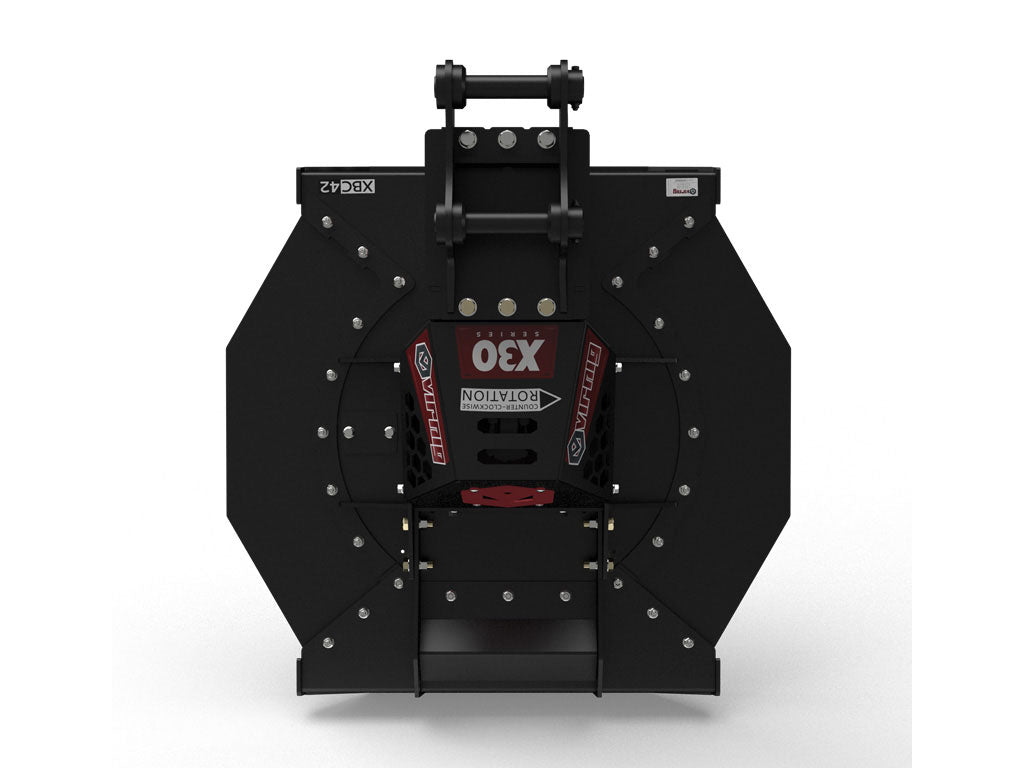

TWO BOLT-ON SIDE CURTAINS

Completely enclose the cutter for max debris containment.

two side curtain

CARBIDE TEETH

Shred material for a better finish.

carbide teeth option

BOLT-ON HANGER BRACKET

Many options available.
Please contact for hanger pricing and availability.

Bolt-On Hanger Bracket

FITS

This is a guide. Please call if you have questions.

BOBCAT	335, 337, 341, 435, E40R2, E42, E45, E48, E50, E55, E58, E60 E63, E88, E145, E165
CASE	CX40, CX42, CX45, CX50, CX57C, CX60C,
CAT	304, 304CR, 304.5, 303.5CR*, 304.5E2XTC, 304CCR, 304E2CR, 305CR 305.5DCR, 305.5ECR, 305.5E2CR, 305CCR, 305DCR, 305ECR, 306 CR
DEVELON	DX50-5K, DX50Z-7, DX55, DX55R-7, DX55W, DX60R, DX62R-3, DX63-3
GEHL	603, 503Z, Z45, Z45GEN2, Z55
HITACHI	ZX40, ZX40U-2, ZX40-3F, ZX48U-3, ZX48U-5, ZX50, ZX50U, ZX50U-2
HYUNDAI	R55-9, R55-9A, R60CR-9, R60CR-9A
JCB	803, 8040, 8045, 8050, 8052, 8055, 8065, 45Z-1, 48Z-1, 50Z, 50Z-1, 51R 55Z, 55Z-1, 57C-1
KATO / IHI	55V-4, 60V-4, HD50V-5, HD55N-4, HD60V-5
KOBELCO	SK45SRX-6E, SK45SRX-7, SK55SRX-6E, SK55SRX-7
KOMATSU	PC45MR-3, PC45MR-5, PC55MR-3, PC55MR-5
KUBOTA	KX040-4, KX057-4, KX057-5, KX080-4, KX121-3S, U35-4, U48-4, U48-5 U55-4, U55-5
MUSTANG	ME5003ZT, ME6003
NEW HOLLAND	E55BX, E57C
SANY	SY50U, SY60C, SY80U
TAKEUCHI	TB045, TB145, TB153FR, TB240, TB250, TB250-2, TB257FR, TB260, TB350R TB370
TEREX	TC48, TC50, TC60
VOLVO	EC45, EC55B, EC55C, EC55D, ECR40D, ECR48C, ECR50D, ECR50F, ECR58F ECR60E
WACKER	ET58, ET65, EW65, EW65, EZ50
YANMAR	SV40, SV60-6B, VIO45-5, VIO45-6A, VIO50-6A, VIO50-6B, VIO55-5 VIO55-6A, VIO57-6B

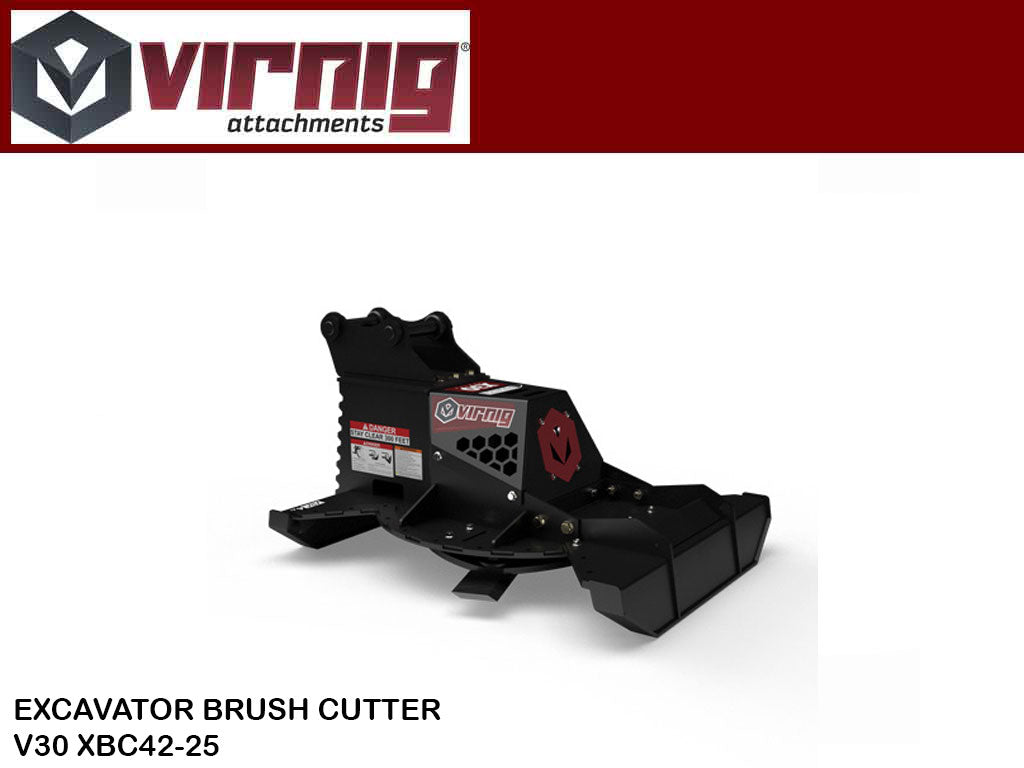

VIRNIG X30 42" Rotary Brush Cutter for Excavator
