Description

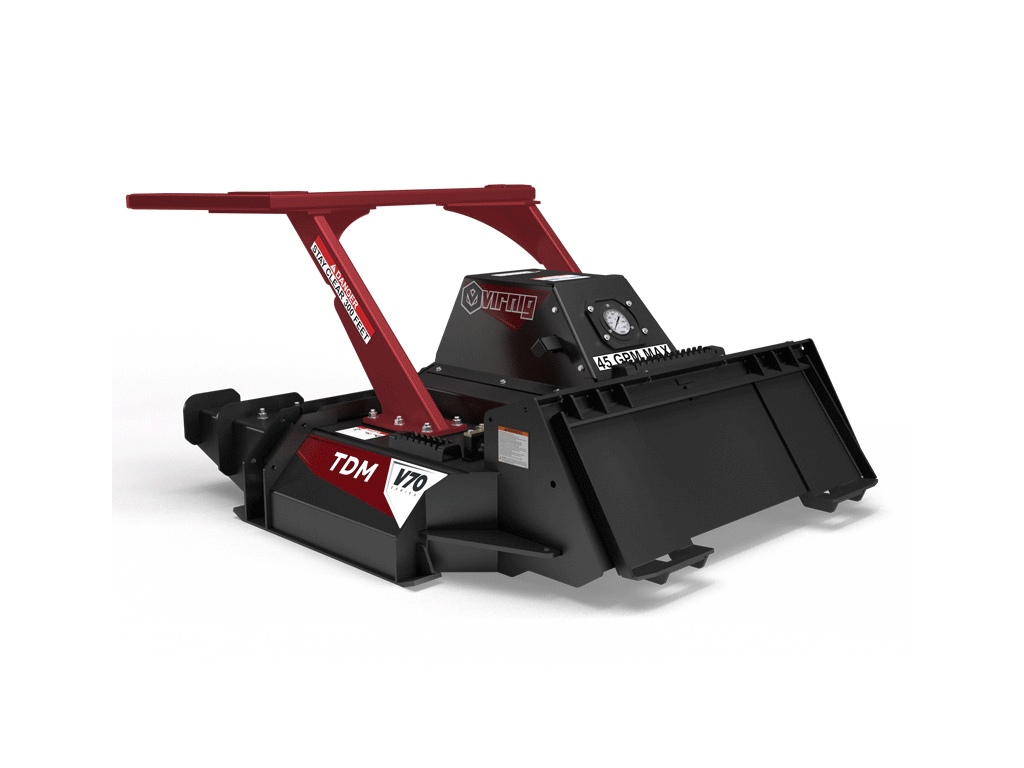

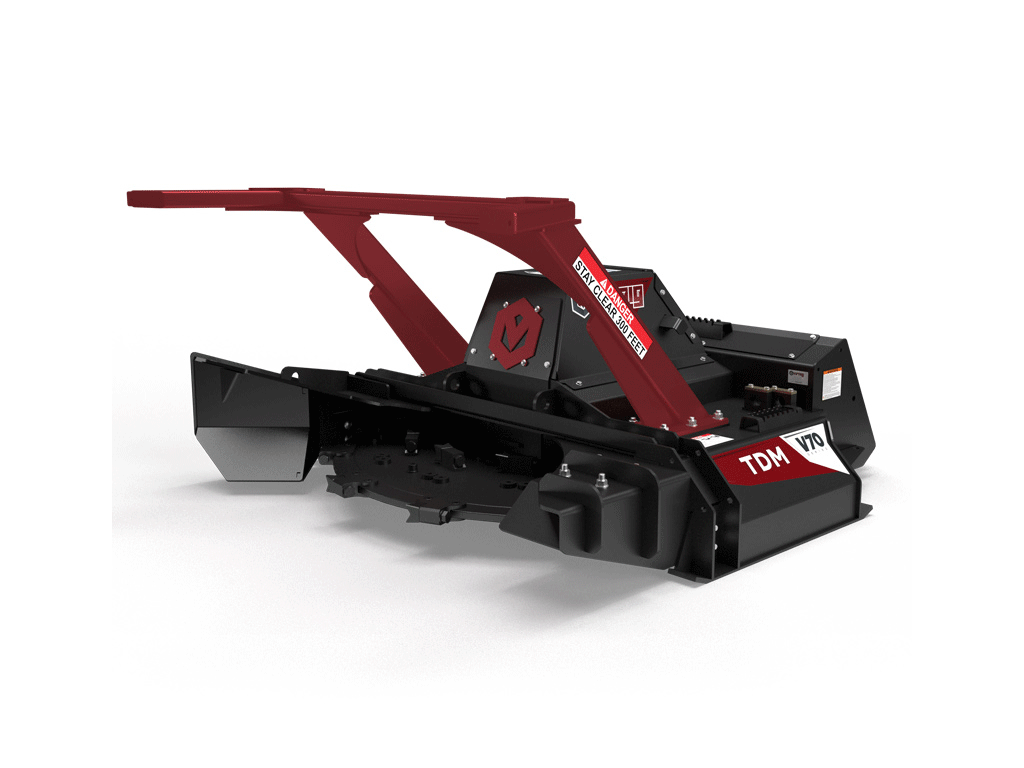

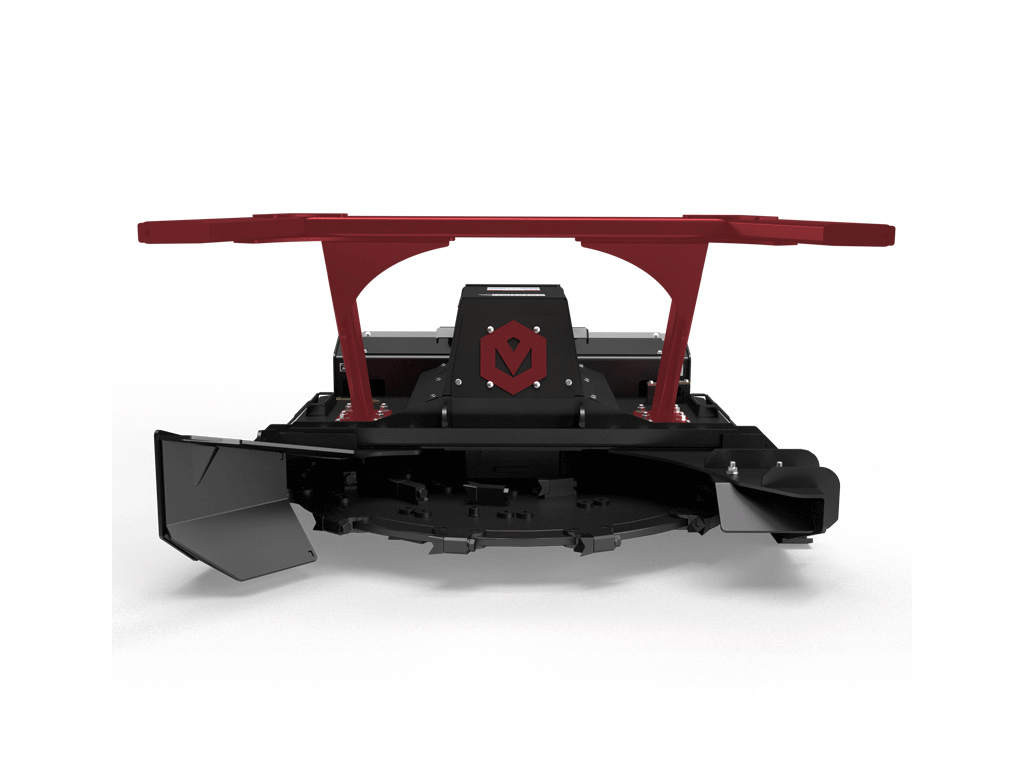

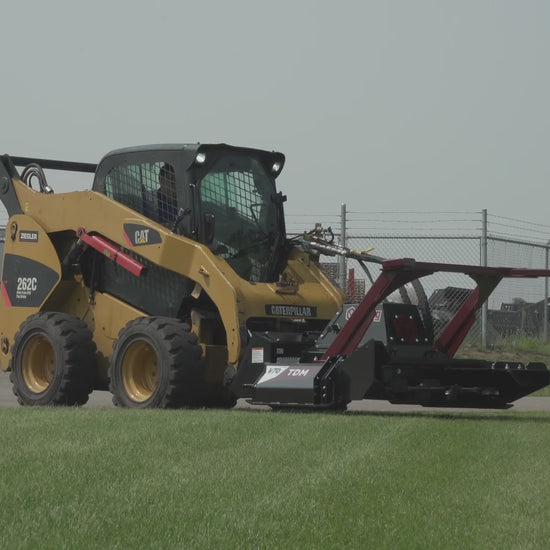

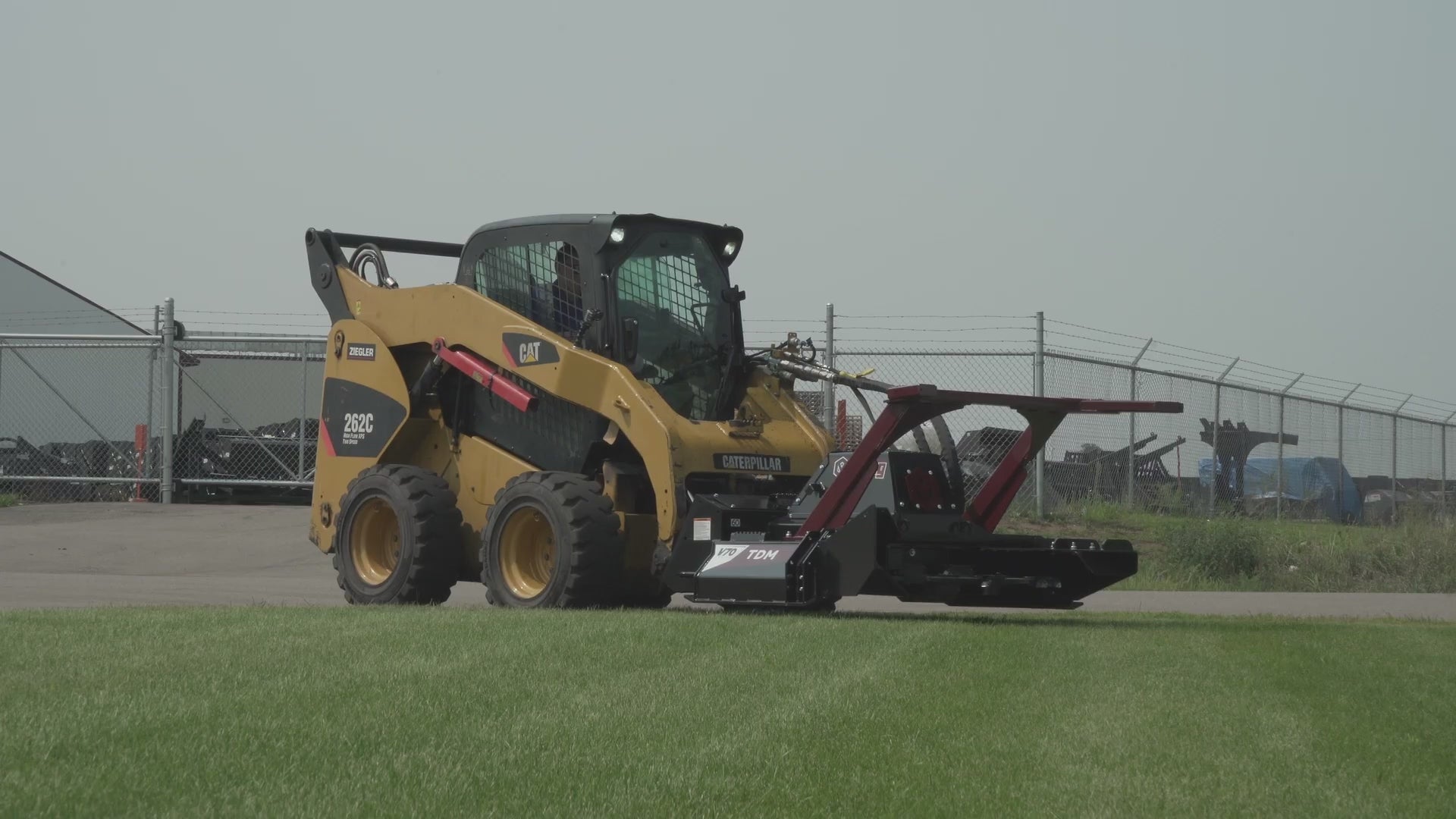

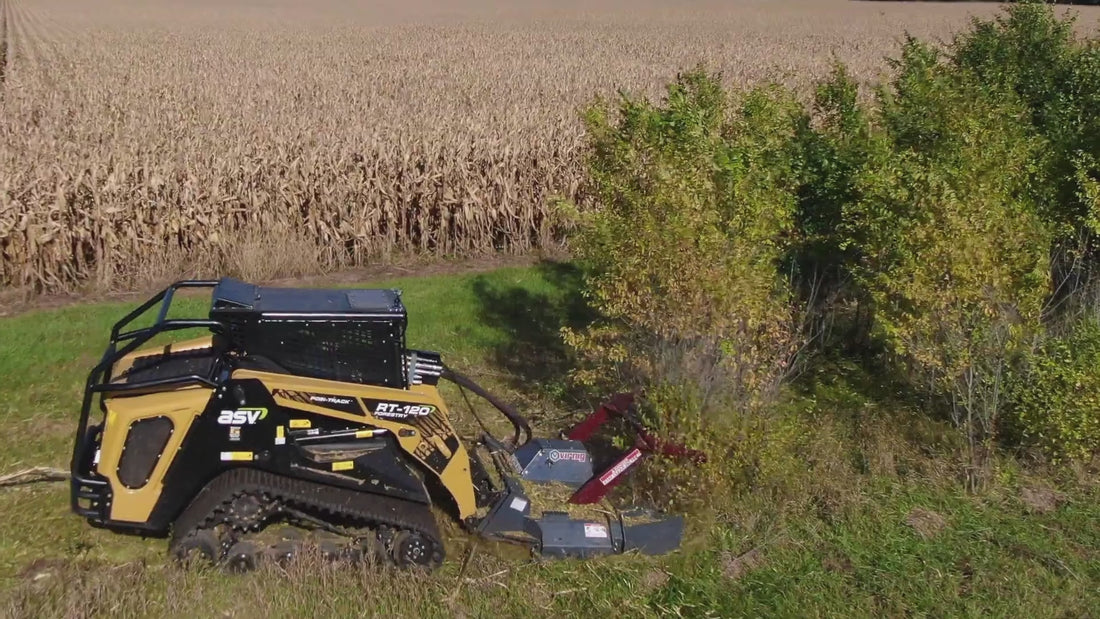

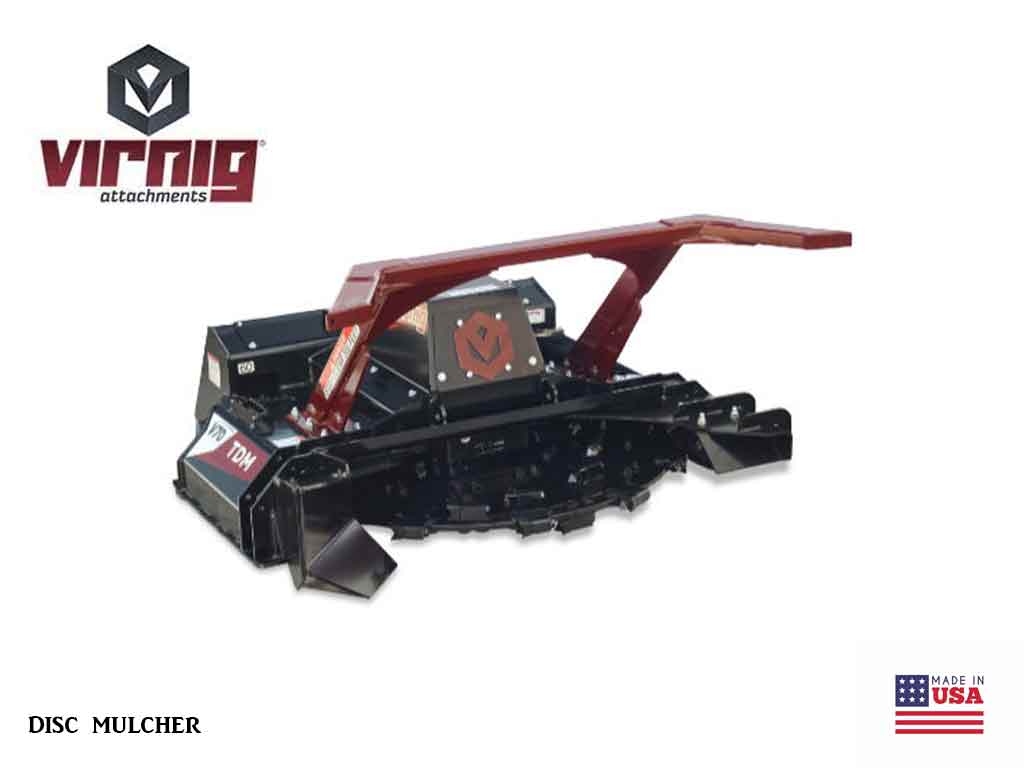

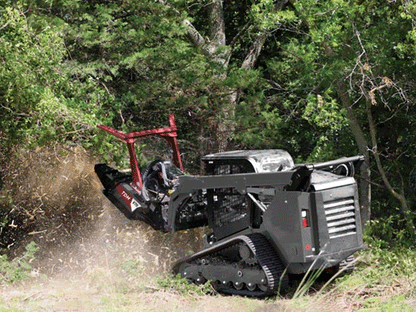

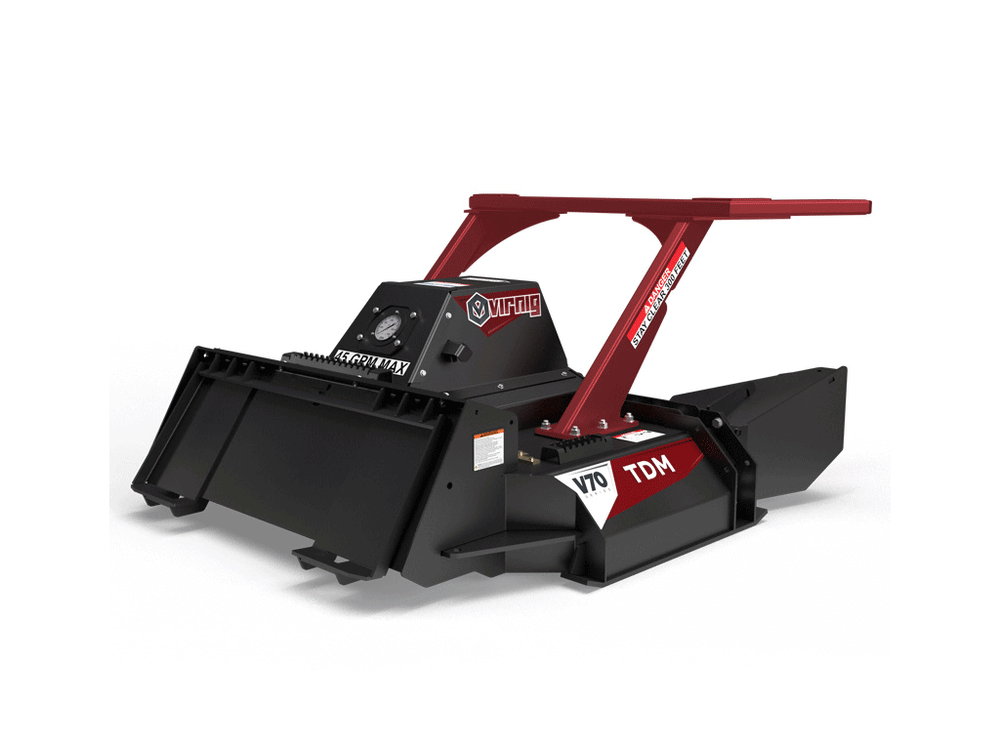

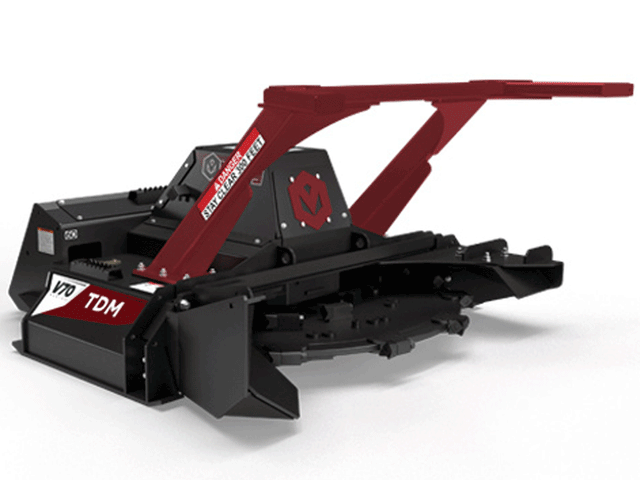

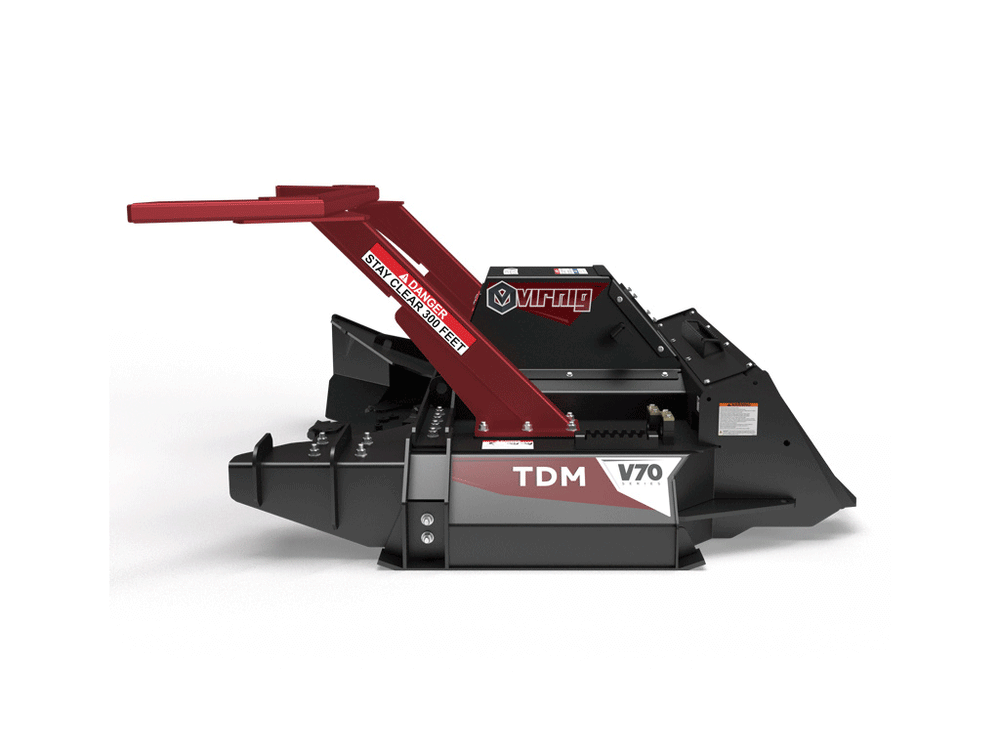

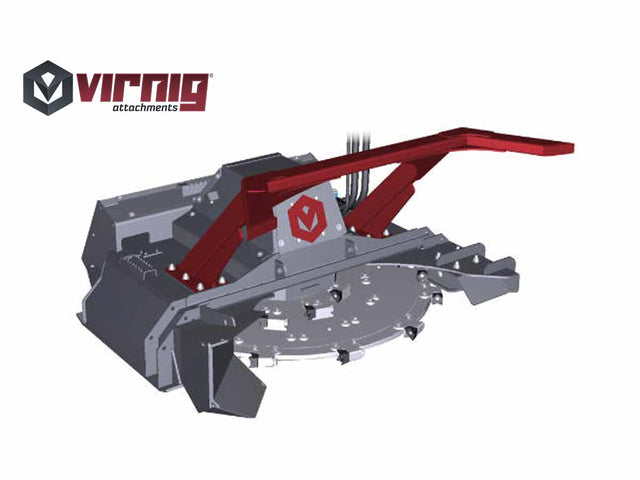

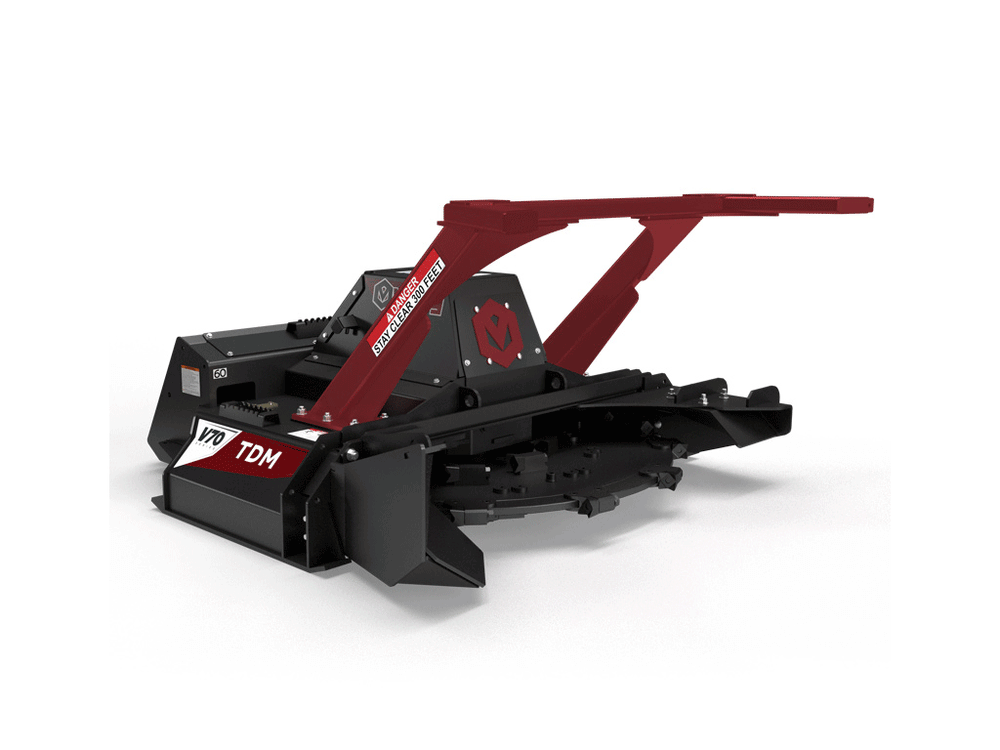

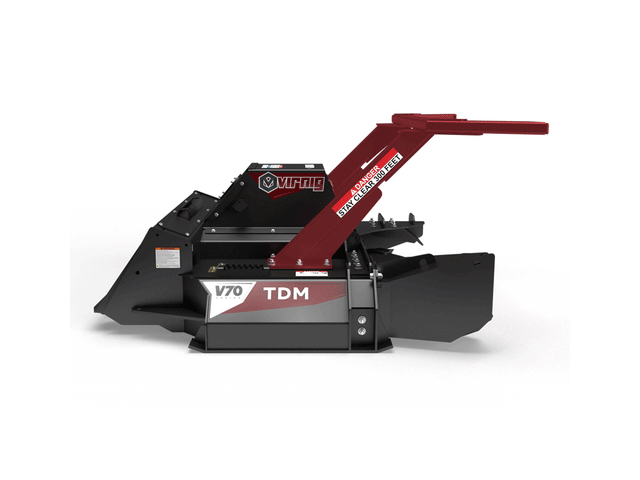

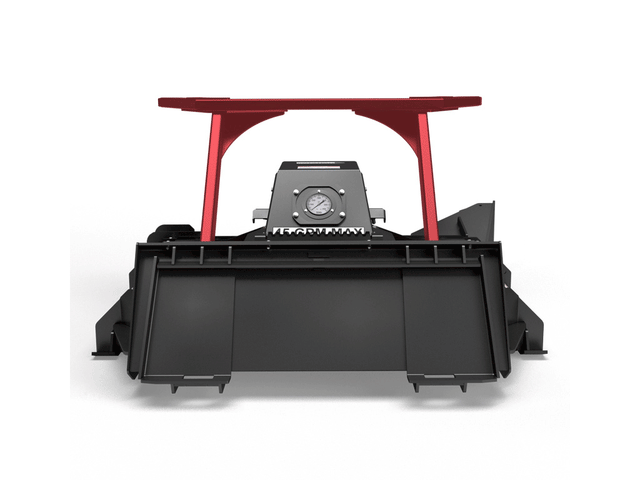

v70 Tree Disc Mulcher
PRODUCT CATEGORY: Skid Steer

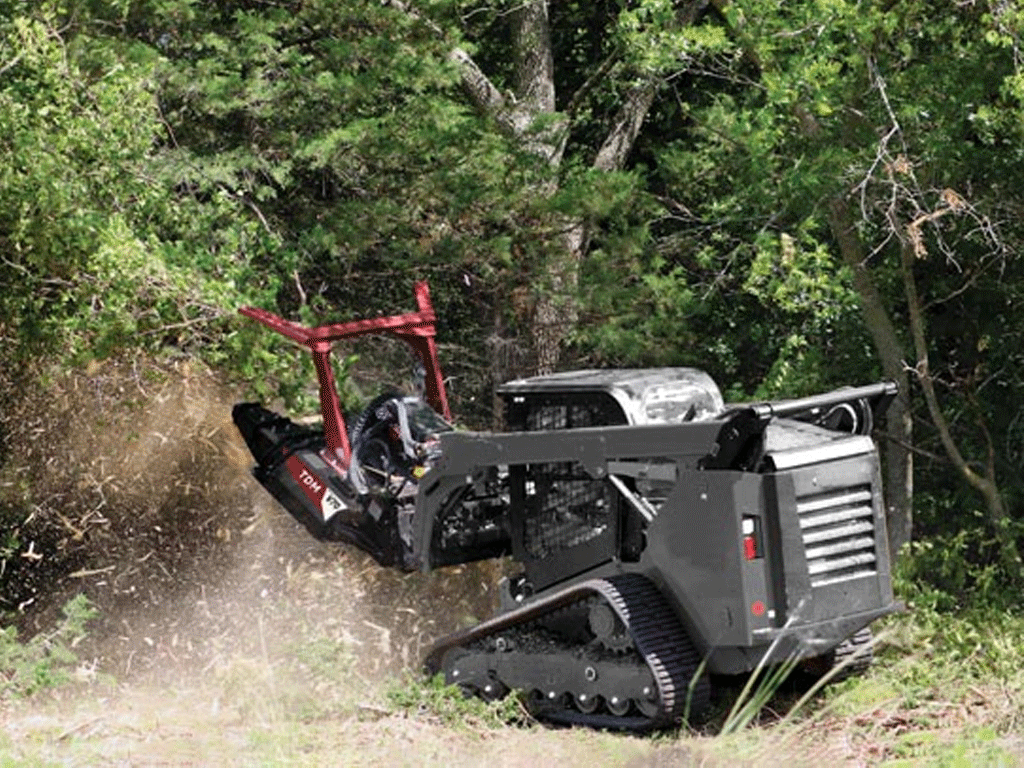

Efficiently mulch 6-8” diameter trees and quickly cut up to 14” diameter trees.
- BENT-AXIS PISTON MOTOR WITH RELIEF VALVES
- STANDARD MOTOR GUARD & SPINDLE GUARD

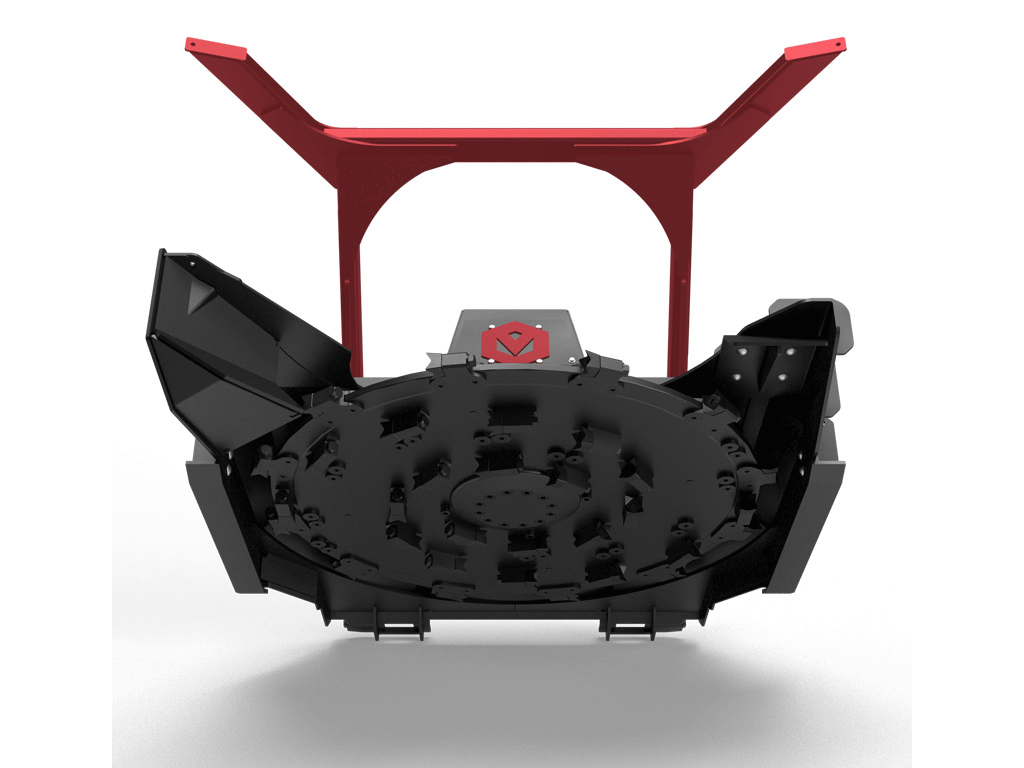

- 60″ FULLY-MACHINED PERFECTLY BALANCED QUADCO® DISC

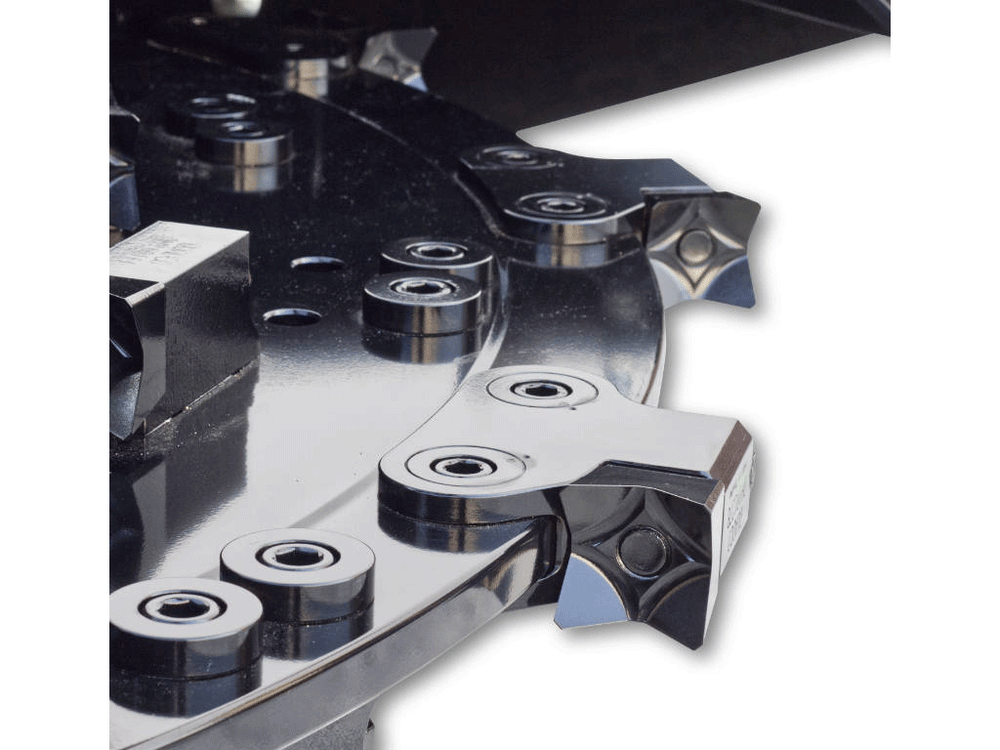

- BOLT-ON STEEL TOOTH MOUNTS WITH FOUR-SIDED ROTATABLE & REPLACEABLE TEETH (CARBIDE TEETH AVAILABLE)
- 3 DECK MOUNTED TEETH & RECUTTER BAR FOR A FINER FINISH
- 3/8″ GRADE 80 INTERIOR DECK WELDMENT
- REPLACEABLE PUSH BAR, CHUTE & DEFLECTOR

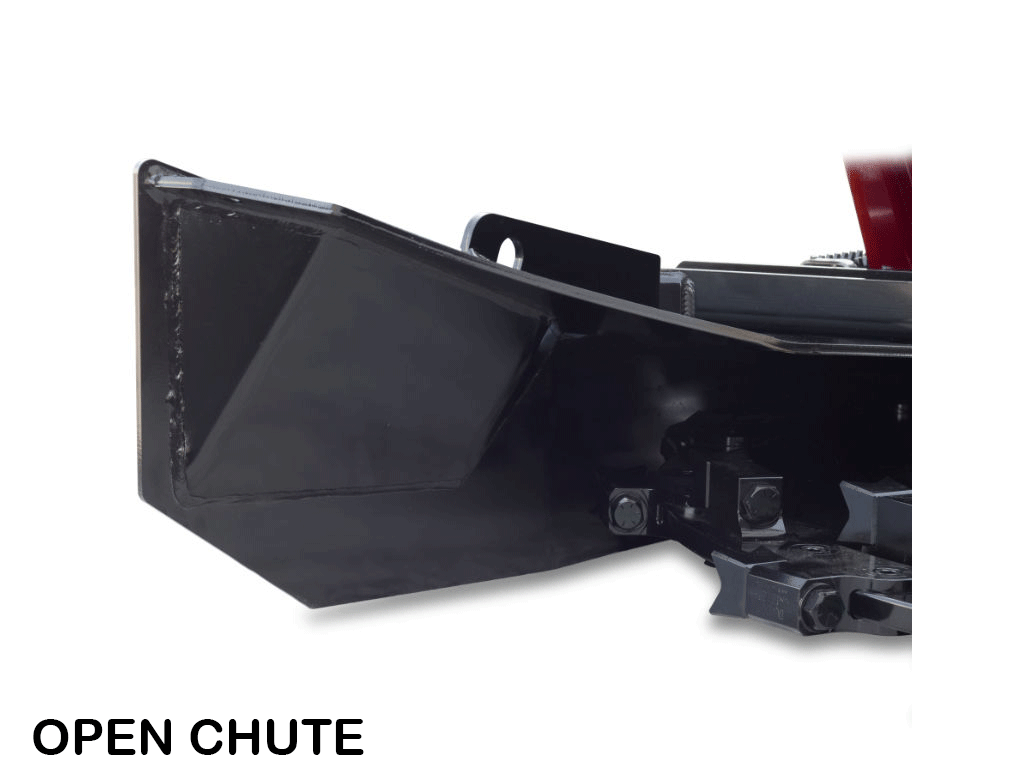

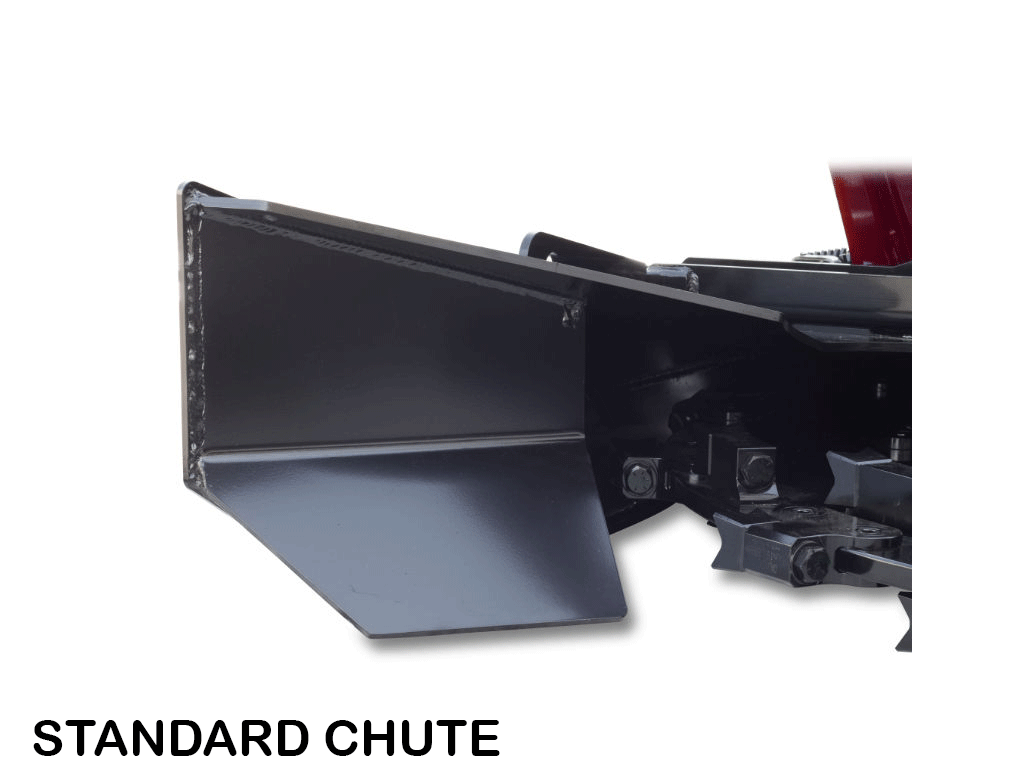

- TWO CHUTE STYLES Choose from two chute styles; standard or open. See options tab for details.
Requires a high flow loader with a flow rate of 30-50 GPM. Max operating pressure is 4,200 PSI. DO NOT OPERATE MULCHER WITHOUT A SHATTERPROOF CAB ON LOADER.
VIDEOS
SPECS
| MODEL | TDM60 |
| Cut Width (Inches) | 60.0 |
| Overall Width (Inches) | 70.0 |
| Overall Height (Inches) | 40.5 |
| Overall Depth (Inches) | 77.5 |
| Deck Height (Inches) | 11.0 |
| Push Bar Height (Inches) | 40.5 |
| Minimum Cut Height (Inches) | 2.1 |
| Cutting Capacity, Diameter (Inches) | 14.0 |
| Number of Teeth: Top / Bottom / Outside | 12 / 20 / 12 |
| Maximum Disc Thickness (Inches) | 1.25 |
| Deck Thickness: Top, Side / Inside (Inches) | 0.25 / 0.375¹ |
| Recommended Flow Rate (GPM) | 30-50 High Flow Only |
| Approximate Weight (Pounds) | 2710 |
| Recommended Loader Capacity | Greater than 2800 pounds |
*Inside Deck Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).
DISC TIP SPEEDS (FPM)
REQUIRES A HIGH FLOW LOADER WITH A FLOW RATE OF 30-50 GPM.
MAX OPERATING PRESSURE IS 4,200 PSI
| MODEL | 30 GPM | 35 GPM | 40 GPM | 45 GPM | 50 GPM | |||||
| TDM60-HF45 | 11,155 | 13,006 | 14,875 | 16,730 | – | |||||
| TDM60-HF50 | – | – | – | 14,810 | 16,460 | |||||
Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).
