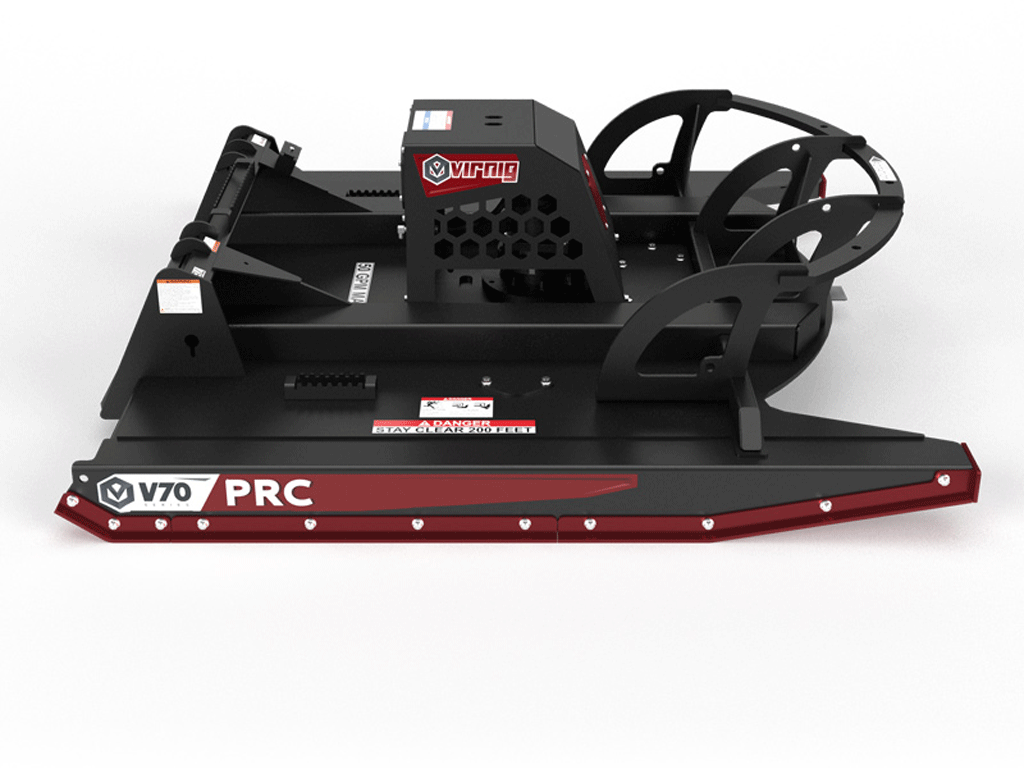

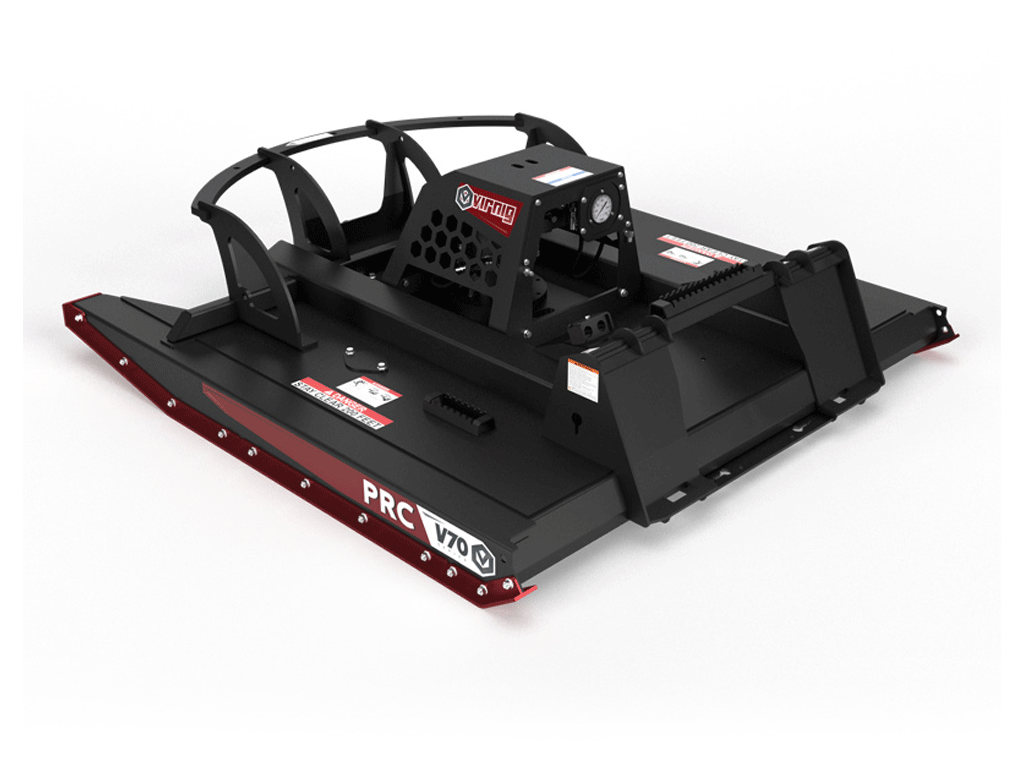

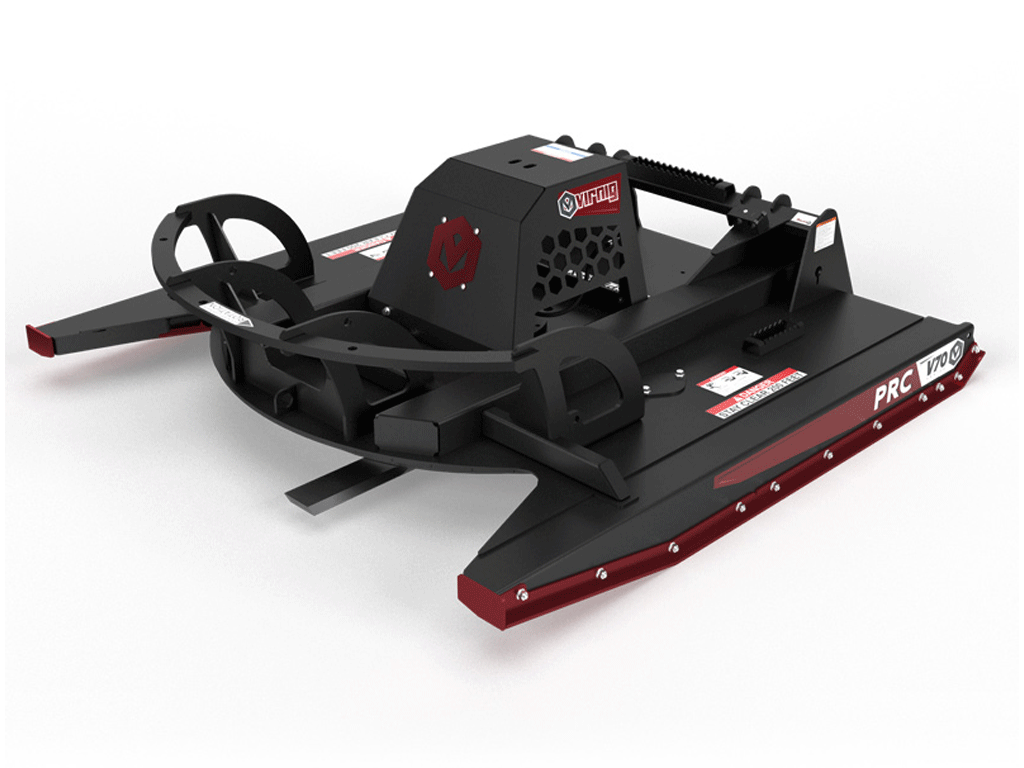

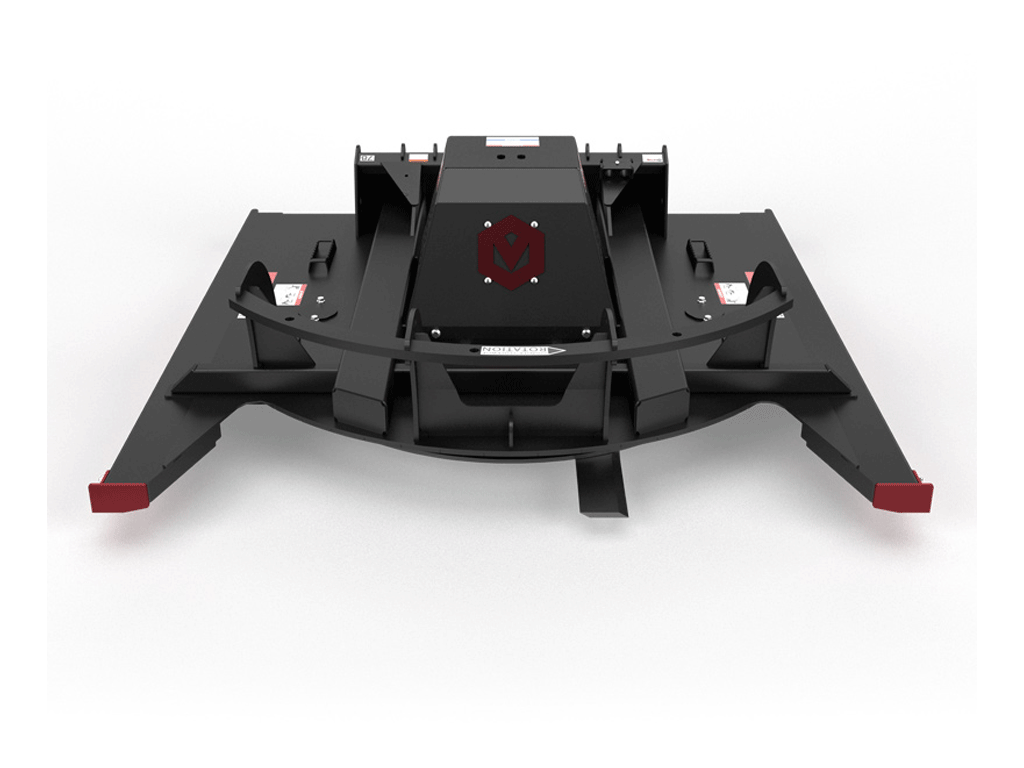

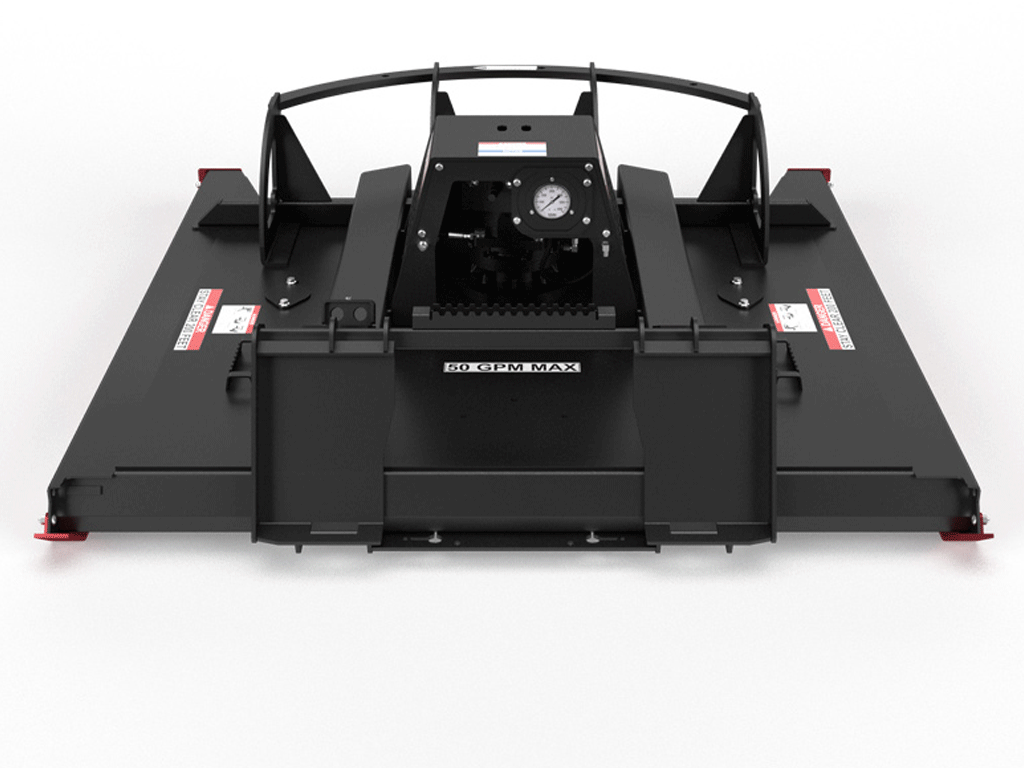

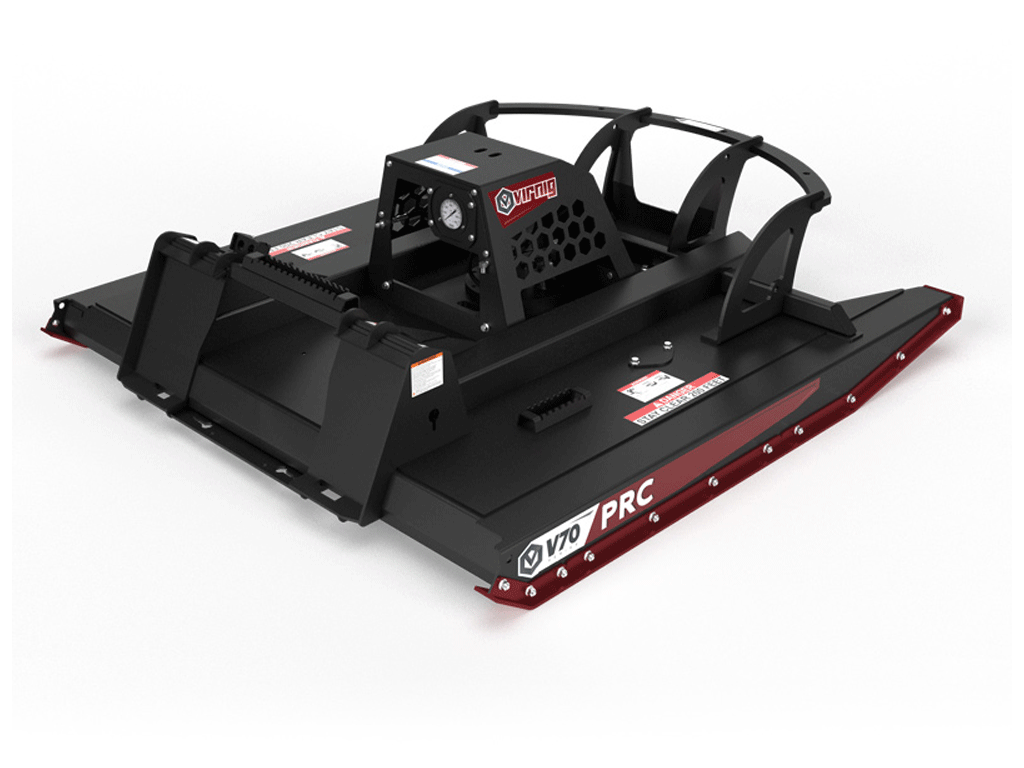

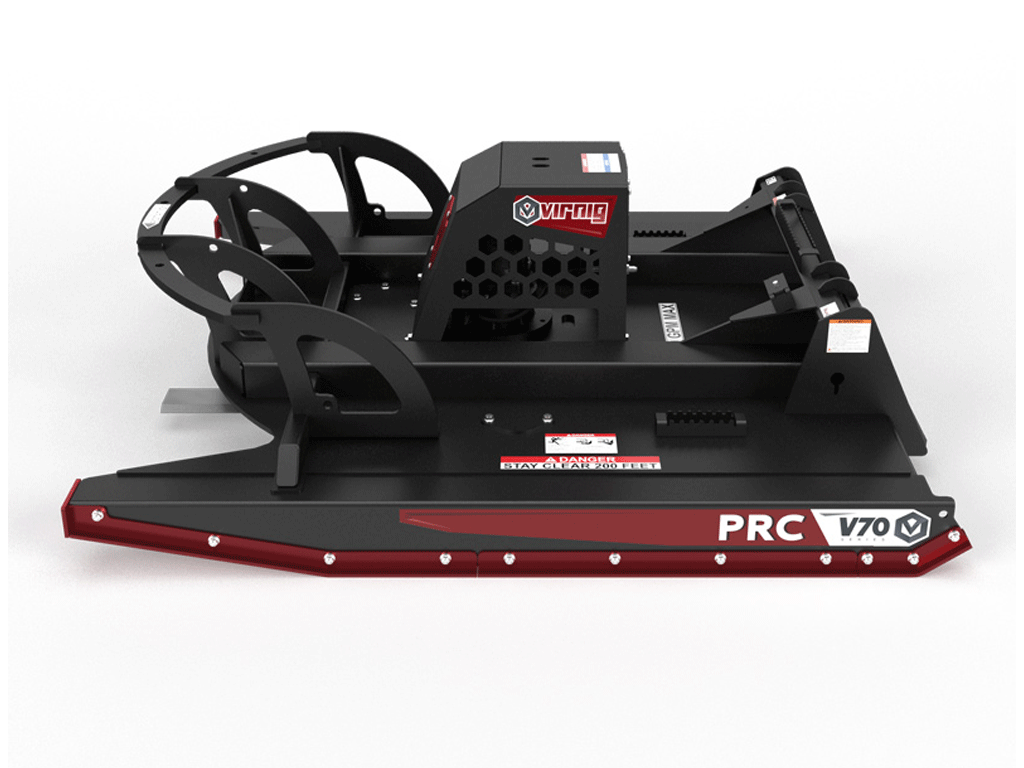

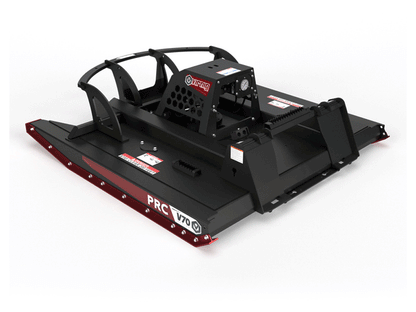

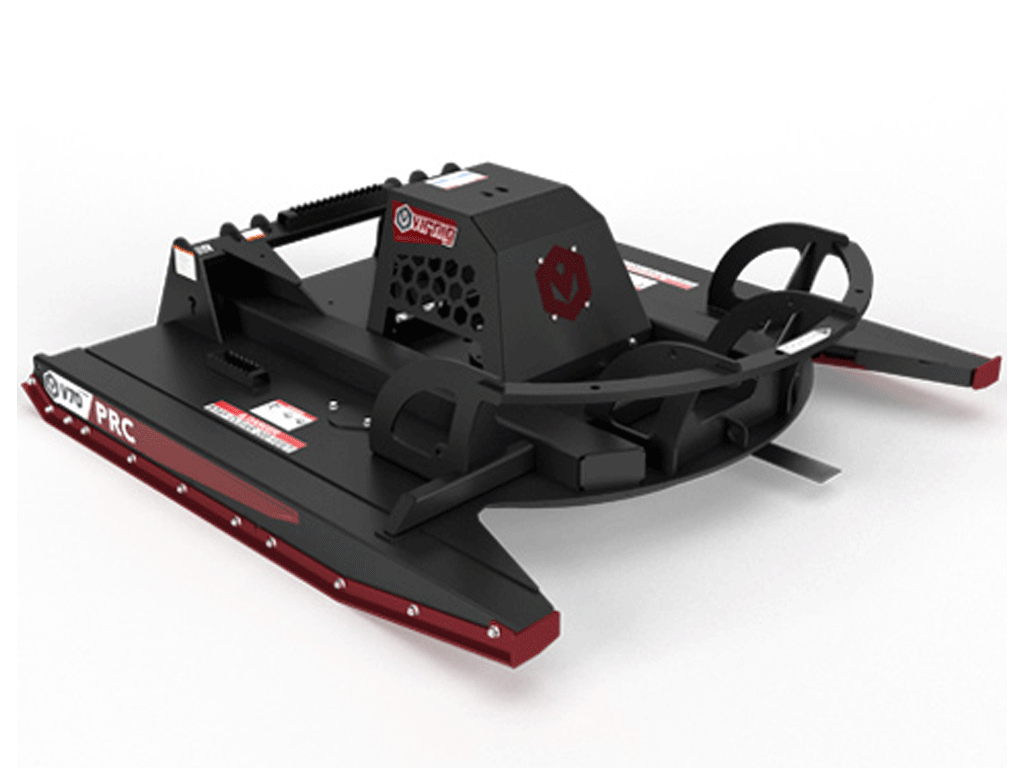

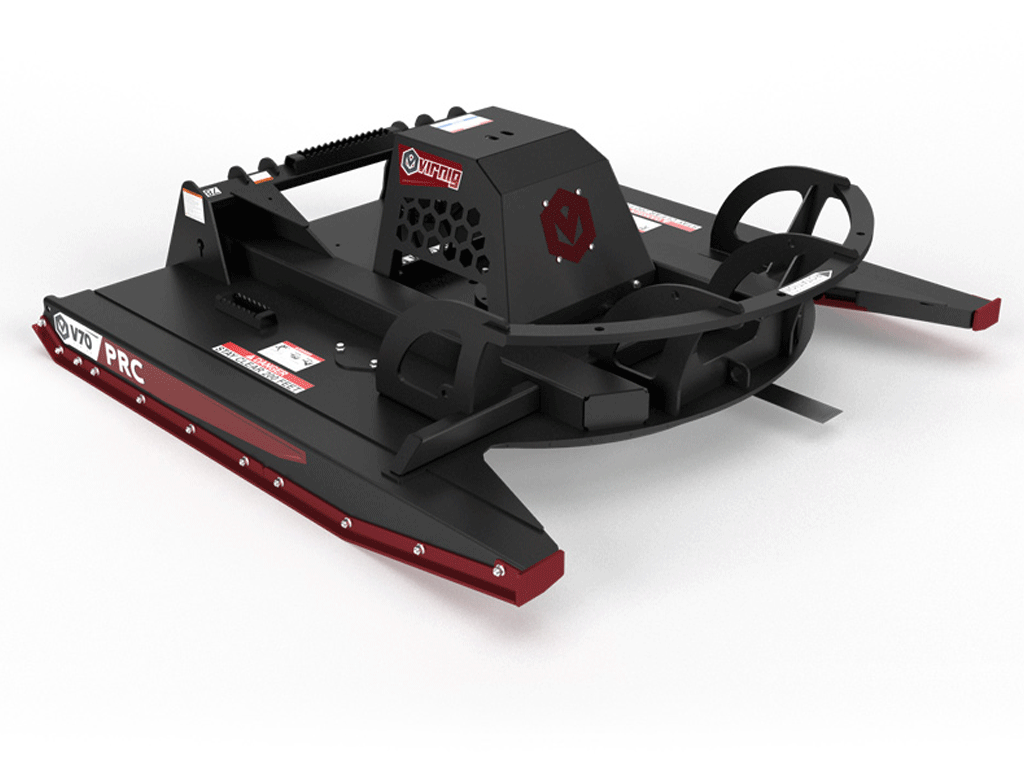

v70 Open Front Rotary Brush Cutter
PRODUCT CATEGORY: Forestry
Capable of cutting up to 8″ trees, this high performance brush cutter provides faster blade tip speed, quick spin up, and rapid recovery.
- BENT-AXIS PISTON MOTOR WITH RELIEF VALVES ENSURES RAPID FLYWHEEL SPIN UP & RECOVERY, REACHING FULL SPEED IN 13 SECONDS
- STANDARD MOTOR GUARD & SPINDLE GUARD

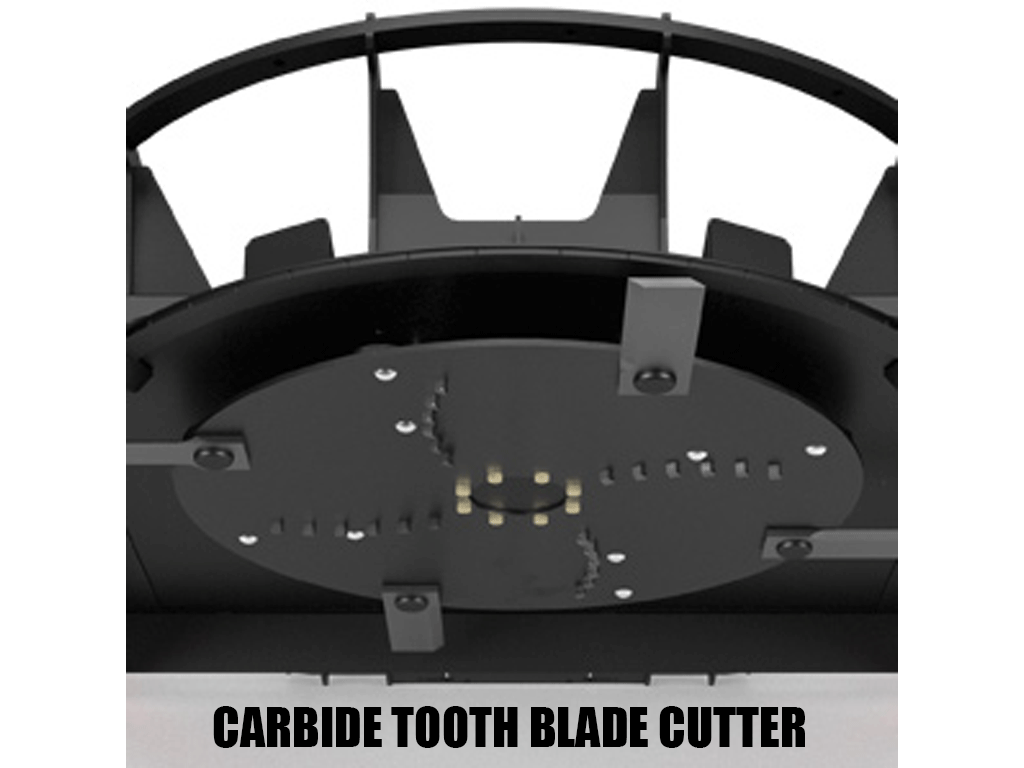

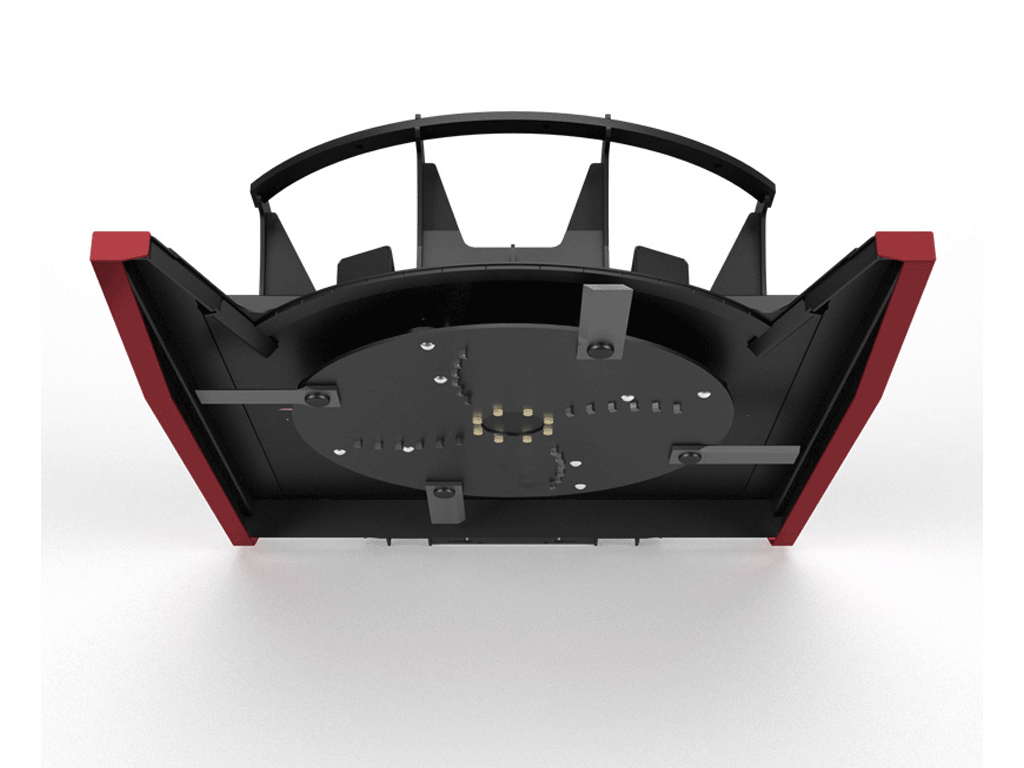

- CIRCULAR FLYWHEEL WITH 4 DOUBLE-SIDED BLADES BOUNCES OFF STUMPS
- REPLACEABLE AR400 FRONT SKID SHOES & BOLT-ON AR400 BOTTOM DECK RUNNERS
- SPINDLE LOW PRESSURE OIL VENT SAFEGUARDS BEARING ADAPTER SEALS IF MOTOR SEALS FAIL
- CASE DRAIN CONNECTION INDICATOR PROVIDES VISUAL CONFIRMATION OF FUNCTIONING CASE DRAIN
DO NOT OPERATE CUTTER WITHOUT A SHATTERPROOF CAB ON LOADER.
NO HYDRAULIC BRAKING – FLYWHEEL MAY TAKE MINUTES TO COME TO A COMPLETE STOP.
SPECS
| MODEL | PRC72 | PRC78 | PRC84 | |
| Cut Width (Inches) | 72.0 | 78.0 | 84.0 | |
| Overall Width (Inches) | 78.0 | 84.0 | 90.0 | |
| Overall Height (Inches) | 20.1 | |||
| Overall Depth (Inches) | 80.3 | 86.3 | 92.3 | |
| Deck Height (Inches) | 8.3 | |||
| Push Bar Height (Inches) | 23.4 | |||
| Cut Height (Inches) | 2.3 | |||
| Cutting Capacity, Diameter (Inches) | 8.0 | |||
| Number of Teeth (Optional) | 20 | 24 | 28 | |
| Deck Thickness: Top / Side (Inches) | 0.25¹ | |||
| Recommended Flow Rate (GPM) | 30-50 High Flow Only | |||
| Approximate Weight (Pounds) | 2155 | 2315 | 2490 | |
| Recommended Loader Capacity | Greater than 2200 pounds | |||
¹Deck Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
BLADE TIP SPEEDS (FPM)
HIGH FLOW (30-39 GPM) MODELS
| MODEL | 30 GPM Minimum | 39 GPM Maximum | ||
| PRC72-HF39 | 13,465 | 17,505 | ||
| PRC78-HF39 | 14,580 | 18,955 | ||
| PRC84-HF39 | 15,695 | 20,405 | ||
HIGH FLOW (39-50 GPM) MODELS
| MODEL | 39 GPM Minimum | 50 GPM Maximum | ||
| PRC72-HF50 | 15,530 | 19,910 | ||
| PRC78-HF50 | 16,820 | 21,560 | ||
| PRC84-HF50 | 18,105 | 23,210 | ||
Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).
