DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- STANDARD CYLINDER GUARD

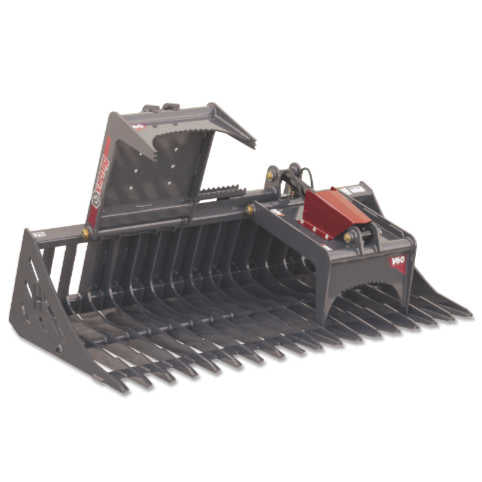

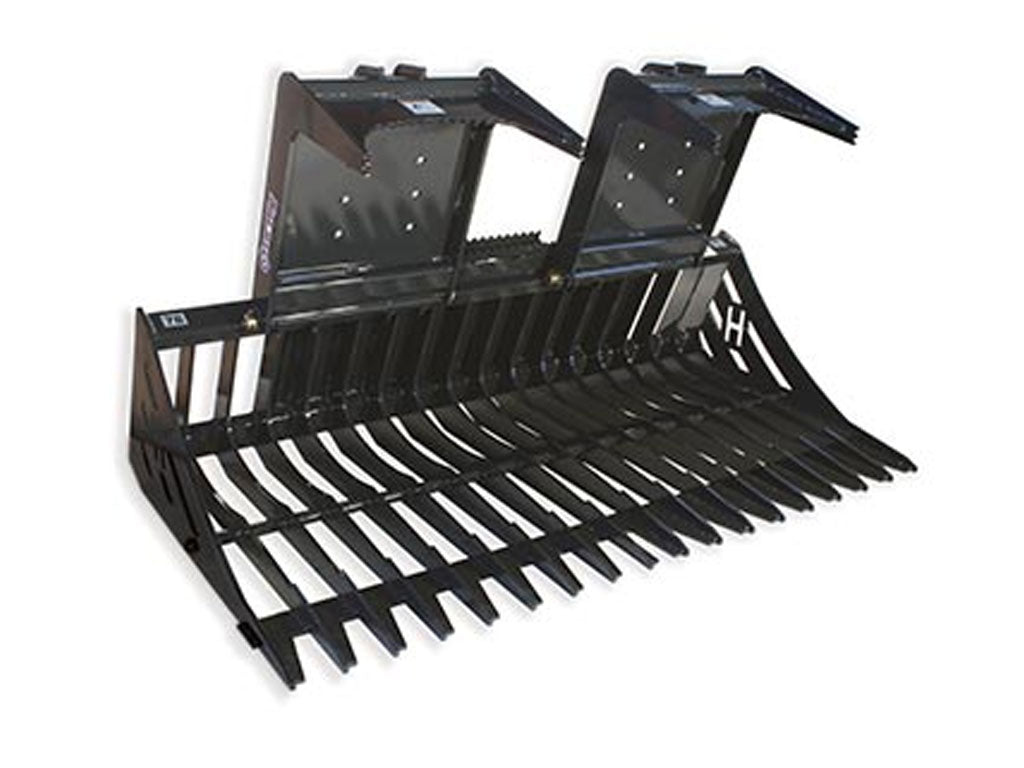

This type of skid steer grapple has two, individual jaws with separate cylinders. Each jaw works independent of the other. The hydraulic system allows operators to securely clamp debris that has uneven surfaces while keeping consistent pressure on the entire load. Independent grapples keep oddly-sized objects tightly secured in the skid steer bucket during transport.
Two-cylinder independent grapple with 4” tine spacing designed to pick rocks and debris and leave dirt behind.
- Every tine is constructed from one piece of 1/2ˮ Grade 80 steel, from tip to top brace, to add rigidity.
- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Machine specific hydraulic package to protect hose routing.
- Removable bolt on step made of durable, laser cut steel in an aggressive pattern.

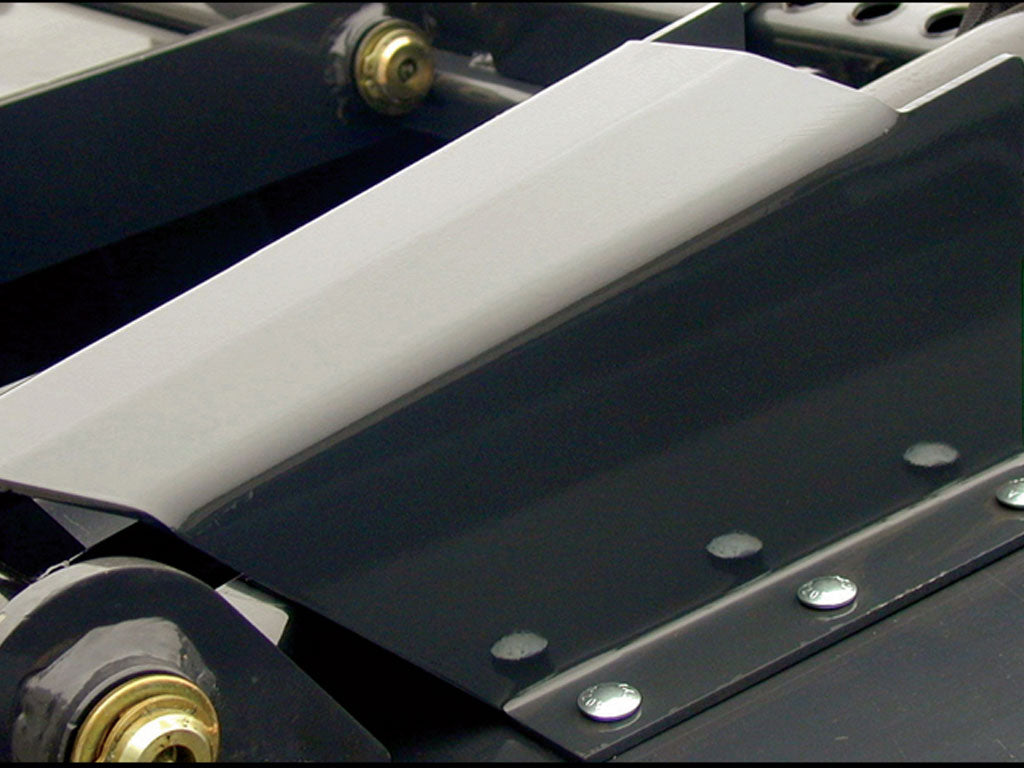

- Standard with cylinder guards.
- Optional open sides.
SPECIFICATIONS
- Recommended loader capacity - Greater than 1800 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
| Model | HSRGV72 | HSRGV78 | HSRGV84 | HSRGV90 |
| Overall Width (in) | 73.5 | 79.5 | 85.5 | 91.5 |
| Depth (in) | 42.9 | 42.9 | 42.9 | 42.9 |
| Height: Overall / Bucket (in) | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 |
| Grapple Jaw Opening (in) | 36.1 | 36.1 | 36.1 | 36.1 |
| Number of Tines | 17 | 18 | 20 | 21 |
| Space Between Tines | 4.0 | 4.1 | 3.9 | 4.0 |
| Weight (lbs) | 1080 | 1115 | 1170 | 1205 |
