Description
DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- CYLINDER GUARDS STANDARD

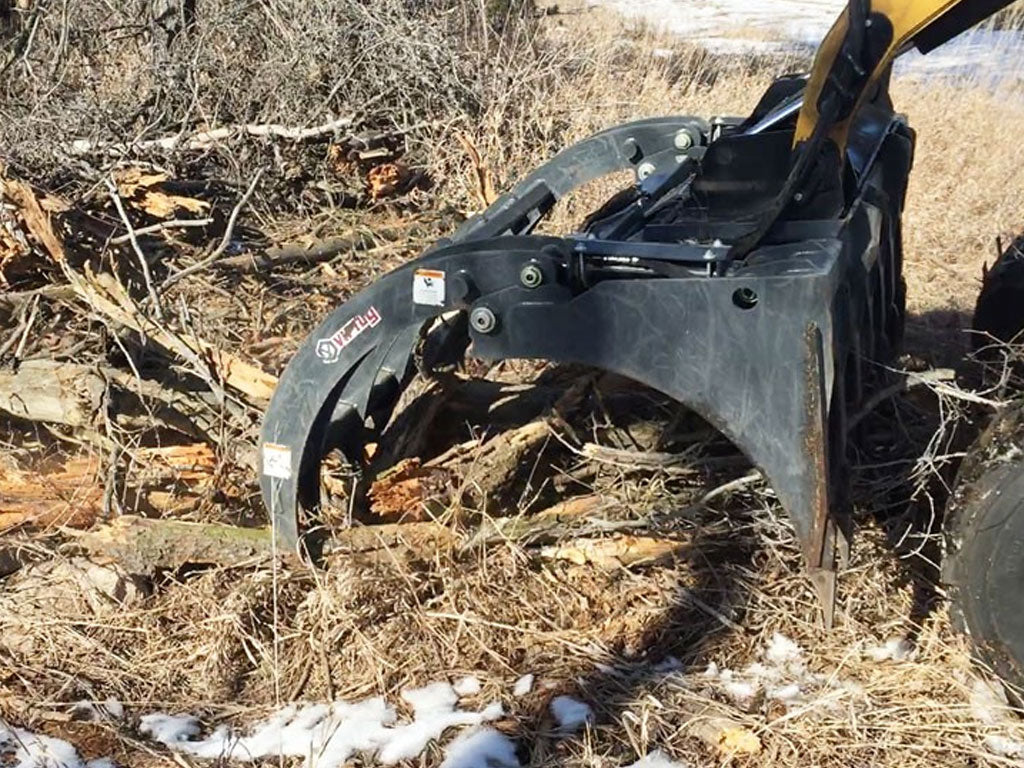

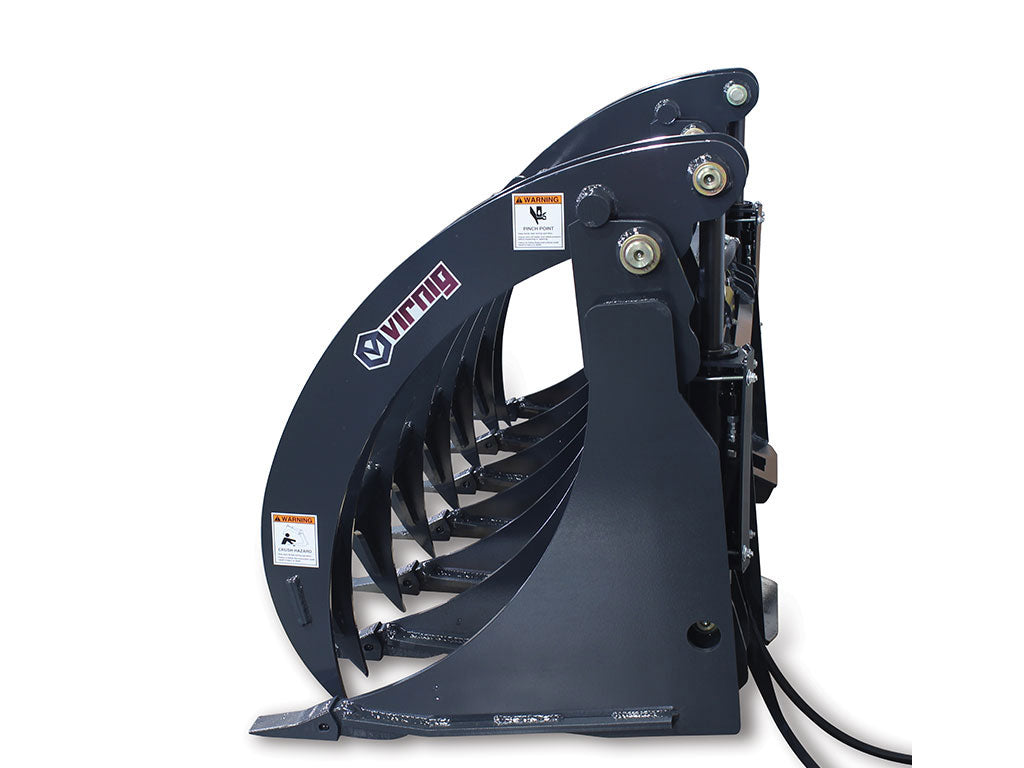

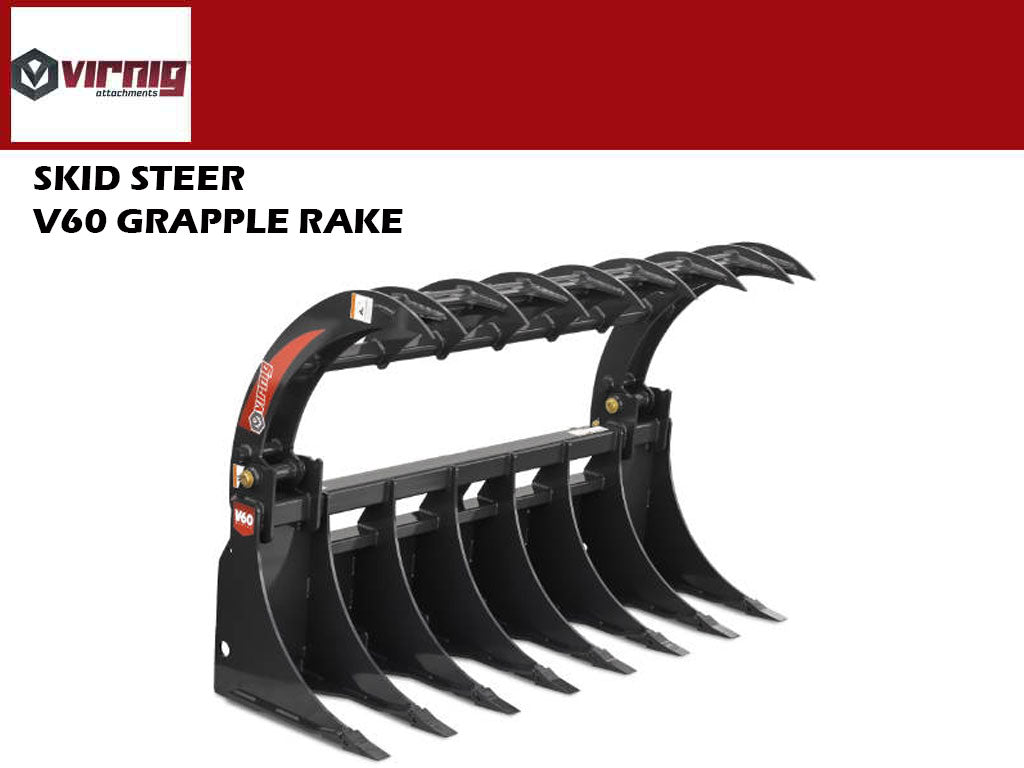

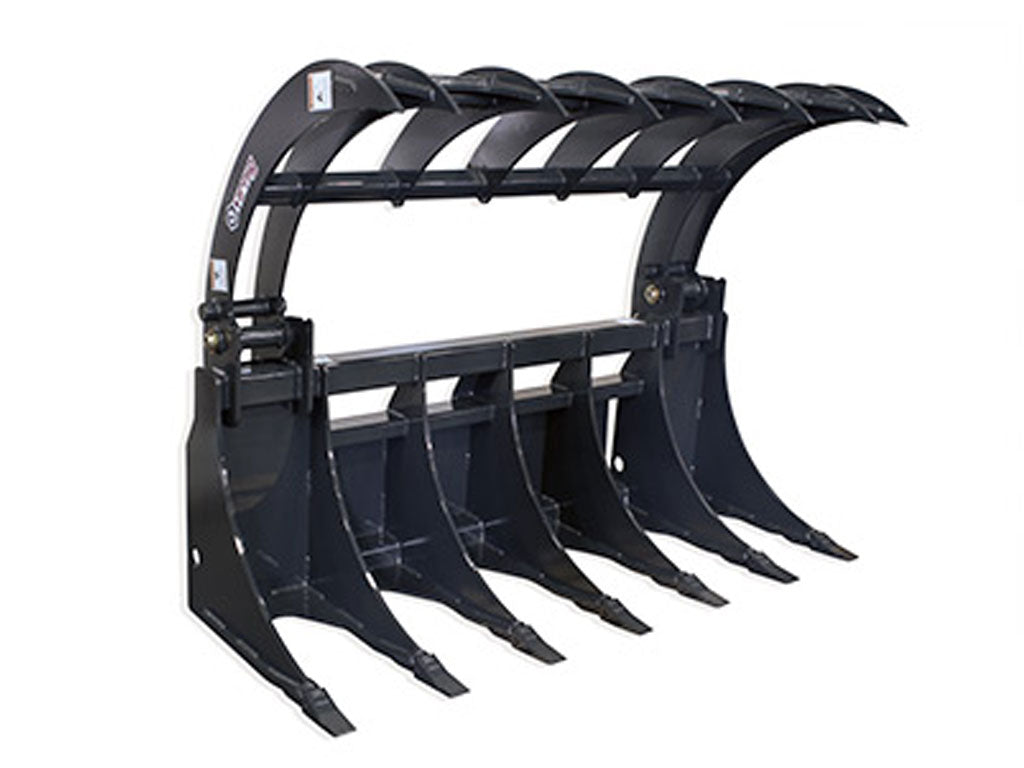

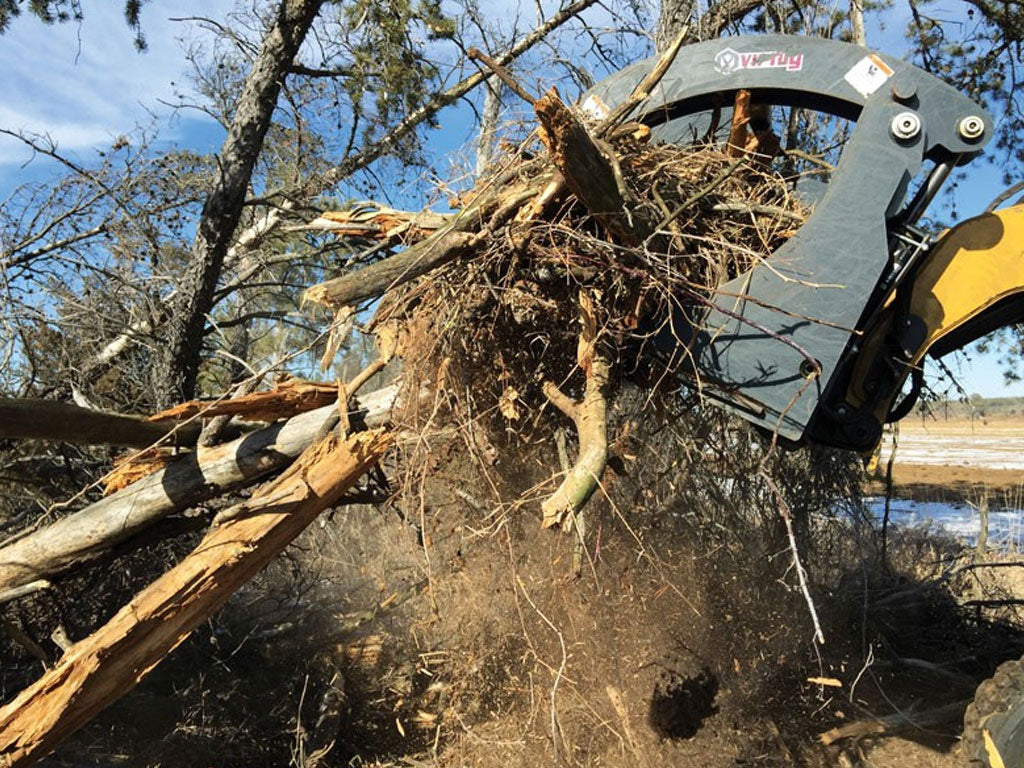

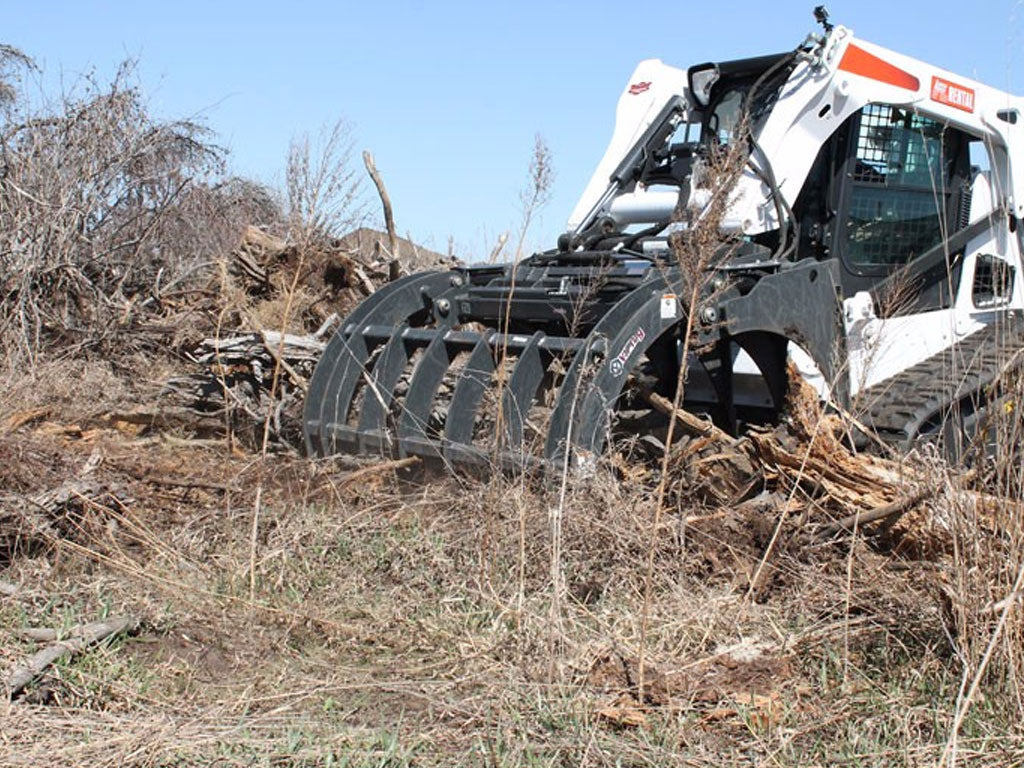

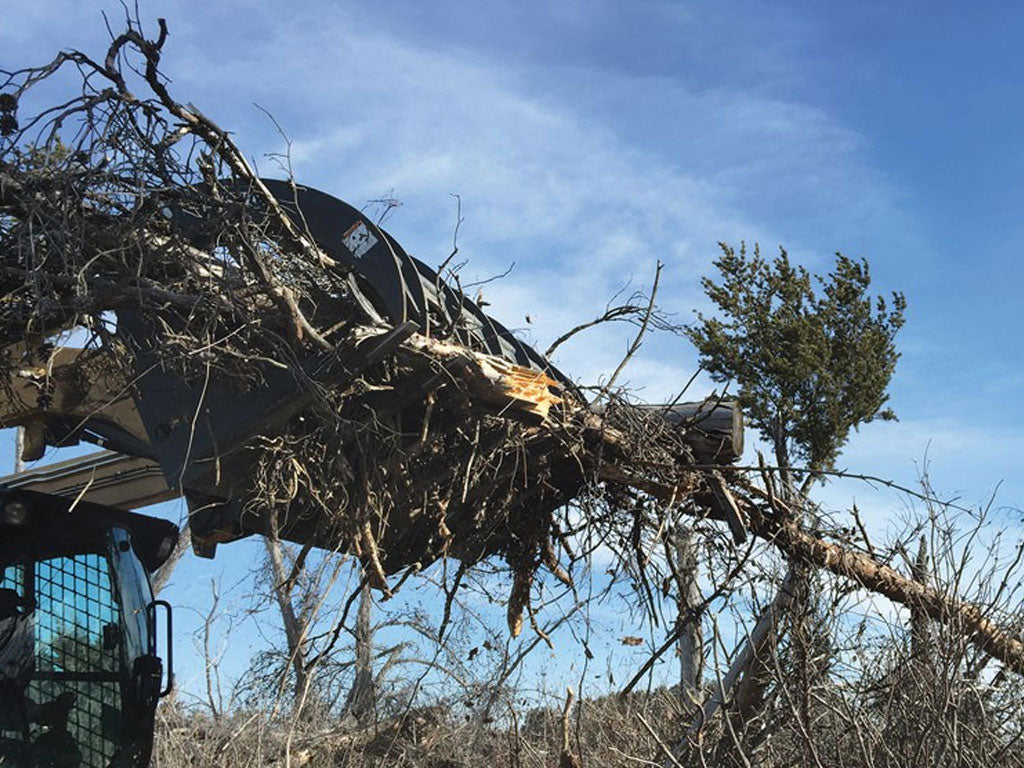

The V60 Root Rake Grapple is equipped with two position hard stops in the fully open and closed position. This feature prevents stress and damage to the cylinders when back dragging or clamping on a load. The V50 Root Rake Grapple doesn’t have the hard stop feature.

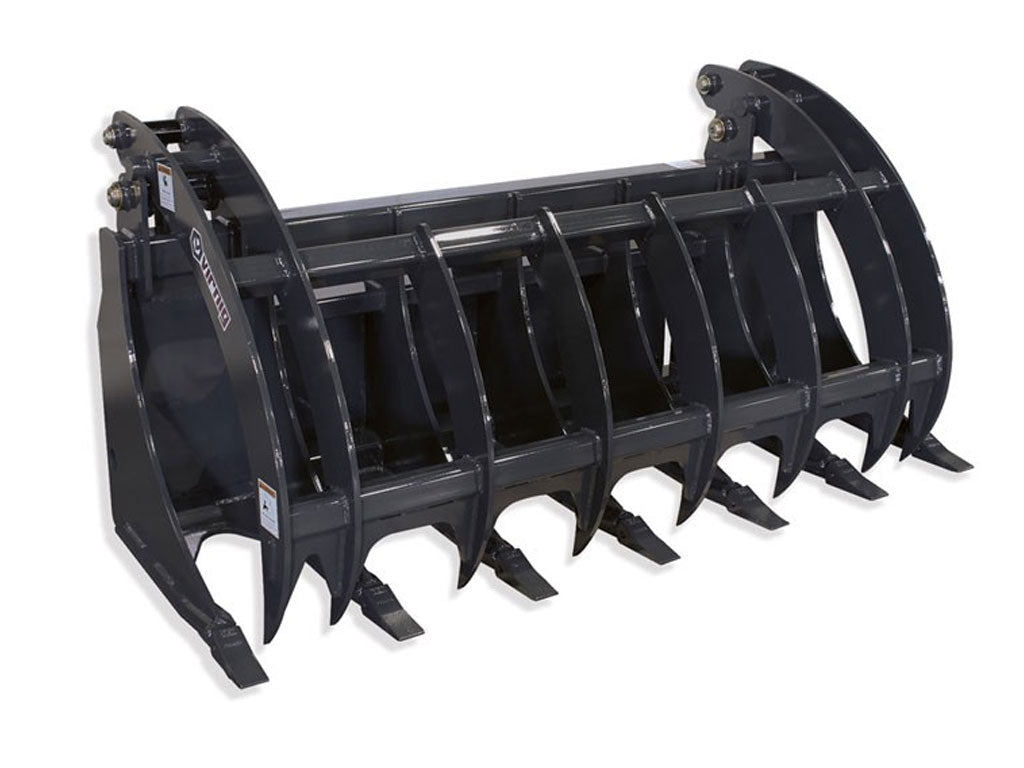

Cast, pin-on teeth allow the V60 Root Rake Grapples to cut deep into and underneath roots and piles of branches for optimal brush removal. Additionally, teeth have a long wear life and can easily be replaced.

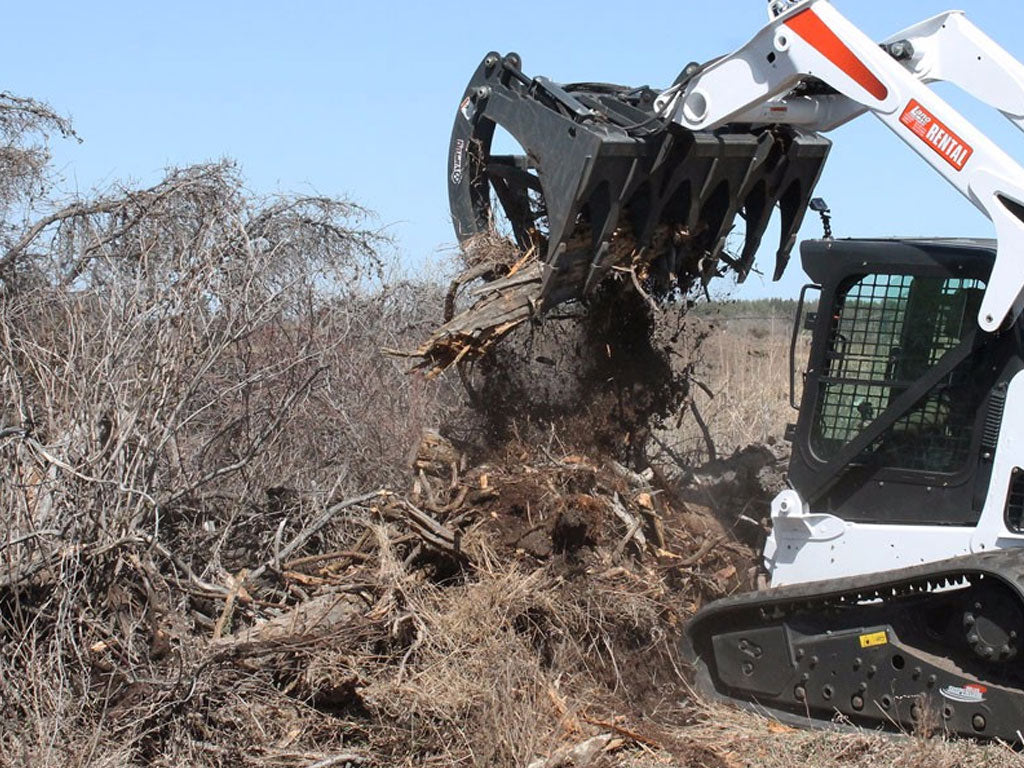

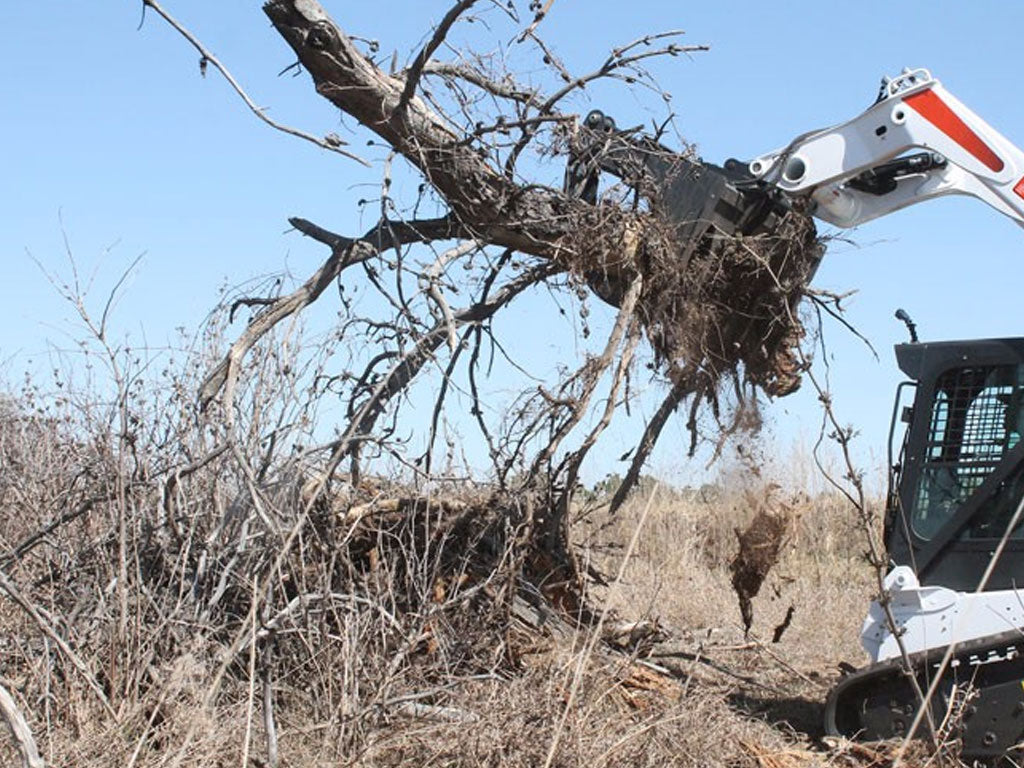

Two-cylinder, single jaw grapple for digging, raking, piling and loading debris.

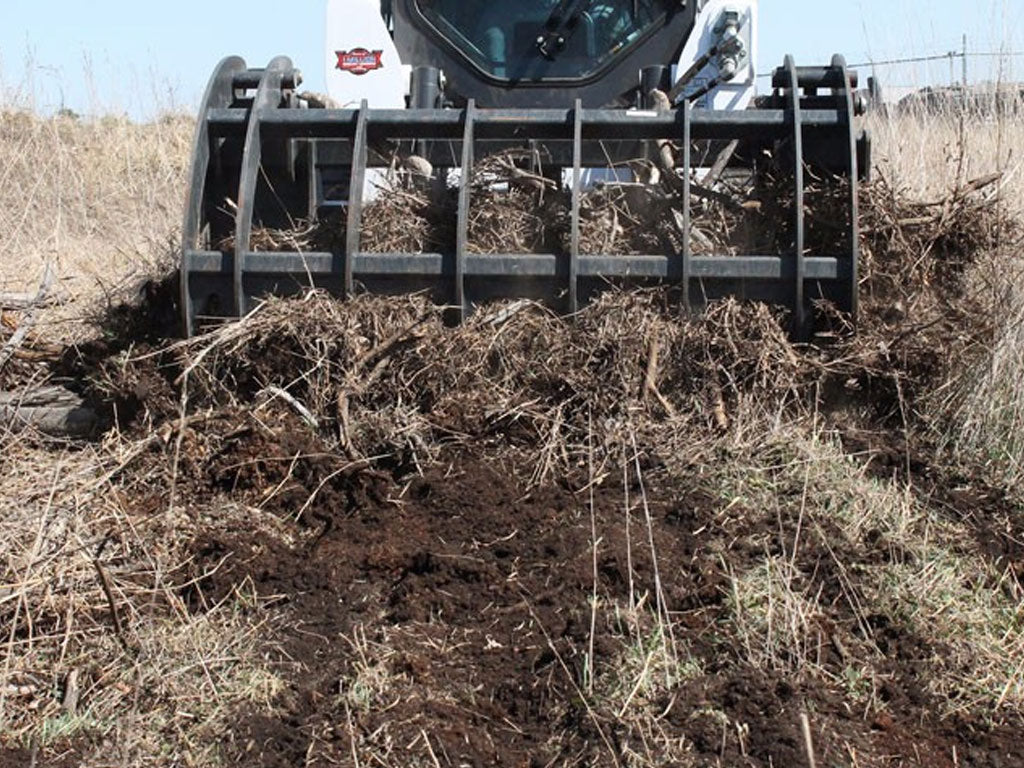

- Unique design allows efficient forward and reverse operation to drag loose material into piles.
- Heavy-duty jaw and rake tines constructed from 1/2″ Grade 80 steel.
- 50.3” grapple jaw opening to haul large amounts of brush per load.
- Series 23 replaceable cast teeth.
- 2 1/2ˮ bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Machine specific hydraulic package to completely protect hose routing.
Known clearance issue with RRG72 on Takeuchi track loaders and John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
SPECS
- Recommended loader capacity - Greater than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.5 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
| Model | 72" | 78" | 84" |
| Overall Width (in) | 74.5 | 80.5 | 86.5 |
| Depth (in) | 31.6 | 31.6 | 31.6 |
| Height: Overall / Bucket (in) | 38.3 / 29.7 | 38.3 / 29.7 | 38.3 / 29.7 |
| Grapple Jaw Opening (in) | 53.7 | 53.7 | 53.7 |
| Number of Teeth | 7 | 7 | 8 |
| Space Between Teeth | 9.8 | 10.8 | 9.8 |
| Weight (lbs) | 1175 | 1230 | 1315 |
The V60 series was designed and constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
