Description
DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- CYLINDER GUARDS STANDARD

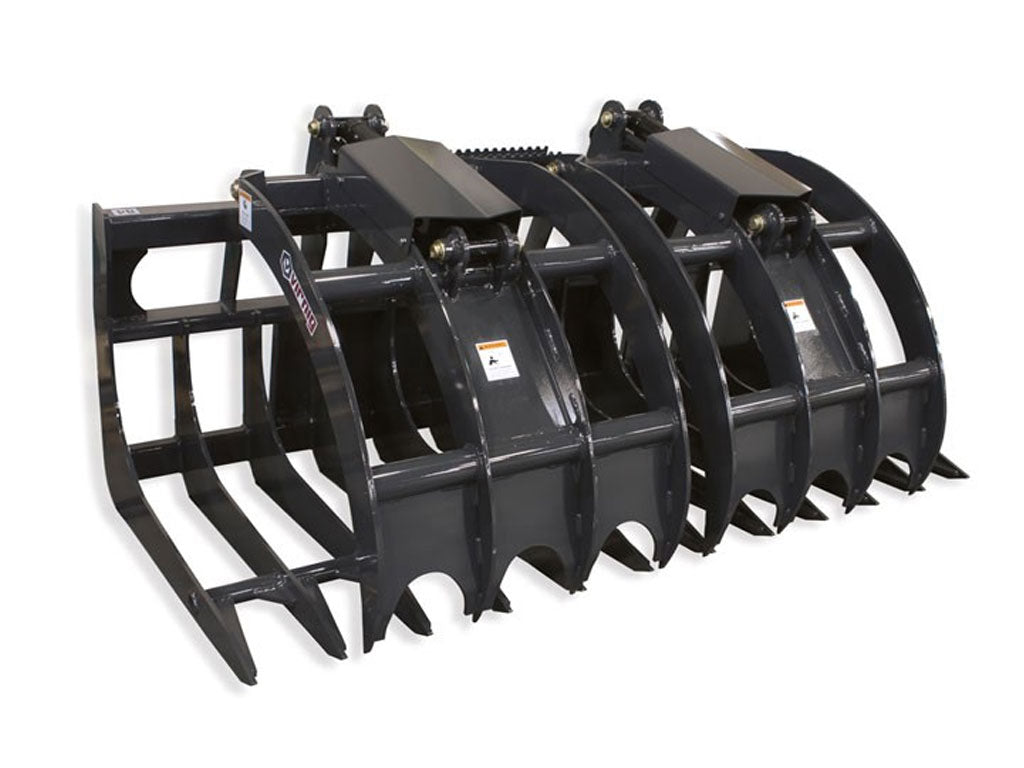

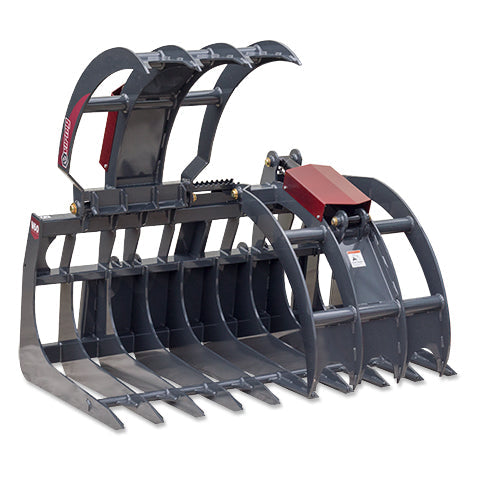

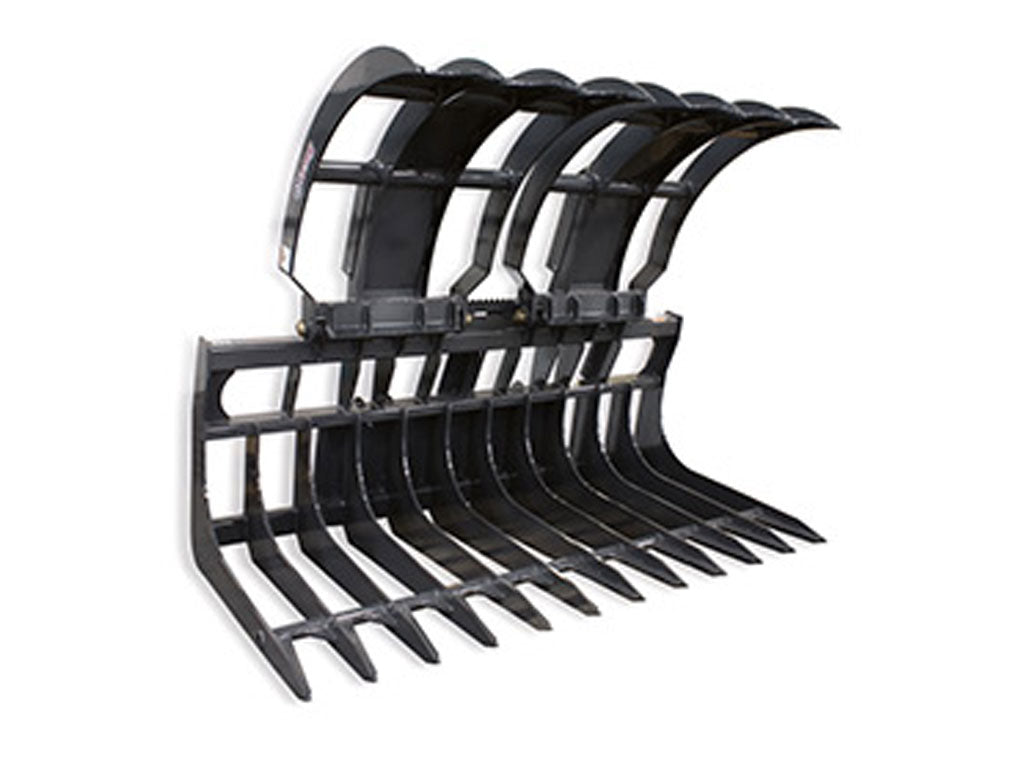

Two-cylinder independent grapple opens over 5 feet for large jobs.
- Massive independent jaws open over five feet to handle large brush and debris.
- Heavy-duty 1/2″ Grade 80 steel tines and 1/2″ Grade 50 steel jaw tines.
- Open back gives excellent visibility.
- 2 1/2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” cylinder pins.
- Fully gusseted tine tips for added strength.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Machine specific hydraulic package to completely protect hose routing.
- Standard with Cylinder Guards
SPECIFICATIONS
- Recommended loader capacity - Greater than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.5 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
| Model | 72" | 84" |
| Overall Width (in) | 73.0 | 85.0 |
| Depth (in) | 46.0 | 46.0 |
| Height: Overall / Bucket (in) | 42.5 / 33.0 | 42.5 / 33.0 |
| Grapple Jaw Opening (in) | 62.8 | 62.8 |
| Number of Tines | 10 | 12 |
| Space Between Tines | 7.5 | 7.1 |
| Weight (lbs) | 1585 | 1690 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
The V60 series was designed and constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
