DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

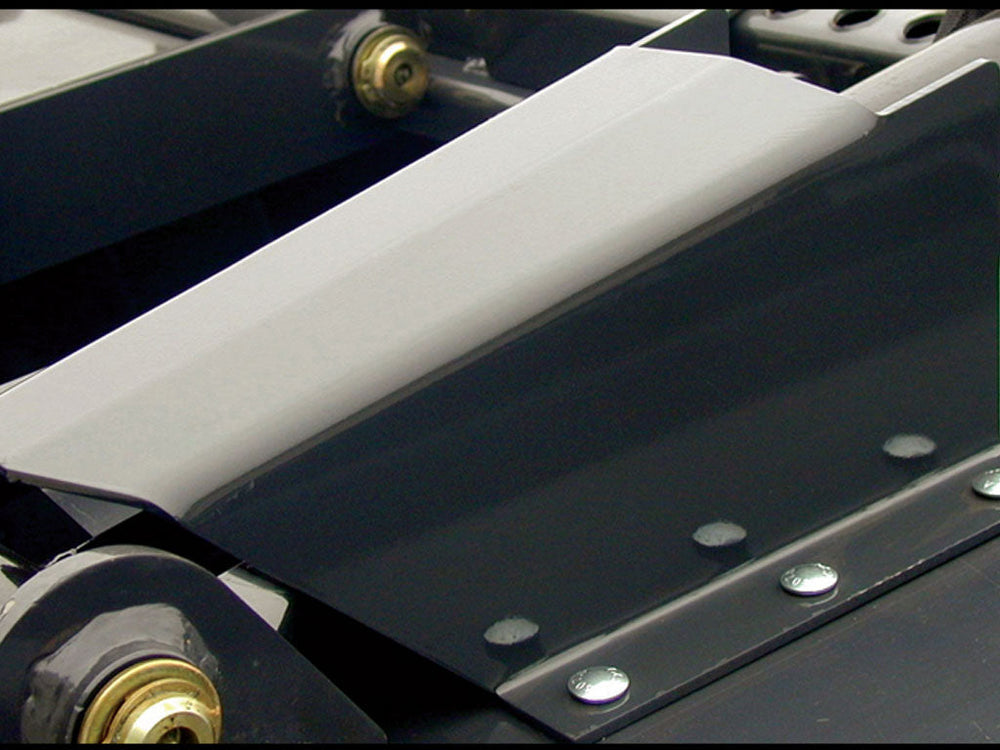

- STANDARD CYLINDER GUARD

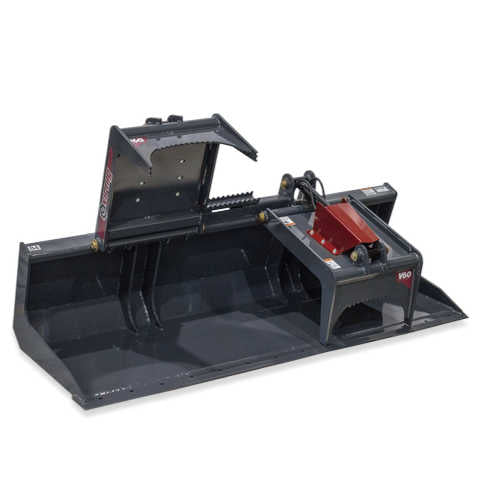

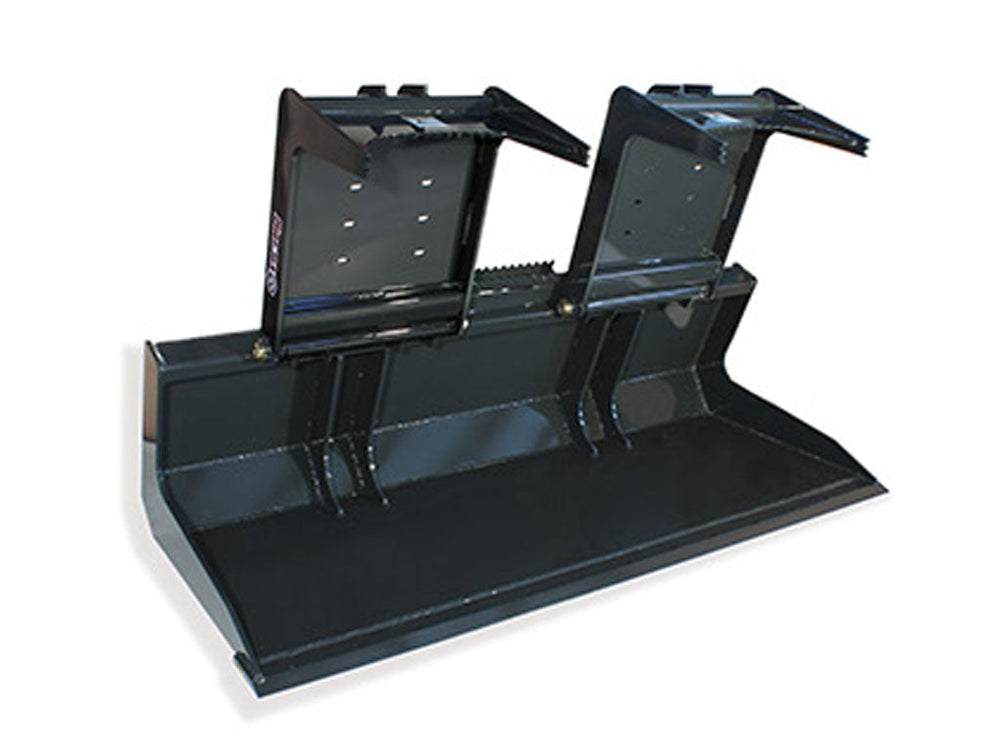

Two-cylinder independent grapple with 1/4” Grade 50 solid bottom scoops up bulky material.
- Four 1/2ˮ thick vertical braces inside bucket for added strength.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant Nitro-steel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- 3/4″ x 6″ weld-on cutting edge with holes to accept optional edges.
- Standard with Cylinder Guards.
- Machine specific hydraulic package to completely protect hose routing.
- Removable bolt on step made of durable, laser cut steel in an aggressive pattern.
OPTIONS

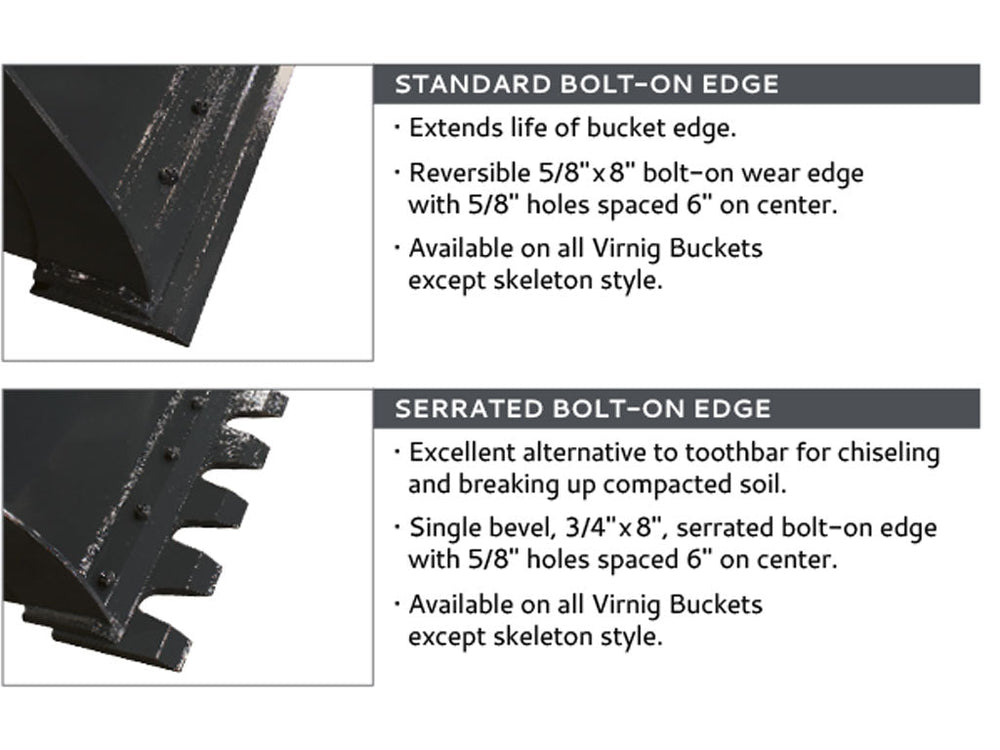

- Bolt on Cutting Edge (BOCE) installed
- Serrated Edge (SE) installed
SPECIFICATIONS
- Recommended loader capacity - Less than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 / 1.563
| Model | 72" | 78" | 84" | 90" |
| Overall Width (in) | 73.5 | 79.5 | 85.5 | 91.5 |
| Depth (in) | 35.5 | 35.5 | 35.5 | 35.5 |
| Height: Overall / Bucket (in) | 29.0 / 22.5 | 29.0 / 22.5 | 29.0 / 22.5 | 29.0 / 22.5 |
| Grapple Jaw Opening (in) | 38.8 | 38.8 | 38.8 | 38.8 |
| Structural wear bars under bucket | 4 | 5 | 5 | 5 |
| Weight (lbs) | 1080 | 1130 | 1170 | 1210 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
