DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

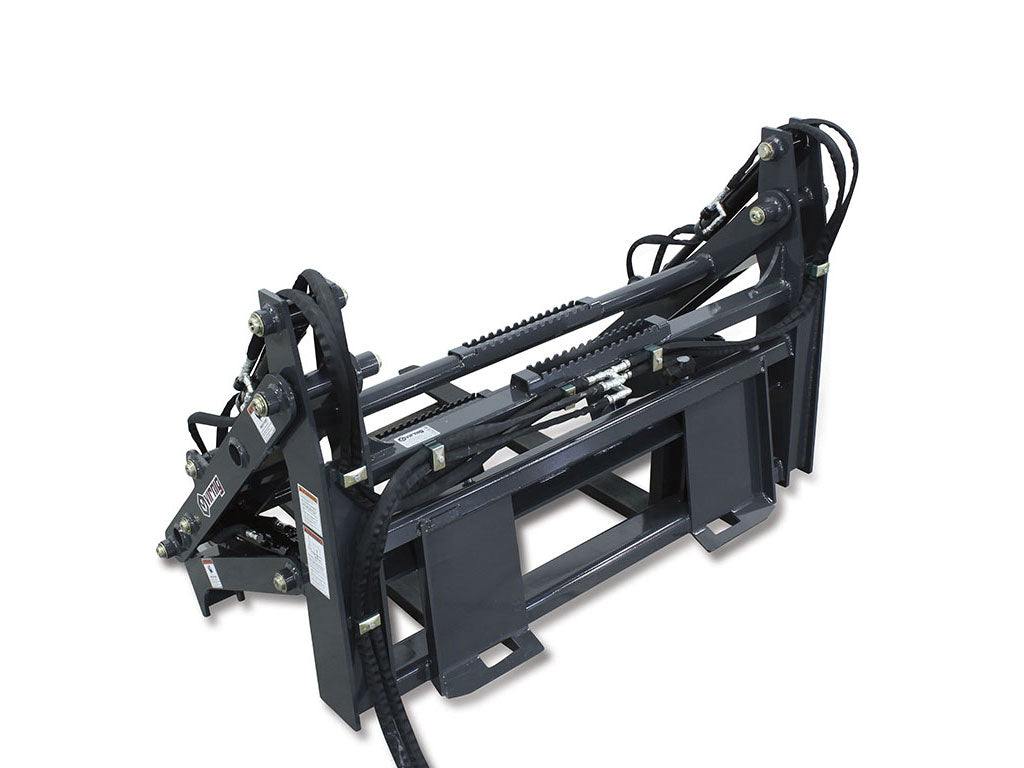

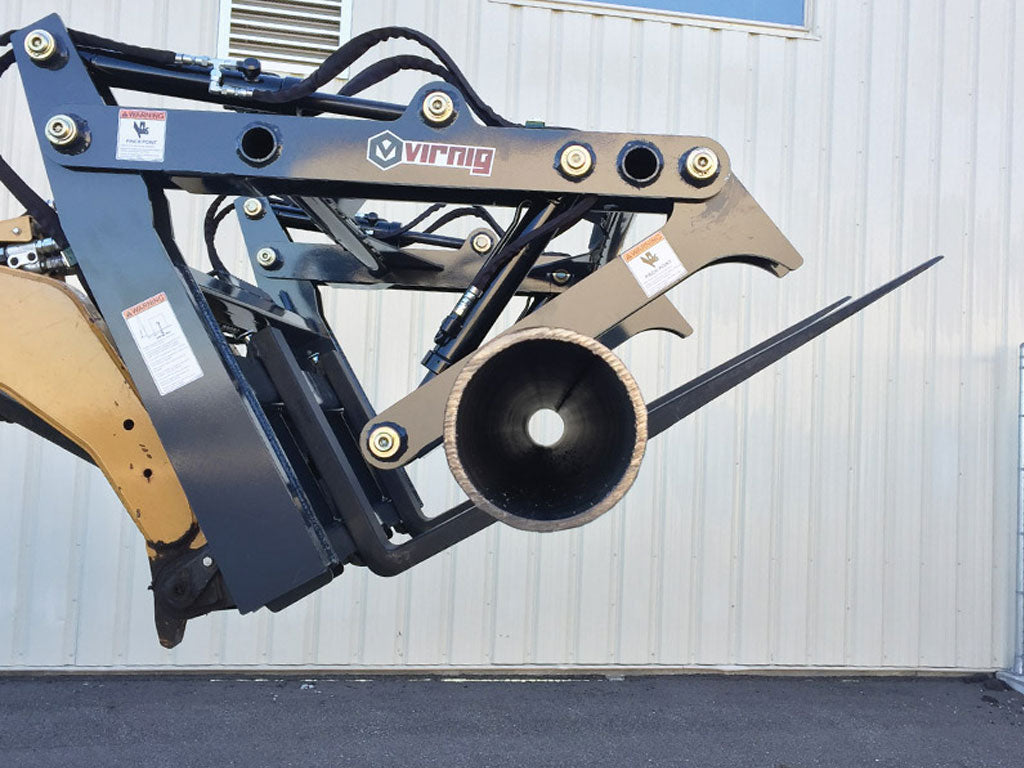

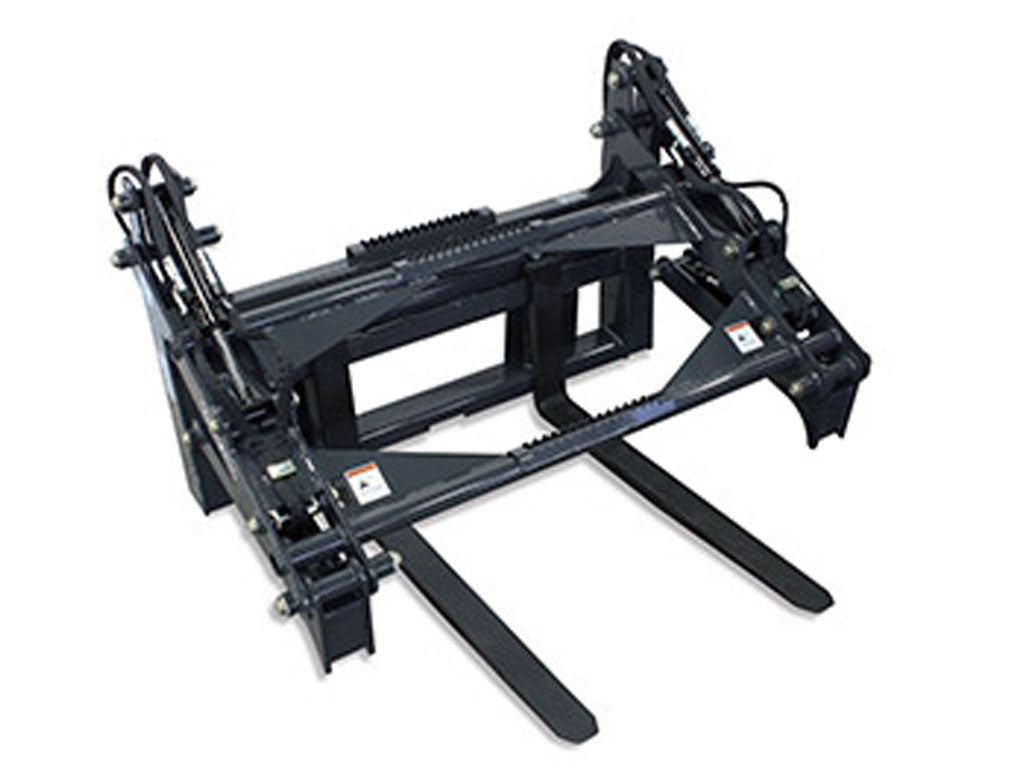

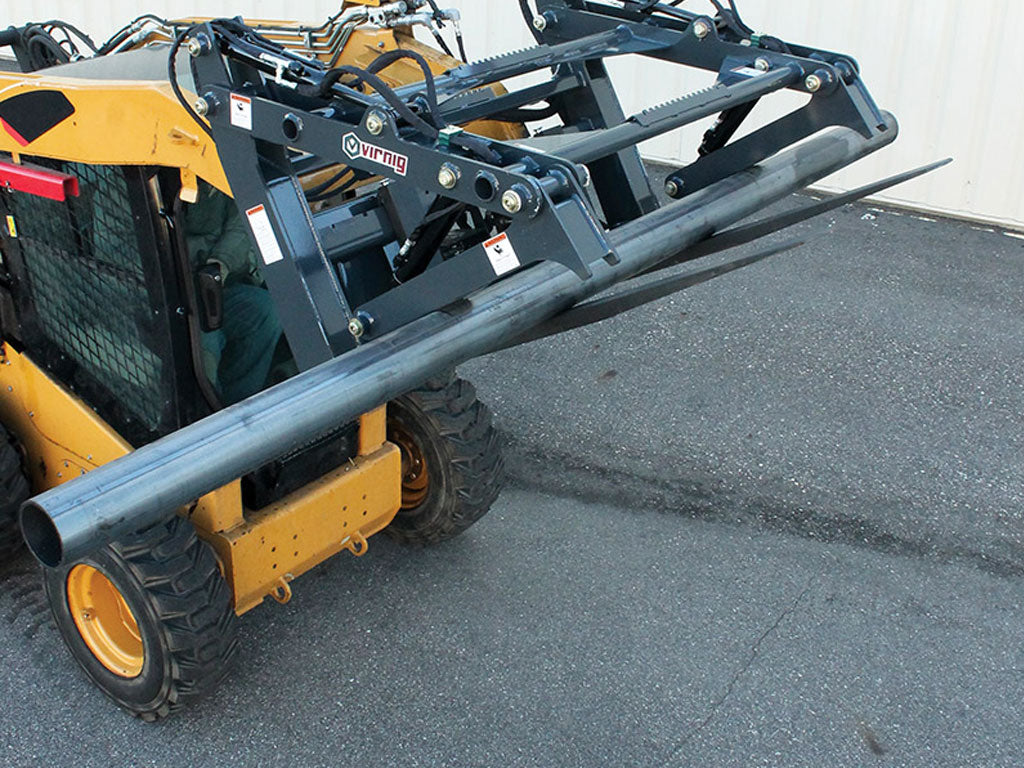

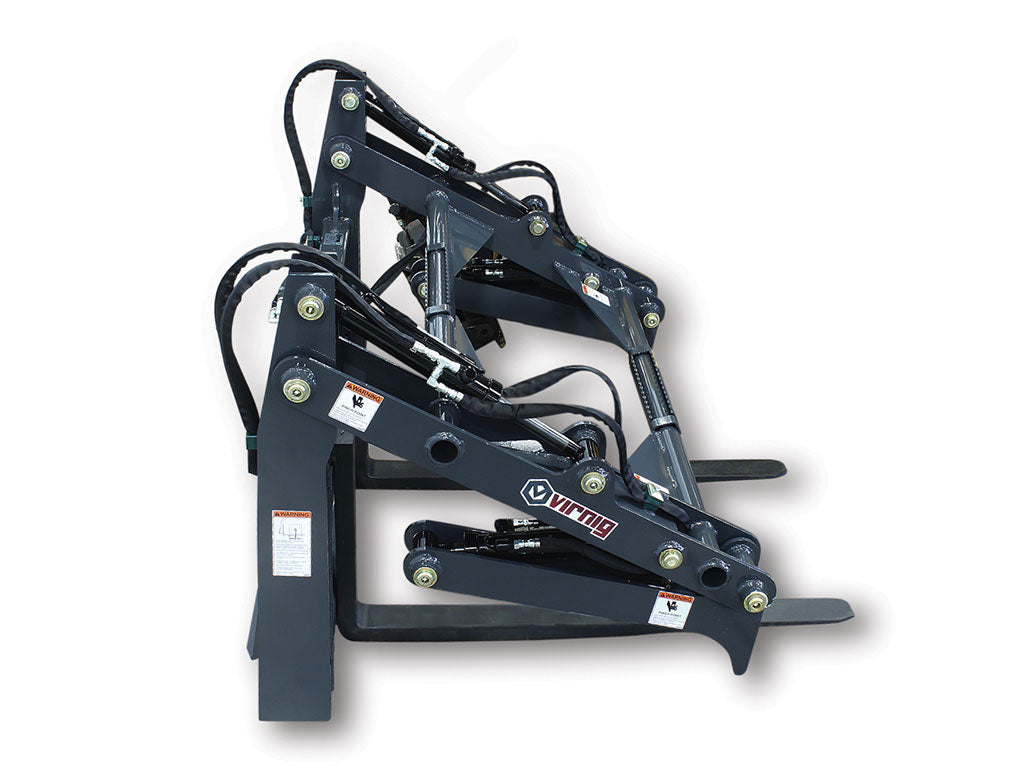

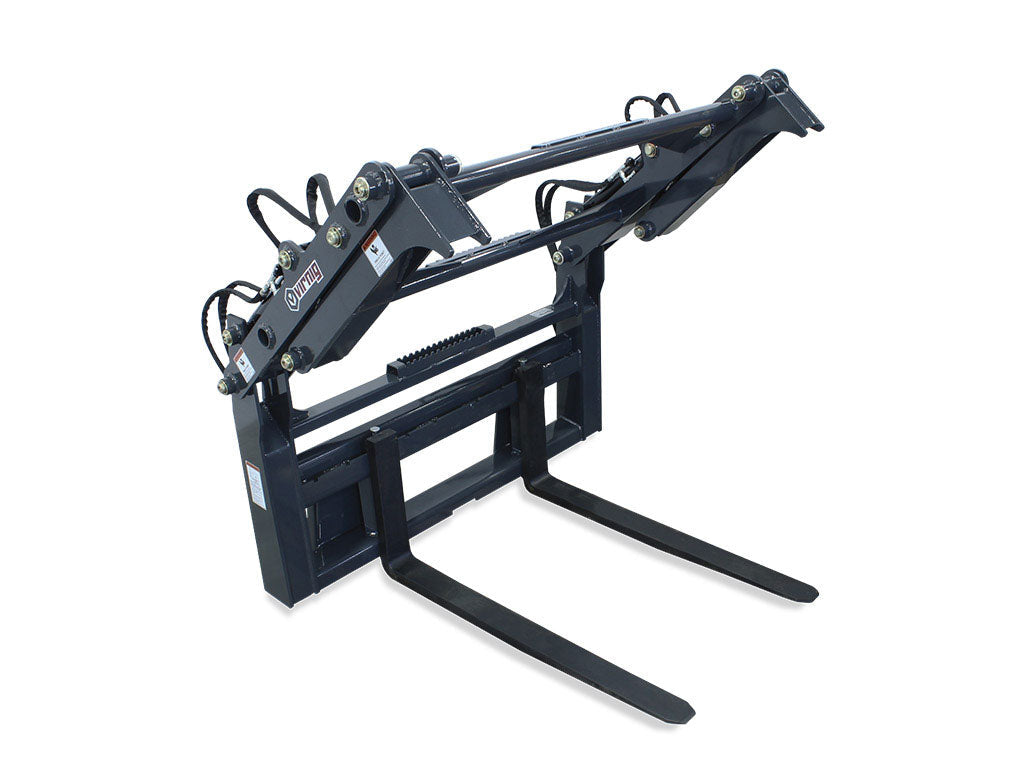

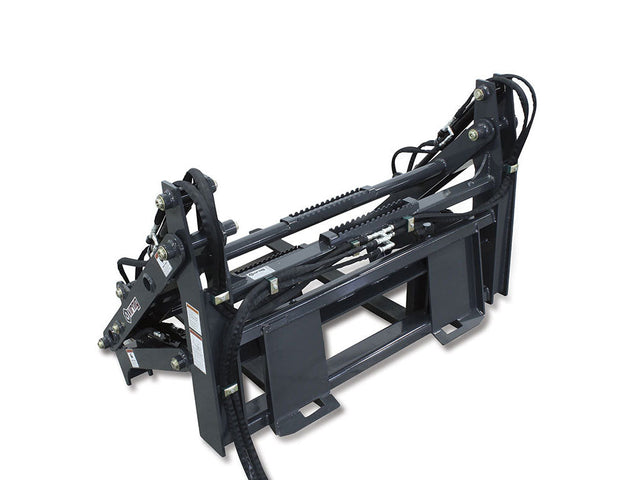

Four-cylinder design applies consistent pressure to secure long pipe over uneven terrain.
- Functions by main arms moving first while smaller, secondary arms move after main arm cylinders experience resistance.
- 54ˮ wide frame keeps long material stable.
- 48” Cascade® ITA Class II forged tines rated at 6200 pounds.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder and hinge pins.
- Machine specific hydraulic package to completely protect hose routing.
Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
SPECIFICATIONS
- Recommended Loader Capacity - Greater than 1500 lbs ROC
- Cylinder Bore / Stroke (in) 2.5 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25
| Model | 48" |
| Overall Width (in) | 69 |
| Depth (in) | 58 |
| Height Closed (in) | 42.5 |
| Height Open (in) | 62.0 |
| Grapple Arm Width | 11.4 |
| Tine Length / Width / Thickness (in) | 48 / 4 / 1.75 |
| Lift Capacity (lbs) | 6200 |
| Weight (lbs) | 1110 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
BIG DAVE REVIEW
The V^) series was Constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
