Description
DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS, CYLINDERS & FITTINGS

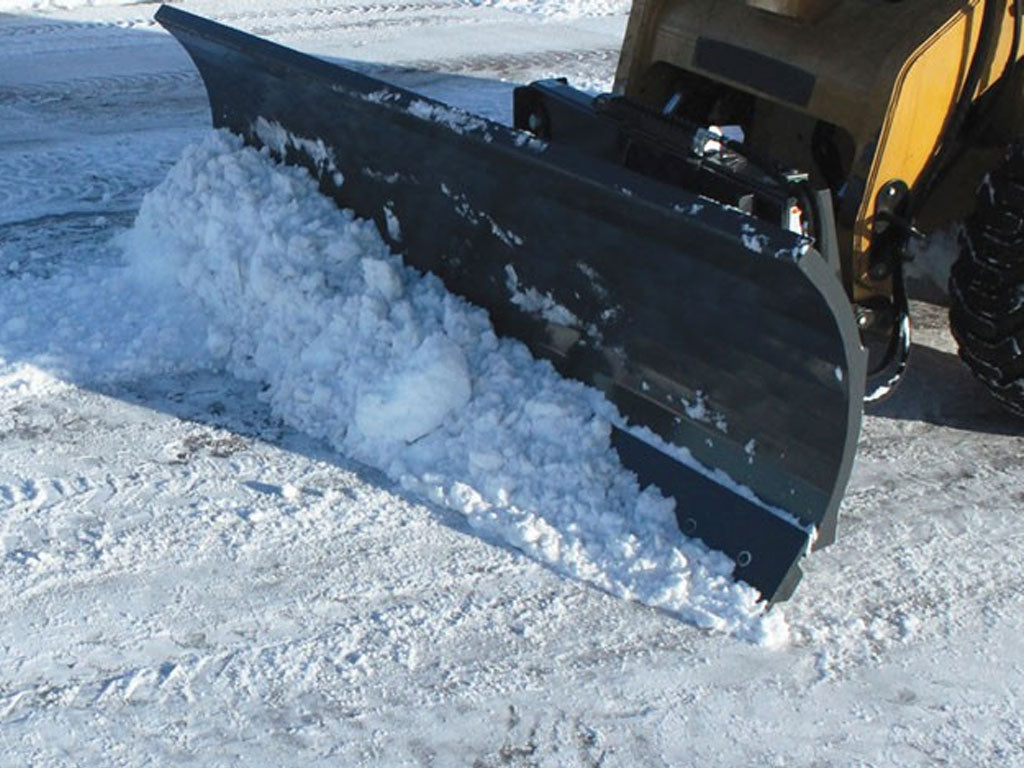

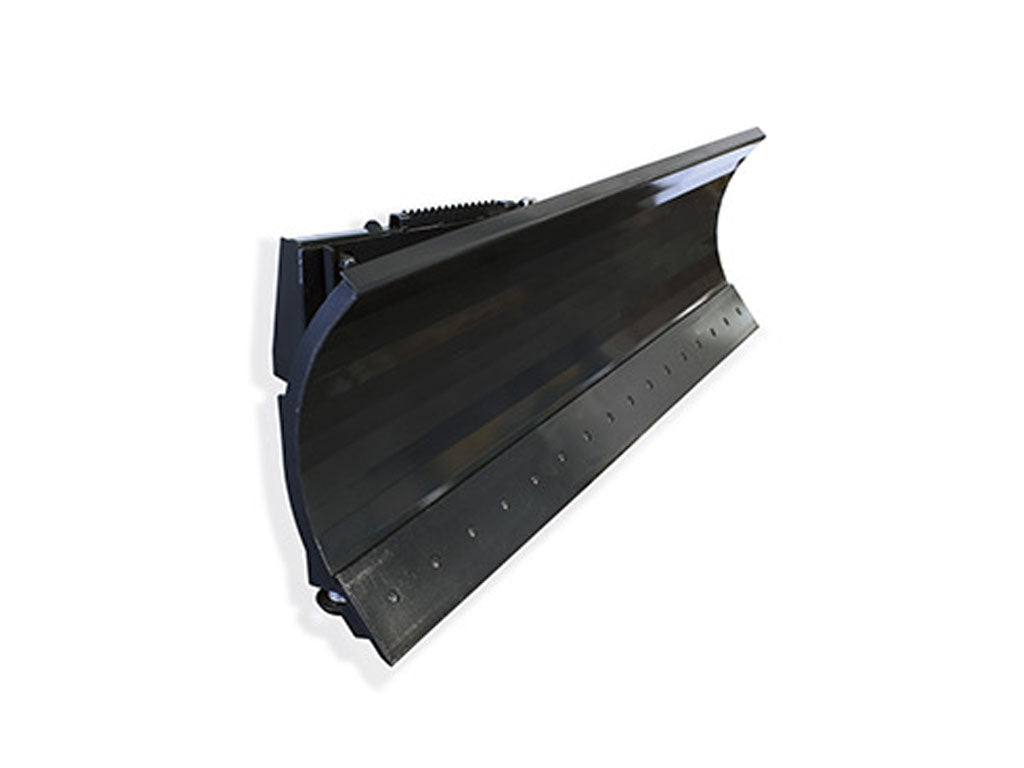

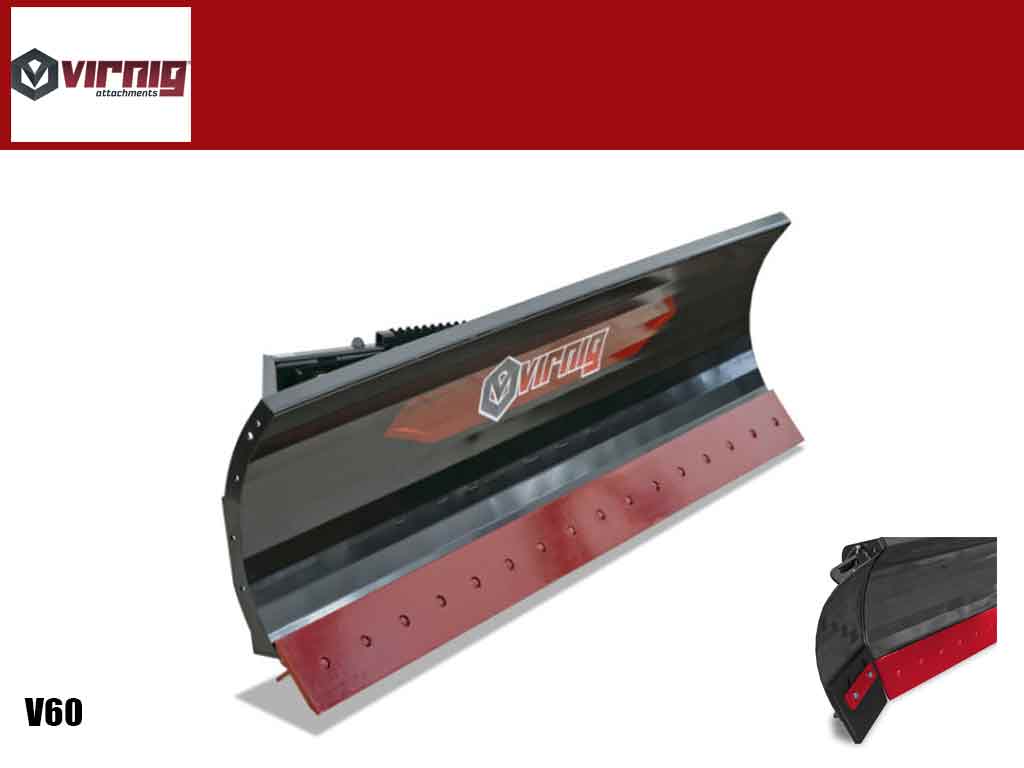

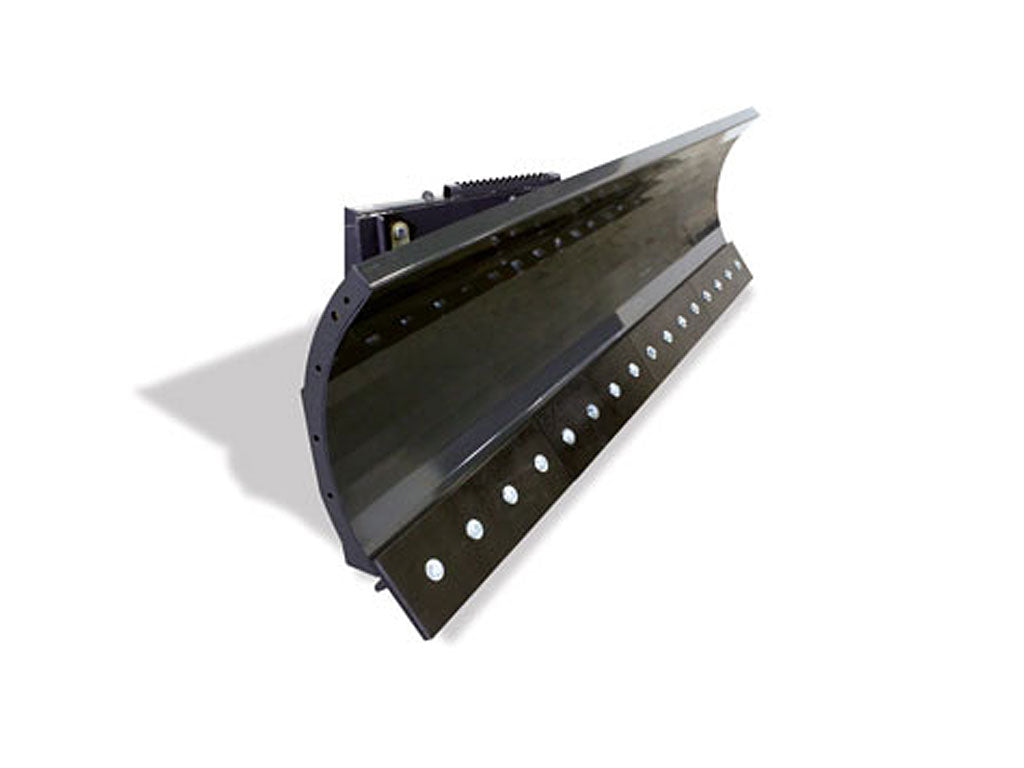

Virnig V60 Angle Snow Blade is a commercial-grade skid steer snow plow.
- Designed to hug the contours of the ground for effortless snow removal.

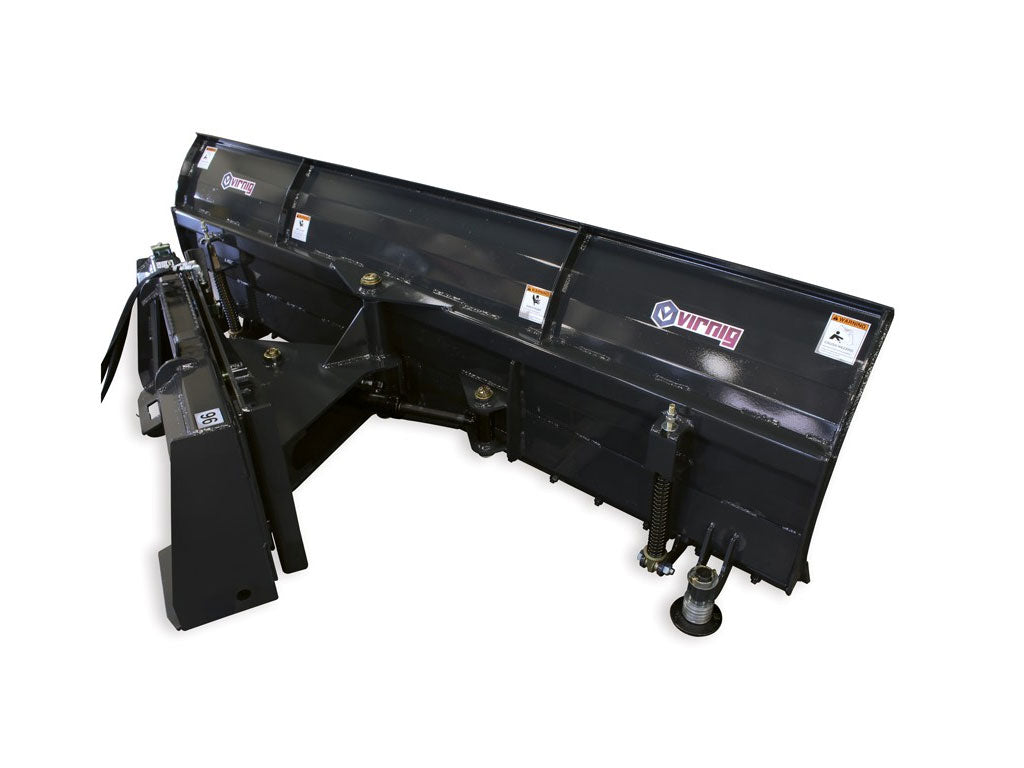

- Two-cylinder hydraulic design allows the blade to angle +/- 30° in either direction to efficiently windrow snow.
- Designed to maintain full down pressure to help cleanly scrape hard-pack snow and ice.

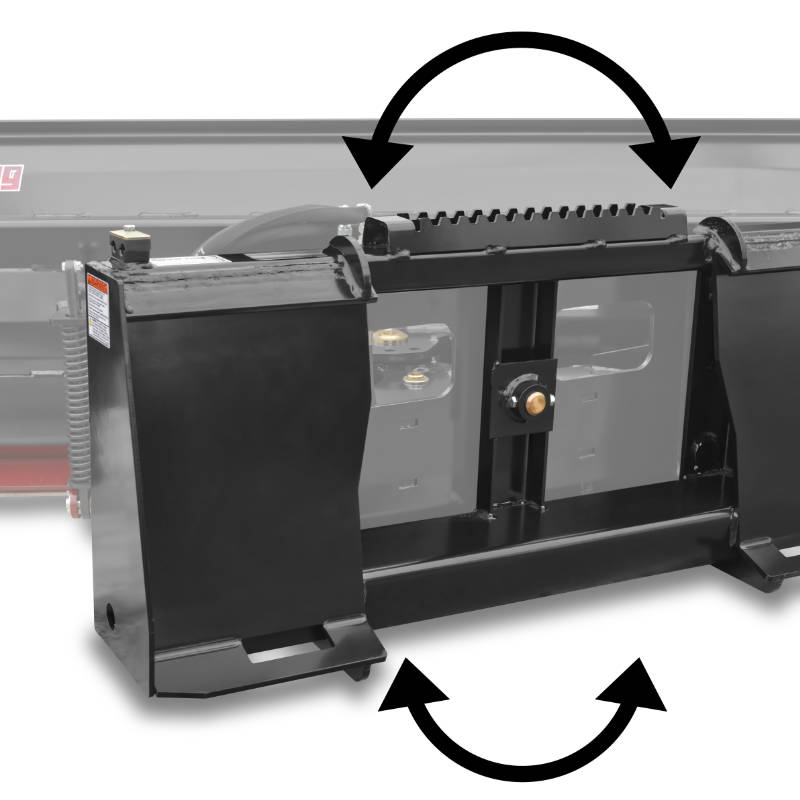

- Side-to-side oscillation allows the cutting edge to follow the contour of the surface.
- Hydraulic crossover relief valve protects the attachment by absorbing shock and angling the entire blade if a curb or other object is struck.
- Corrosion, dent, and flake resistant NitroSteel® cylinder rods are more salt resistant than chrome.

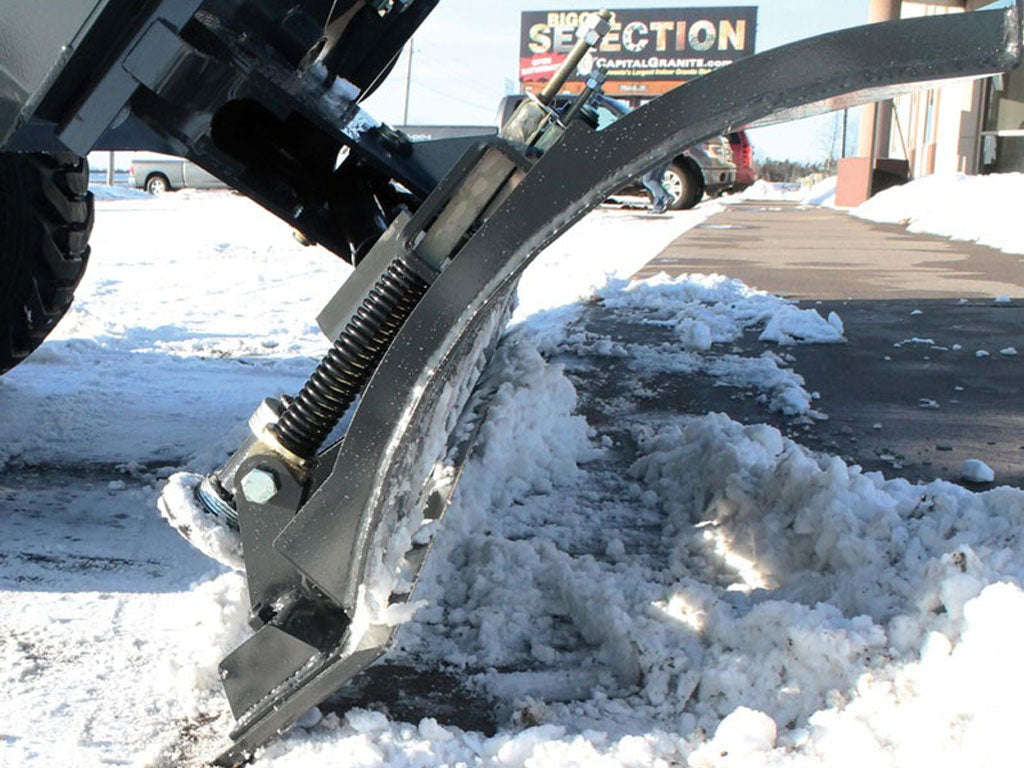

- Trip edge containing four compression springs and hinge points.

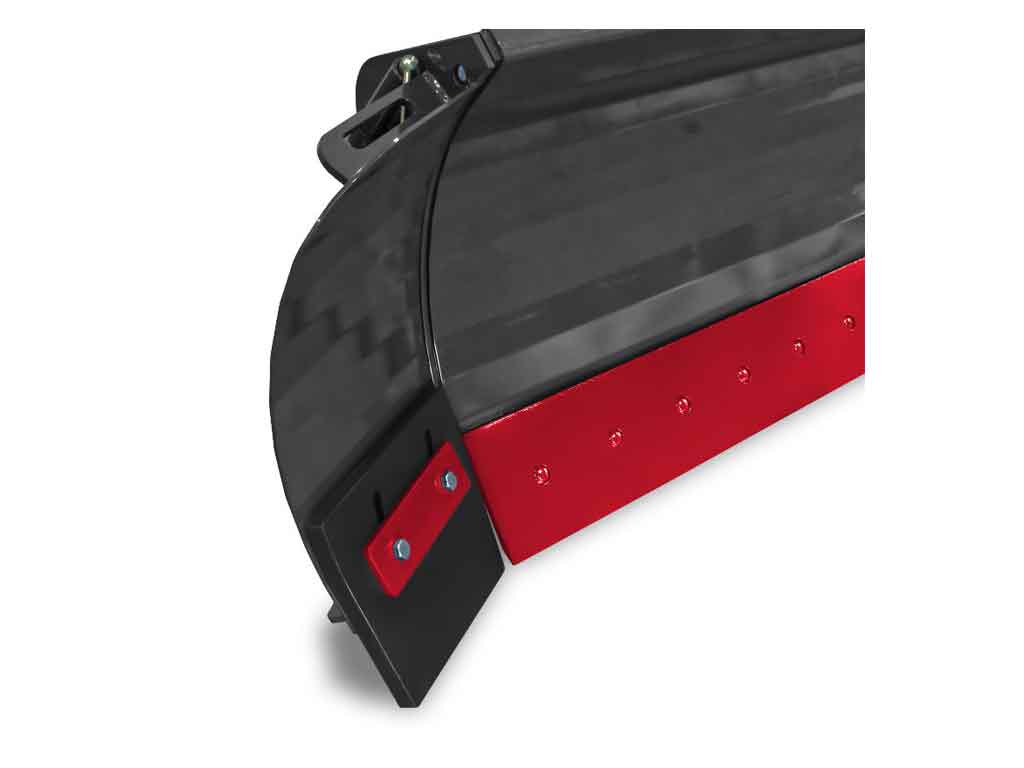

Also available: Two 12" wide pin-on wings angled 20 degrees forward from the moldboard to increase the blade's width by 21 3/4". Call for pricing.
EDGE OPTIONS
- Steel Edge Installed
- 5/8" x 8ˮ steel bolt-on edge allows 5 ½” of total wear
- Edge is quickly reversed or replaced.
- Poly Edge Installed
- Replaces standard steel cutting edge.
- 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
- Reversible and replaceable like a steel bolt-on edge.
- Rubber Edge installed
- Replaces standard steel edge.
- 1 1/2” x 10” rubber edge allows 7” of total wear.
- Reversible and replaceable like a steel bolt-on edge.
SPECIFICATIONS
| Model | SBS72 | SBS84 | SBS96 | SBS108 | SBS120 |
| Overall Blade Width (Inches) | 74.0 | 86.0 | 98.0 | 110.0 | 120.0 |
| Blade Height (Inches) | 31.0 | ||||
| Blade Angle (Degrees) | +/- 30 | ||||
| Width at Full Angle (Inches) | 64.0 | 74.0 | 84.0 | 95.0 | 104.0 |
| Moldboard Thickness (Inches) | 0.19 | ||||
| Cutting Edge (Inches) | Steel, Poly, or Rubber | ||||
| Blade Oscillation (Degrees) | +/- 4 | ||||
| Approximate Weight (Pounds) | 1020 | 1075 | 1130 | 1185 | 1225 |
| Recommended Loader Capacity | Greater than 1500 pounds | ||||
