Description
DESCRIPTION

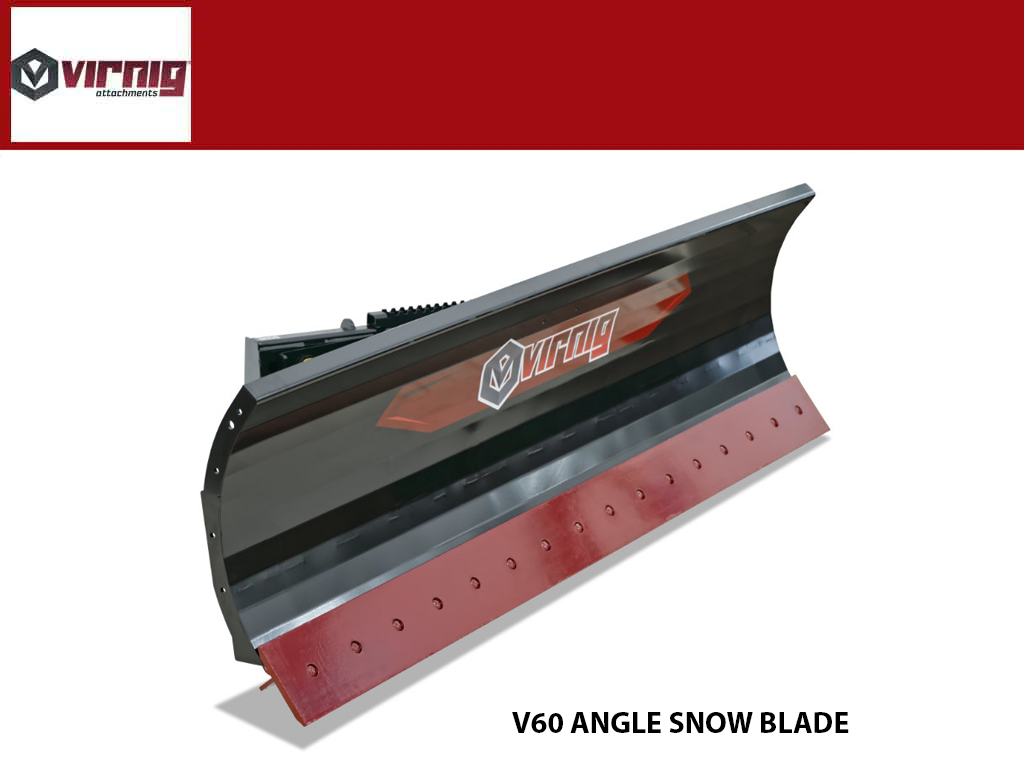

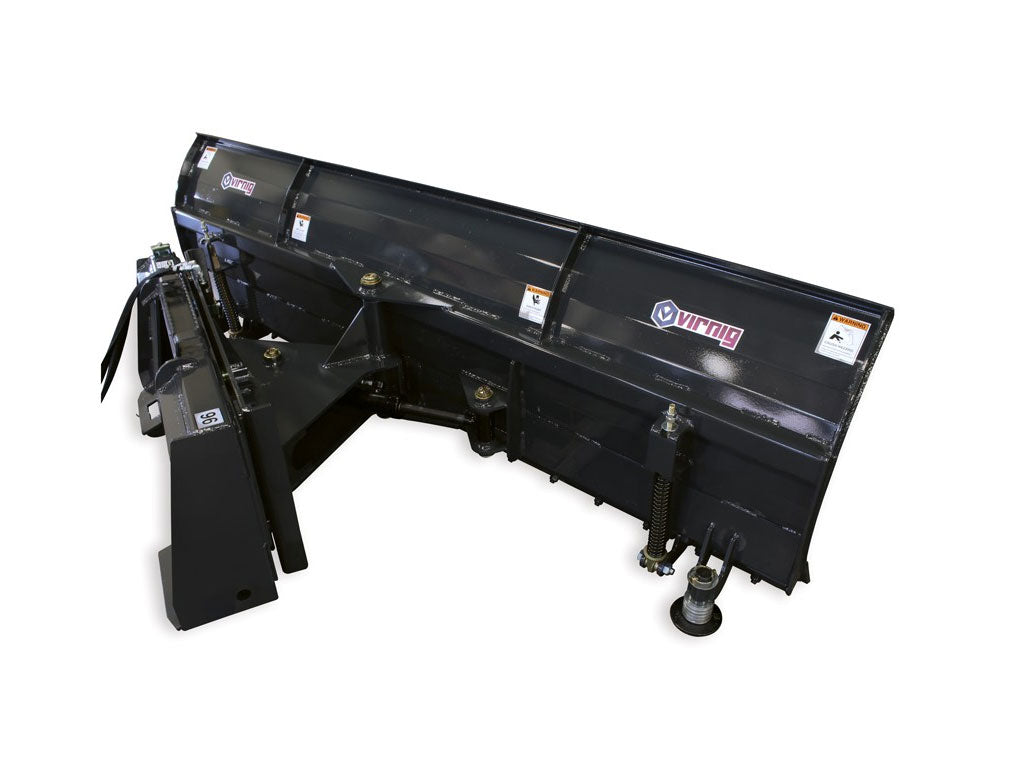

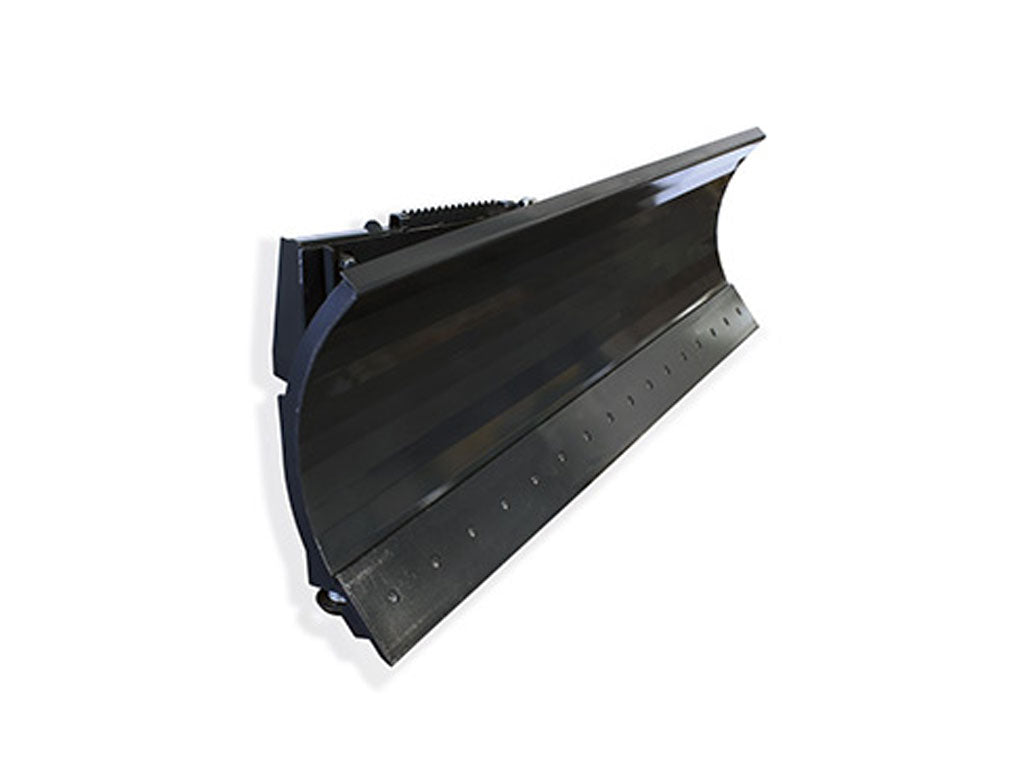

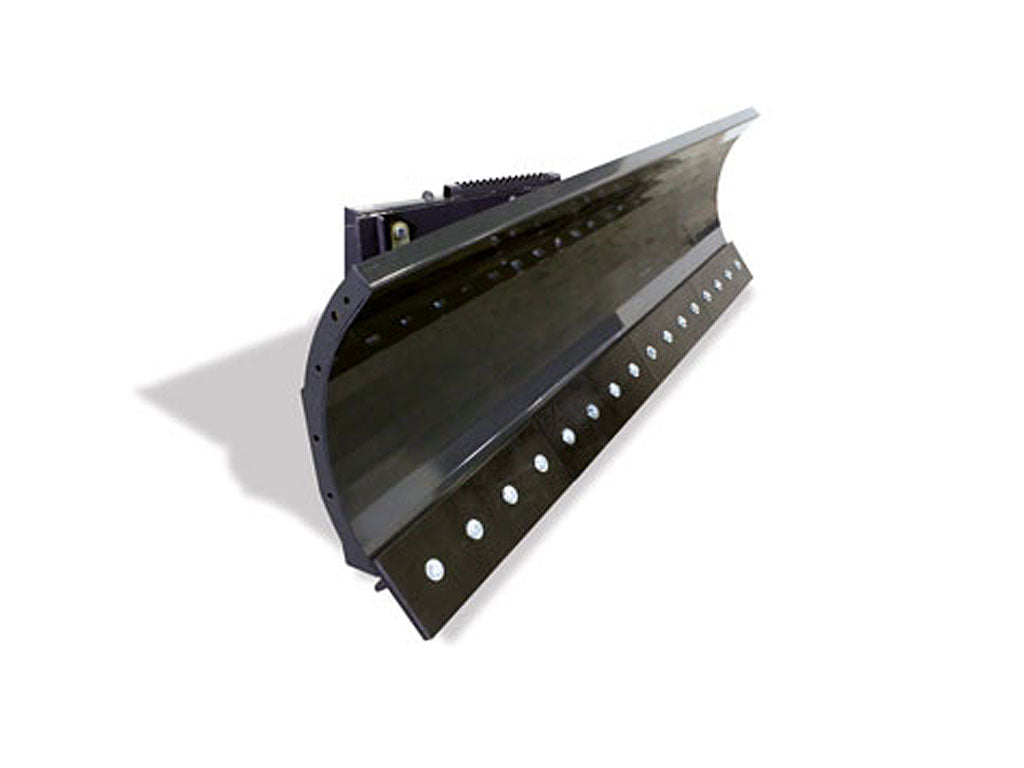

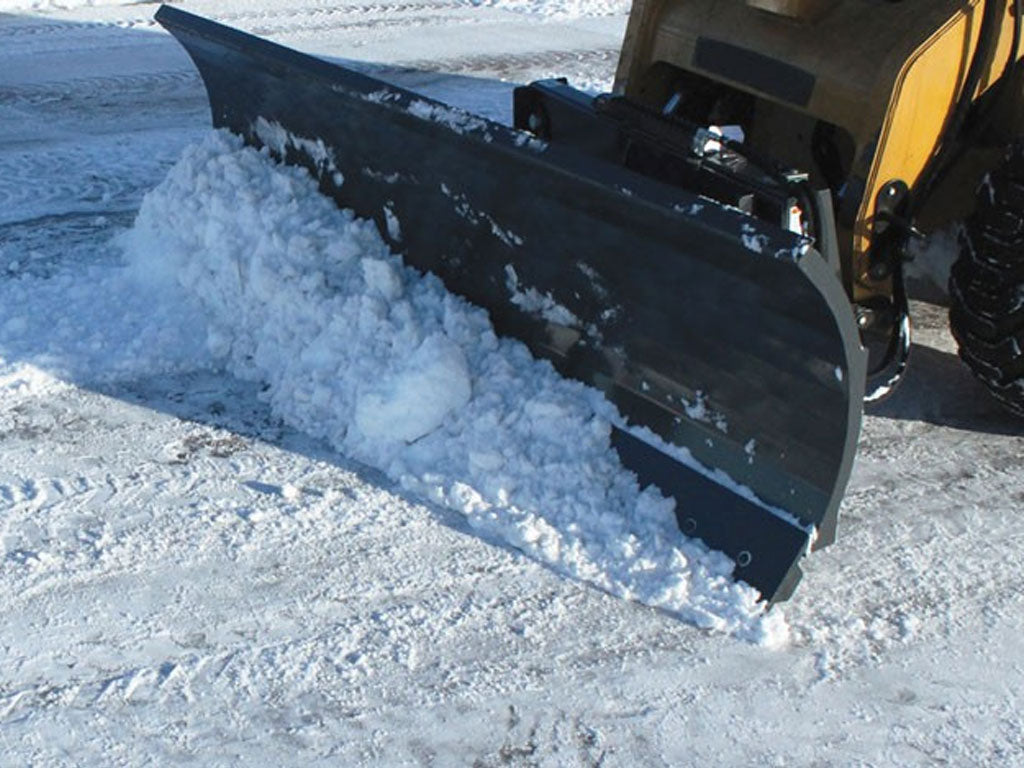

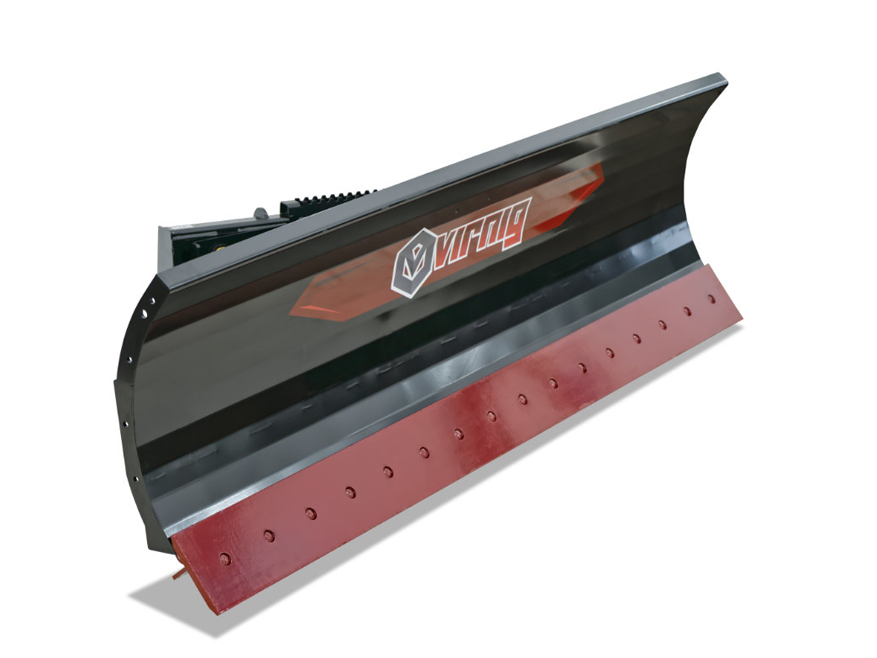

v60 Angle Snow Blade
- 4° SIDE-TO-SIDE OSCILLATION FOLLOWS UNEVEN SURFACES
- HYDRAULIC CROSSOVER RELIEF VALVE PROTECTS THE ATTACHMENT BY ANGLING THE BLADE UPON IMPACT
- ANGLE THE BLADE 30° LEFT OR RIGHT FROM INSIDE THE CAB

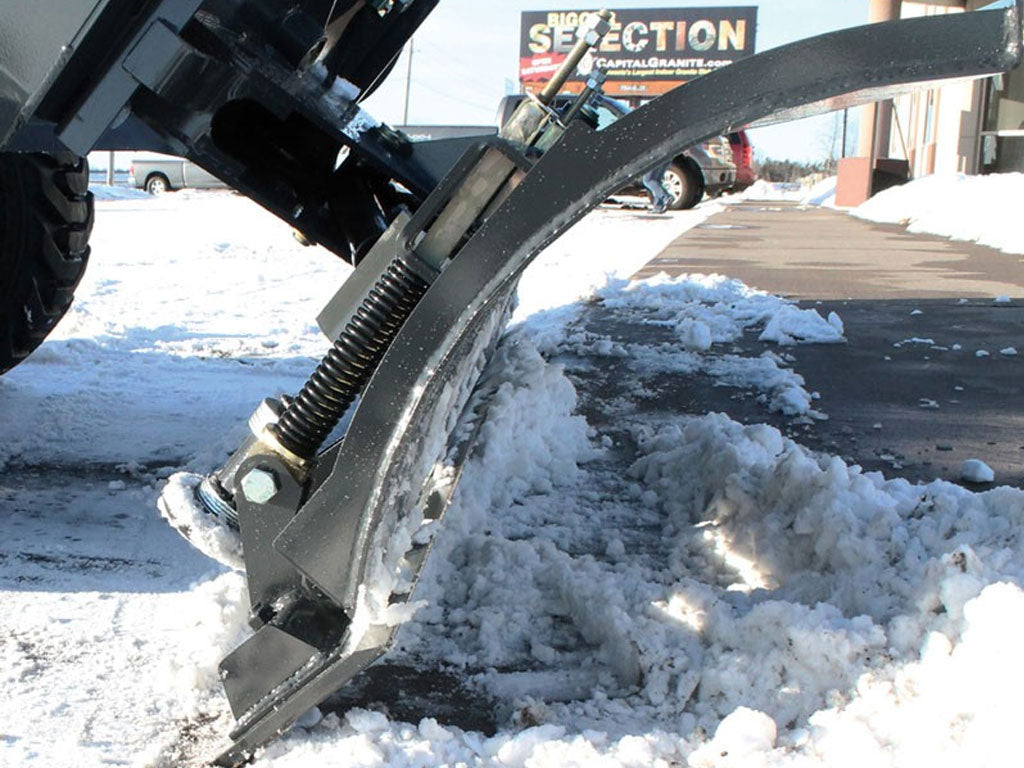

- TRIP EDGE PROTECTS OPERATOR & EQUIPMENT
- 5/8″ x 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR
EDGE OPTIONS
-
POLY EDGE - 1” x 7 3/4” reversible, replaceable, reprocessed UHMW polyethylene allows 5 1/4” of total wear.
-
RUBBER EDGE - 1 1/2” x 10” reversible, replaceable rubber edge allows 7” of total wear.
-
PIN-ON WINGS - Two, 12” wide wings angled 20° forward from the moldboard to increase the blade’s width by 21 3/4”. (CALL FOR MORE INFO)
SPECIFICATIONS
| MODEL | SBS72 | SBS84 | SBS96 | SBS108 | SBS120 |
| Width: Overall, Straight / Full Angle (Inches) | 74.0 / 64.0 | 86.0 / 74.0 | 98.0 / 84.0 | 110.0 / 95.0 | 120.0 / 104.0 |
| Overall Height (Inches) | 31.0 | ||||
| Overall Depth, Straight (Inches) | 37.5 | ||||
| Blade Angle (Degrees) | +/- 30 | ||||
| Moldboard Thickness (Inches) | 0.19 | ||||
| Cutting Edge (Inches) | 5/8 x 8 Bolt-on | ||||
| Blade Oscillation (Degrees) | +/- 4 | ||||
| Cylinder Bore / Stroke (Inches) | 2.0 / 8.375 | ||||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.25 / 1.563 | ||||
| Approximate Weight (Pounds) | 1020* | 1075* | 1130* | 1185* | 1225* |
| Recommended Loader Capacity | Greater than 1500 pounds | ||||
