Description
DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- STANDARD CYLINDER GUARD

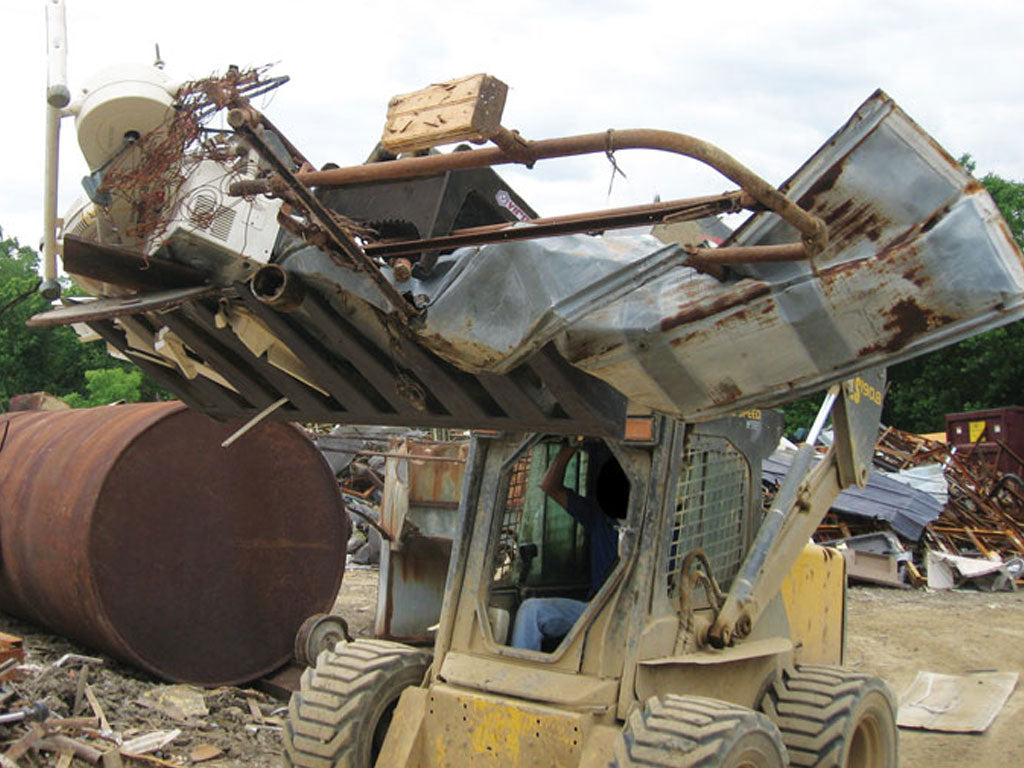

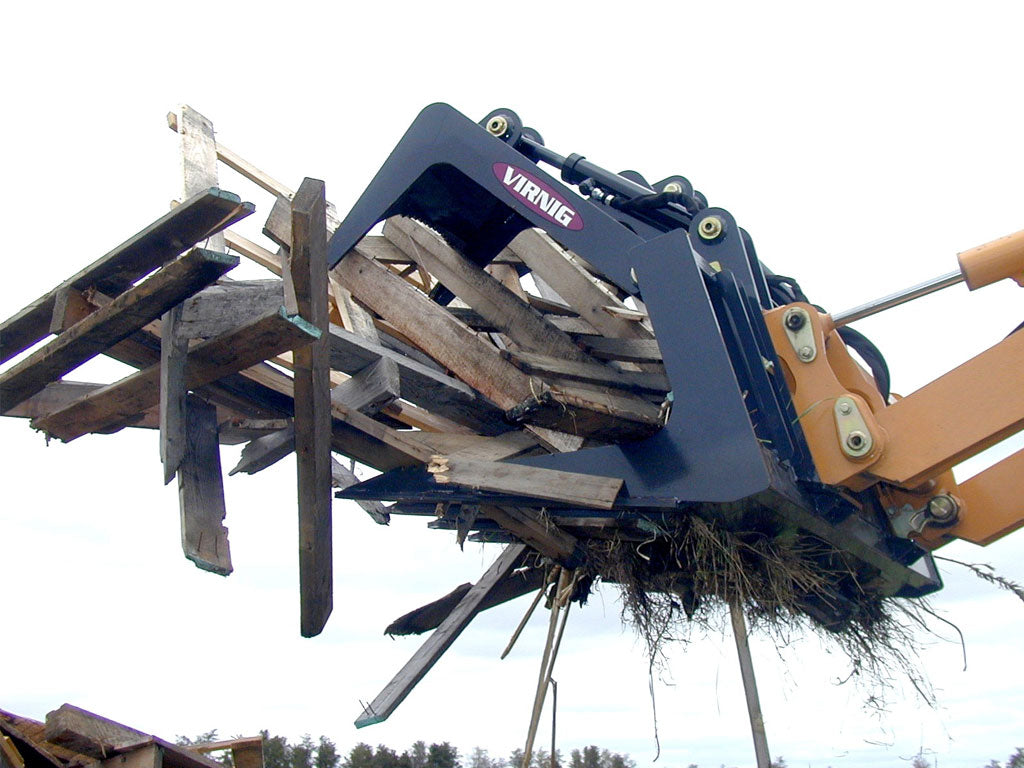

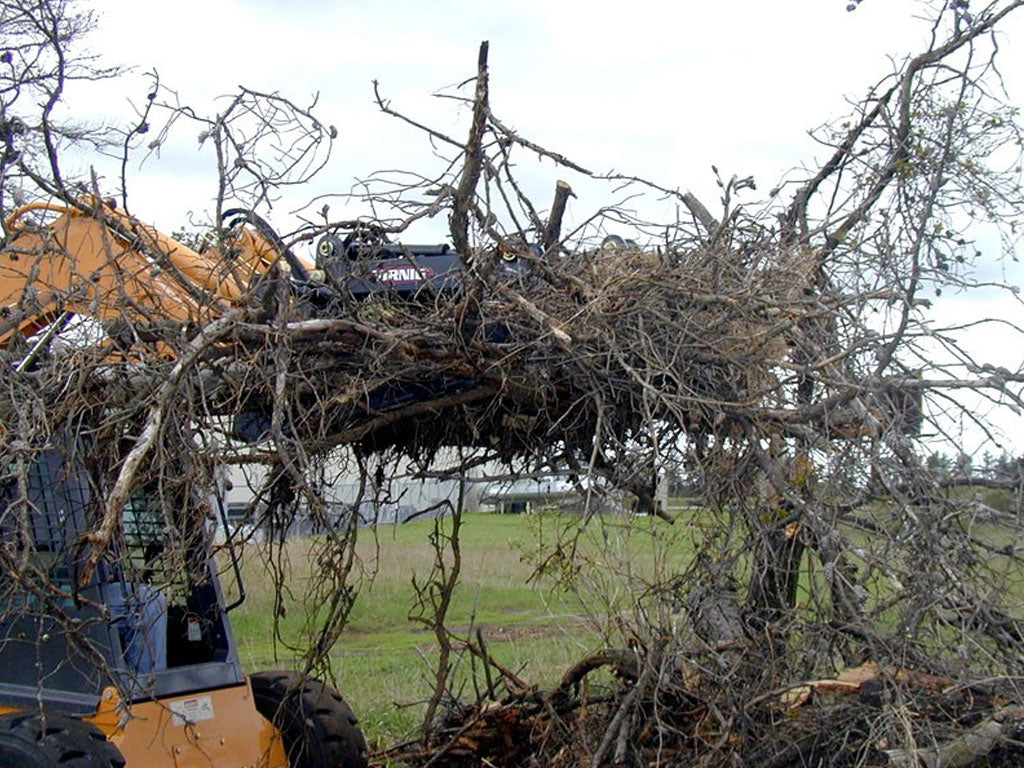

This type of skid steer grapple has two, individual jaws with separate cylinders. Each jaw works independent of the other. The hydraulic system allows operators to securely clamp debris that has uneven surfaces while keeping consistent pressure on the entire load. Independent grapples keep oddly-sized objects tightly secured in the skid steer bucket during transport.

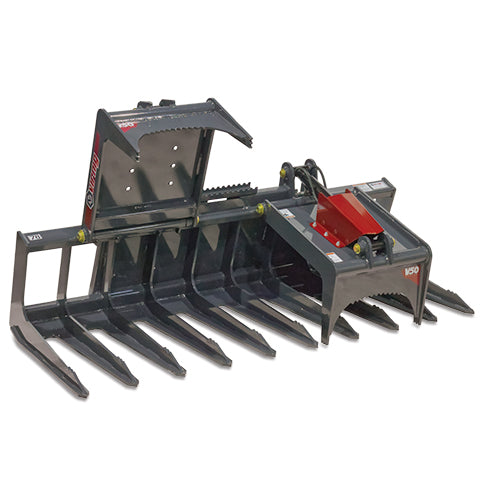

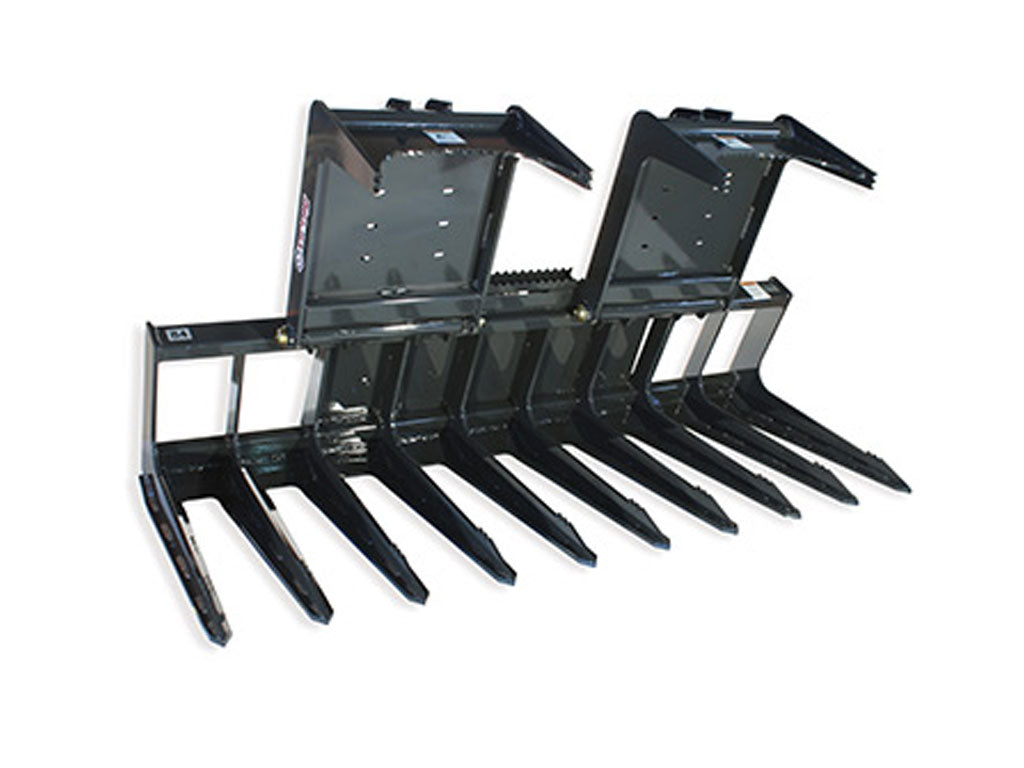

Two-cylinder independent grapple that reaches tine tips for fine work.
- Every tine is constructed from one piece of 1/2ˮ Grade 80 steel, from tip to top brace, to add rigidity.
- Fully gusseted tines with no cross member allowing better material penetration without compromising strength.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Replaceable bolt-on step made of durable, laser cut steel in an aggressive pattern that will grip in the worst conditions.

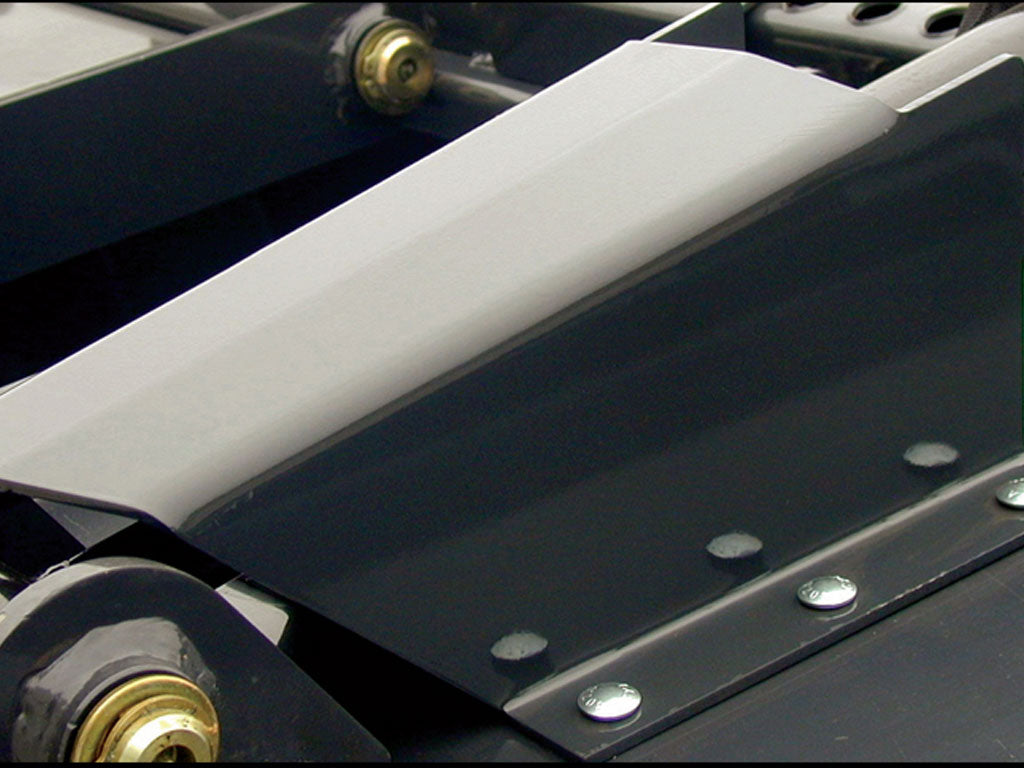

- Standard with Cylinder Guards.
SPECIFICATIONS
- Recommended loader capacity - Greater than 1500 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
| Model | 66" | 72" | 78" | 84" | 90" |
| Overall Width (in) | 68.0 | 74.0 | 80.0 | 86.0 | 92.0 |
| Depth (in) | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 |
| Height: Overall / Bucket (in) | 27.5 / 21.1 | 27.5 / 21.1 | 27.5 / 21.1 | 27.5 / 21.1 | 27.5 / 21.1 |
| Grapple Jaw Opening (in) | 36.4 | 36.4 | 36.4 | 36.4 | 36.4 |
| Number of Tines | 8 | 9 | 10 | 10 | 11 |
| Space Between Tines | 9.5 | 8.4 | 8.7 | 9.3 | 8.5 |
| Weight (lbs) | 910 | 950 | 990 | 1010 | 1050 |
