Description
DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES & COUPLERS

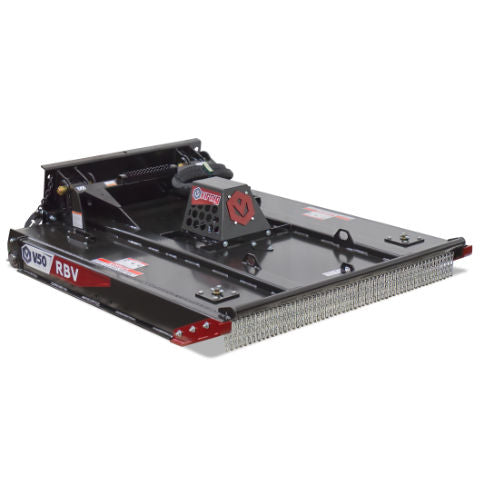

Cuts through brush up to 4″ in diameter with ease, while three-blade design and floating deck produce a superior finish.
V50 Rotary Brush Cutters are capable of throwing debris over 200 feet and can cause serious bodily harm or death if not used with a shatterproof cab.
- Innovative floating deck provides a consistent cut on uneven terrain by allowing 4 5/8” of deck travel. Deck can be secured in a fixed position if desired.

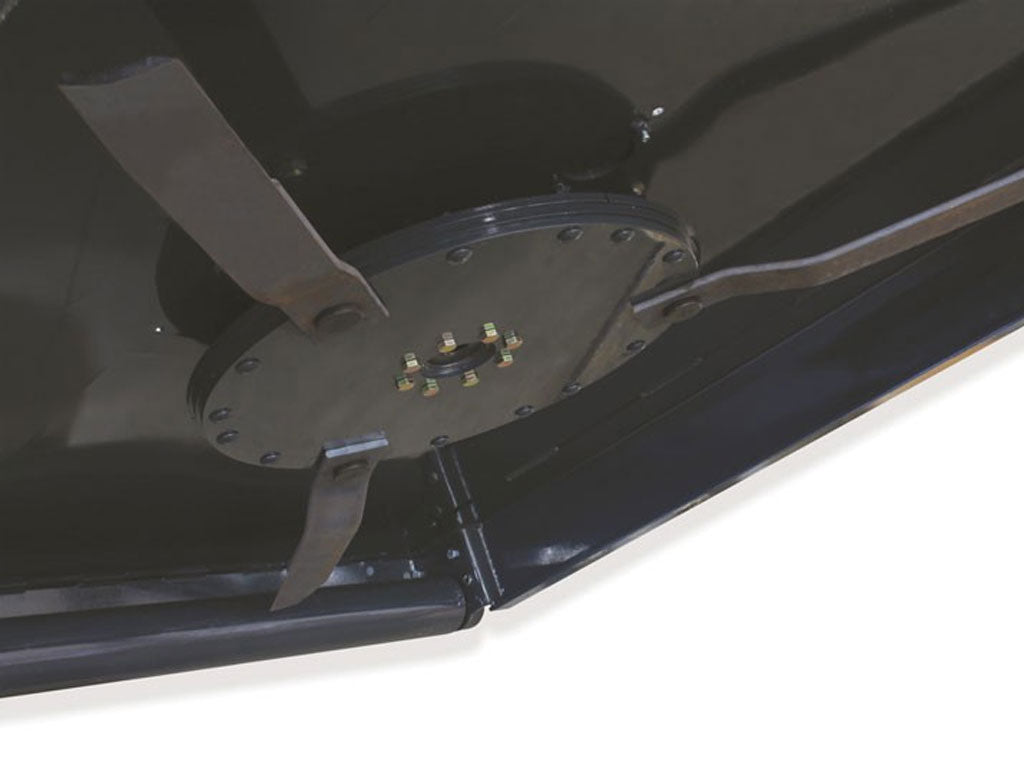

- Three-blade cutting system, mounted to a large circular flywheel, ensures the flywheel bounces off stumps rather than catching and damaging components.
- Standard dual hydraulic pressure relief valves with dynamic braking stops the 170-225 lb flywheel in under 10 seconds.
- Two high flow Eaton® motor configurations ensure optimum performance and longevity.
- Bracing along the top connected to a push bar at the front provides rigidity for pushing over thick brush and trees.
- ½” x 4” single side updraft blades for efficient cutting and mulching.
- Standard chain curtain on front of deck prevents flying debris and provides better mulching capability.
- Standard replaceable front skid shoes increase the mower deck’s wear life.

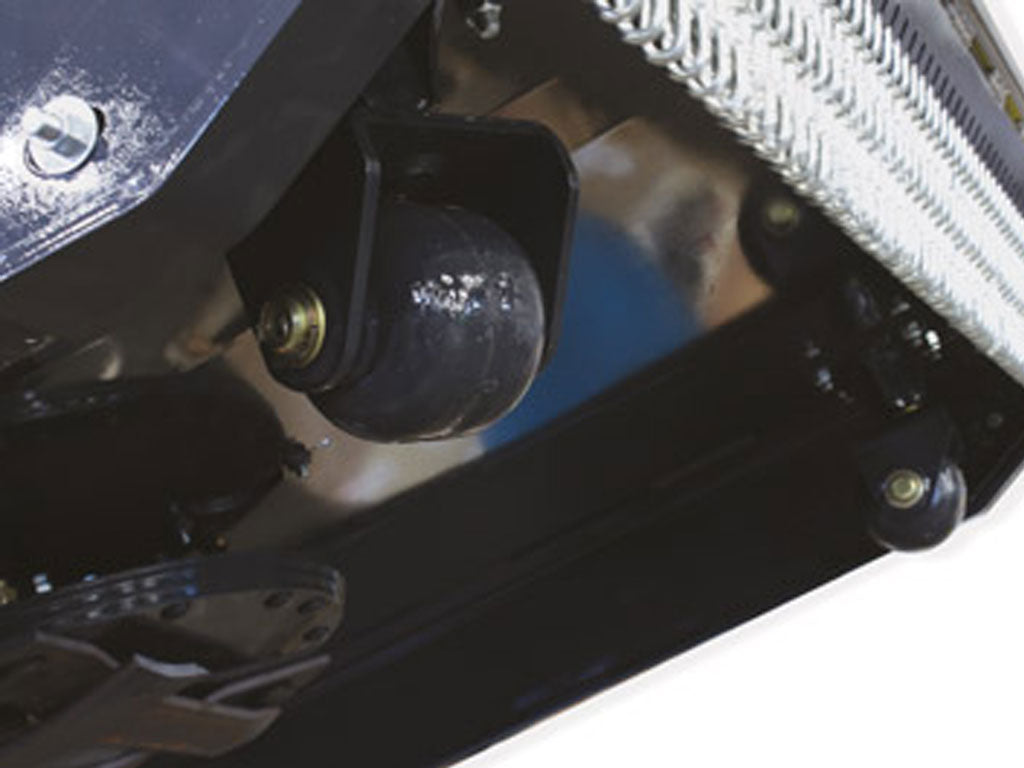

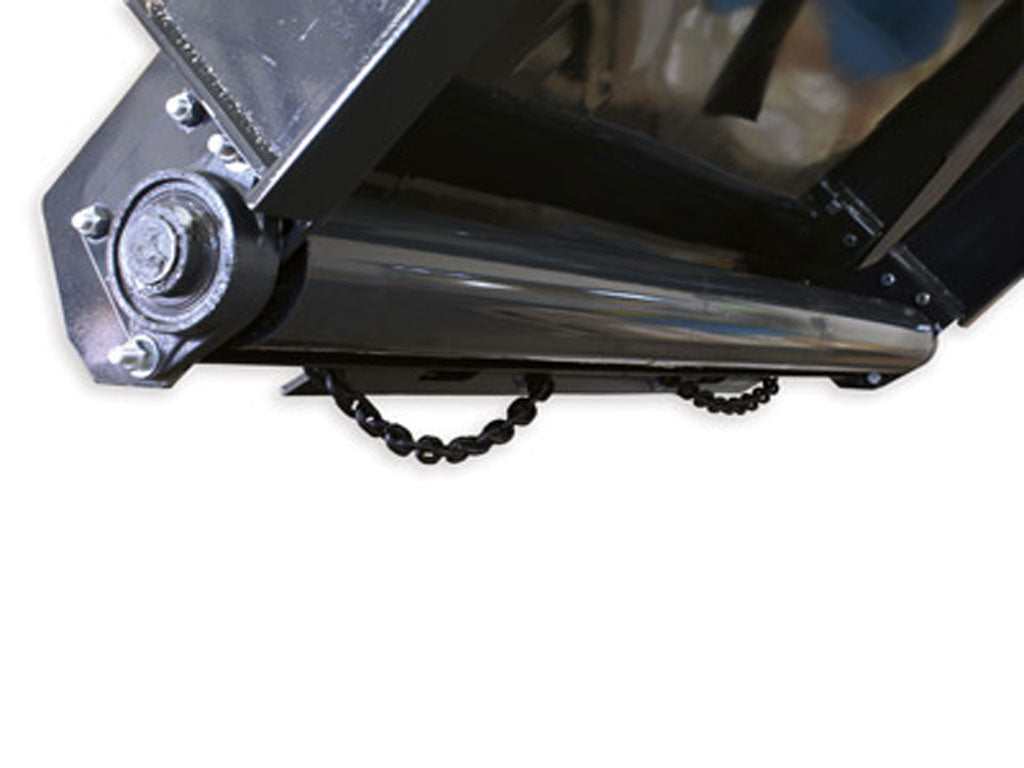

- Optional Rear Roller and Swivel Casters available.
SPECIFICATIONS
- Recommended Loader Capacity: Greater than 1500 lbs ROC
- Vertical Deck Travel (in): 4.625
- Cutter Height (in): 20.9
- Deck Height (in): 8.8
- Minimum Cut Height (in): 1.8
- Cutting Capacity, Diameter (in): 4.0
| Cut Width (in) | 60" | 60" | 66" | 66" | 72" | 72" | 78" | 78" |
| Flow Rate (GPM) | 25-33 | 33-42 | 25-33 | 33-42 | 25-33 | 33-42 | 25-33 | 33-42 |
| Overall Width | 66.0 | 66.0 | 72.0 | 72.0 | 78.0 | 78.0 | 84.0 | 84.0 |
| Cutter Depth (in) | 81.8 | 81.8 | 87.8 | 87.8 | 93.8 | 93.8 | 99.8 | 99.8 |
| Weight (lbs) | 1430 | 1430 | 1560 | 1560 | 1680 | 1680 | 1760 | 1760 |
|
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
|
| Model |
25 GPM Min |
33 GPM Max |
33 GPM Min |
42 GPM Max |
|
60" 25-33 GPM |
11,480 | 15,155 | ||
|
60" 33-42 GPM |
10,060 | 12,805 | ||
|
66" 25-33 GPM |
12,630 | 16,670 | ||
|
66" 33-42 GPM |
11,065 | 14,085 | ||
|
72" 25-33 GPM |
13,775 | 18,185 | ||
|
72" 33-42 GPM |
12,070 | 15,365 | ||
|
78" 25-33 GPM |
14,925 | 19,700 | ||
|
78" 33-42 GPM |
13,080 | 16,645 |
