DESCRIPTION
THIS ATTACHMENT INCLUDES

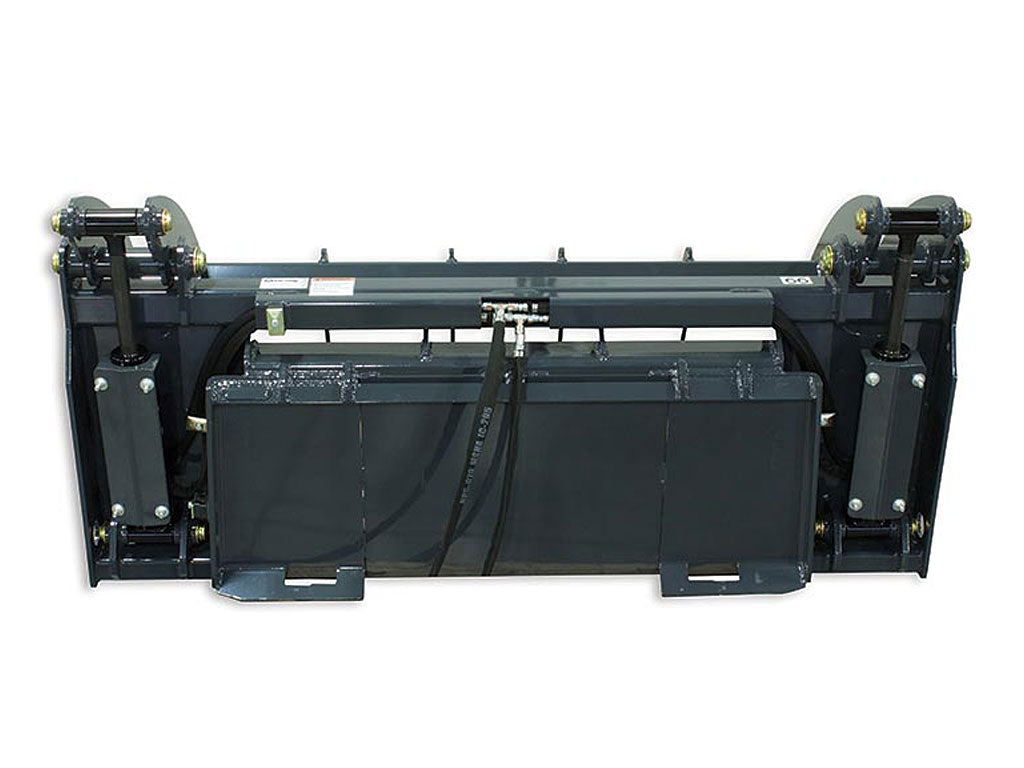

- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- CYLINDER GUARDS STANDARD

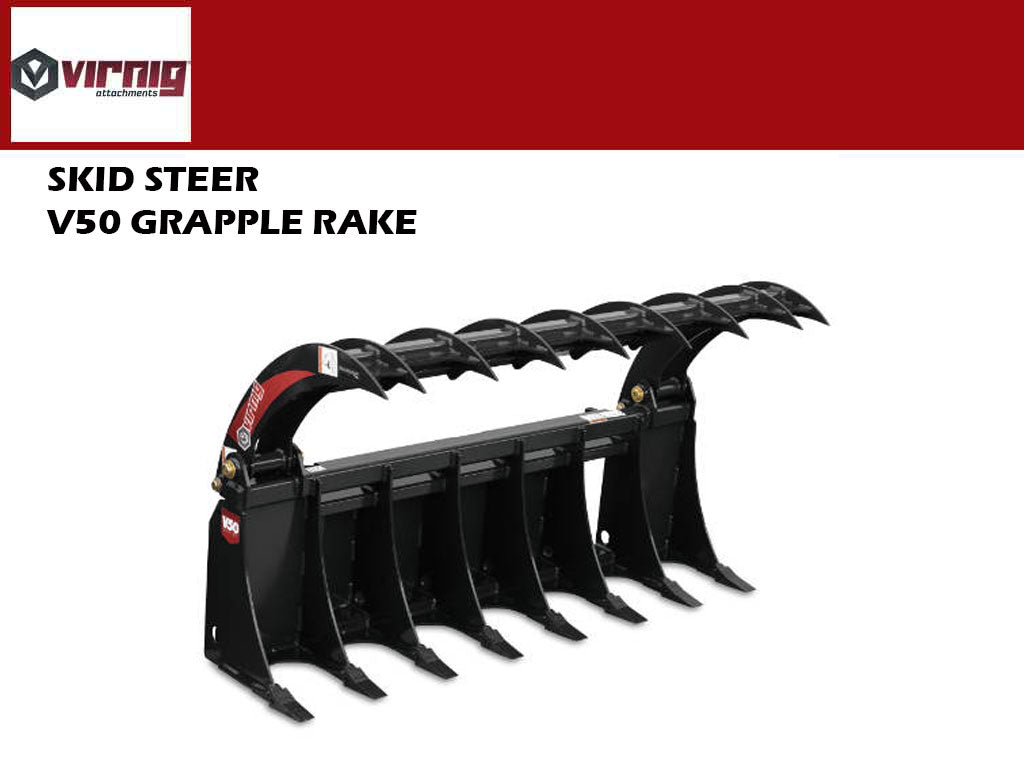

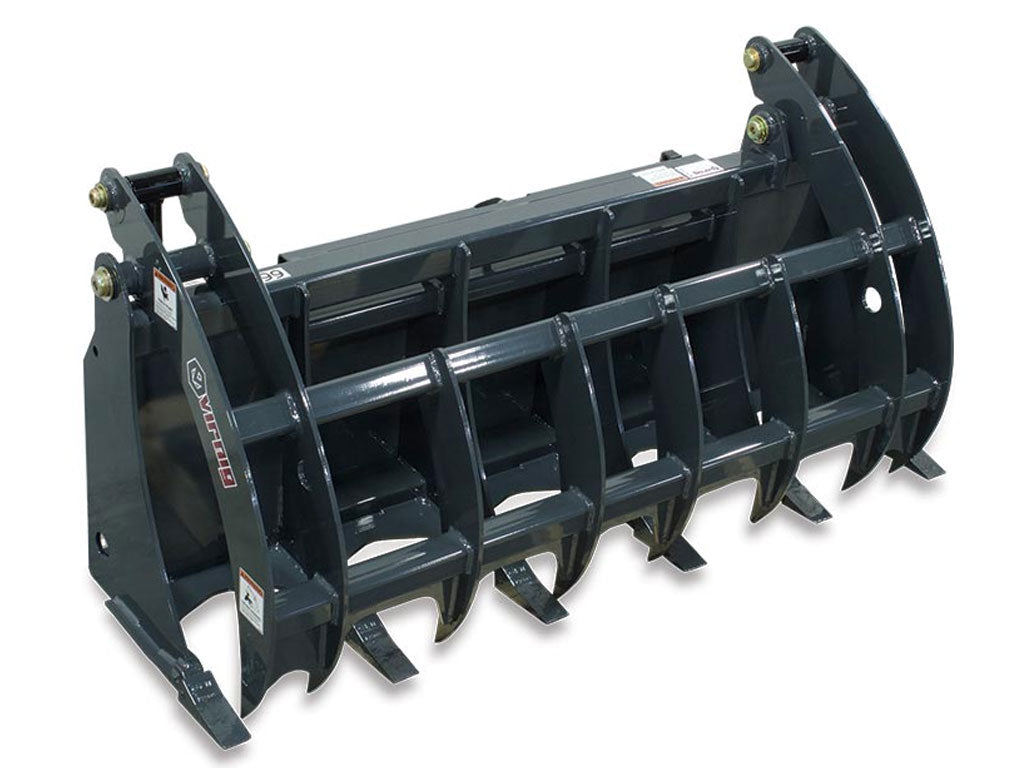

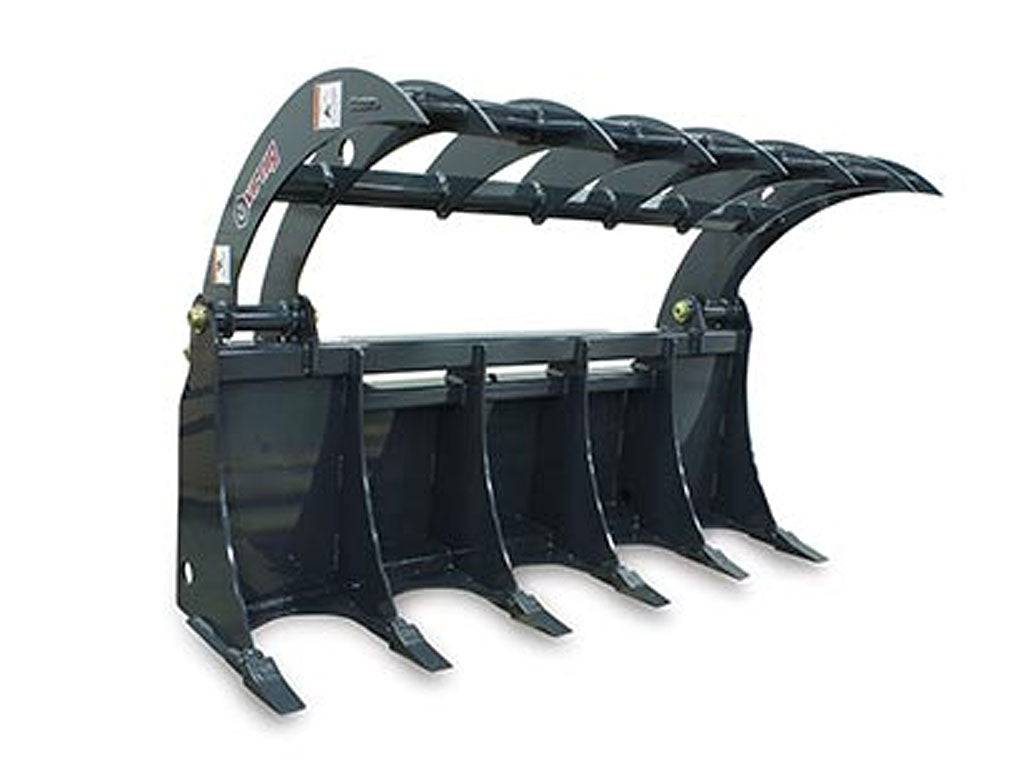

Cast, pin-on teeth allow the V50 Root Rake Grapples to cut deep into and underneath roots and piles of branches for optimal brush removal. Additionally, teeth have a long wear life and can easily be replaced.
Two-cylinder, single jaw grapple for digging, raking, piling and loading debris.
- Unique design allows efficient forward and reverse operation to drag loose material into piles.
- 40” grapple jaw opening to haul large amounts of brush per load.
- Heavy-duty jaw and rake tines constructed from 3/8″ Grade 80 steel.
- Series 23 replaceable cast teeth.
- NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
Known clearance issue with URG66 and URG72 on Takeuchi® track loaders and John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
SPECS
- Recommended loader capacity - Less than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25 /1.563
| Model | 66" | 72" | 78" |
| Overall Width (in) | 67.9 | 73.9 | 79.9 |
| Depth (in) | 22.1 | 22.1 | 22.1 |
| Height: Overall / Bucket (in) | 34.0 / 25.0 | 34.0 / 25.0 | 34.0 / 25.0 |
| Grapple Jaw Opening (in) | 44.0 | 44.0 | 44.0 |
| Number of Teeth | 6 | 7 | 8 |
| Space Between Teeth | 10.9 | 9.8 | 8.9 |
| Weight (lbs) | 790 | 845 | 905 |
BIG DAVE REVIEW
The V50 series was designed for medium and large frame skid steers. Though this is Virnig’s standard-duty line, the V50 Series often outperforms other brands’ heaviest skid steer attachments.
