Description
DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS, CYLINDERS & FITTINGS

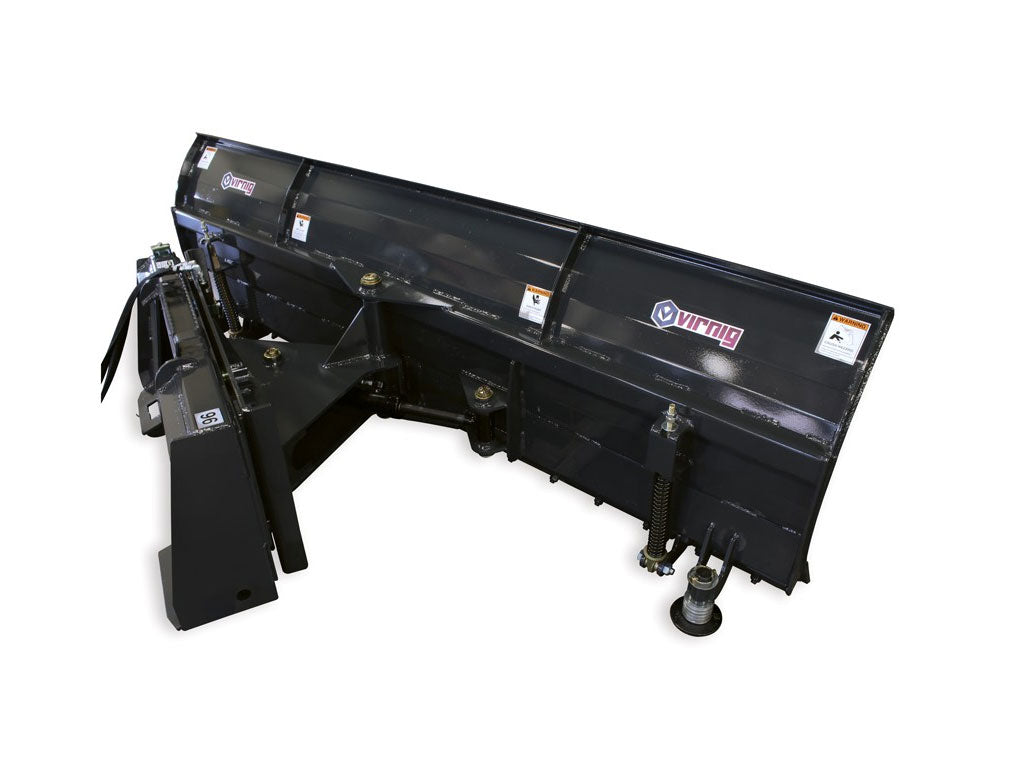

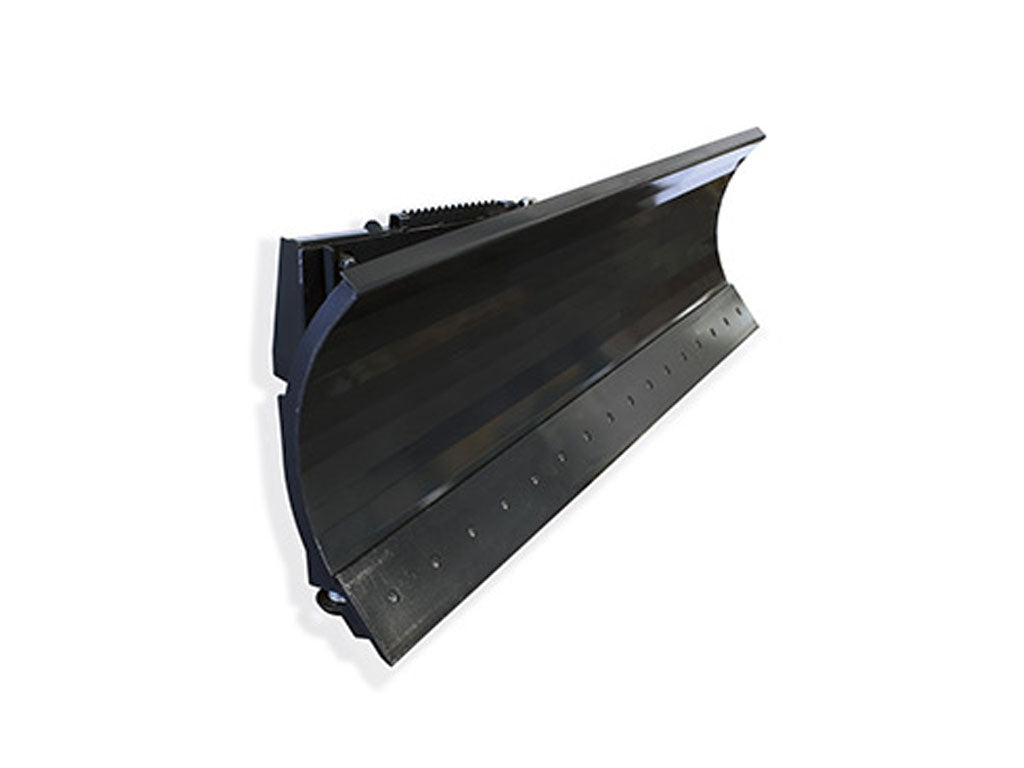

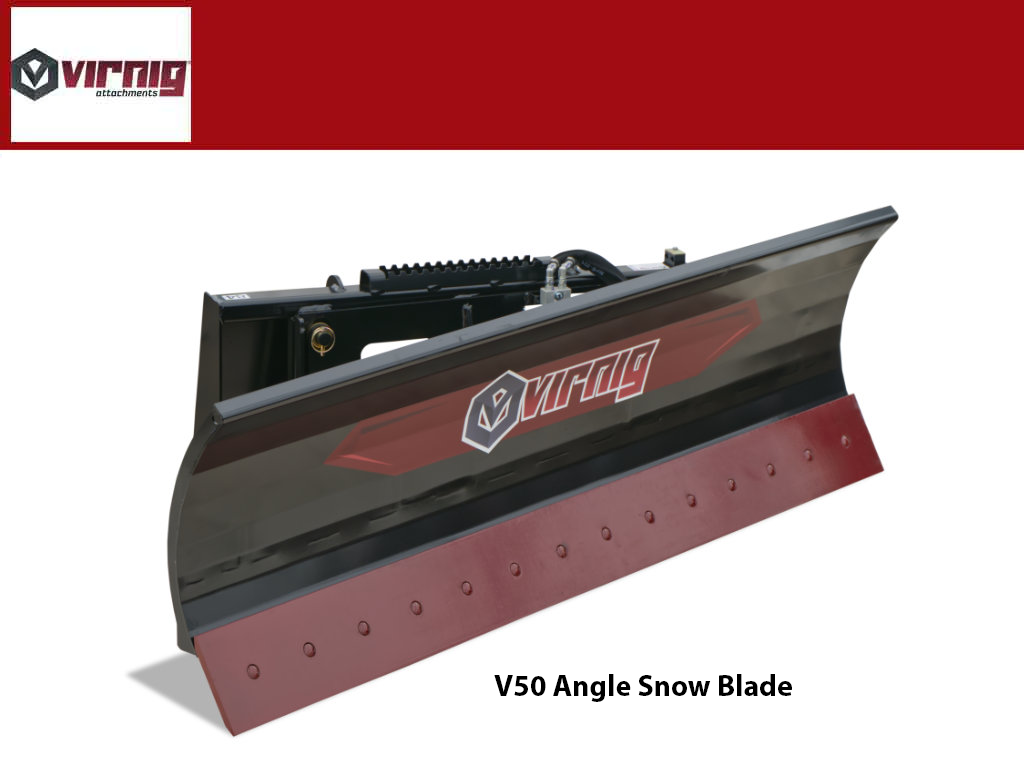

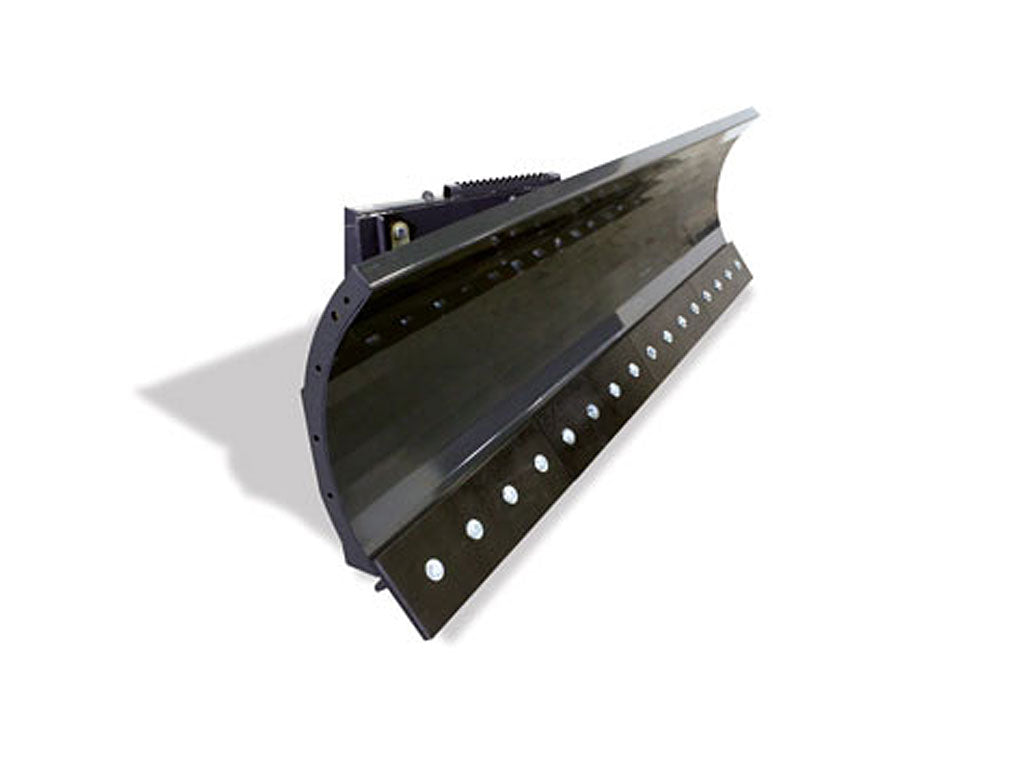

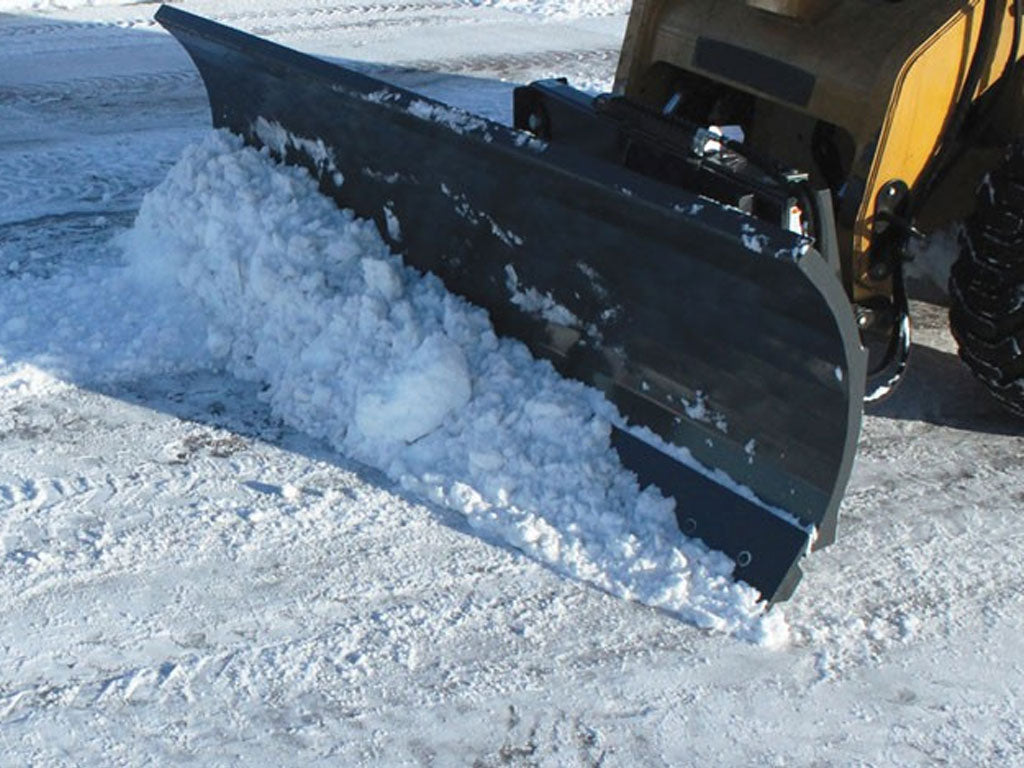

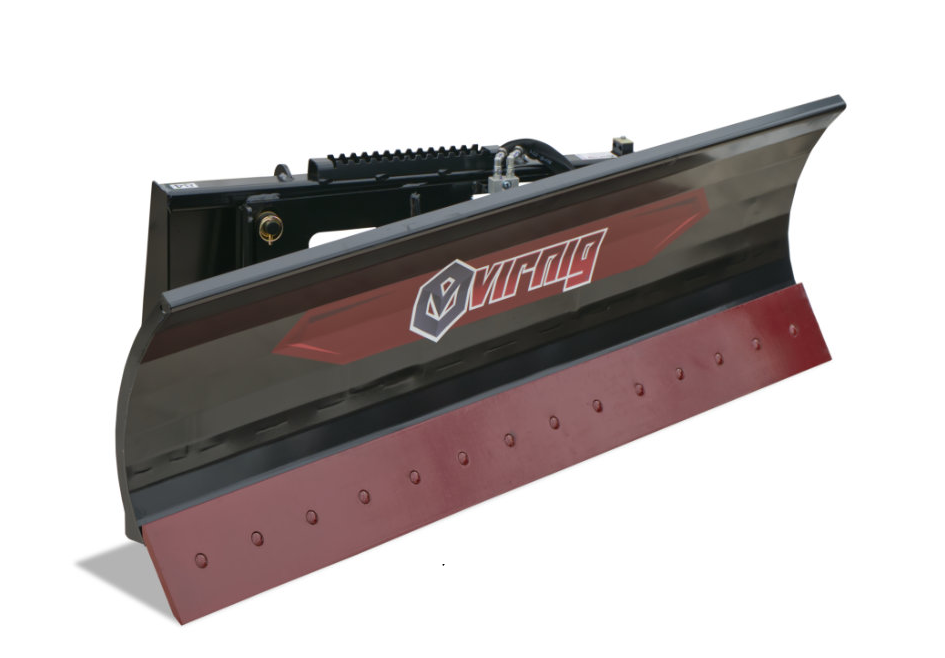

Virnig V50 Angle Snow Blade is a lighter version of the V60 Angle Snow Blade for less intensive snow removal jobs.
- One-cylinder hydraulic design allows the blade to angle +/- 30° in either direction to windrow snow.
- Designed to maintain full down pressure to help cleanly scrape hard-pack snow and ice.
- Side-to-side oscillation allows the cutting edge to follow the contour of the surface.
- Corrosion, dent, and flake resistant NitroSteel® cylinder rods are more salt resistant than chrome.

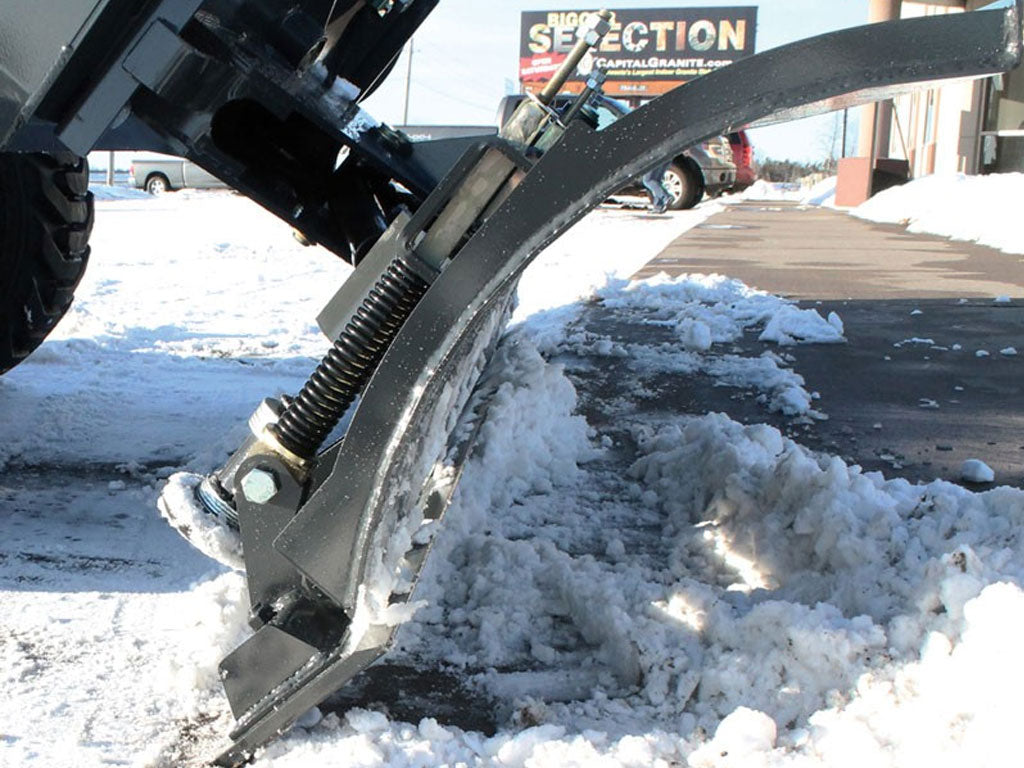

- Trip edge with two compression springs and three hinge points with a rigid moldboard to protect the plow.
EDGE OPTIONS
- Steel Edge Installed
- 5/8" x 8ˮ steel bolt-on edge allows 5 ½” of total wear
- Edge is quickly reversed or replaced.
- Poly Edge Installed
- Replaces standard steel cutting edge.
- 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
- Reversible and replaceable like a steel bolt-on edge.
- Rubber Edge installed
- Replaces standard steel edge.
- 1 1/2” x 10” rubber edge allows 7” of total wear.
- Reversible and replaceable like a steel bolt-on edge.
SPECIFICATIONS
| Model | SBS60-LD | SBS72-LD | SBS84-LD | SBS96-LD |
| Overall Blade Width (Inches) | 62.0 | 74.0 | 86.0 | 98.0 |
| Blade Height (Inches) | 31.0 | |||
| Blade Angle (Degrees) | +/- 30 | |||
| Width at Full Angle (Inches) | 54.0 | 64.0 | 74.0 | 84.0 |
| Moldboard Thickness (Inches) | 0.19 | |||
| Cutting Edge (Inches) | Steel, Poly, or Rubber | |||
| Blade Oscillation (Degrees) | +/- 4 | |||
| Approximate Weight (Pounds) | 815 | 870 | 920 | 975 |
| Recommended Loader Capacity | Less than 1800 pounds | |||
