DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

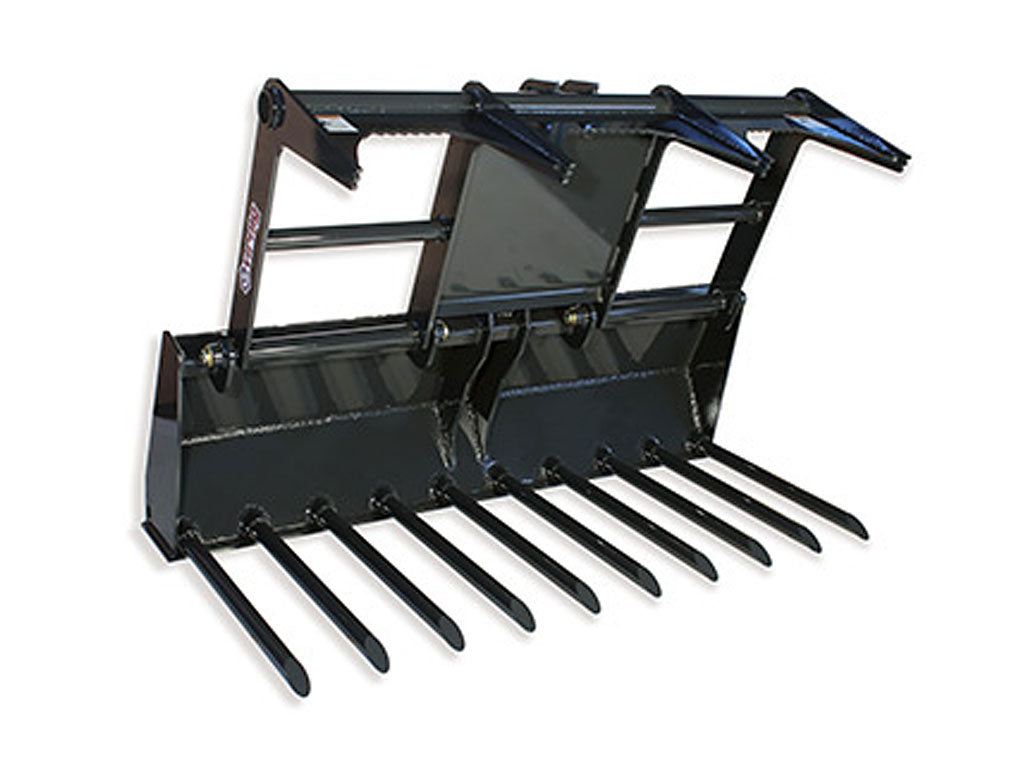

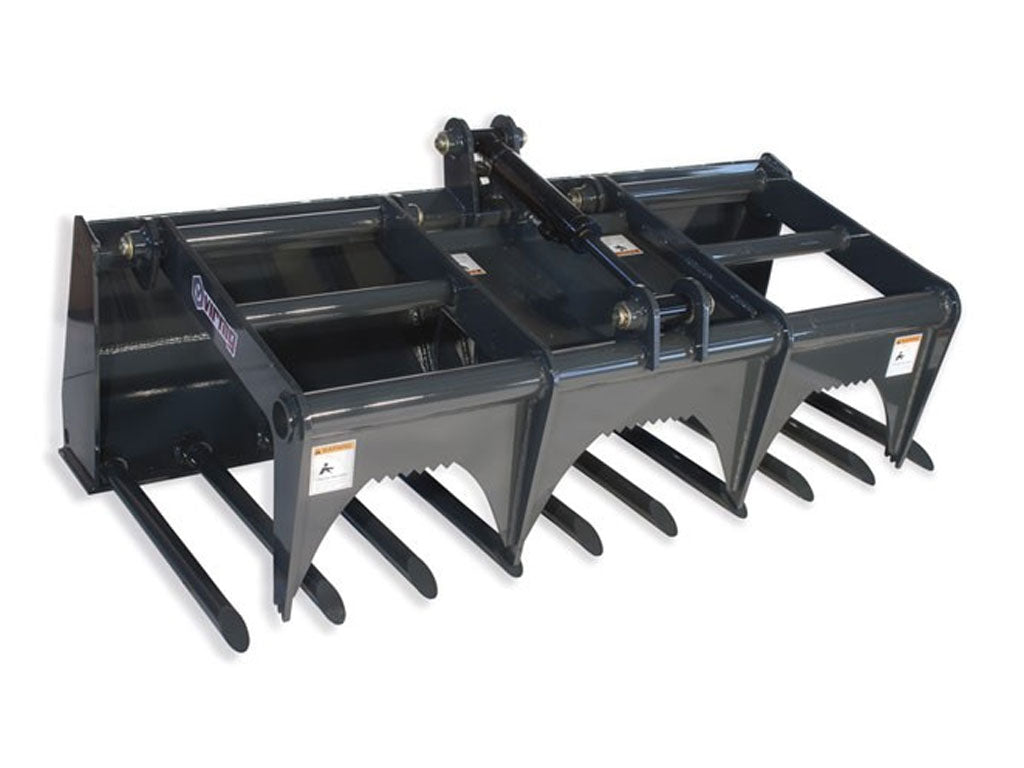

Single Jaw Skid Steer Grapples provide a cost effective alternative to a two-cylinder skid steer grapple with similar quality. Single Jaw Grapples utilize simplified hydraulic plumbing which cuts down on parts cost and time spent for repairs. A single jaw grapple may be preferred for picking up even material such as hay bales.
One-cylinder grapple designed to handle a variety of materials including manure, brush and debris. No cross member for better penetration.
- High tensile strength removable, replaceable 1 3/4” diameter tines.
- No cross member at tine tips allowing better material penetration.
- 2” bore, 8 3/8” stroke cylinder featuring corrosion, dent and flake resistant NitroSteel® cylinder rod.
- Greasable 1 1/4” diameter cylinder and hinge pins.
- Teflon® coated bushings provide lubrication at jaw hinge.
- Machine specific hydraulic package to completely protect hose routing.
SPECIFICATIONS
- Recommended loader capacity - Less than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25
| Model | 60" | 66" | 72" | 78" |
| Overall Width (in) | 61.3 | 67.3 | 73.3 | 79.3 |
| Depth (in) | 33.5 | 33.5 | 33.5 | 33.5 |
| Height: Overall / Bucket (in) | 27.6 / 21.5 | 27.6 / 21.5 | 27.6 / 21.5 | 27.6 / 21.5 |
| Grapple Jaw Opening (in) | 38.0 | 38.0 | 38.0 | 38.0 |
| Number of Tines | 9 | 10 | 11 | 12 |
| Space Between Tines | 5.4 | 5.3 | 5.2 | 5.1 |
| Weight (lbs) | 835 | 860 | 950 | 990 |
