DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

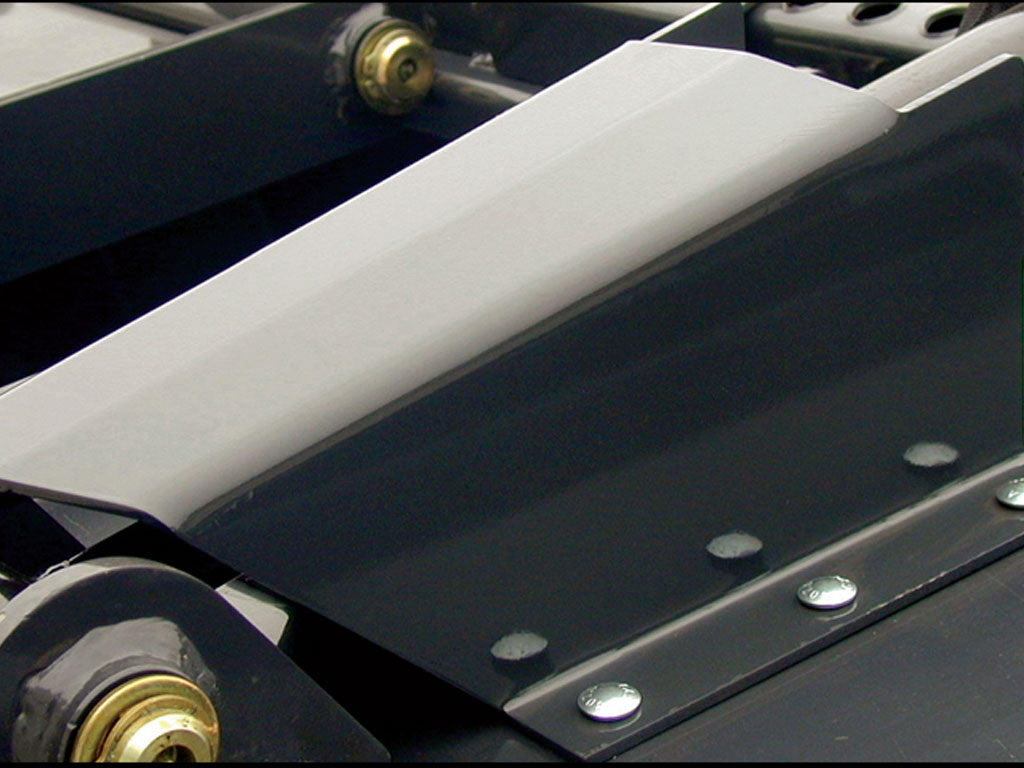

- OPTIONAL CYLINDER GUARD $95
- OPTIONAL OPEN SIDES

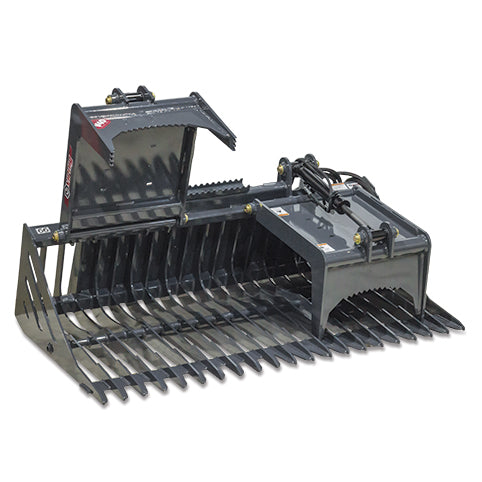

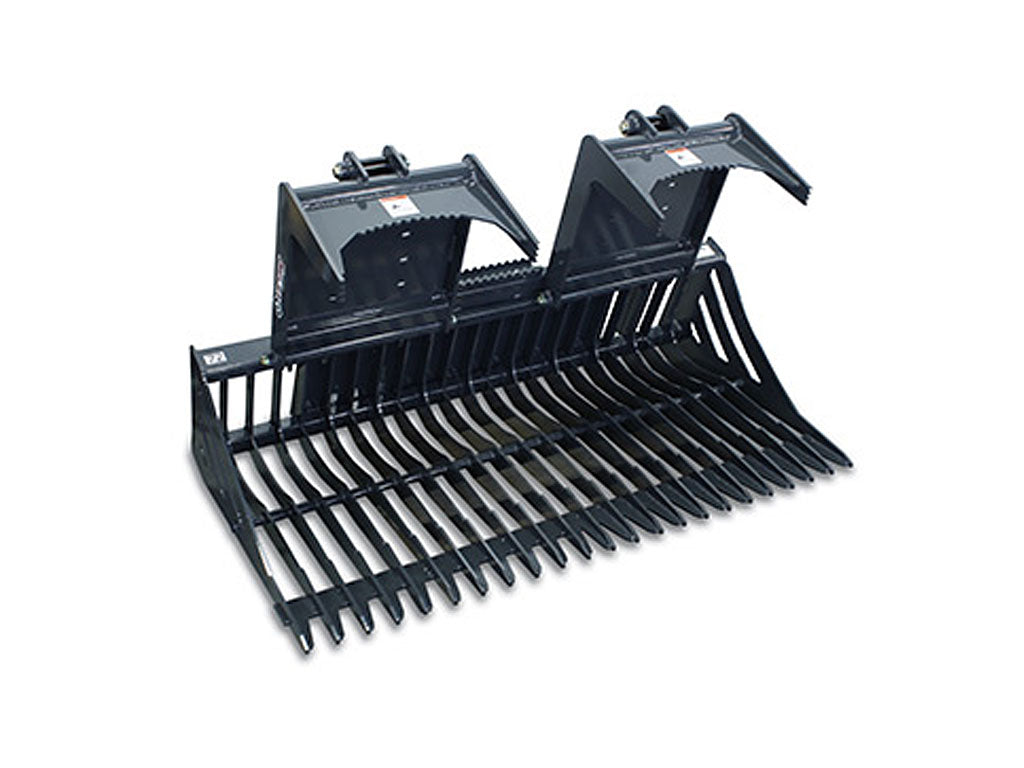

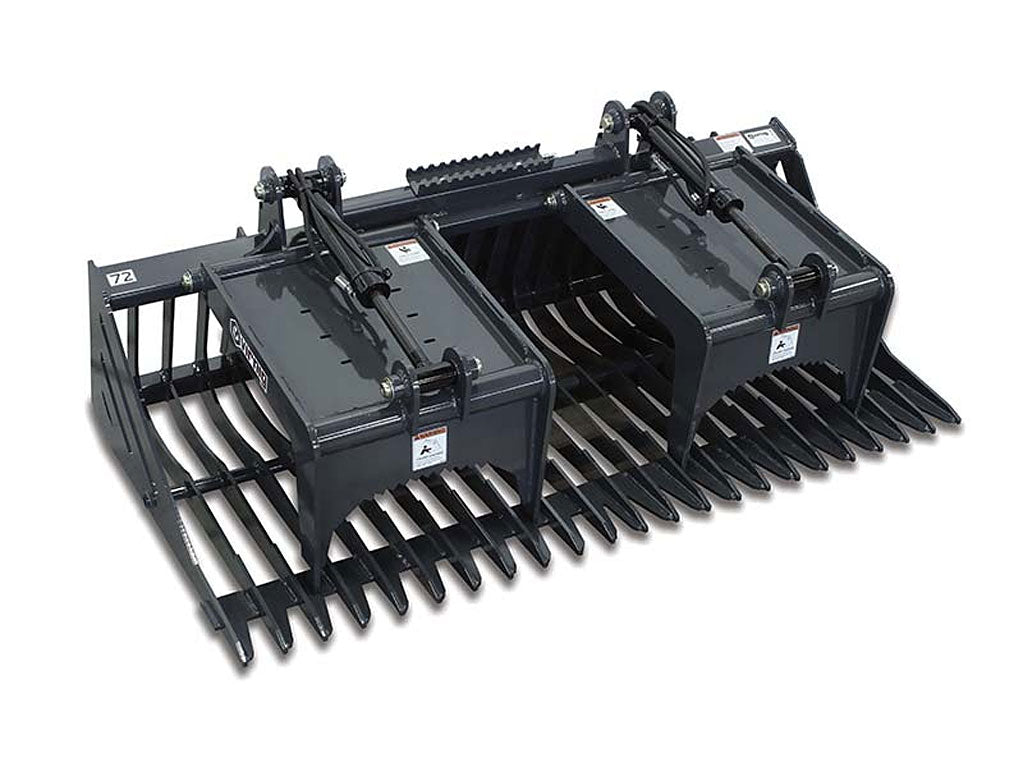

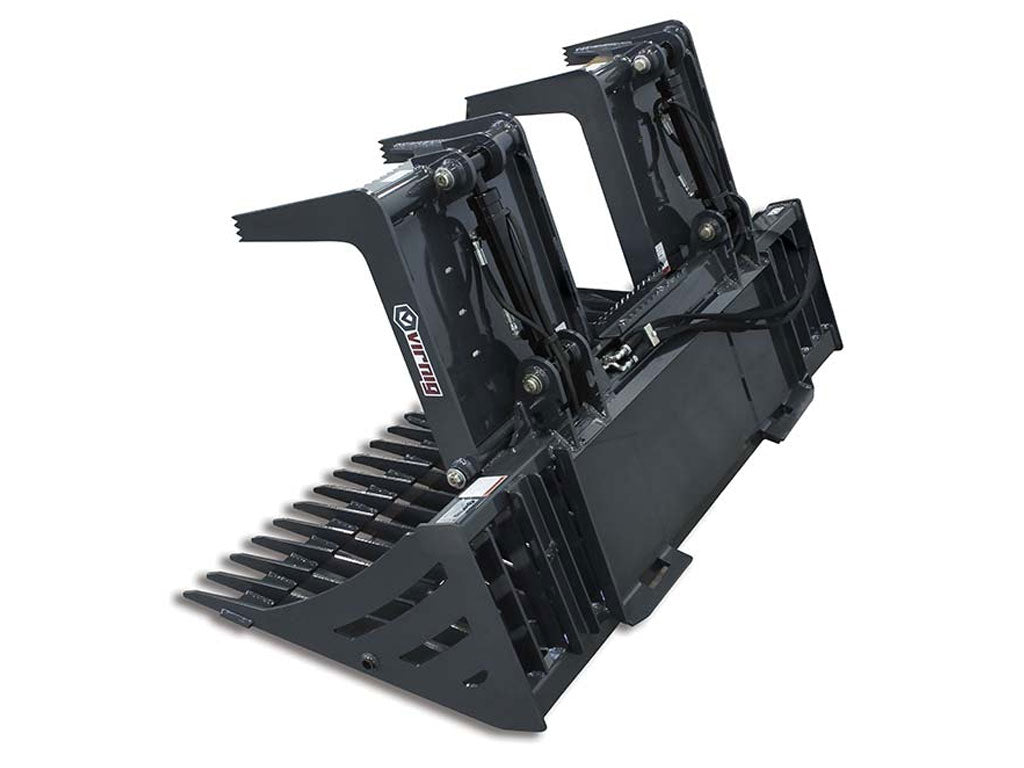

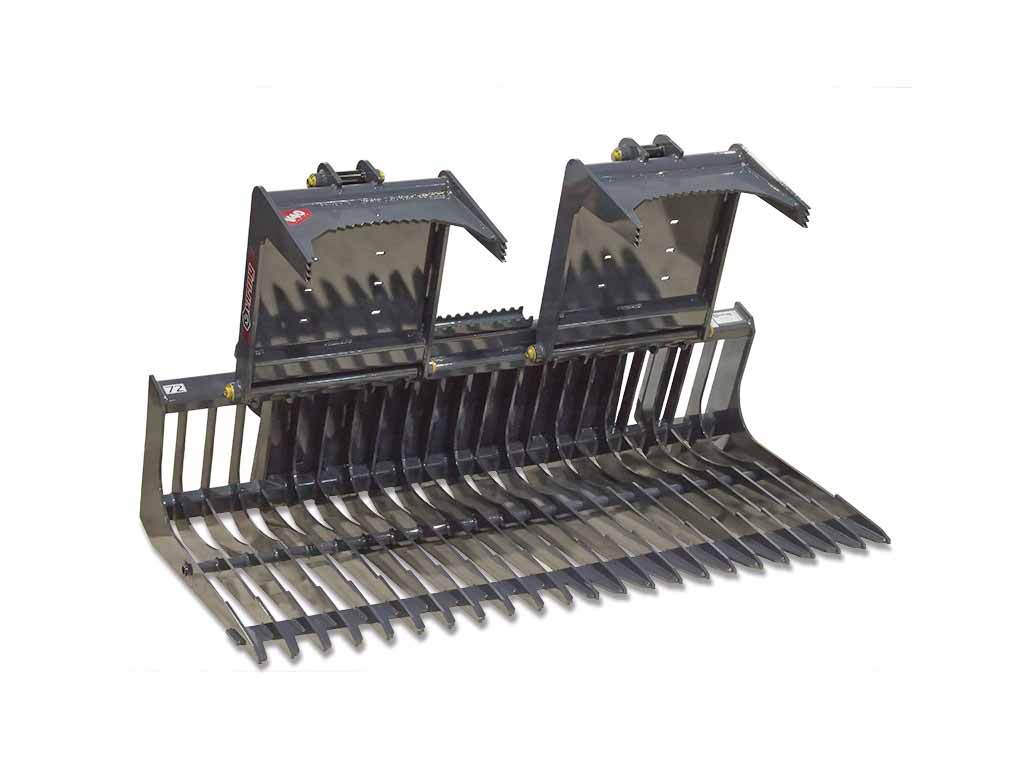

Two-cylinder independent grapple with 3” tine spacing designed to pick rocks and debris and leave dirt behind.

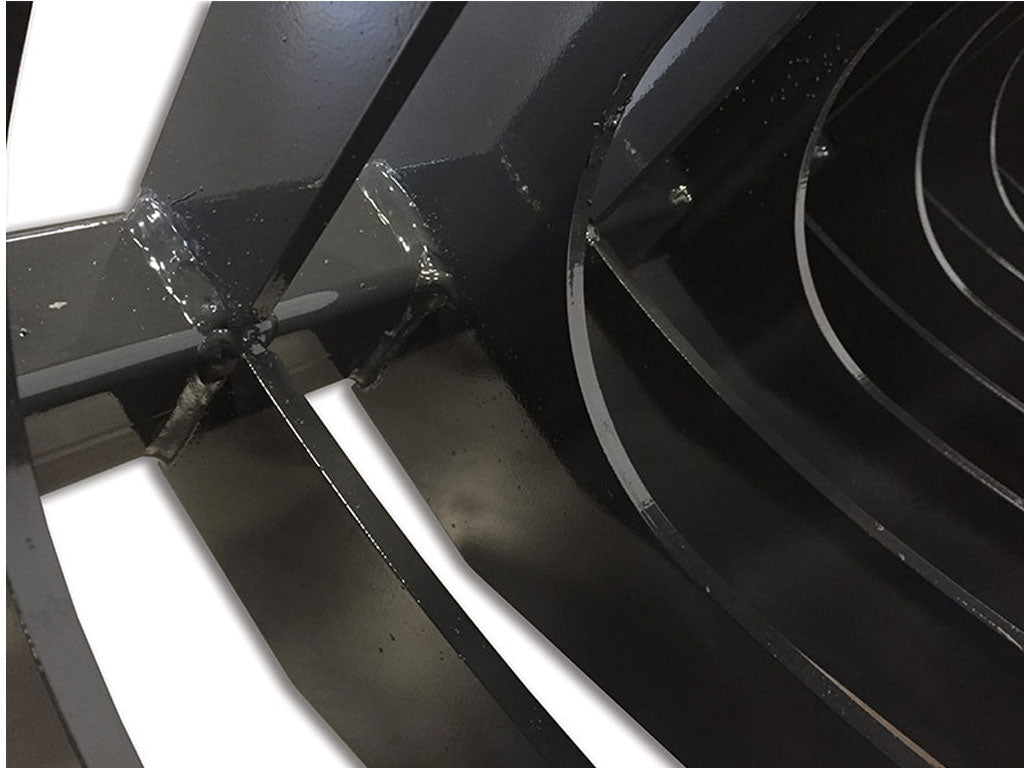

- Every other tine is constructed of one piece of steel, from tip to top brace, to add rigidity. Every tine is made from 3/8” Grade 50 steel.
- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
- 2” bore, 8 3⁄8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 1/4” diameter cylinder pins and hinge pins.
- Teflon® coated bushings provide lubrication at jaw hinge.
- Removable bolt on step made of durable, laser cut steel in an aggressive pattern.

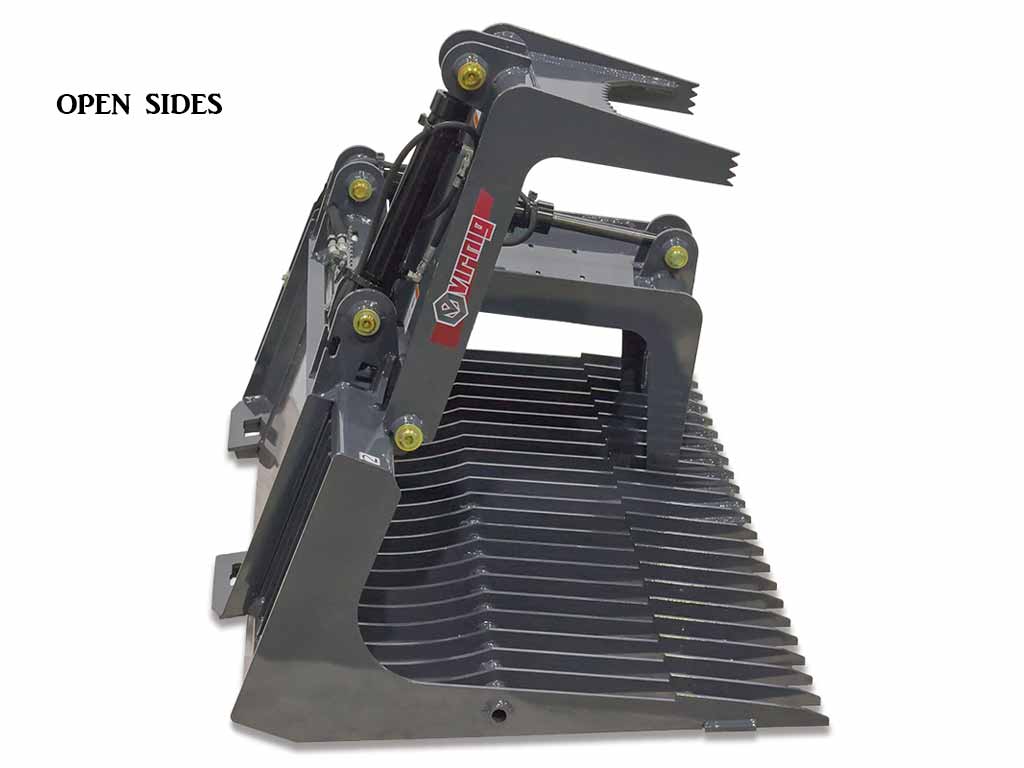

- Optional Open Sides.
SPECIFICATIONS
- Recommended loader capacity - Less than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25
| Model | BSRGV66 | BSRGV72 | BSRGV84 |
| Overall Width (in) | 67.6 | 74.3 | 87.5 |
| Depth (in) | 39.9 | 39.9 | 39.9 |
| Height: Overall/Bucket (in) | 26.5/20.0 | 26.5/20.0 | 26.5/20.0 |
| Grapple Jaw Opening (in) | 35.2 | 35.2 | 35.2 |
| Number of Tines | 21 | 23 | 27 |
| Space Between Tines (in) | 2.9 | 2.9 | 2.9 |
| Weight (lbs) | 925 | 960 | 1040 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
