Description
DESCRIPTION

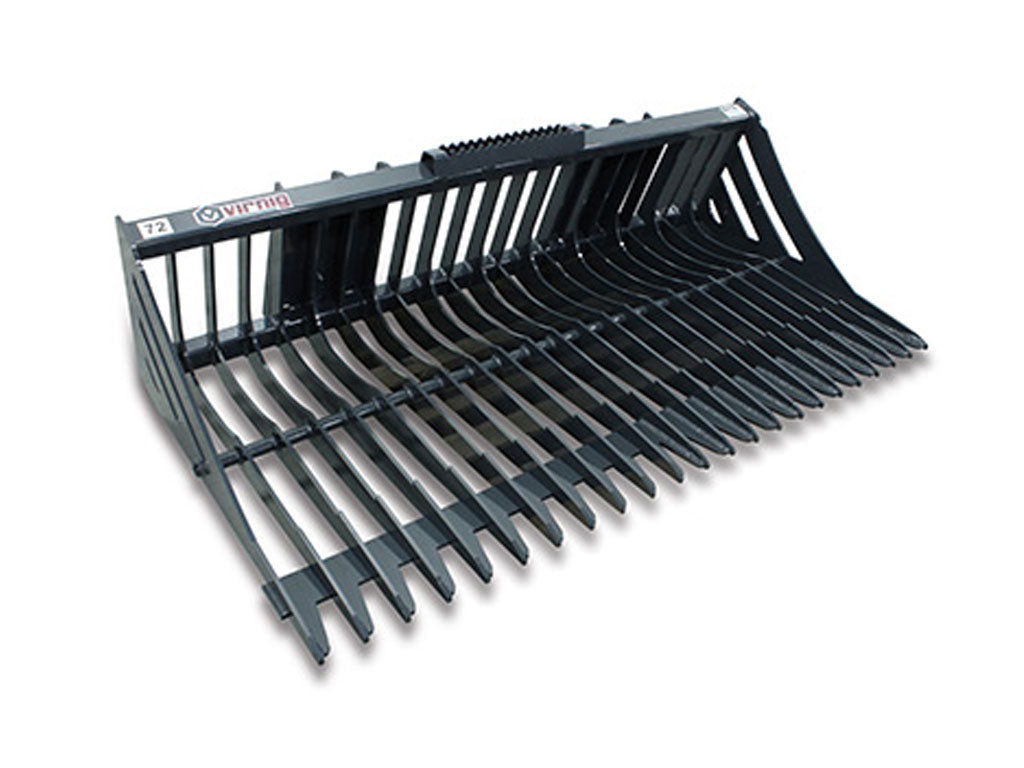

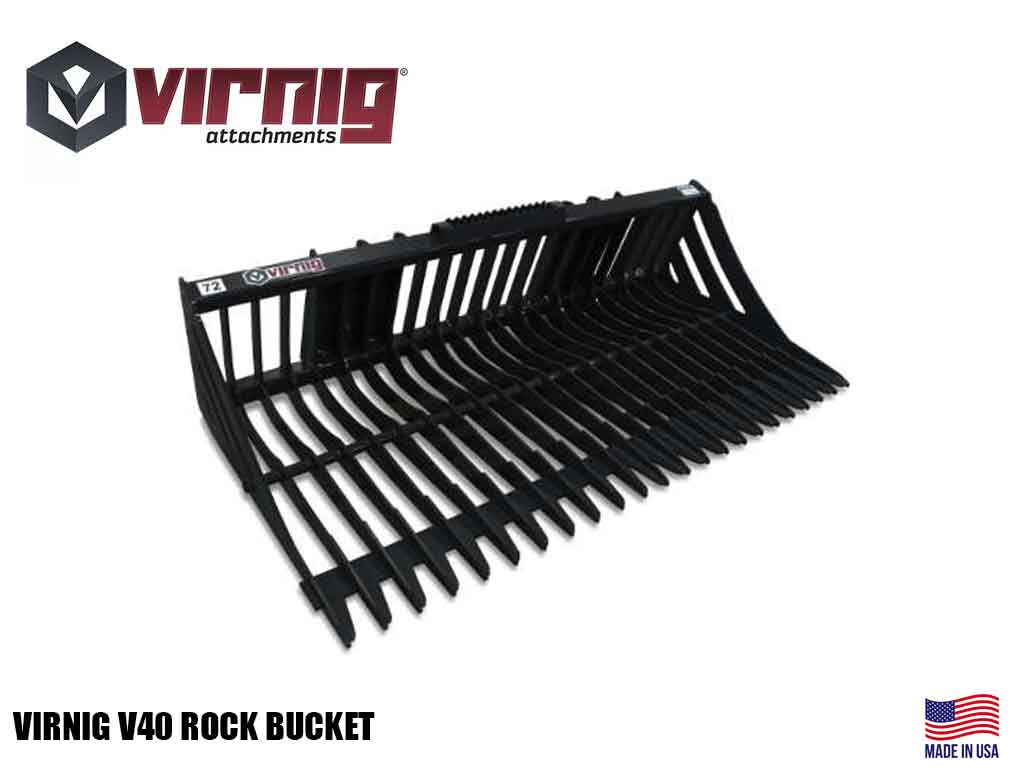

V40 SKELETON ROCK BUCKET
In the early 2000’s, Virnig pioneered the way skid steer rock buckets are made. The redesigned bucket featured innovative one piece tines, a rock dam and strategic gusseting. Others have tried to copy it, but there’s only one Original Skeleton Rock Bucket.
- Every other tine is constructed of one piece of steel, from tip to top brace, to add rigidity. Every tine tine is made from 3/8″ Grade 50 steel.

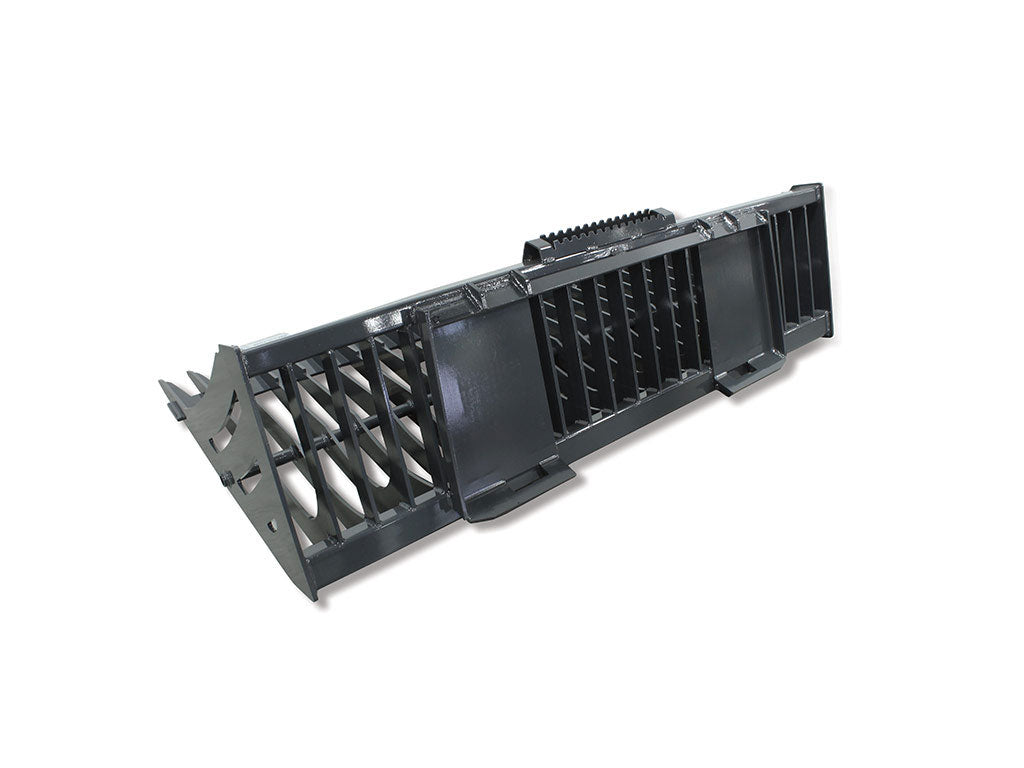

- Open bottom and back gives excellent visibility and allows dirt to fall through the 3″ tine spacing.

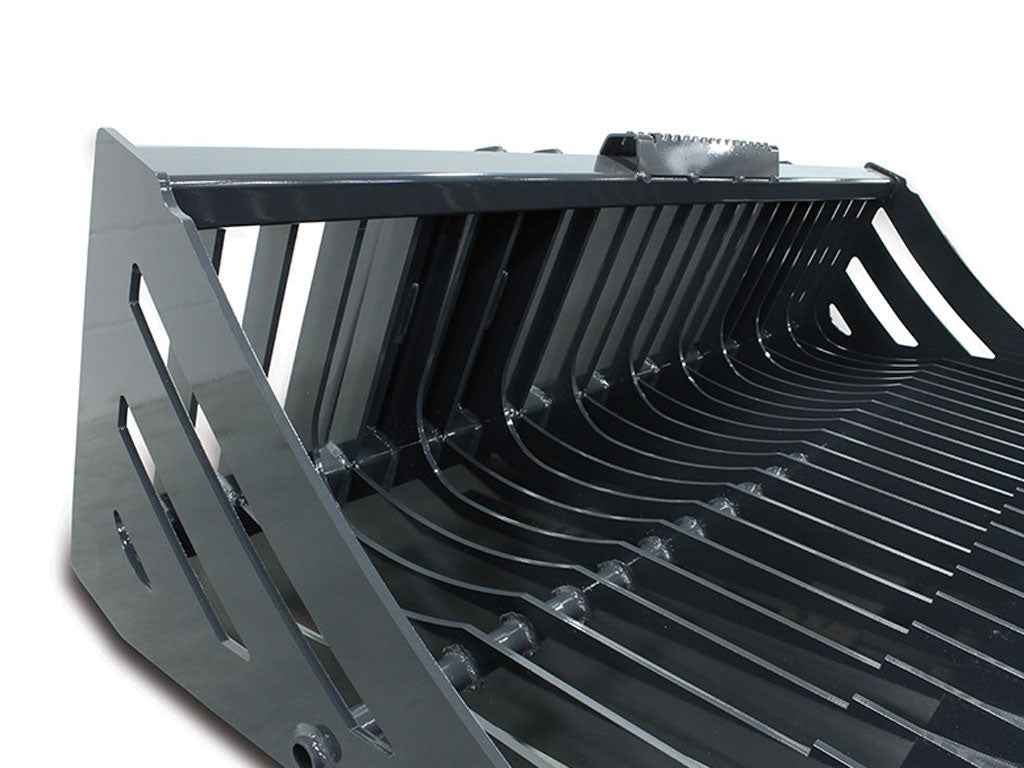

- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
- Fully gusseted tine tips to strengthen tines and limit bending.
- Additional uses include digging roots from thick brush, clearing overgrown fence lines and efficient back-dragging.
SPECIFICATIONS
- Recommended loader capacity - Less than 2400 lbs ROC
- Tine thickness (in): 3/8" Grade 50
| MODEL | BSRV66 | BSRV72 | BSRV84 |
| Overall Width (Inches) | 67.6 | 74.3 | 87.5 |
| Overall Height (Inches) | 20.5 | ||
| Overall Depth (Inches) | 39.9 | ||
| Number of Tines (With Sides) | 21 | 23 | 27 |
| Space Between Tines (Inches) | 2.9 | ||
| Bucket Tine Thickness (Inches) | 0.375* | ||
| Approximate Weight (Pounds) | 520 | 560 | 640 |
| Recommended loader capacity | Less than 2400 pounds | ||
*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
