Description

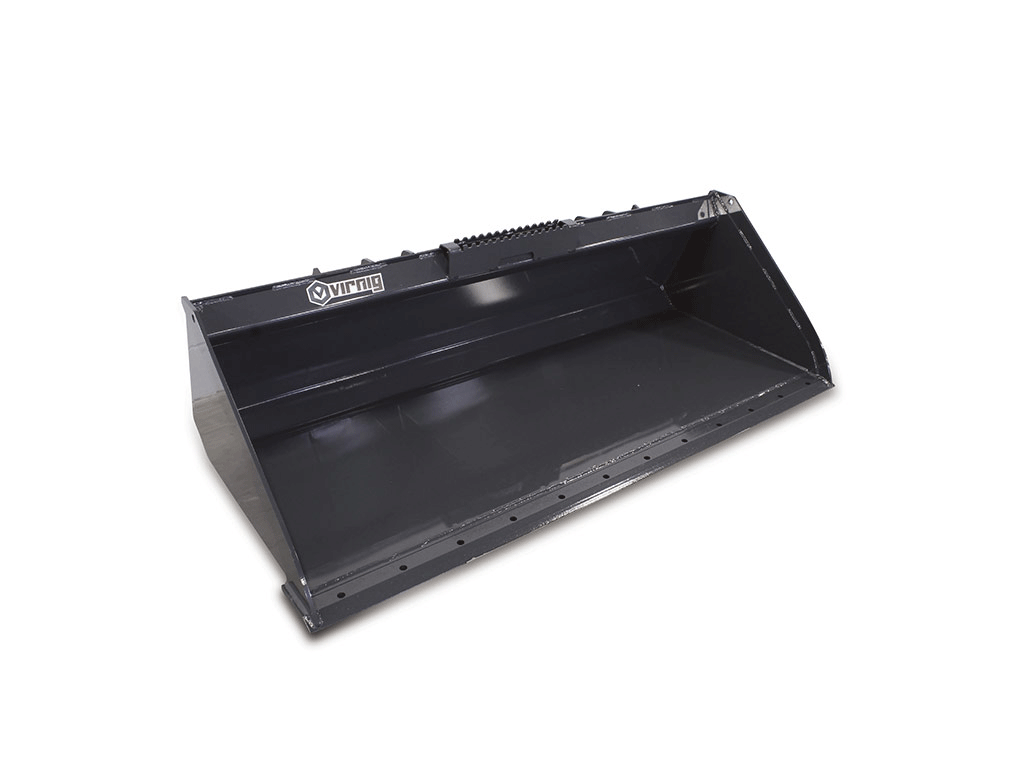

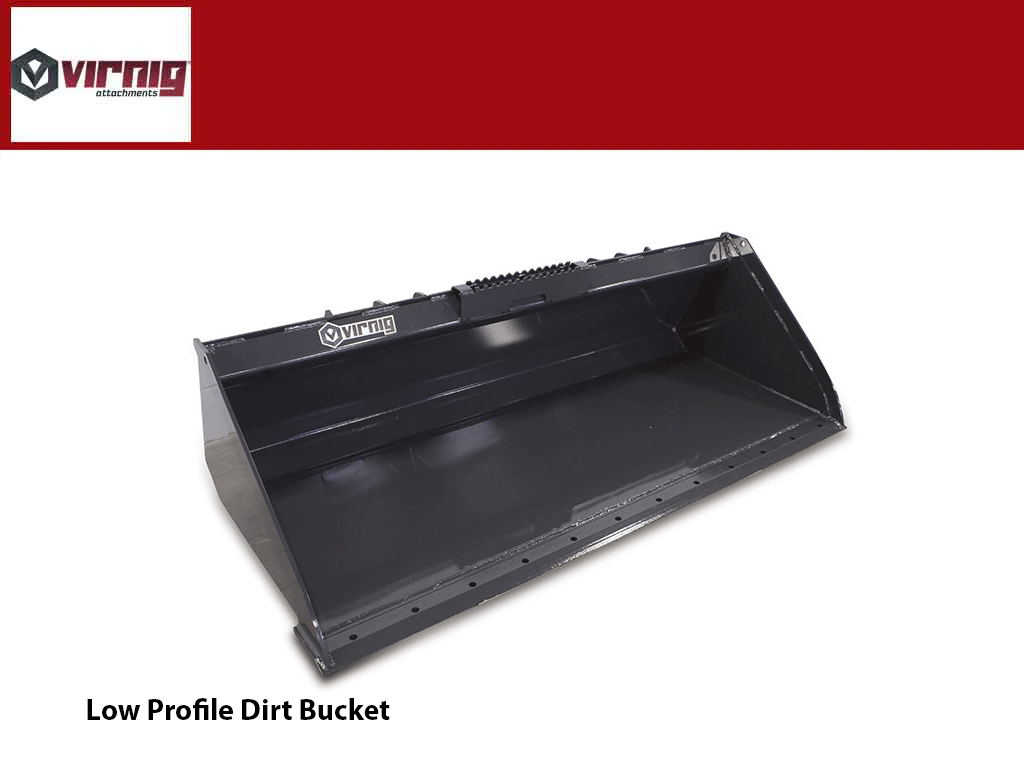

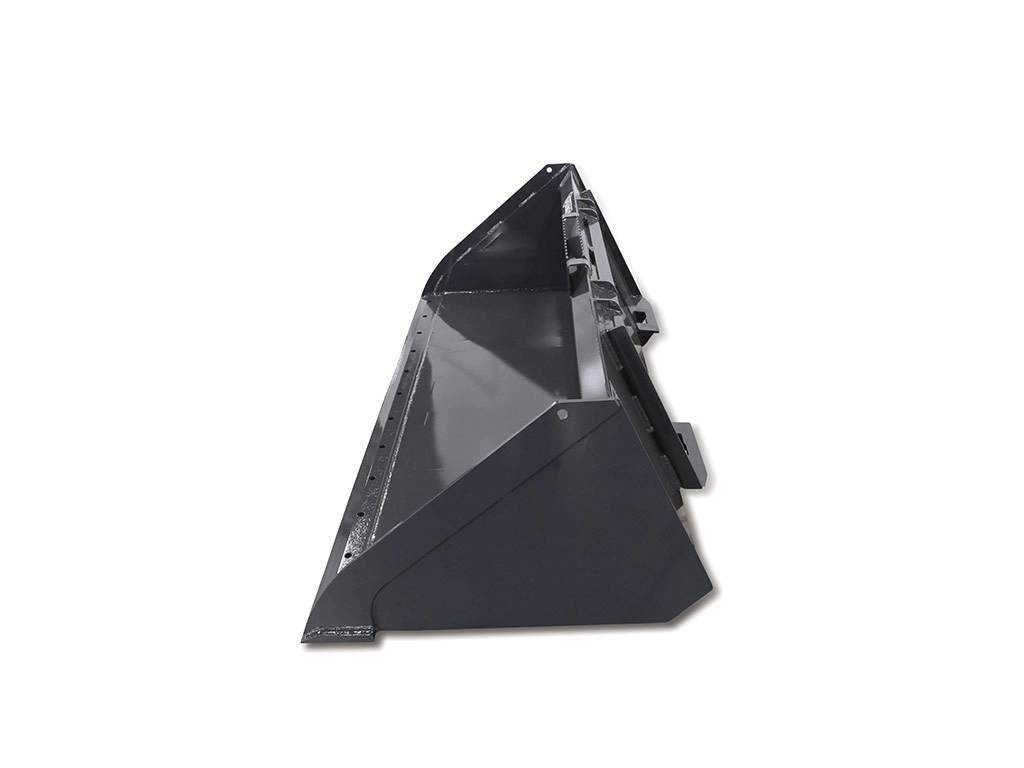

Virnig V40 Dirt Bucket has a low profile design and extended bottom for better visibility of cutting edge.
- 3/16″ shell and side plates made from Grade 50 steel plate.
- 1/2″ x 3ˮ structural wear bars underneath for added rigidity and life-span.
- ¾” x 6″ weld-on cutting edge with holes to accept optional bolt-on or serrated bolt-on edge. See the “Options” tab for bucket edge options.

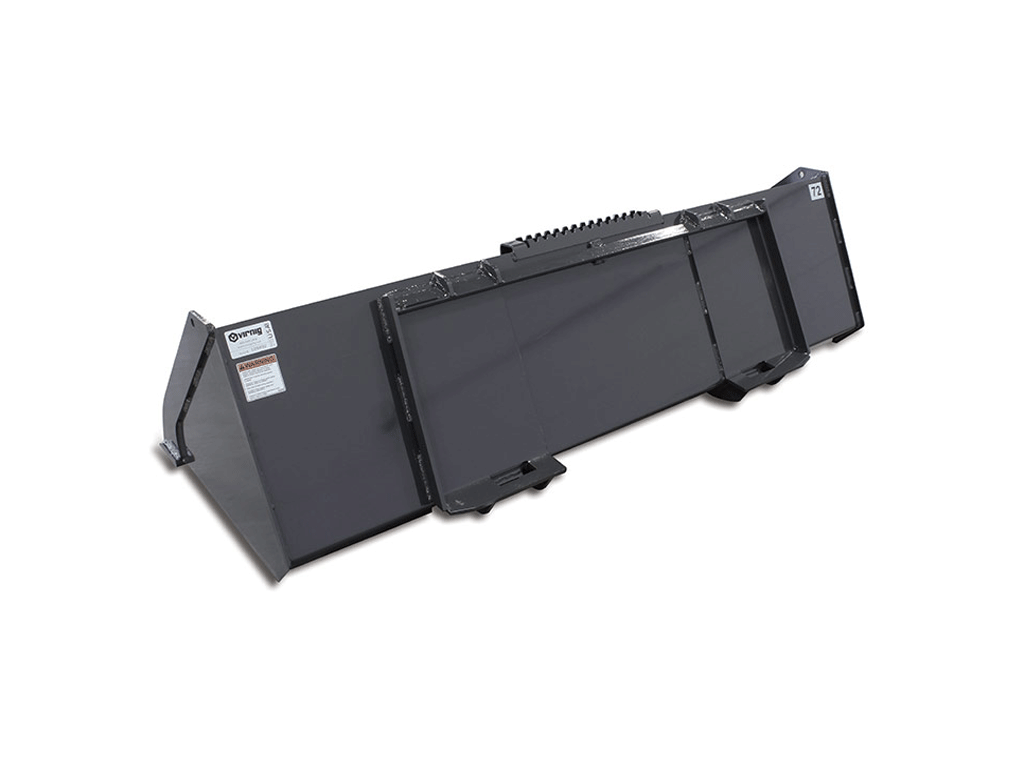

- Manufactured with a universal mount to fit most skid steer loaders.
- Lighter and more compact than V50 Dirt Bucket.
OPTIONS

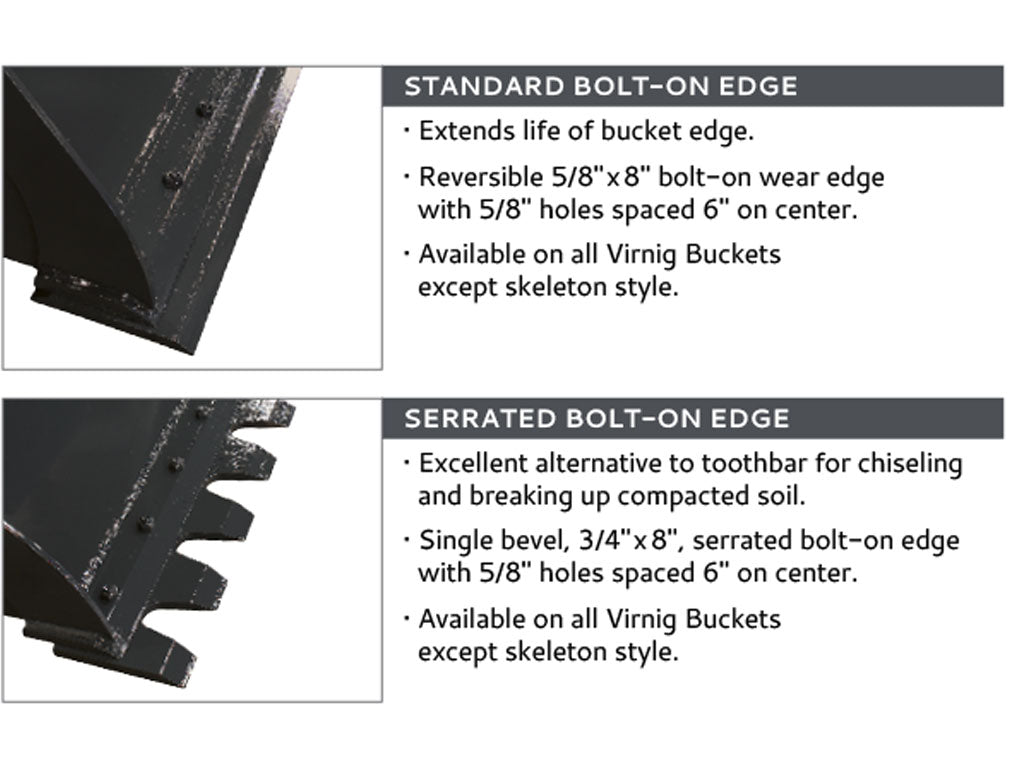

- Bolt on Cutting Edge (BOCE) installed
- Extends life of bucket.
- Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
- Serrated Edge (SE) installed
- Excellent alternative to toothbar for chiseling and breaking up soil.
- Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
SPECIFICATIONS
| Models | EDV 60 | EDV 66 | EDV 72 | EDV 78 | EDV 84 |
| Overall Bucket Width (Inches) | 61.5 | 67.5 | 73.5 | 79.5 | 85.5 |
| Bucket Depth (Inches) | 32.4 | ||||
| Bucket Height (Inches) | 20.0 | ||||
| Struck Capacity (Cubic Feet) | 11.6 | 12.8 | 14.1 | 15.4 | 16.7 |
| Heaped Capacity (Cubic Feet) | 13.9 | 15.4 | 16.9 | 18.85 | 20.0 |
| Bucket Back Angle (Degrees) | 66 | ||||
| Shell Thickness (Inches) | 0.19 | ||||
| Side Plate Thickness (Inches) | 0.19 | ||||
| Structural Wear Bars Under Bucket (1/2″ x 3″) | 2 | 2 | 2 | 3 | 3 |
| Approximate Weight (Pounds) | 405 | 430 | 455 | 490 | 515 |
| Recommended Loader Capacity | Less than 2400 pounds | ||||
