Description
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING

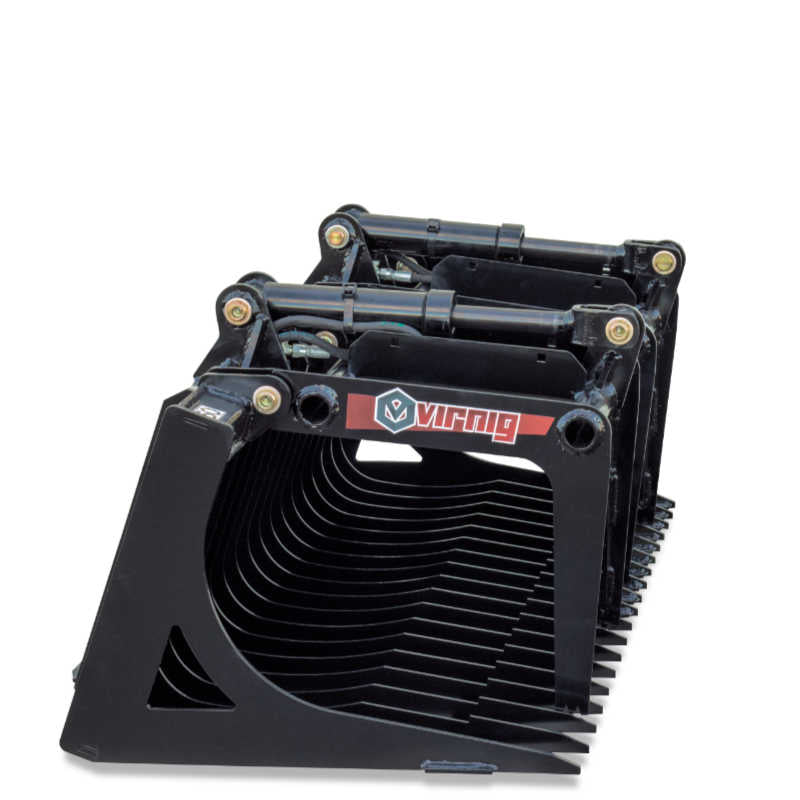

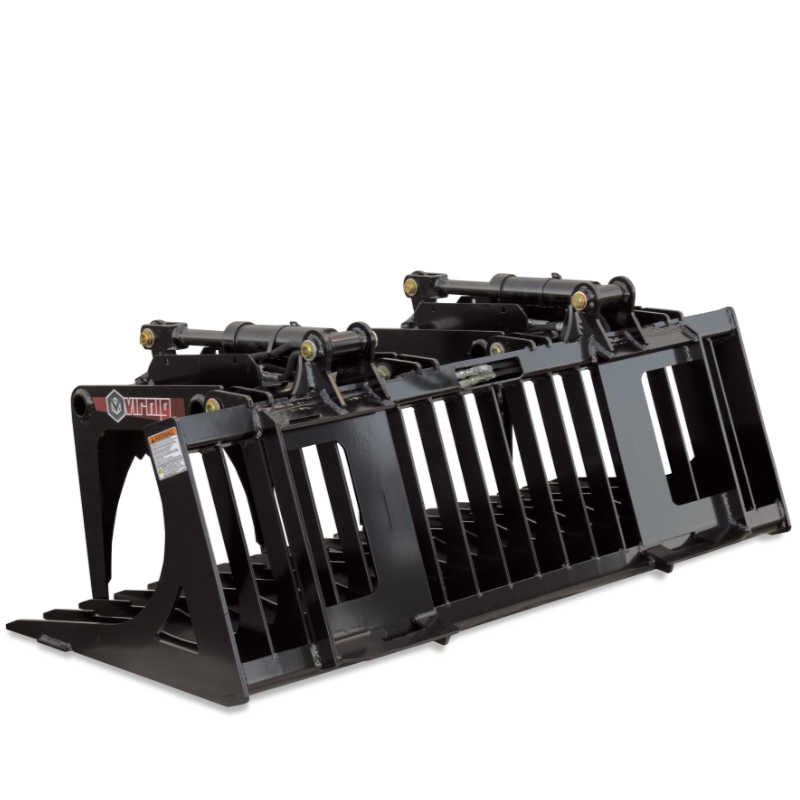

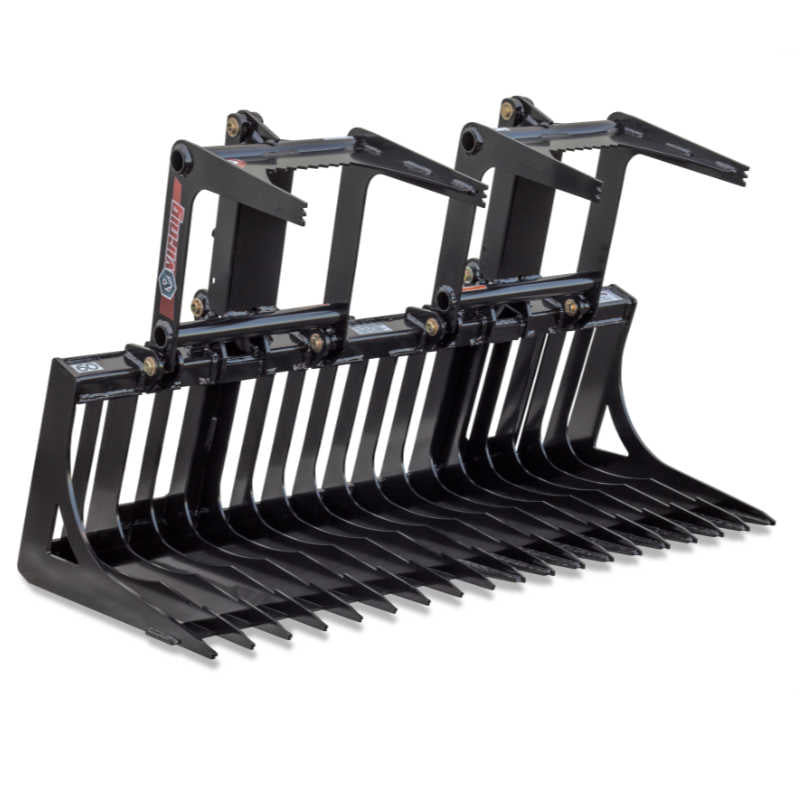

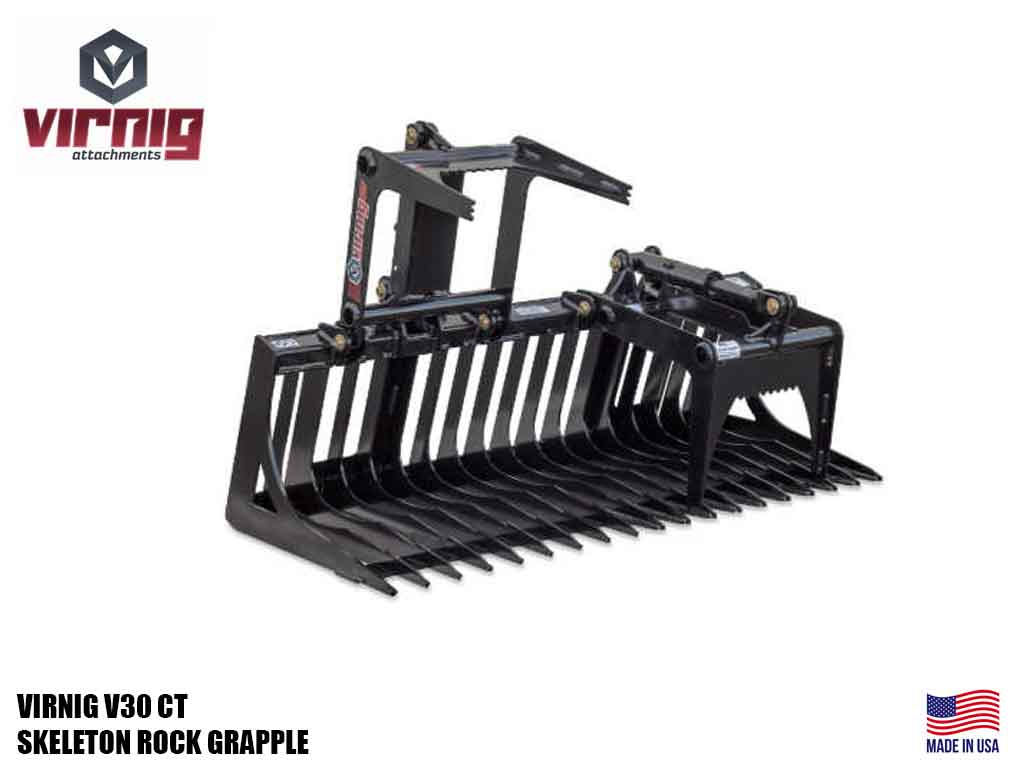

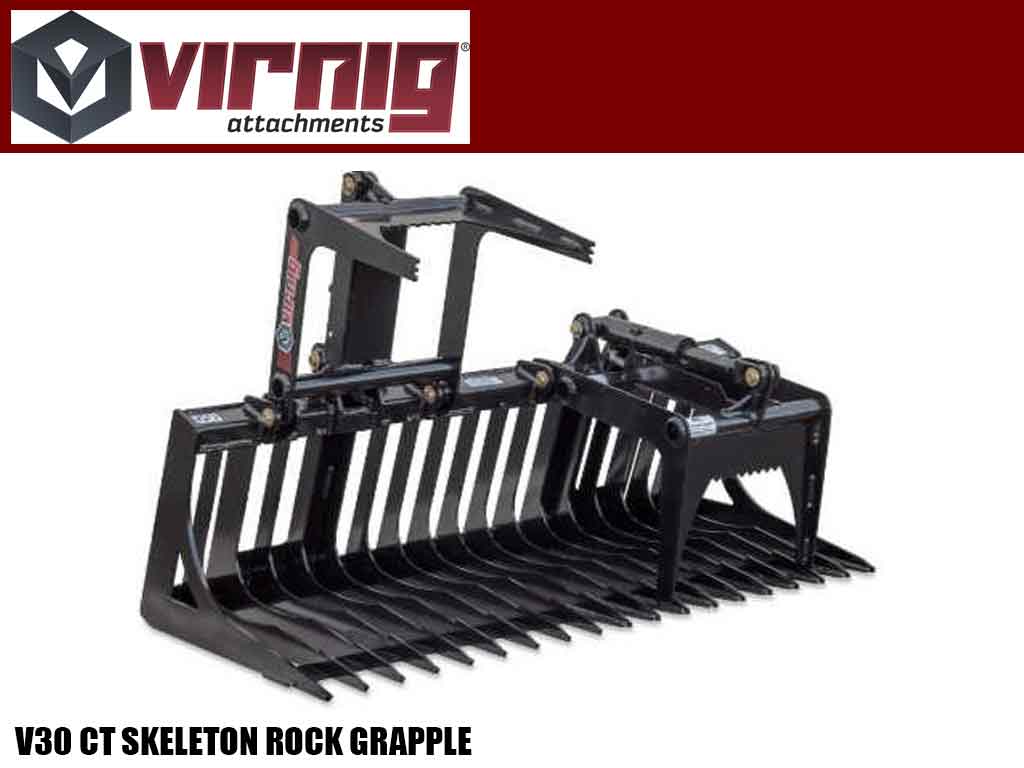

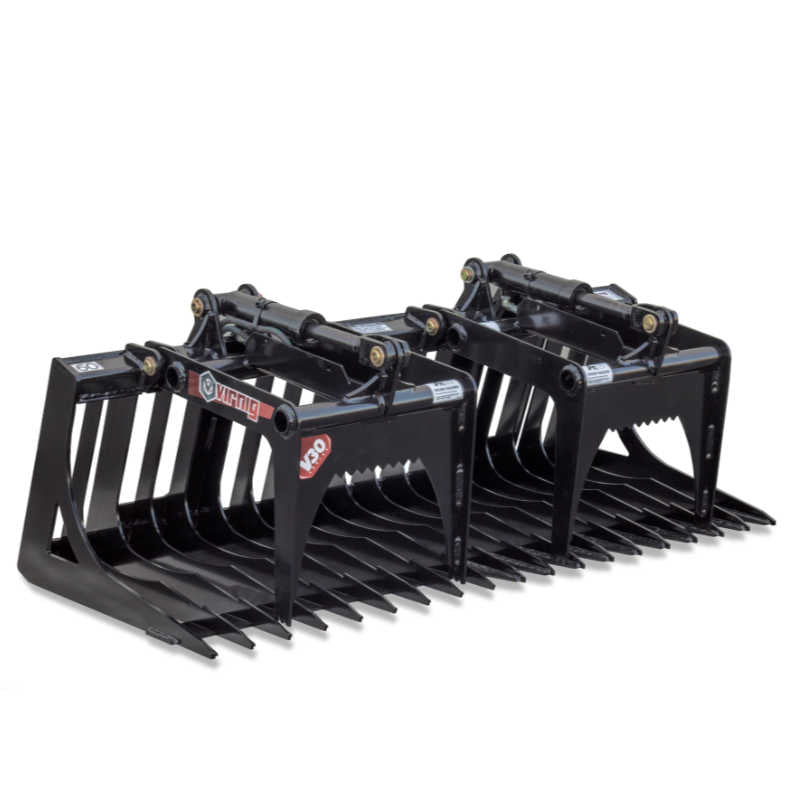

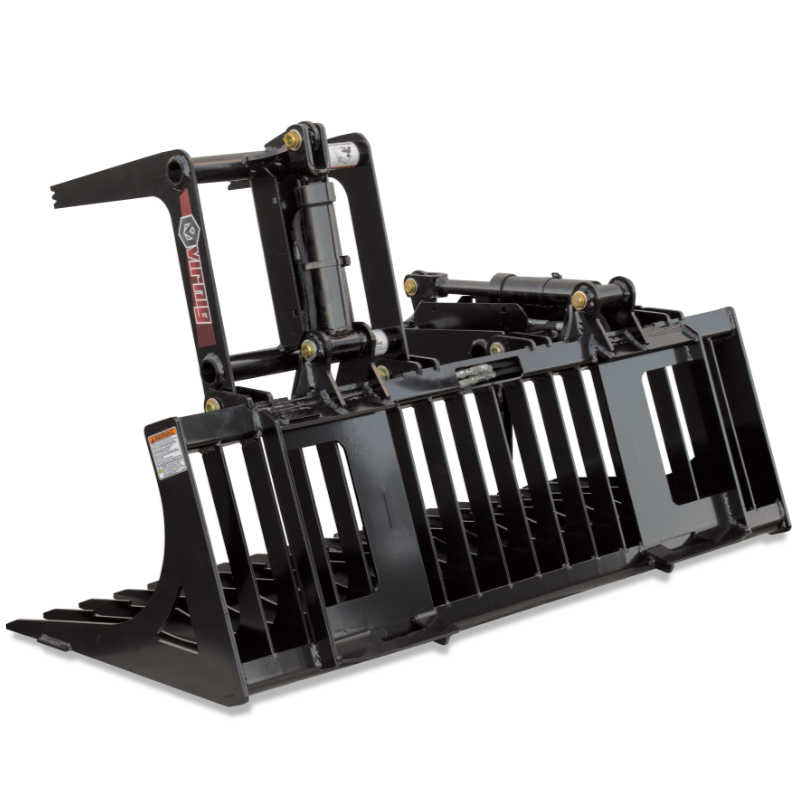

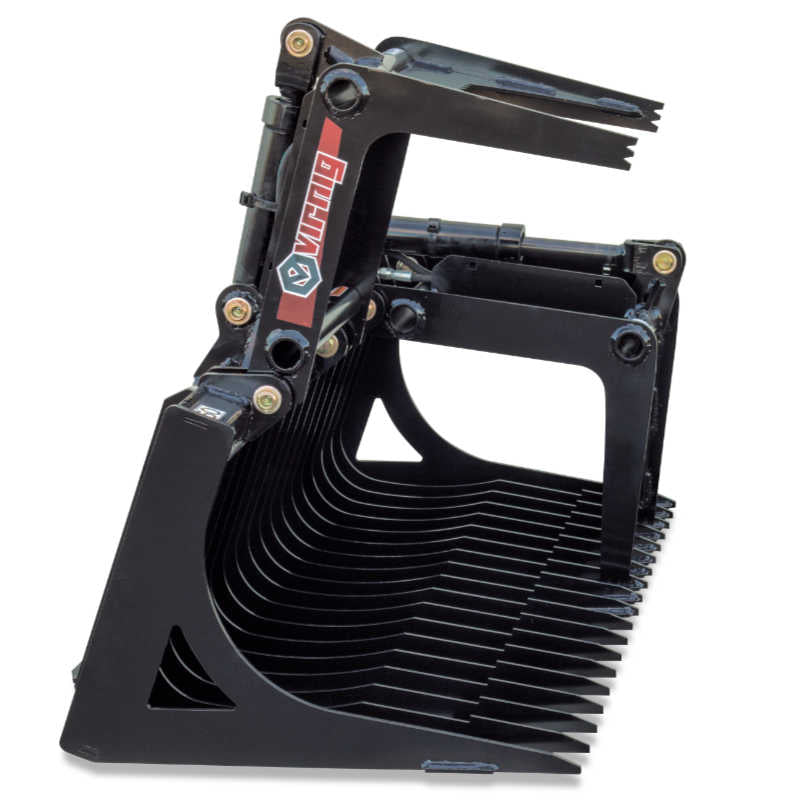

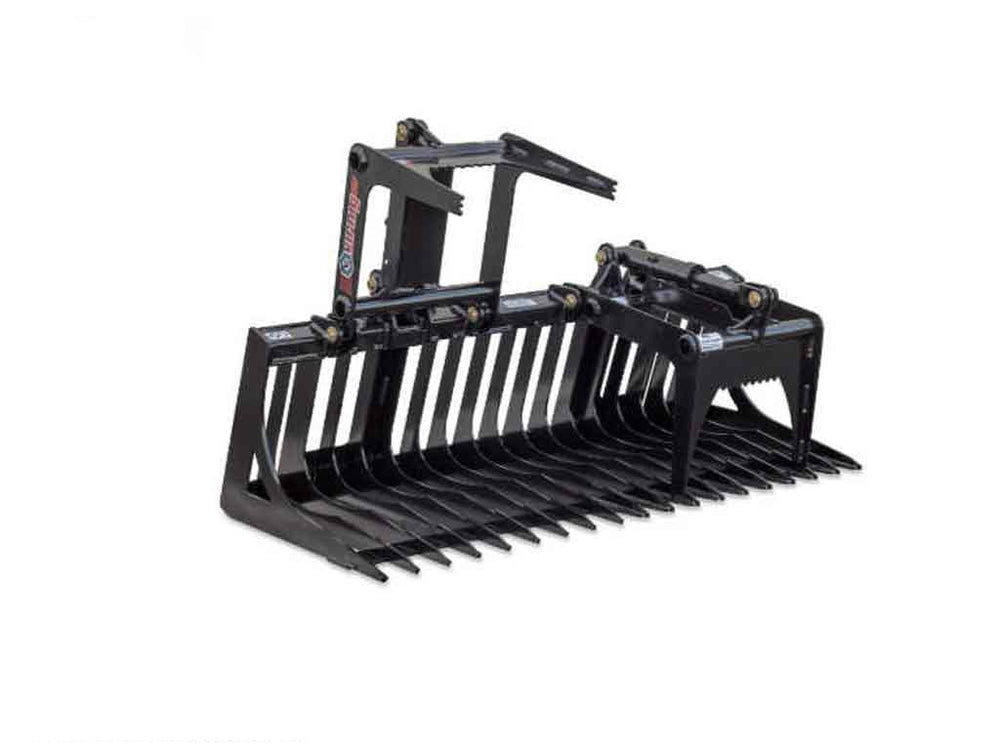

Redesigned as a two-cylinder independent grapple. 25% lighter than previous version to haul more material.
- Every tine is constructed of one piece of 1/4” Grade 50 steel, from tip to top brace, to add rigidity.
- Hybrid side plates keep rocks secure while still allowing handling material wider than the grapple possible.
- Tight 3” tine spacing to pick rocks and leave dirt behind.
- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging. Fully gusseted tine tips for added strength.
- NitroSteel® cylinder rod and Teflon® coated bushings on hinge.
OPTIONS
- Optional cylinder guards available.
- Optional 90" hoses & 1/2" fittings
SPECIFICATIONS
| MODEL | SRGV48-CT | SRGV54-CT | SRGV60-CT | SRGV66-CT | SRGV72-CT |
| Overall Width (Inches) | 47.9 | 54.3 | 60.9 | 67.5 | 74.1 |
| Height: Overall / Bucket (Inches) | 22.9 / 19.0 | ||||
| Depth: Overall / Inside (Inches) | 29.0 / 23.5 | ||||
| Number of Tines (With Sides) | 15 | 17 | 19 | 21 | 23 |
| Space Between Tines (Inches) | 3.1 | ||||
| Tine Thickness (Inches) | 0.25* | ||||
| Side Plate Thickness (Inches) | 0.375* | ||||
| Grapple Jaw Opening (Inches) | 28.7 | ||||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 | ||||
| Approximate Weight (Pounds) | 345 | 365 | 385 | 405 | 425 |
| Recommended Loader Capacity | Less than 1,500 pounds | ||||
*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
