Description
- Unique design allows efficient forward and reverse operation to drag loose material into piles.
- Every tine is constructed from AR400 steel for added strength.
- NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
Includes:
- Universal skid steer mounting
- 90" HOSES, 1/2" MALE AND FEMALE COUPLERS
SPECS
| MODEL | URG54-CT | URG60-CT | URG66-CT |
| Overall Width (Inches) | 56.5 | 61.5 | 67.5 |
| Height: Overall / Bucket (Inches) | 27.9 / 24.9 | ||
| Overall Depth (Inches) | 16.6 | ||
| Number of Bottom Tines | 7 | 8 | 9 |
| Space Between Tines / Bottom (Inches) | 4.8 / 10.5 | 4.8 / 9.8 | 4.8 / 9.1 |
| Space Between Tines / Grapple Jaws (Inches) | 7.8 / 11.2 | 7.3 / 9.8 | 7.0 / 9.2 |
| Tine Thickness (Inches) | 0.25* | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 | ||
| Grapple Jaw Opening (Inches) | 35.5 | ||
| Approximate Weight (Pounds) | 255 | 300 | 320 |
| Recommended Loader Capacity | Less than 1,500 pounds | ||
*Material is AR400 Plate (150,000 PSI Minimum Yield Strength).

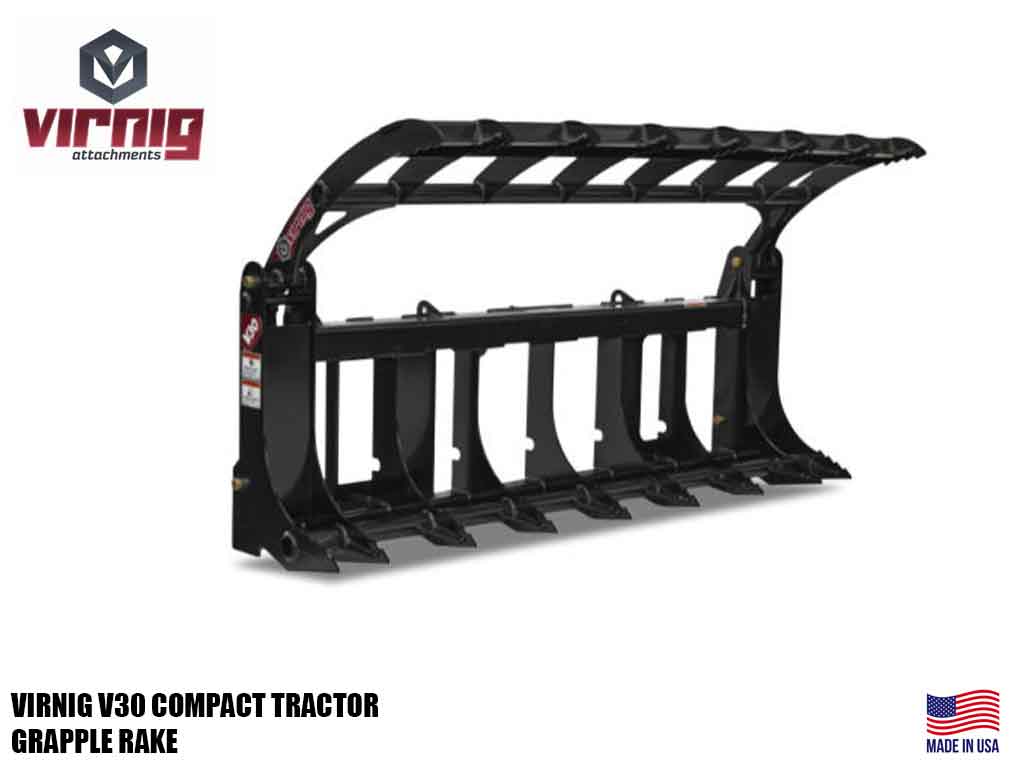

The V30 series was designed for TRACTORS and SMALL SKID STEER LOADERS. Though this is Virnig’s standard-duty line, the V30 Series often outperforms other brands’ heaviest skid steer attachments.
