Description
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

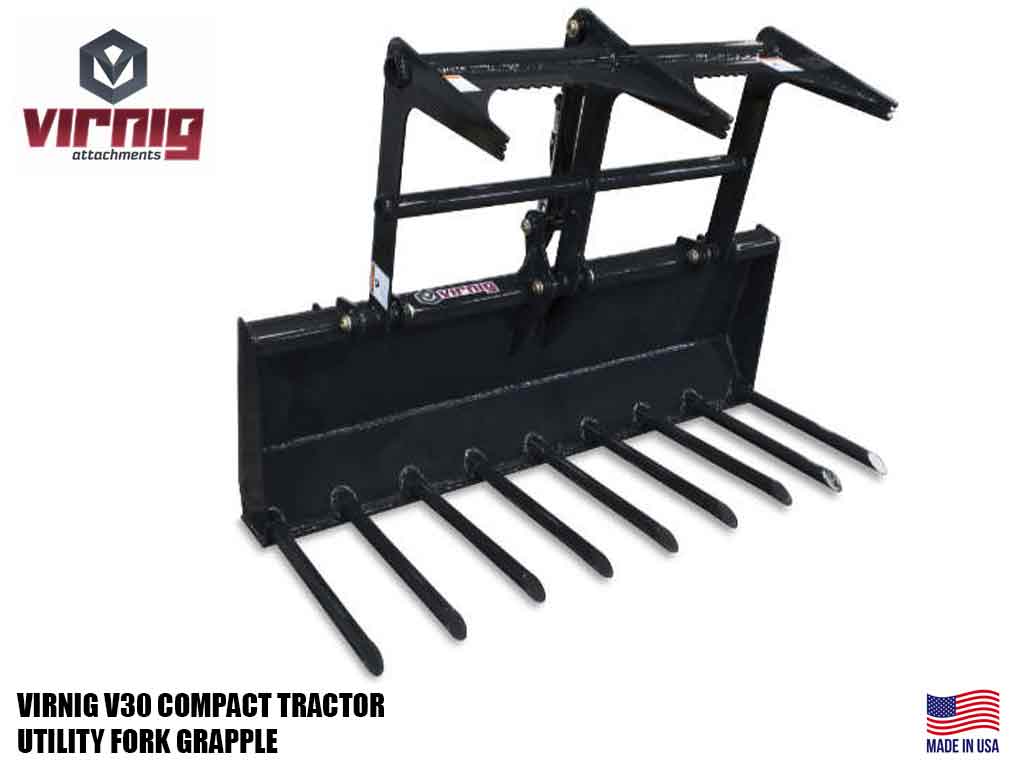

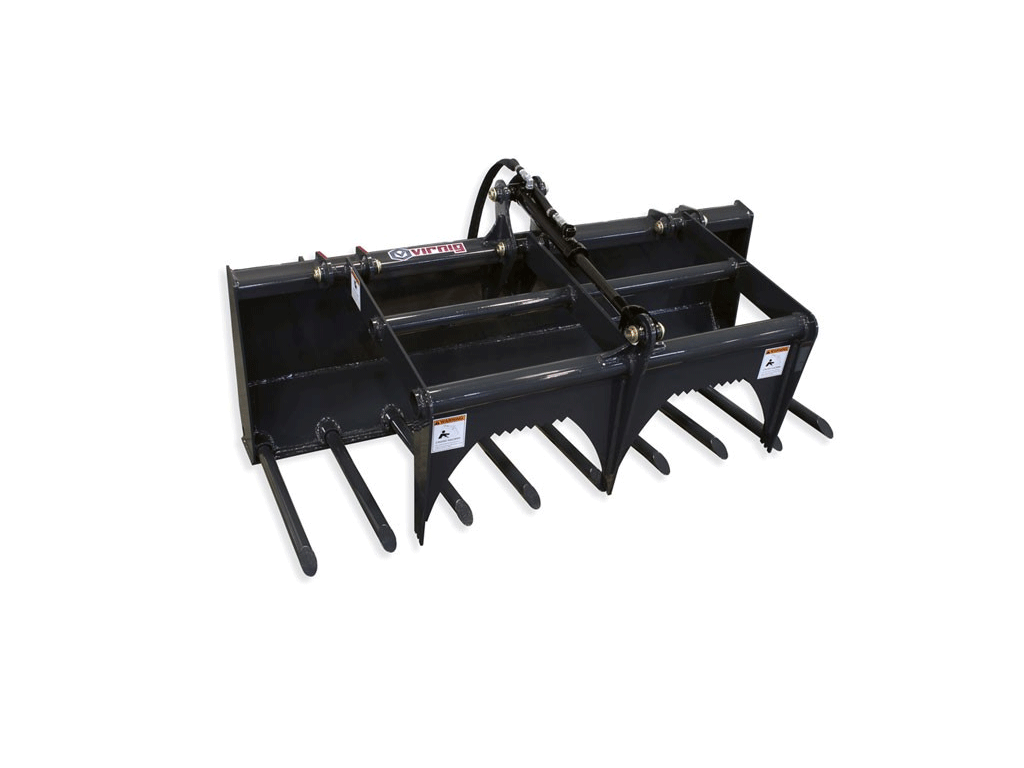

A durable, versatile one-cylinder grapple with replaceable tines.
- 1” diameter greaseable grapple pins.
- Designed for easy cleanout and bulk material penetration.
- Handles a variety of materials including manure, brush, and debris.
- Corrosion, dent and flake resistant NitroSteel® cylinder rod made in the USA.
- High tensile strength tines require no maintenance and are removable for easy replacement.
- Light weight, yet durable construction perfect for compact tractors and small skid loaders.
SPECIFICATIONS
- Recommended loader capacity - Less than 1500 lbs ROC
- Cylinder Bore / Stroke (in) 1.25 / 8.0
- Cylinder Pins / Hinge Pin Diameter (in) 1.0
| Model | UGV8-CT | UGV54-CT | UGV60-CT | UGV66-CT | UGV72-CT |
| Overall Width (in) | 49 | 54.5 | 60.5 | 66.5 | 72.5 |
| Depth (in) | 36.3 | 36.3 | 36.3 | 36.3 | 36.3 |
| Height Overall (in) | 28.2 | 28.2 | 28.2 | 28.2 | 28.2 |
| Height Bucket (in) | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| Grapple Jaw Opening (in) | 37.5 | 37.5 | 37.5 | 37.5 | 37.5 |
| Number of Tines | 7 | 8 | 9 | 10 | 11 |
| Space Between Tines (in) | 6.0 | 5.9 | 5.7 | 5.6 | 5.4 |
| Tine Diameter (in) | 1.5* | 1.5* | 1.5* | 1.5* | 1.5* |
| Cylinder Bore / Stroke (in) | 1.25 / 8.0 | 1.25 / 8.0 | 1.25 / 8.0 | 1.25 / 8.0 |
1.25 / 8.0 |
| Cylinder Pins / Hinge Pins Dia. (in) | 1.0 | 1.0 | 1.0 | 1.0 |
1.0 |
| Weight (lbs) | 480 | 510 | 540 | 570 | 600 |
