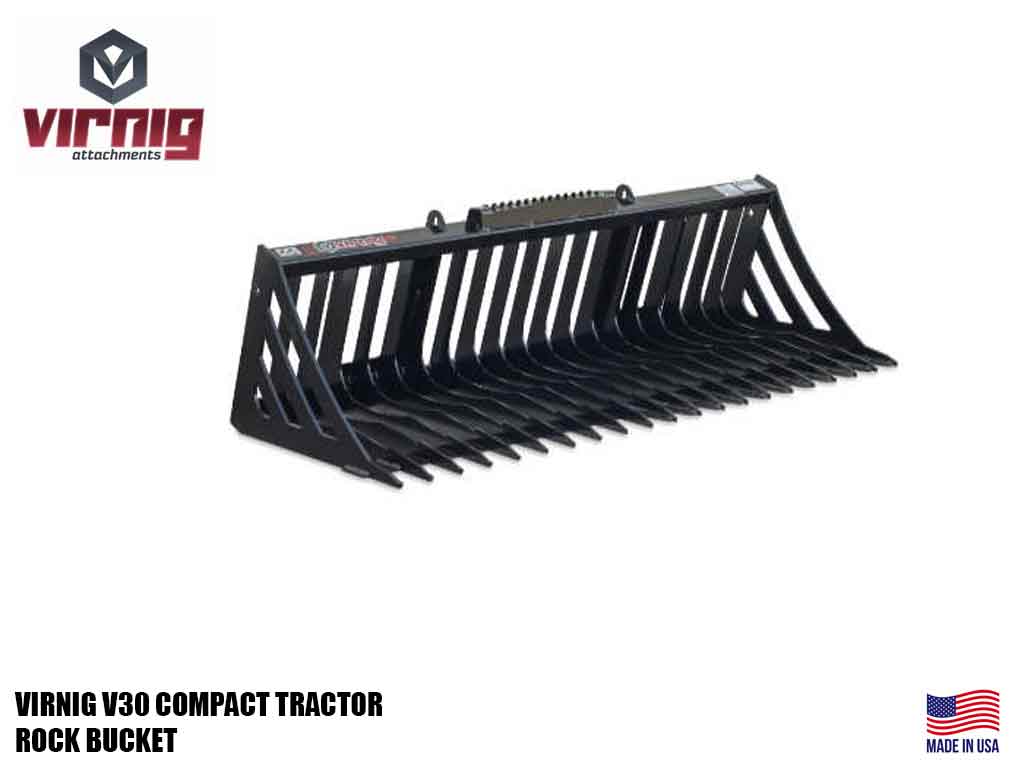

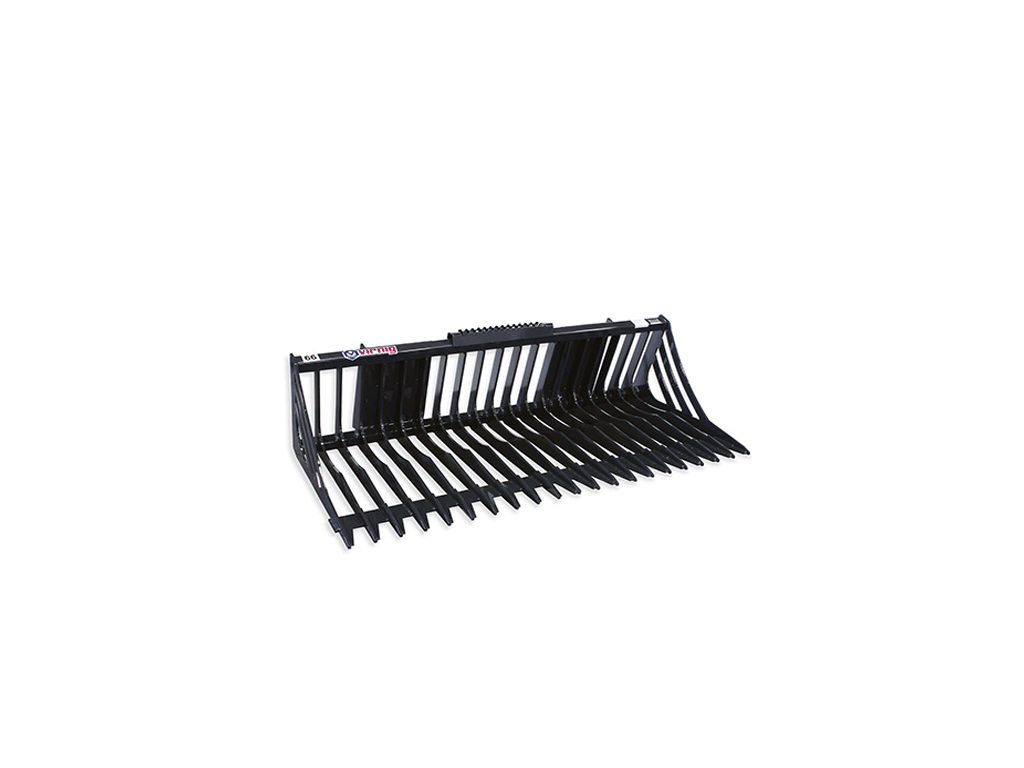

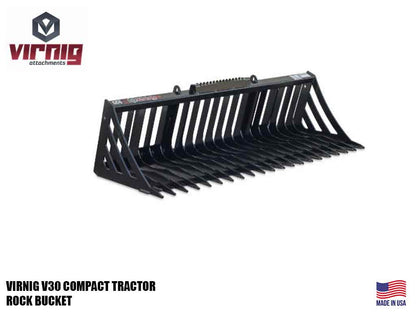

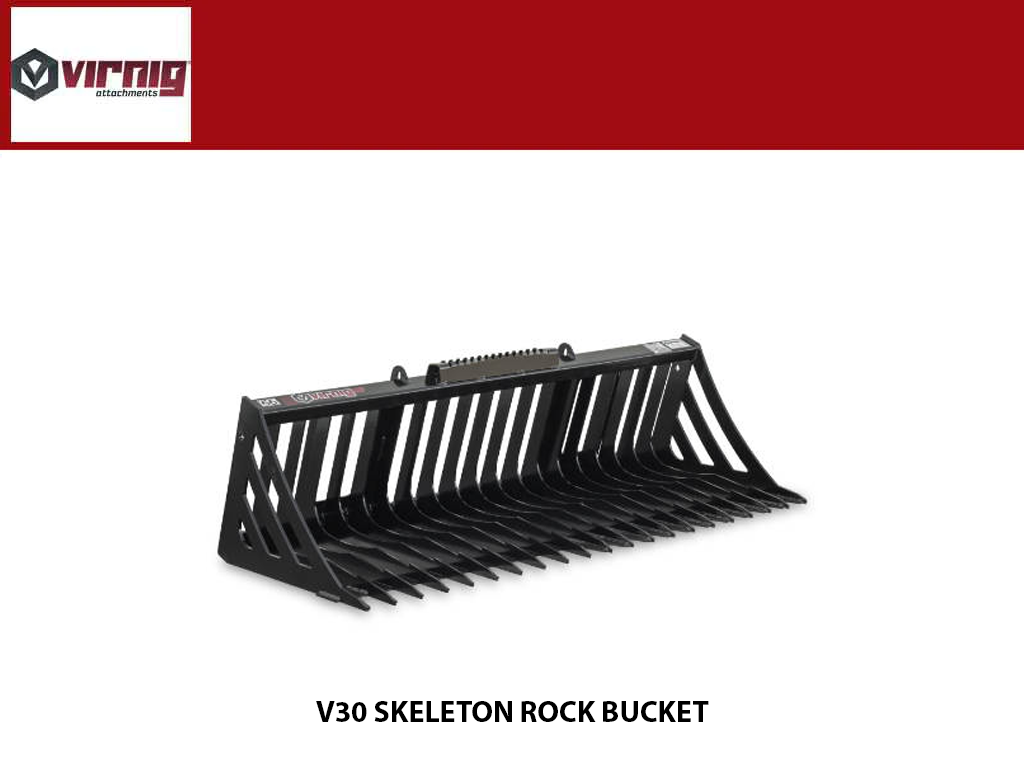

Description
Designed to pick rocks while leaving dirt and debris behind.
- Open bottom and back gives excellent visibility and allows dirt to fall through the 2.9″ tine spacing.
- Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
- Every tine is constructed of one piece of steel, from tip to top brace, to add rigidity.
- Fully gusseted tine tips to strengthen tines and limit bending.
- Lightweight, yet durable construction perfect for compact tractors and small skid loaders.
- Additional uses include digging roots from thick brush, clearing overgrown fence lines and efficient back-dragging.
SPECS
- Recommended loader capacity - Less than 1500 lbs ROC
- Tine thickness (in): 3/8" Grade 50
| Model | SRV48-CT | SRV54-CT | SRV60-CT | SRV66-CT | SRV72-CT |
| Overall Width (in) | 50.9 | 54.3 | 60.9 | 67.5 |
74.1 |
| Inside Width (in) | 46.3 | 52.6 | 59.3 | 65.9 |
72.5 |
| Overall Depth (in) | 29.0 | 29.0 | 29.0 | 29.0 | 29.0 |
| Inside Depth (in) | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 |
| Height (in) | 19.9 | 19.9 | 19.9 | 19.9 | 19.9 |
| Number of Tines | 15 | 17 | 19 | 21 | 23 |
| Space Between Tines (in) | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 |
| Tine Thickness (in) | 0.25* | 0.25* | 0.25* | 0.25* | 0.25* |
| Side Plate Thickness (in) | 0.375* | 0.375* | 0.375* | 0.375* | 0.375* |
| Weight (lbs) | 210 | 230 | 250 | 270 | 300 |
