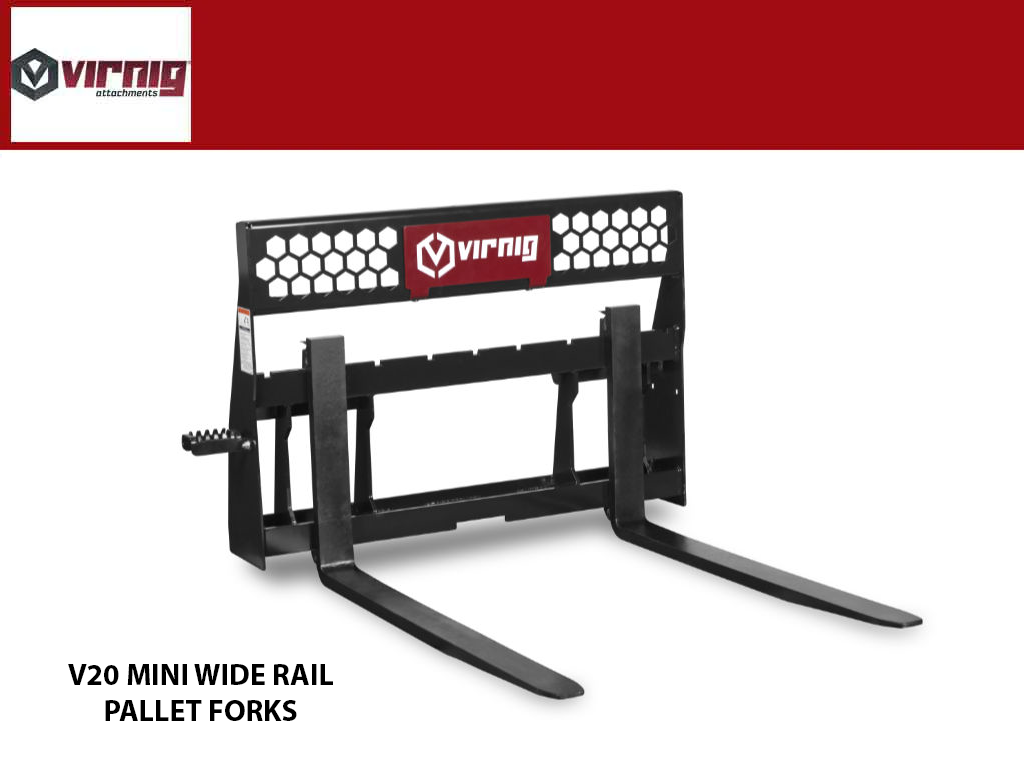

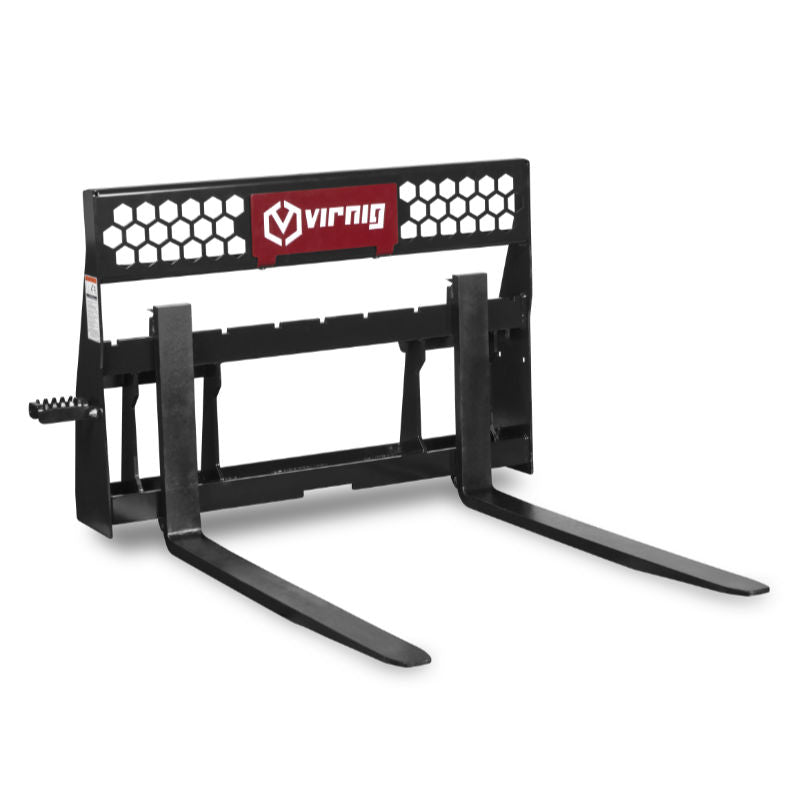

Description
Wider rail for better stability and adjustable ITA Class II forged tines.
- 3/16″ BRICKGUARD & 3/4″ BEVELED RAIL
- BRICKGUARD FLUSH WITH TINES TO HELP STABILIZE LOADS
- ASV® PALLET FORK INCLUDES BOLT-ON STEP
SPECIFICATIONS
| MODELS | CWPF3622 | CWPF4222 |
| Width: Frame / Overall w/Step (Inches) | 42.0 / 47.0 | 42.0 / 47.0 |
| Overall Height (Inches) | 30.1 | 30.1 |
| Tine: Length/Width/Thickness (Inches) | 36.0 / 3.0 / 1.19 | 42.0 / 3.0 / 1.19 |
| Tine Space: Min/Max (Inches) | 8.4 / 37.6 | 8.4 / 37.6 |
| Approximate Weight (Pounds) | 265 | 275 |
| Capacity (Pounds) | 2200 | 2200 |
| Recommended Loader Capacity | Less than 1650 pounds |
Less than 1650 pounds
|
