Description

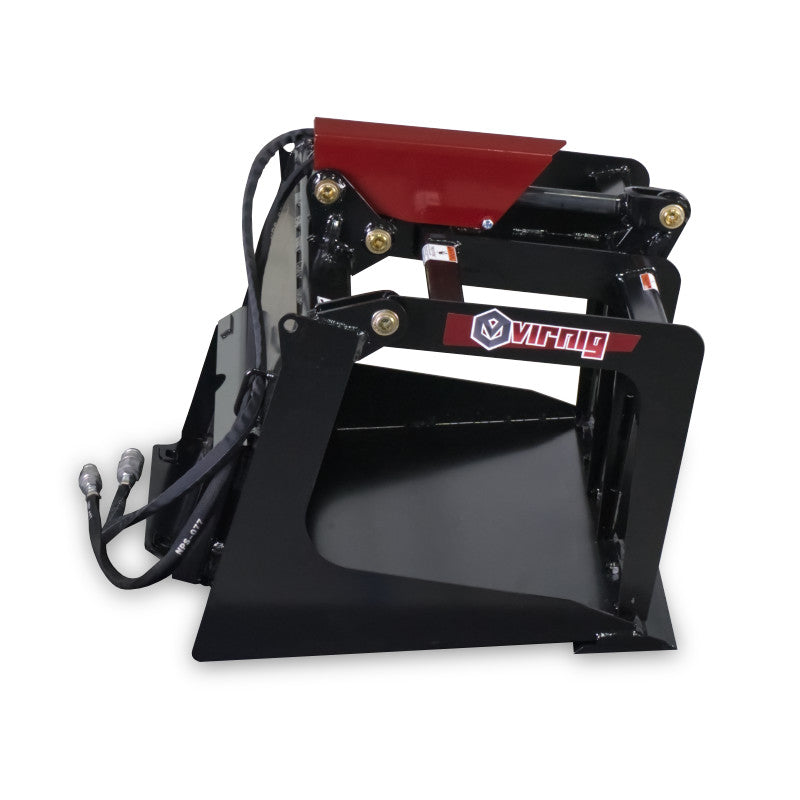

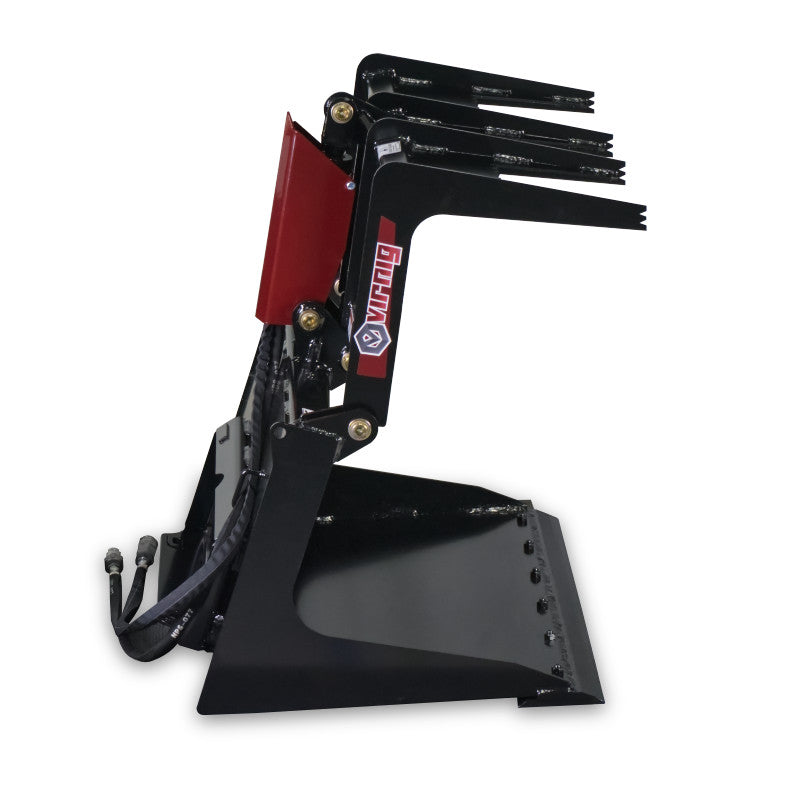

Solid bottom grapple for scooping and hauling loose and bulky debris.
Available Widths 36″, 42″, 48″
- NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
- 1/2″ x 4″ WELD-ON EDGE
- STANDARD WITH CYLINDER GUARD
MOUNT
CHOOSE MINI SKID MOUNT:
- TORO®/MINI-UNIVERSAL
- BOBCAT®
- ASV®
- Universal skid steer quick tach mount not available.
SPECIFICATIONS
| MODEL | CSG36 | CSG42 | CSG48 |
| Overall Width (Inches) | 36.0 | 42.0 | 48.0 |
| Height: Overall / Bucket (Inches) | 27.0 / 24.5 | ||
| Overall Depth (Inches) | 30.8 | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 / 1.0 | ||
| Grapple Jaw Opening (Inches) | 30.9 | ||
| Approximate Weight (Pounds) | 3251 | 3551 | 3801 |
| Recommended Loader Capacity | Greater than 500 pounds | Greater than 500 pounds |
Greater than 500 pounds
|
