Description

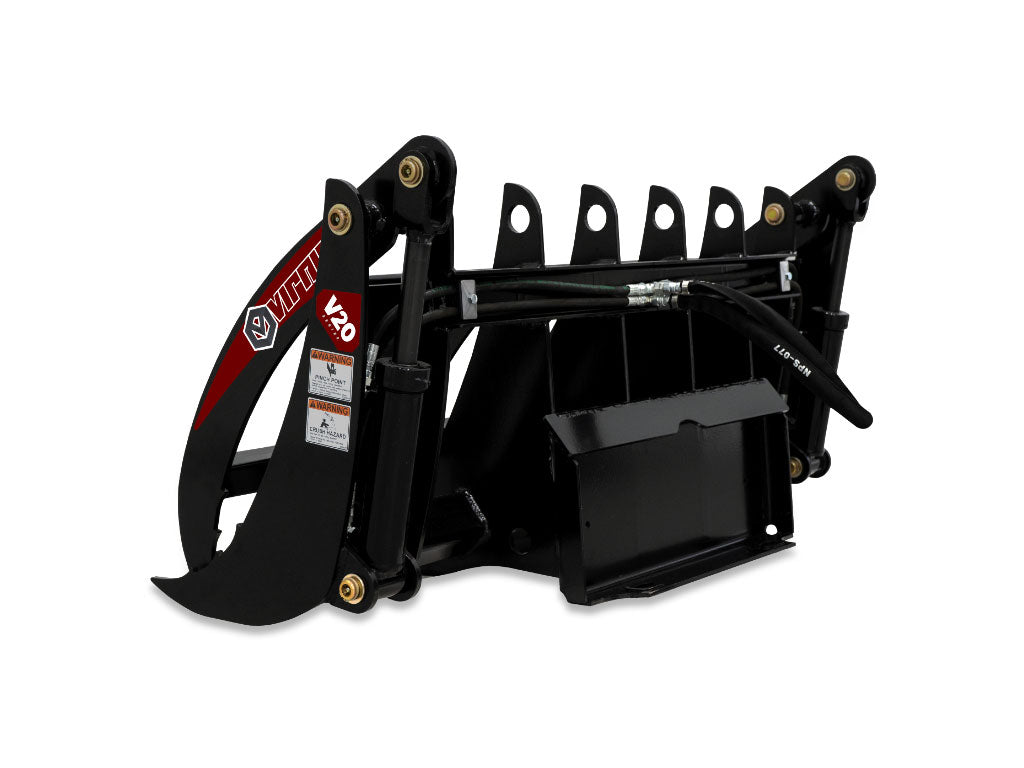

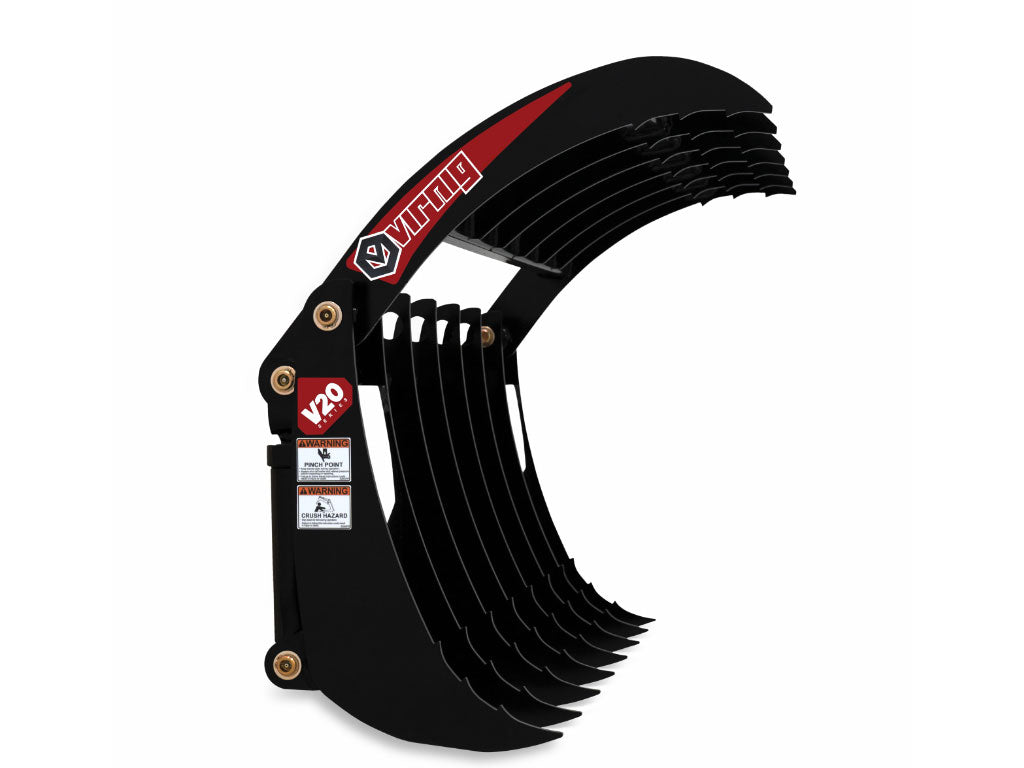

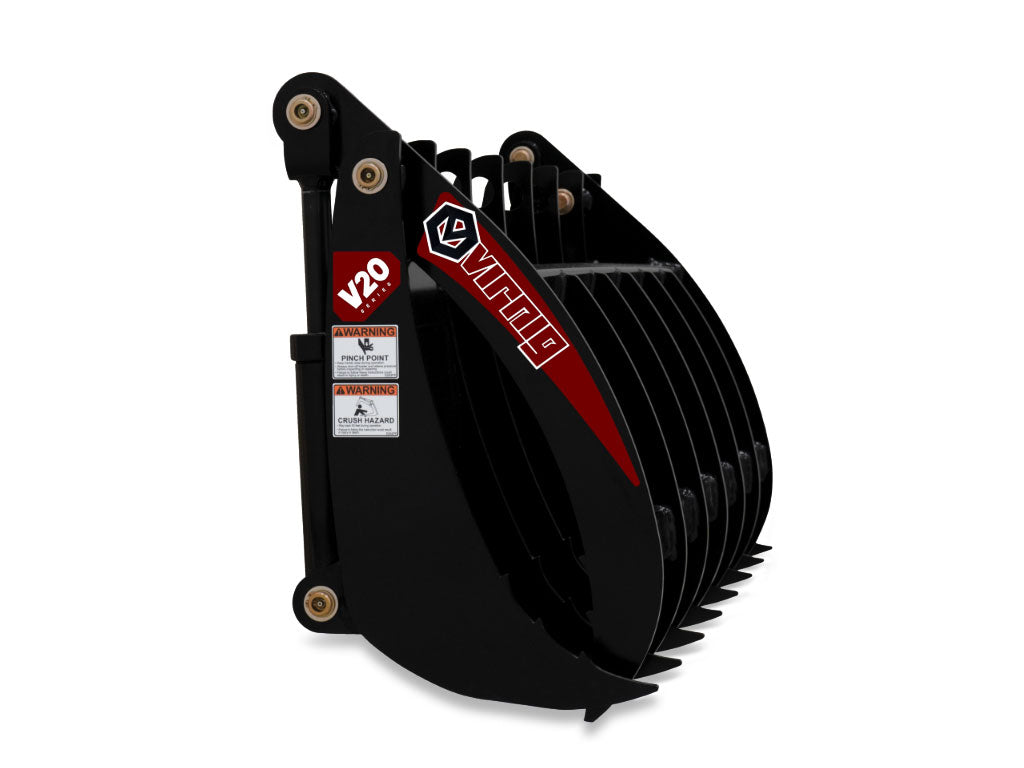

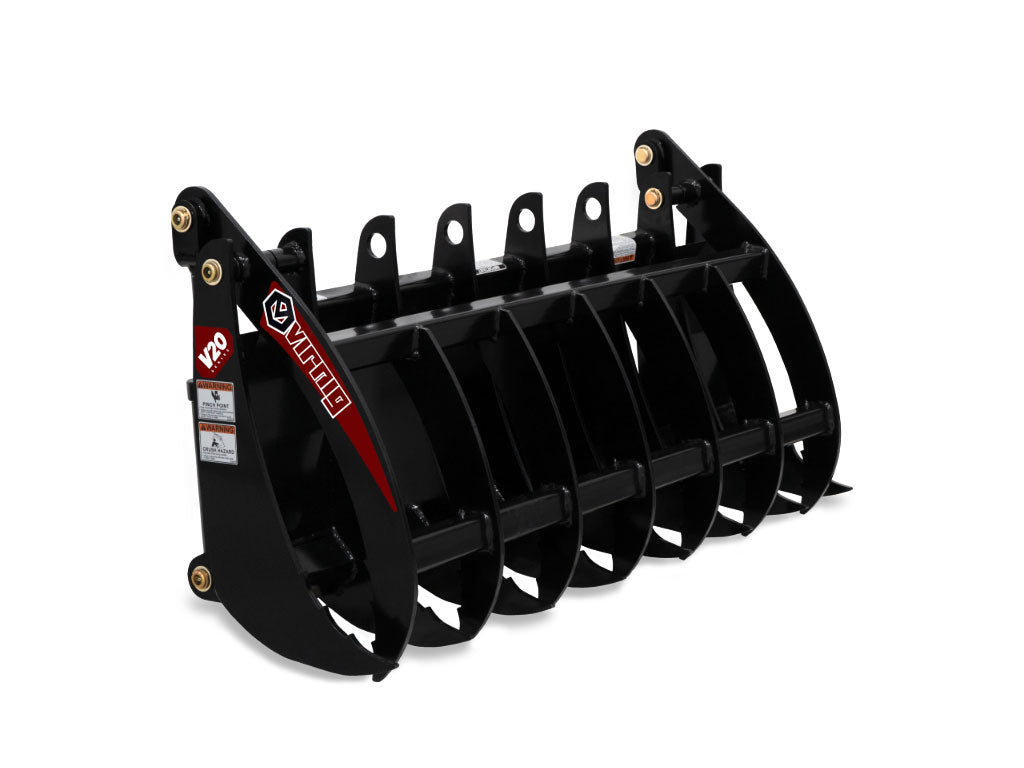

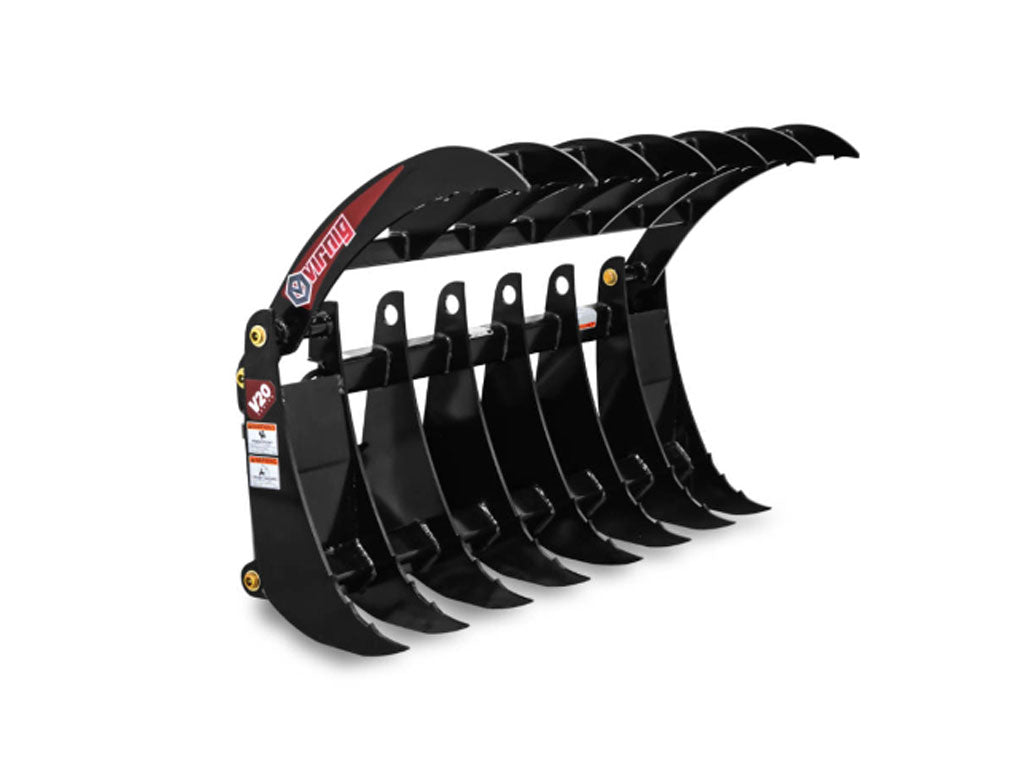

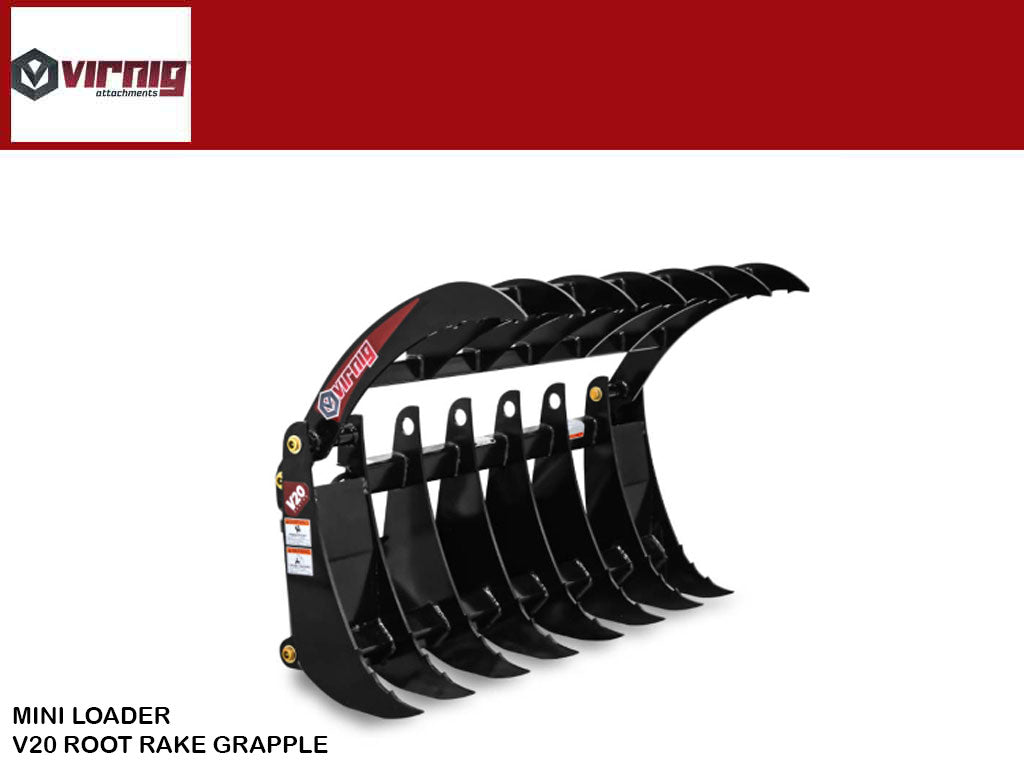

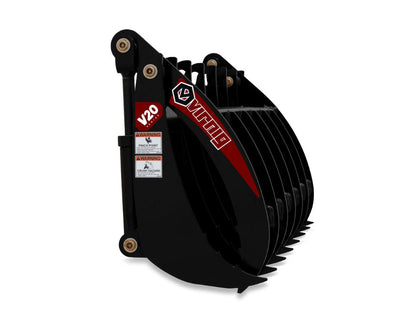

Quickly dig, rake, pile and load brush. Designed light but tough for mini skid steers.
Available Widths 36″, 42″, 48″
- EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
- NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

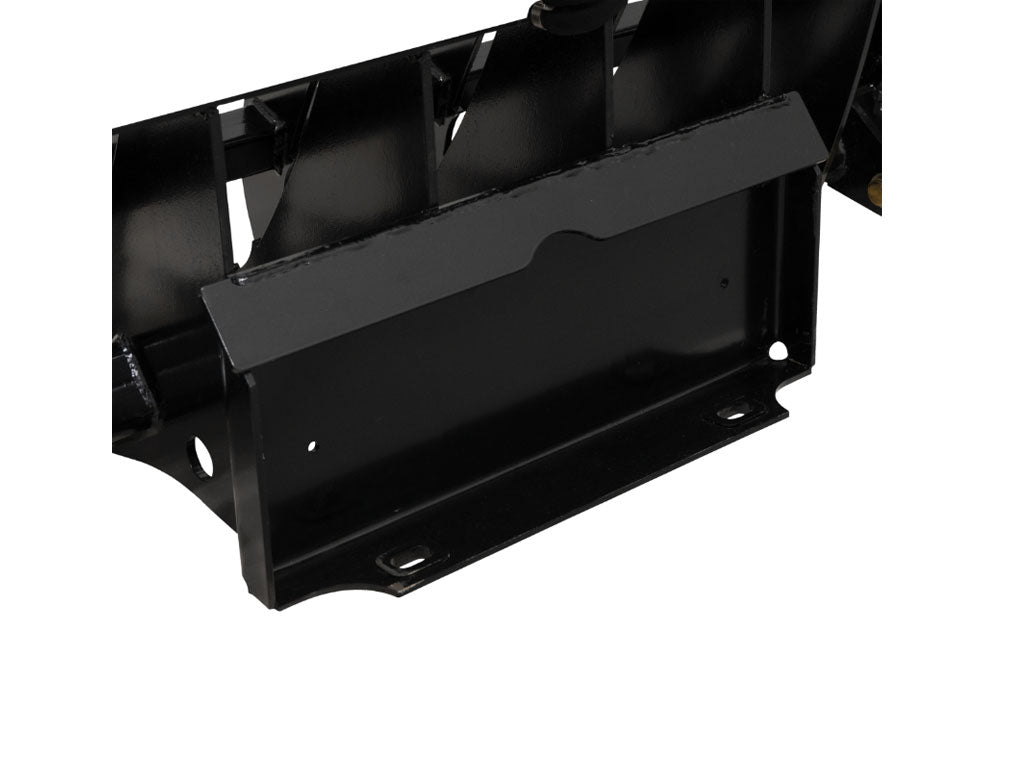

MOUNT
CHOOSE MINI SKID MOUNT:
- TORO®/MINI-UNIVERSAL
- BOBCAT®
- ASV®
- Universal skid steer quick tach mount not available.
SPECIFICATIONS
| MODEL | CRG36 | CRG42 | CRG48 |
| Overall Width (Inches) | 35.8 | 43.8 | 51.8 |
| Height: Overall / Bucket (Inches) | 24.7 / 23.6 | ||
| Overall Depth (Inches) | 21.5 | ||
| Number of Tines (With Sides) | 6 | 7 | 8 |
| Space Between Tines / Grapple Jaws (Inches) | 6.8 / 7.2 | 7.0 / 7.3 | 7.1 / 7.4 |
| Tine Thickness (Inches) | 0.375¹ | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 / 1.0 | ||
| Grapple Jaw Opening (Inches) | 32.2 | ||
| Approximate Weight (Pounds) | 270 | 300 | 3352 |
| Recommended Loader Capacity | Greater than 500 pounds | Greater than 500 pounds | Greater than 500 pounds |
