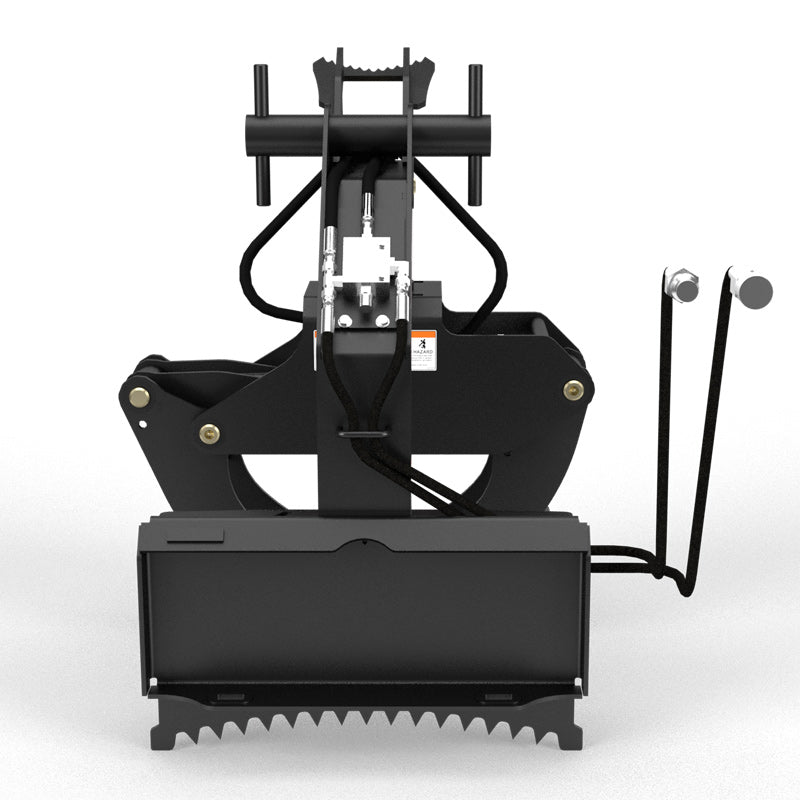

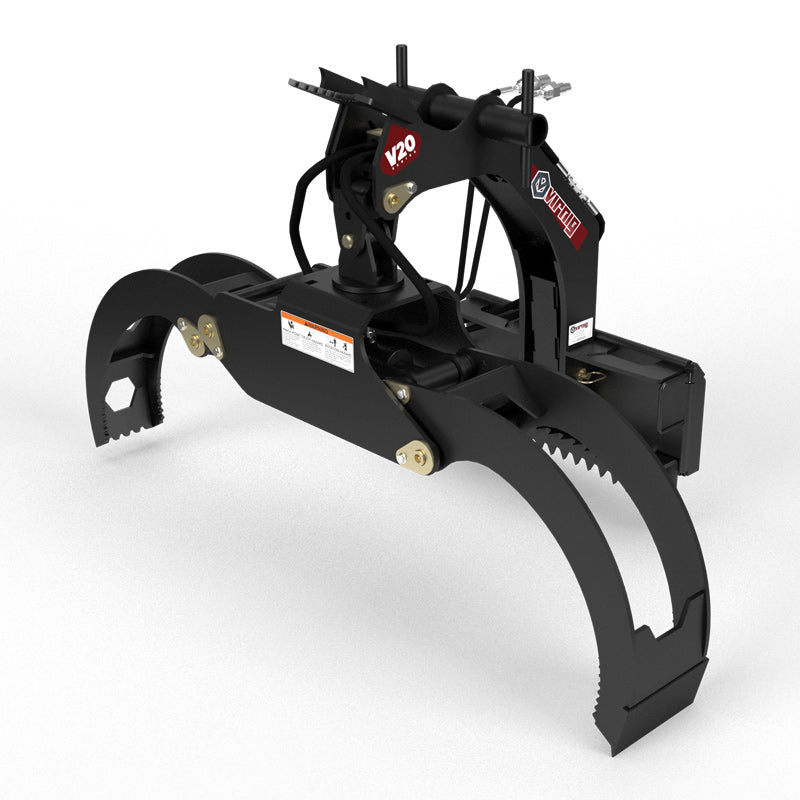

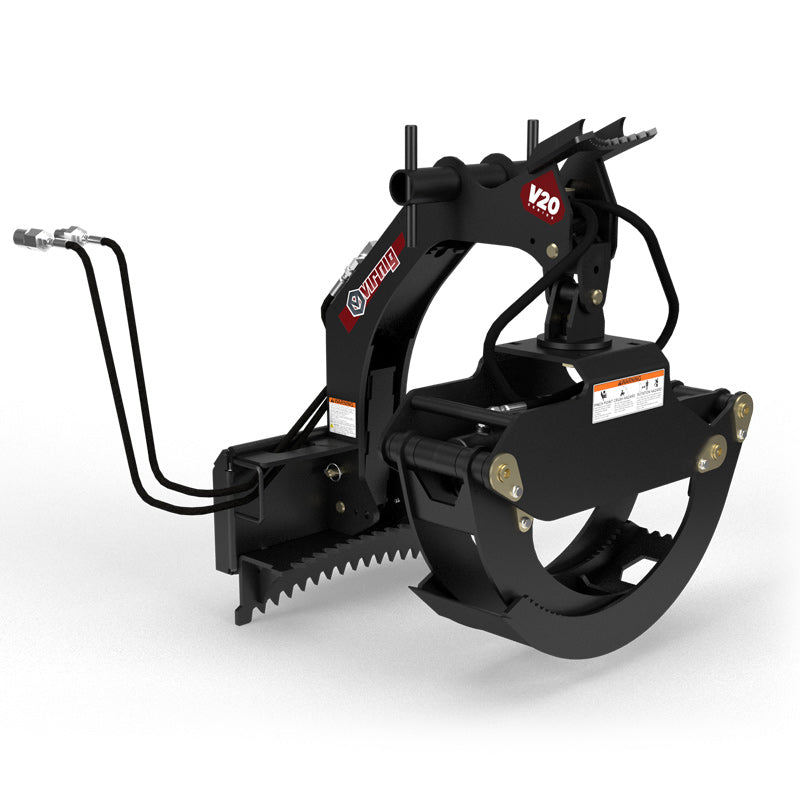

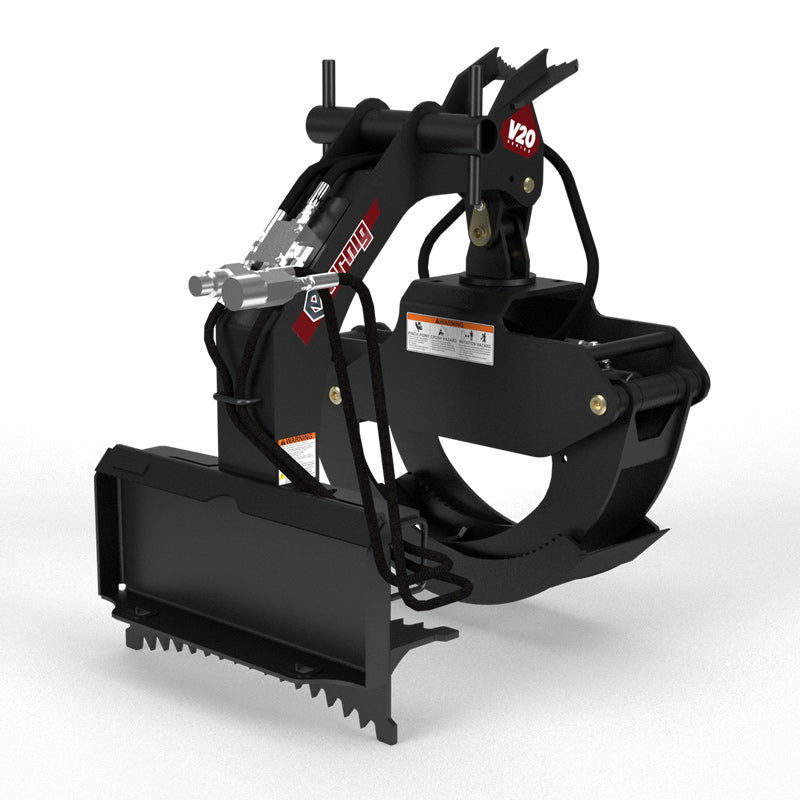

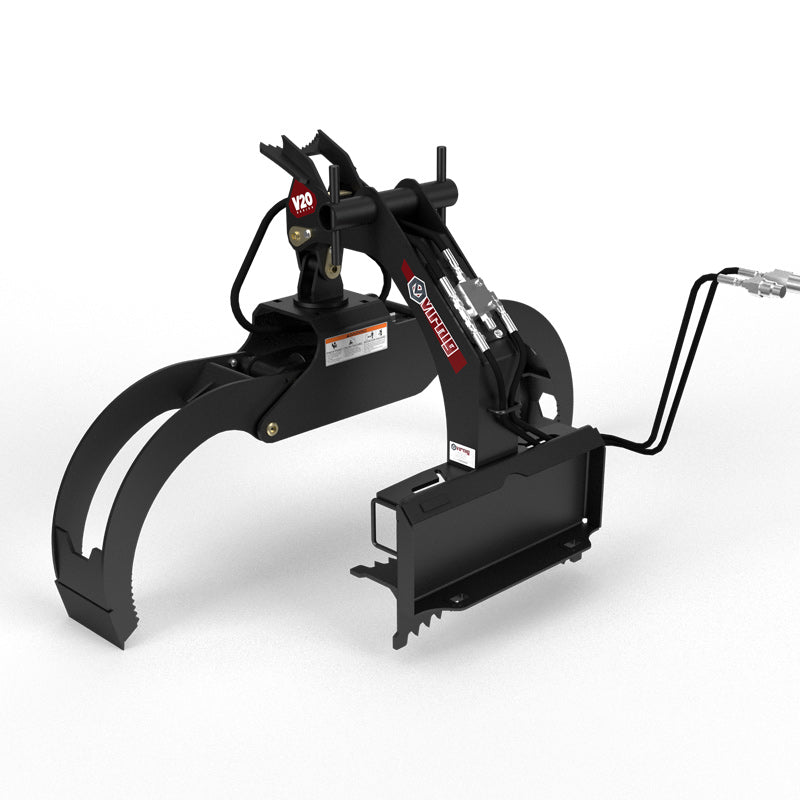

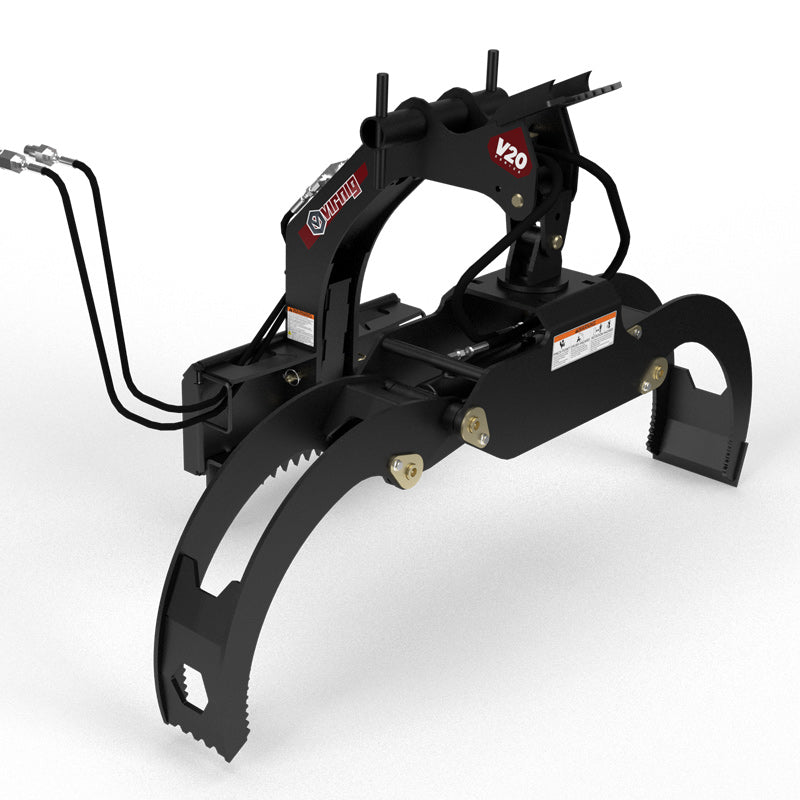

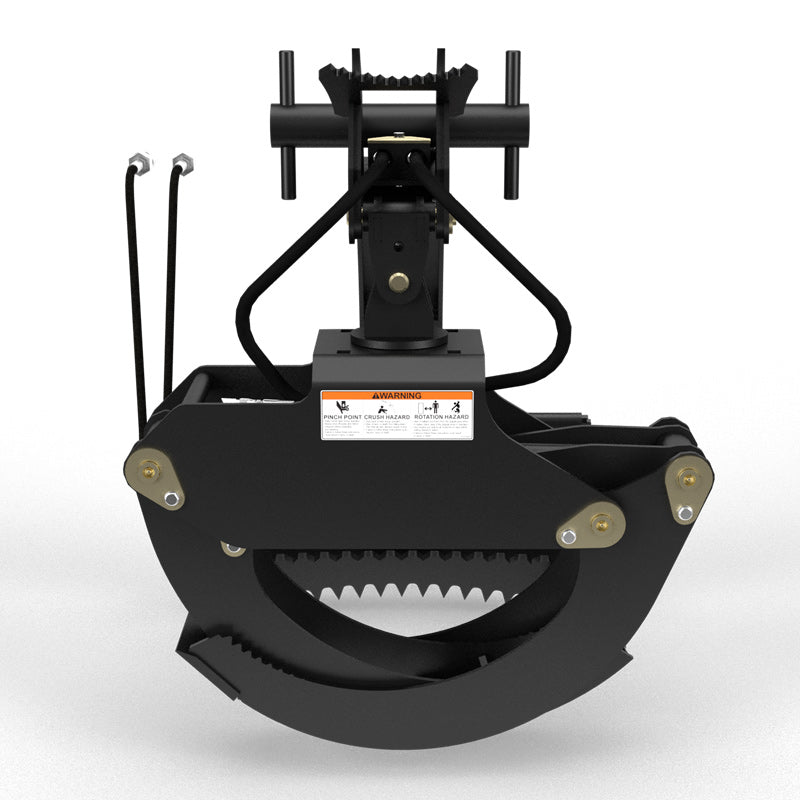

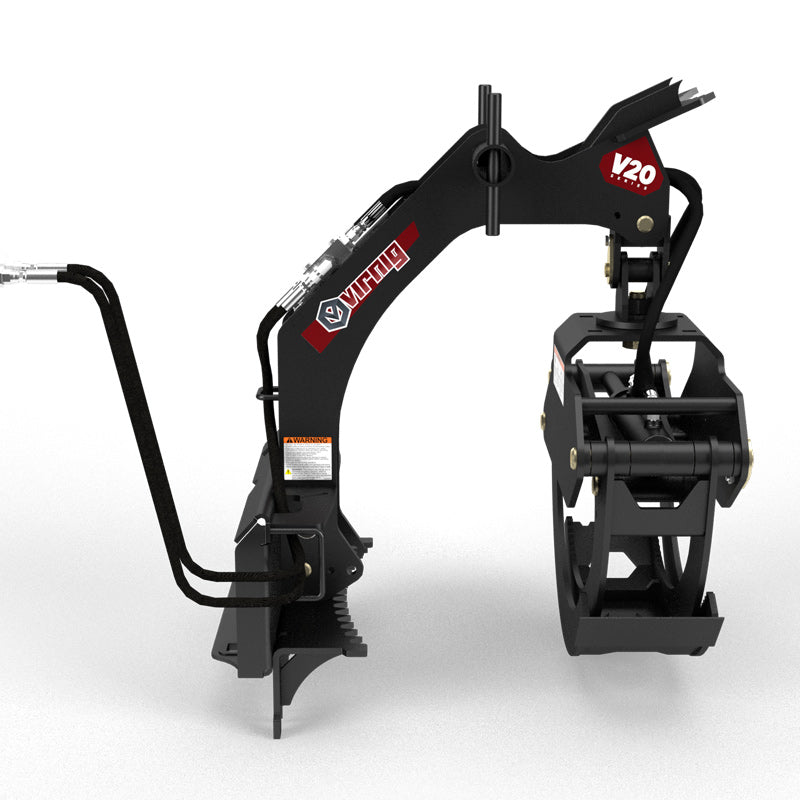

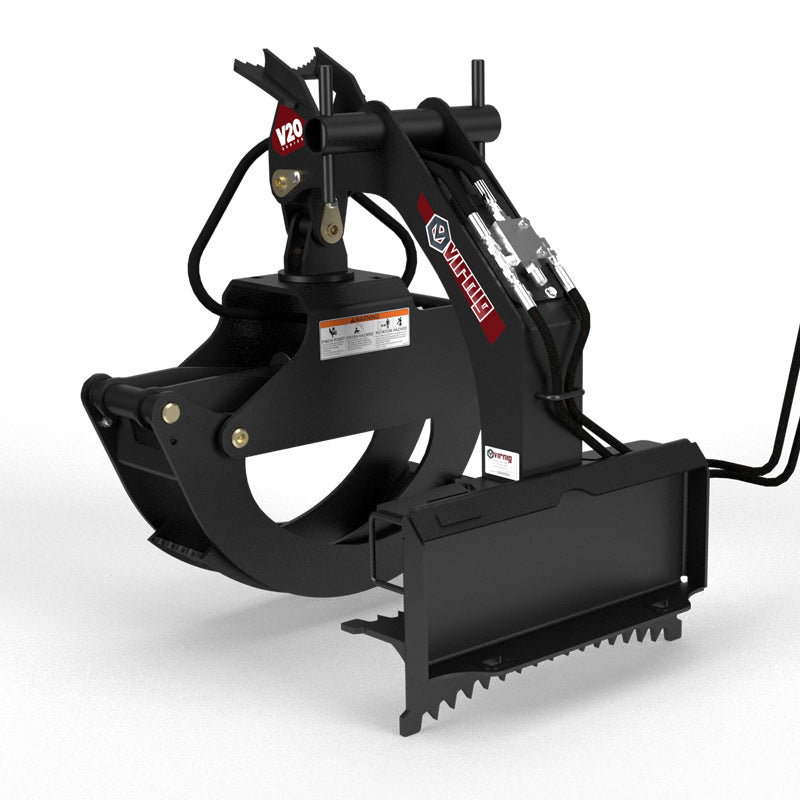

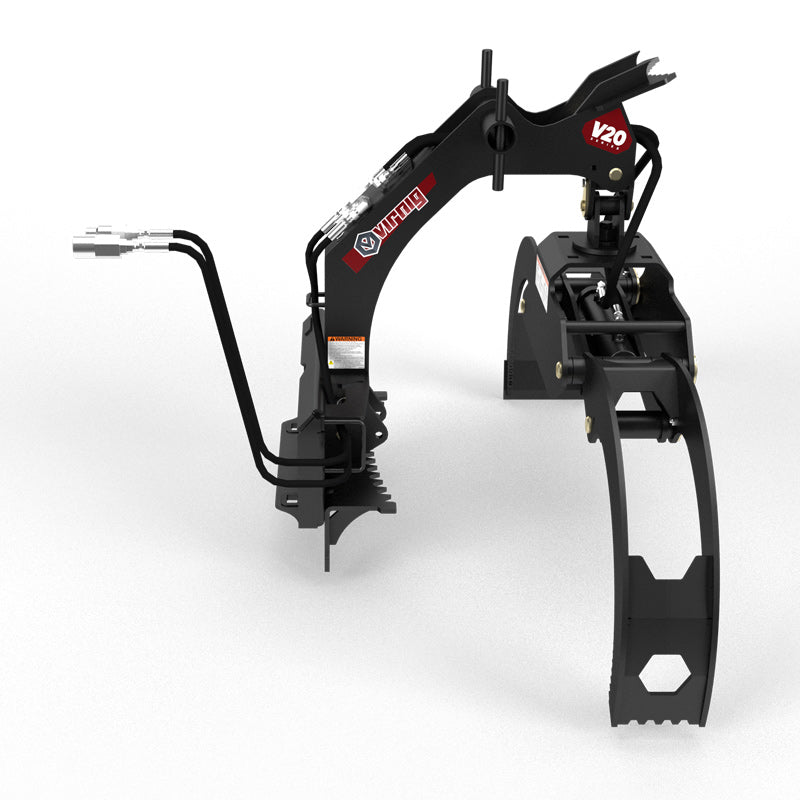

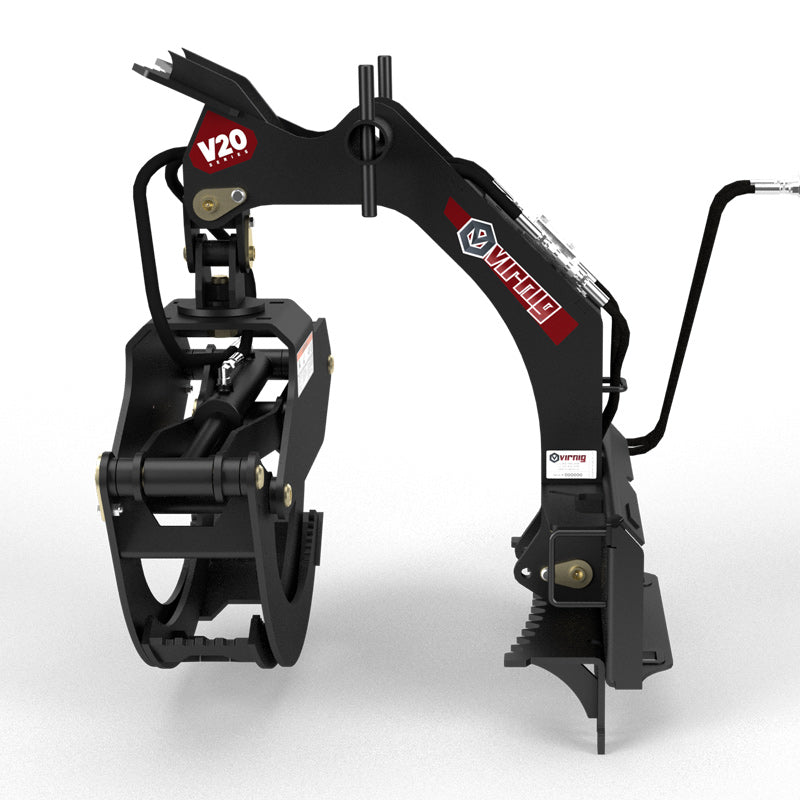

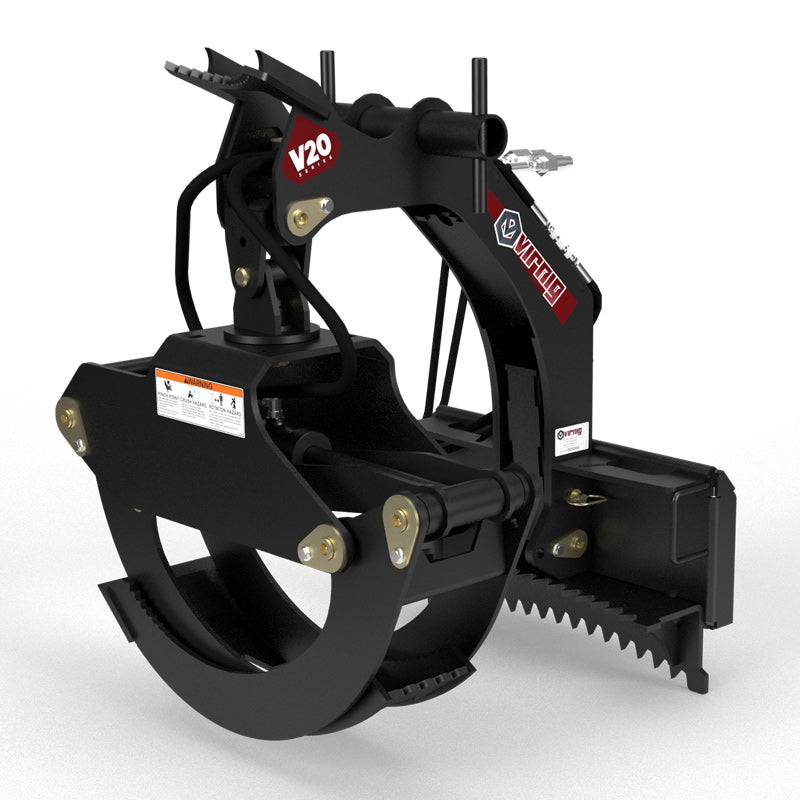

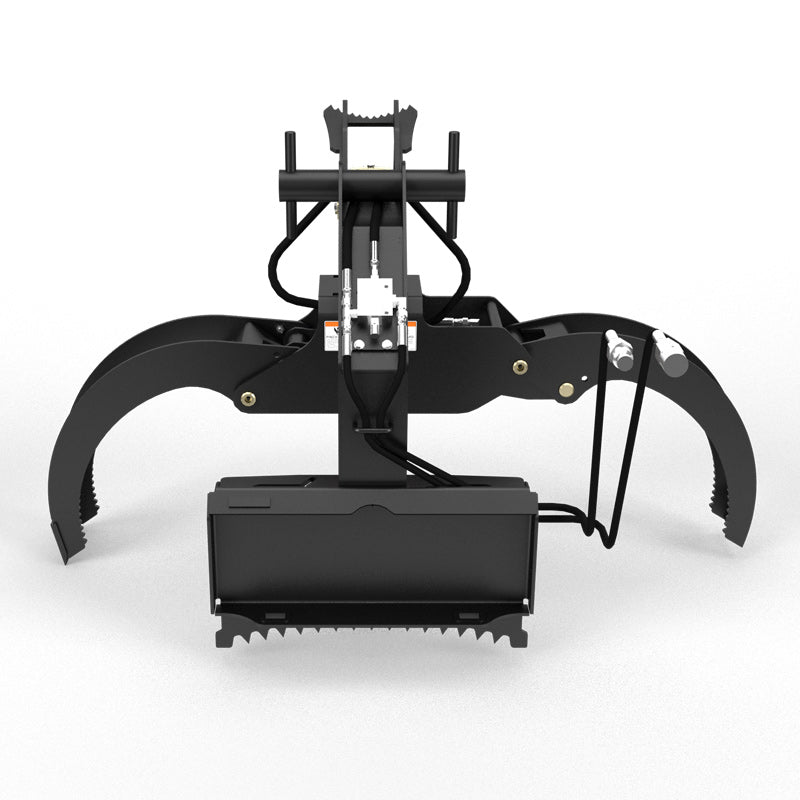

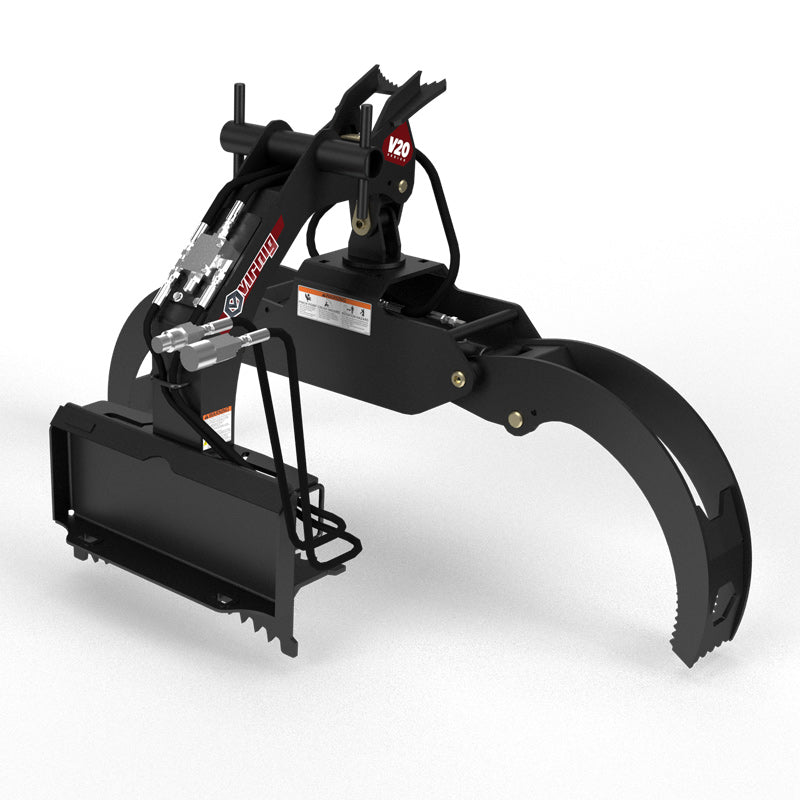

Virnig V20 Mini Skid Steer Rotating Log Grapple

Handle logs, brush, rocks, storm debris, and land-clearing material with greater control using the Virnig V20 Mini Skid Steer Rotating Log Grapple. Built for mini skid steer loaders, this compact rotating grapple attachment gives landowners, contractors, landscapers, arborists, and property maintenance crews the strength and precision needed for demanding material handling jobs.

Designed with a 60-inch grapple jaw opening and durable AR400 steel jaw tines, the Virnig V20 Rotating Log Grapple delivers serious holding power in a compact footprint. The freely hanging grapple jaw allows operators to approach logs, brush, and irregular materials from multiple angles, helping improve load balance and placement accuracy when working in tight areas.

This mini skid steer log grapple comes standard with 270° manual rotation, giving operators the flexibility to grab, lift, rotate, and place material without constantly repositioning the machine. For even greater control, an optional 360° hydraulic rotation upgrade is available. The serrated cradle design helps hold logs vertically or horizontally, while the bypass jaw design allows the grapple to securely grab smaller material down to 7 inches in diameter.

Built for daily use, the Virnig V20 Mini Skid Steer Rotating Log Grapple includes protected hose routing, recessed grease zerks, and a holding valve that helps prevent jaw drift during operation. Additional features such as the standard push bar, rope tie-off points, and receiver hitch add even more versatility for material handling, cleanup, and property maintenance tasks.

This attachment is available with multiple mini skid steer mount options, including Mini Universal, Bobcat® Mini, and ASV® Mini mounts. Note: This grapple is designed for mini skid steer loaders with less than 1,650 pounds of operating capacity and is not compatible with universal skid steer mounts.

If you need a compact, heavy-duty rotating log grapple for a mini skid steer, the Virnig V20 is built to give your machine commercial-grade grabbing, lifting, and placement capability for land clearing, tree work, firewood handling, storm cleanup, and landscaping applications.

Key Features

• 60-Inch Jaw Opening Capacity Wide grapple jaw opening handles large logs, brush piles, and rocks while bypass jaw design grabs smaller materials down to 7" diameter.
• AR400 Steel Jaw Tines with Serrated Tips Ultra-hardened steel construction (150,000 PSI minimum yield strength) with aggressive serrated tips provides superior grip and long-lasting durability.
• 270° Manual Rotation Standard Freely rotating grapple jaw allows material pickup from any angle and precise placement in tight spaces without repositioning your mini skid steer.
• Optional 360° Hydraulic Rotation Available Upgrade to full hydraulic rotation control with heavy-duty 3-ton rotator providing 3,375 lbs dynamic load rating 3x higher than industry standard.
• Holding Valve Prevents Jaw Drift Integrated hydraulic holding valve keeps jaws securely closed during operation, transport, and lifting for enhanced safety and control.
• Serrated Cradle Design Specially engineered cradle securely holds logs, poles, and materials in both vertical and horizontal positions for versatile material handling.
• Bypass Jaw Technology Jaw tines bypass each other when closing, allowing secure grip on smaller logs, branches, and irregular-shaped objects.
• Optimized Hose Routing Protection Strategic hydraulic hose placement minimizes exposure to damage from brush, logs, and debris during operation.
• Recessed Grease Zerks Protected lubrication points safeguarded from impact damage extend service life and reduce maintenance downtime.
• Multi-Brand Mini Skid Steer Compatibility Available in Mini Universal, Bobcat® Mini, and ASV® Mini mount configurations for seamless attachment to your loader.
• Standard Push Bar and Tie-Off Points Integrated push bar enables material pushing and leveling; rope tie-off points secure loads during transport.
• Built-In Trailer Receiver Hitch Standard trailer receiver allows towing capability (not compatible with hydraulic rotation option).
• Heavy-Duty 2.0" Bore Hydraulic Cylinders Powerful 2.0" bore x 8.375" stroke cylinders deliver strong clamping force for secure material handling.
• Compact 29.4" Width Design Narrow profile perfect for mini skid steers working in confined spaces, between trees, or through gates and narrow passages.
• Recommended for Loaders Under 1,650 lbs Capacity Perfectly sized and weighted for mini skid steer loaders, ensuring optimal performance and machine stability.

Detailed Specifications

Why Choose the Virnig V20 Mini Skid Steer Rotating Log Grapple?

The Virnig V20 Rotating Log Grapple is a strong choice for operators who need a compact attachment with professional-grade material handling capability. Its rotating jaw design makes it easier to pick up logs, brush, poles, rocks, and debris from awkward angles, while its narrow 29.4-inch profile helps mini skid steers work in areas where larger equipment may not fit.

From tree cleanup and firewood handling to land clearing and storm debris removal, this mini skid steer rotating grapple gives compact equipment owners a more efficient way to grab, lift, rotate, and place material with control.

Frequently Asked Questions

What is the Virnig V20 Mini Skid Steer Rotating Log Grapple used for?

The Virnig V20 Mini Skid Steer Rotating Log Grapple is used for handling logs, brush, rocks, poles, storm debris, firewood, and land-clearing material with a mini skid steer.

Does this log grapple rotate?

Yes. The grapple comes standard with 270° manual rotation, and an optional 360° hydraulic rotation upgrade is available.

What mini skid steer mounts are available?

Mount compatibility includes Mini Universal, Bobcat® Mini, and ASV® Mini mount options.

What is the jaw opening on this grapple?

The Virnig V20 Mini Skid Steer Rotating Log Grapple has a 60.0-inch grapple jaw opening.

What size loader is recommended for this attachment?

This attachment is recommended for mini skid steer loaders with less than 1,650 pounds of operating capacity.

Is this attachment compatible with universal skid steer mounts?

No. This attachment is not compatible with universal skid steer mounts. It is designed for mini skid steer mount configurations.
