Description

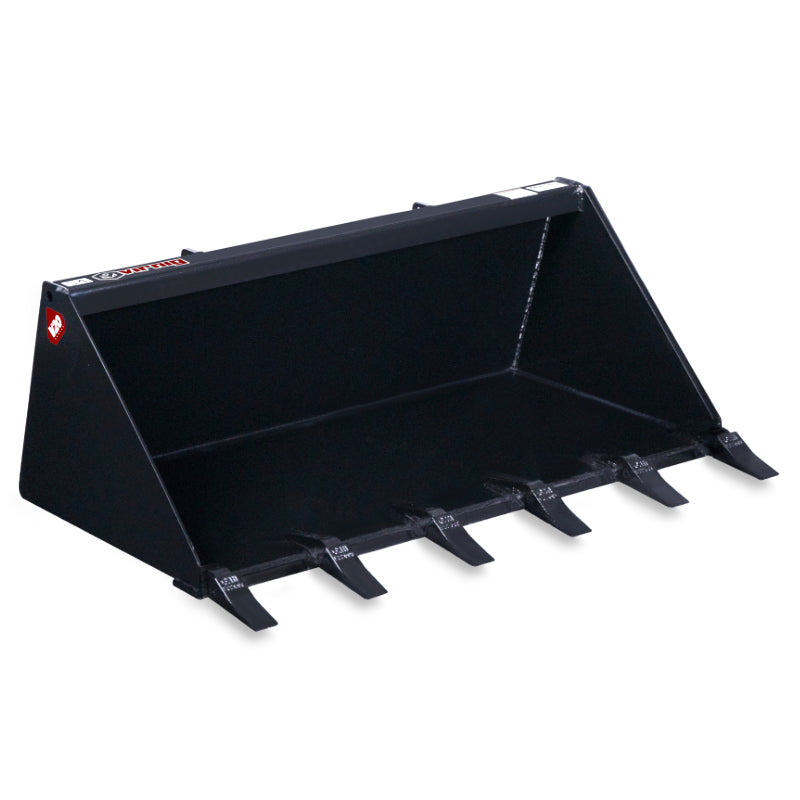

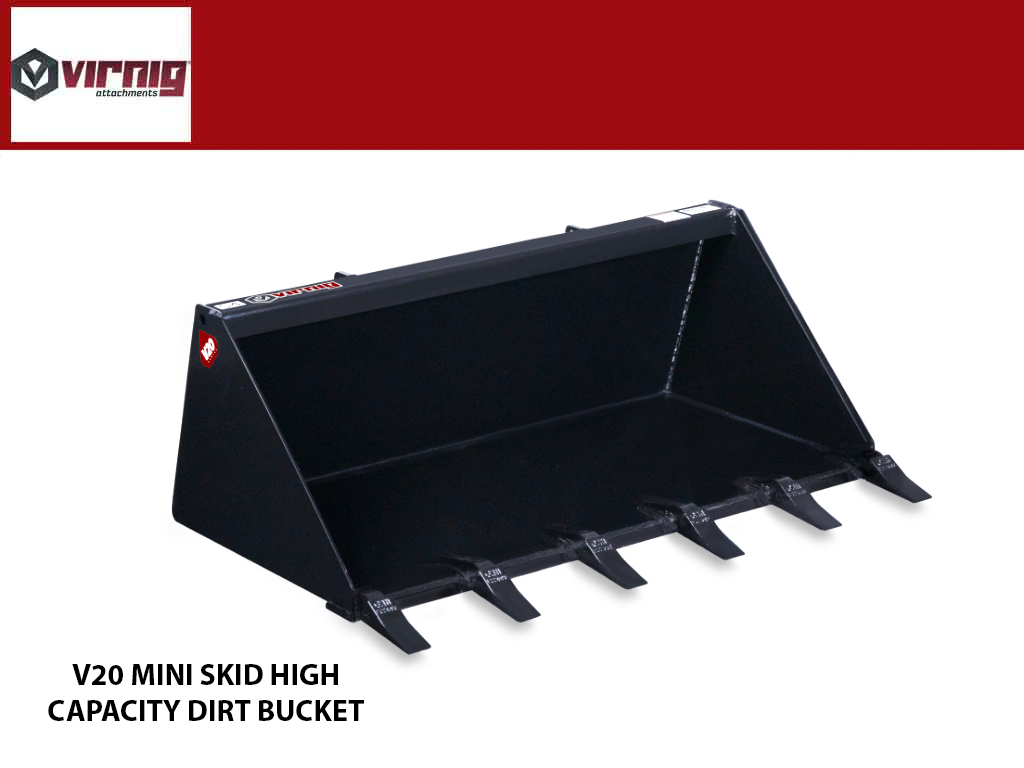

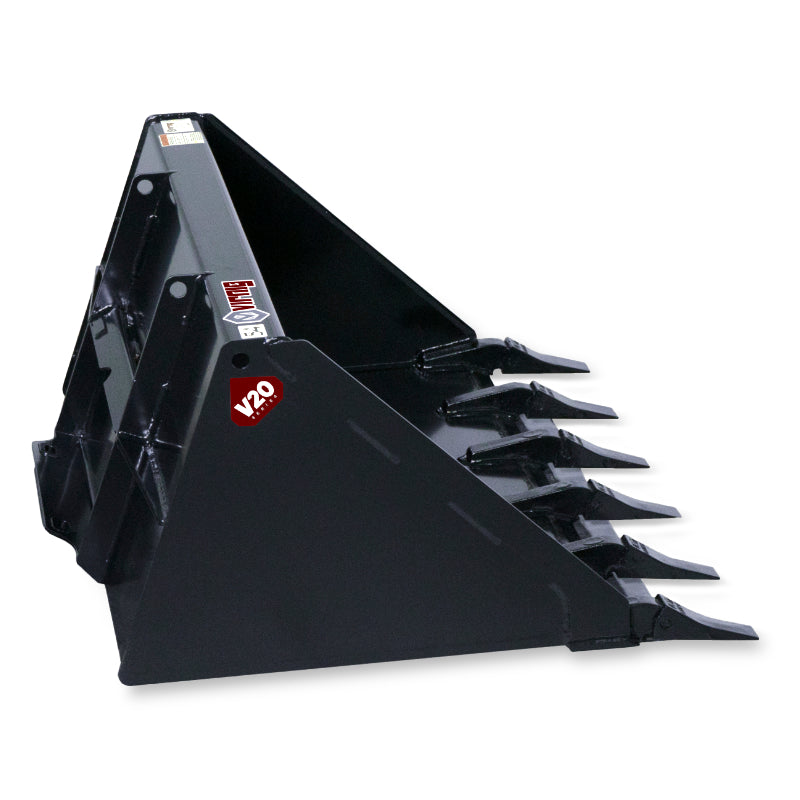

Tall back design to increase capacity.
Available Widths 36″, 42″, 44″, 48″, 54″
- 1/4″ SHELL & 3/16″ SIDE PLATES
- GRADING BEND FOR OPTIMAL REVERSE GRADING
- 1/2″ x 4″ WELD-ON EDGE
SPECIFICATIONS
| MODEL | CHCB36 | CHCB42 | CHCB44 | CHCB48 | CHCB52 |
| Width: Overall / Inside (Inches) | 36.0 / 34.6 | 42.0 / 40.6 | 44.0 / 42.6 | 48.0 / 46.6 | 54.0 / 52.6 |
| Overall Height (Inches) | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 |
| Depth: Overall / Inside (Inches) | 32.7 / 29.3 | 32.7 / 29.3 | 32.7 / 29.3 | 32.7 / 29.3 | 32.7 / 29.3 |
| Capacity: Struck / Heaped (Cubic Feet) | 7.2 / 8.6 | 8.4 / 10.1 | 8.8 / 10.6 | 9.6 / 11.5 | 10.8 / 13.0 |
| Bucket Back Angle (Degrees) | 70 | 70 | 70 | 70 | 70 |
| Shell Thickness (Inches) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Side Plate Thickness (Inches) | 0.19 | 0.19 | 0.19 | 0.19 | 0.19 |
| Approximate Weight (Pounds) | 235 | 260 | 270 | 290 | 315 |
| Recommended Loader Capacity | Less than 1650 pounds | Less than 1650 pounds | Less than 1650 pounds | Less than 1650 pounds | Less than 1650 pounds |
