Description

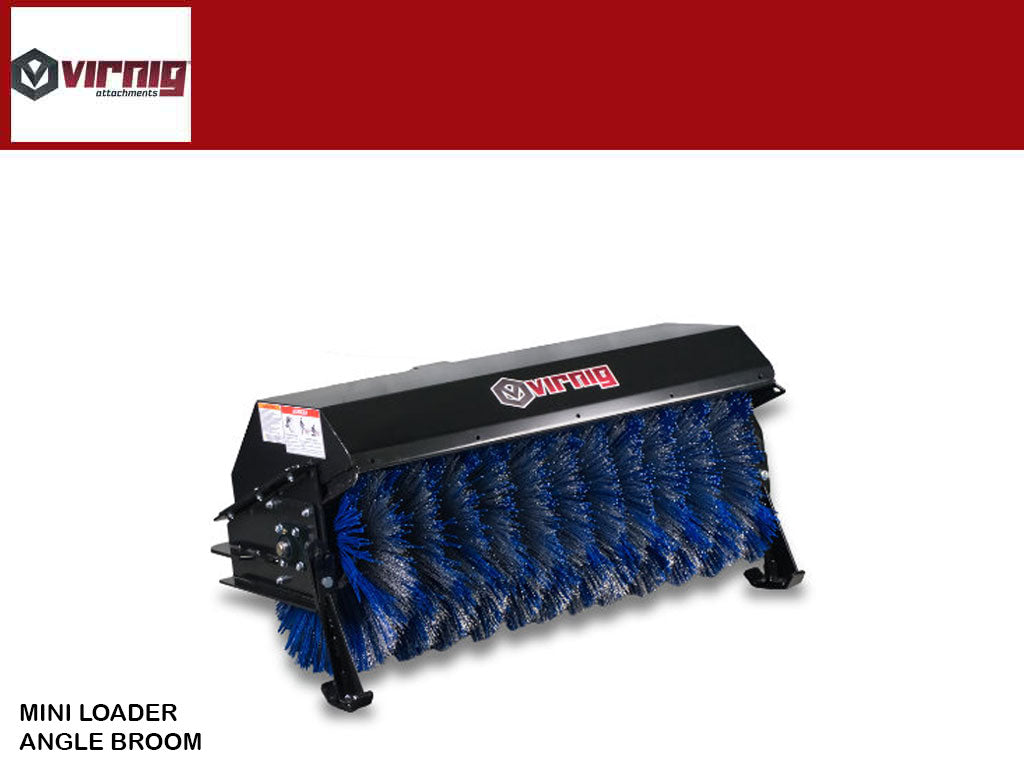

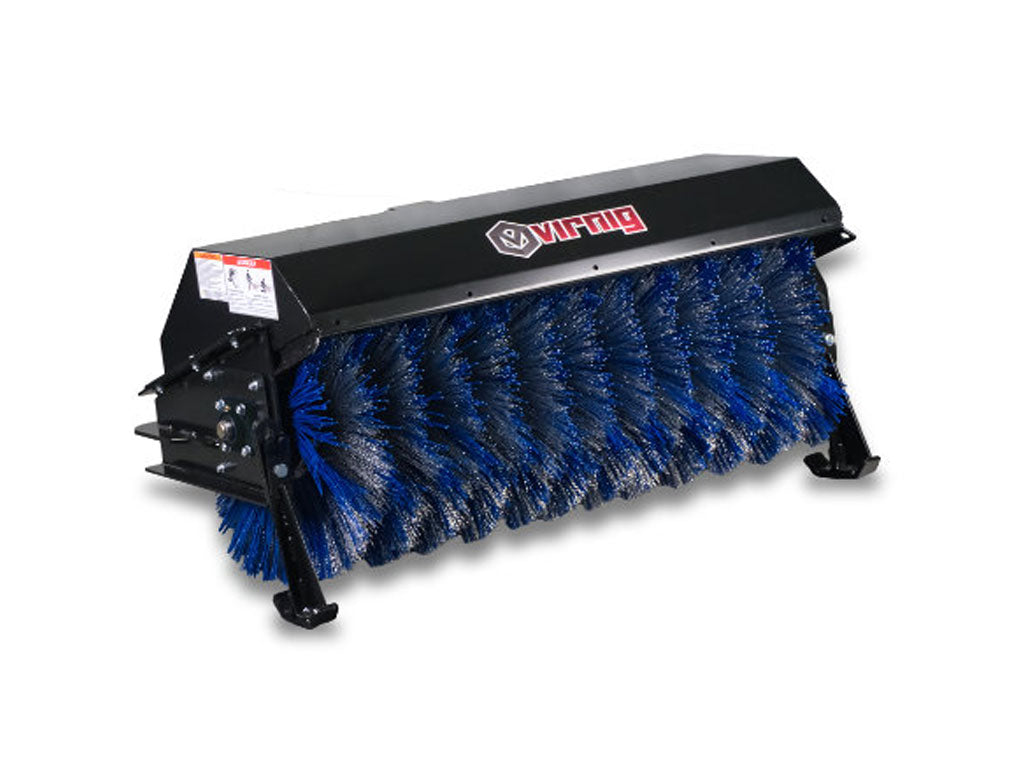

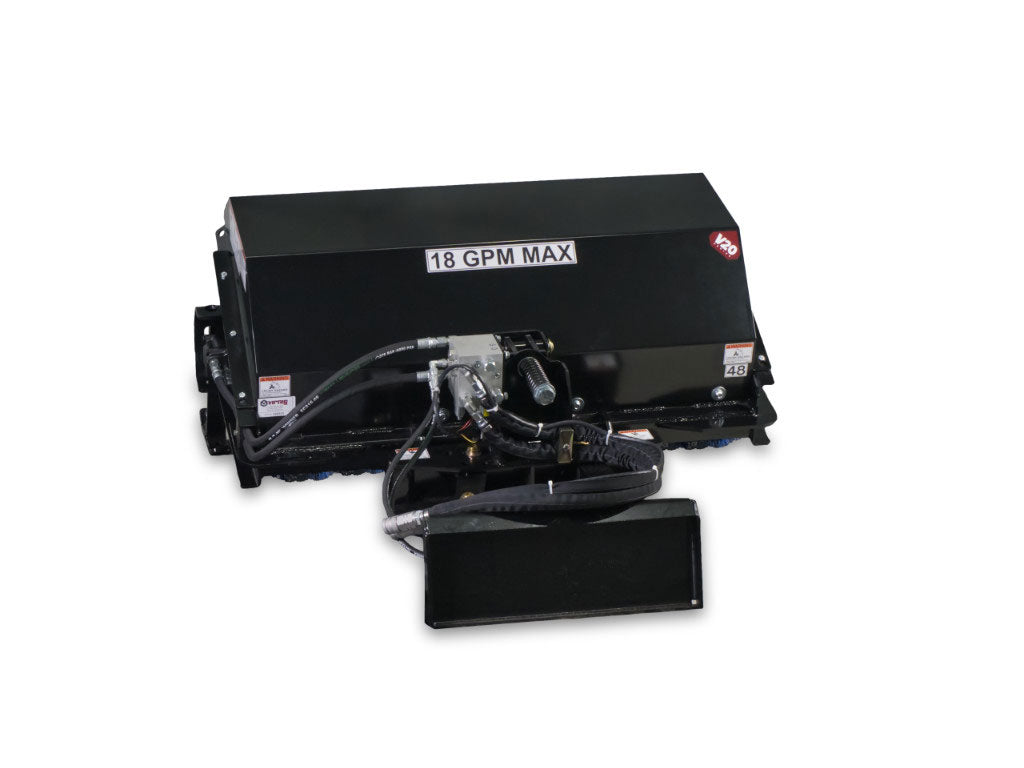

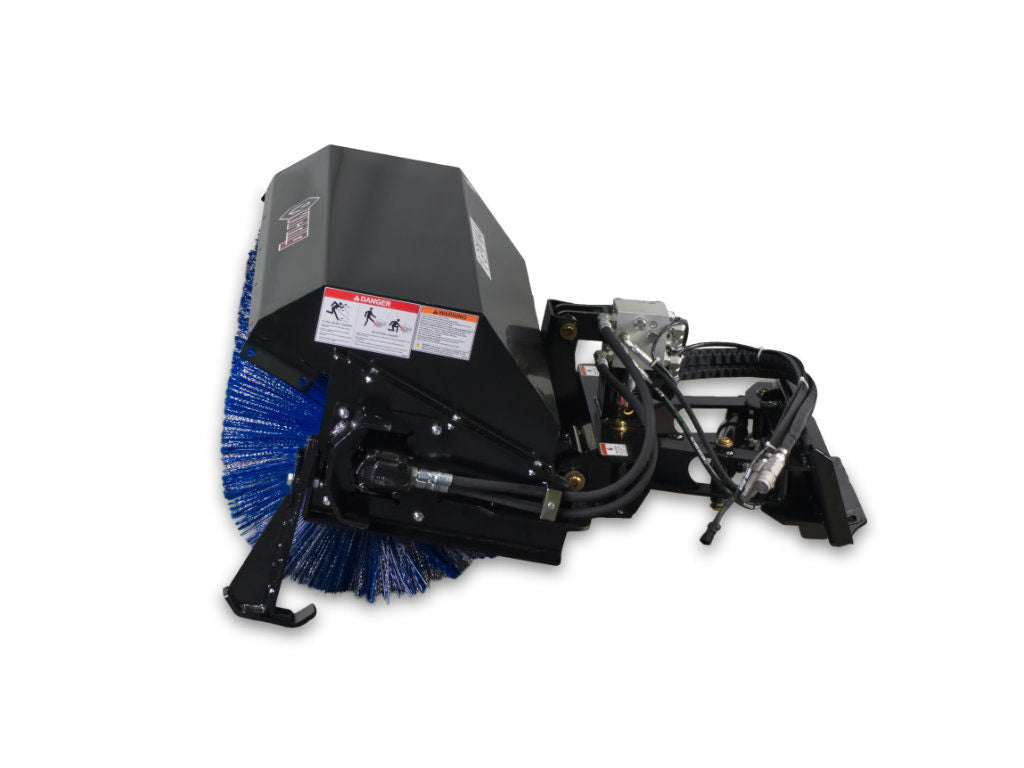

V20 Mini Skid Steer Angle Broom
The Virnig V20 Angle Broom is a high-performance skid steer attachment designed for efficient sweeping of dirt, snow, and debris. Equipped with a direct drive Eaton® motor, it ensures reliable operation with minimal maintenance. The exclusive self-centering swing linkage system automatically centers the broom when angled, providing consistent and precise sweeping performance.
The motor is recessed and guarded, offering protection during operation. Heavy-duty 1.25-inch greasable bearings contribute to the attachment's durability. Bristle wafers can be replaced easily without disconnecting hydraulic hoses, reducing downtime. The broom comes standard with poly/wire wafers, suitable for various surfaces. Flip-down stands protect bristles during storage, extending their lifespan.
Optional hydraulic angle control allows operators to adjust the broom angle from within the cab, enhancing convenience and efficiency. Available in widths of 48 and 60 inches, the Virnig V20 Angle Broom is compatible with most skid steer loaders, making it an essential tool for maintaining clean and safe job sites, parking lots, and roadways.
Direct drive Eaton® motor and exclusive self-centering swing linkage system for optimal sweeping.
Available Widths 48″ & 60″
- SWING LINKAGE SYSTEM SELF-CENTERS BROOM WHEN ANGLED
- RECESSED & GUARDED MOTOR
- HD 1.25″ GREASABLE BEARING
- REPLACE WAFERS EASILY WITHOUT DISCONNECTING HOSES. STANDARD WITH POLY/WIRE WAFERS
- STANDS FLIP DOWN TO PROTECT BRISTLES DURING STORAGE
SPECIFICATIONS
| MODEL | CAB48 | CAB60 |
| Sweeping Width, Straight (Inches) | 48.0 | 60.0 |
| Sweeping Width, Full Angle (Inches) | 42.8 | 53.5 |
| Loader Track Width Coverage, Full Angle (Inches) | 38.0 | 48.0 |
| Overall Width (Inches) | 54.3 | 66.3 |
| Overall Width, Full Angle (Inches) | 58.5 | 68.5 |
| Overall Height / Depth, Straight (Inches) | 27.7 / 56.9 | 27.7 / 56.9 |
| Max Broom Angle (Degrees) | 28 | 28 |
| Number of 26 Inch Diameter Wafers | 23 | 29 |
| Recommended Flow Rate (GPM) | 10-18 Standard Flow Only | 10-18 Standard Flow Only |
| Approximate Weight (Pounds) | 4951 | 5301 |
| Recommended Loader Capacity | Greater than 500 pounds |
Greater than 500 pounds
|
