Description

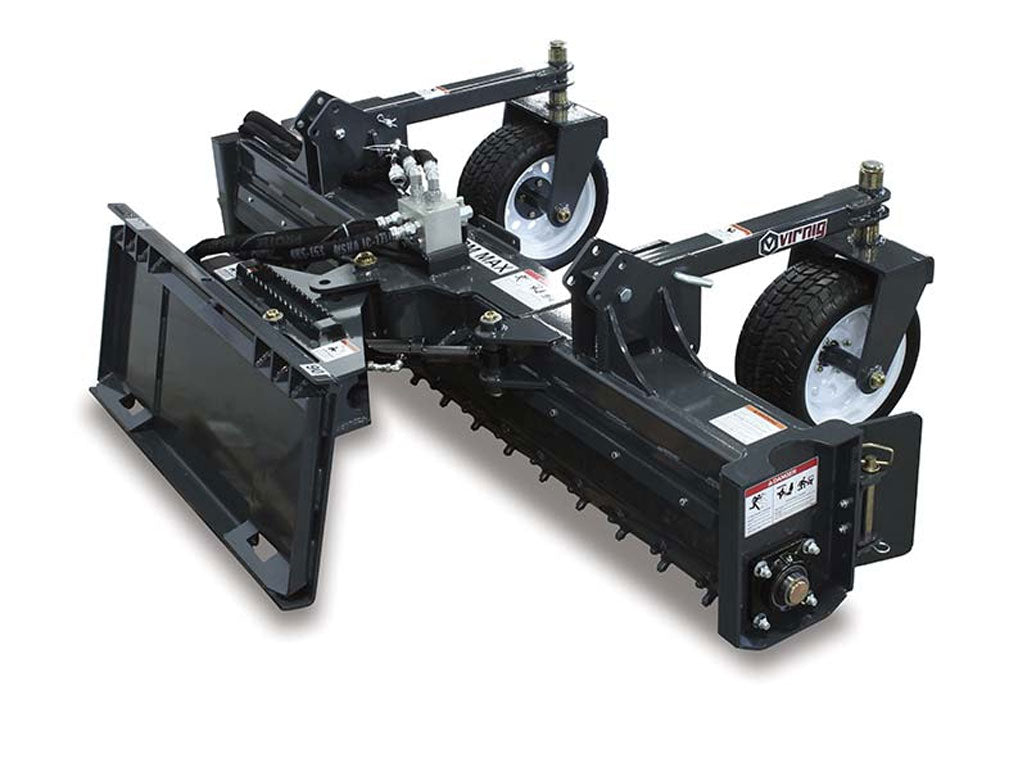

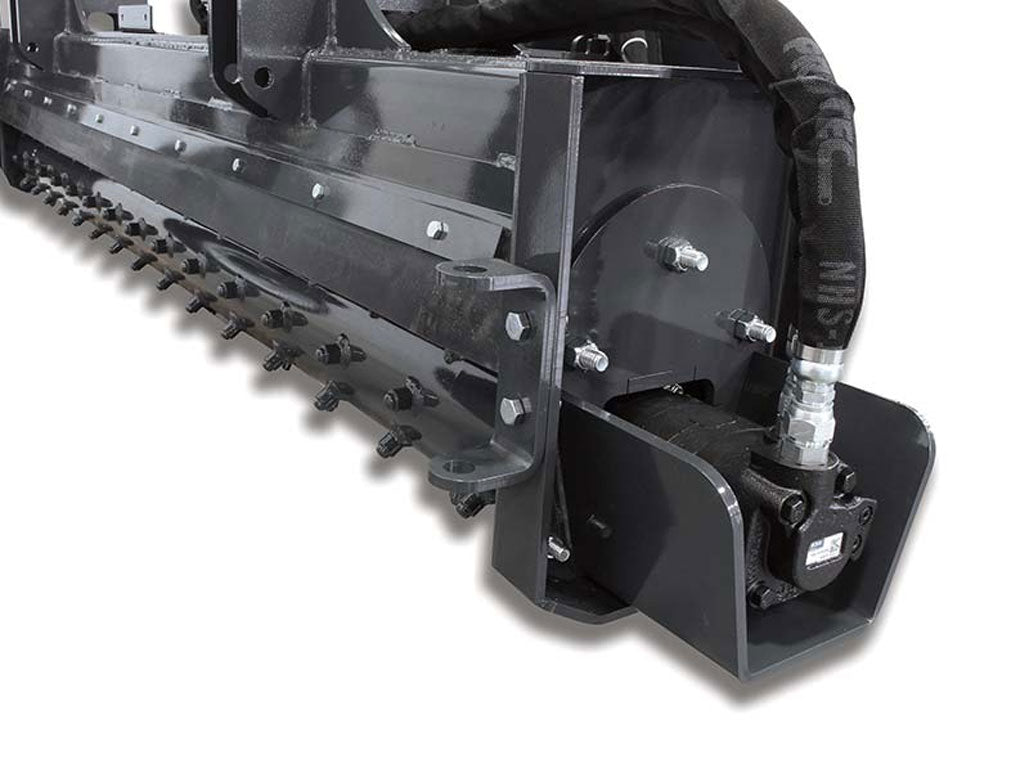

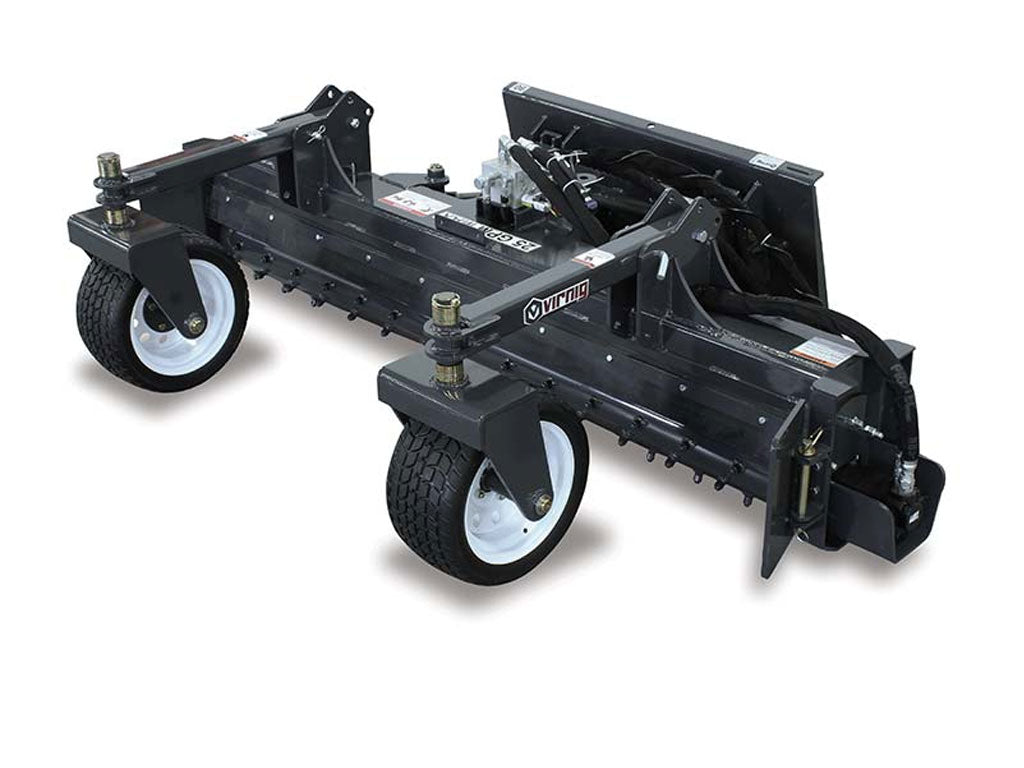

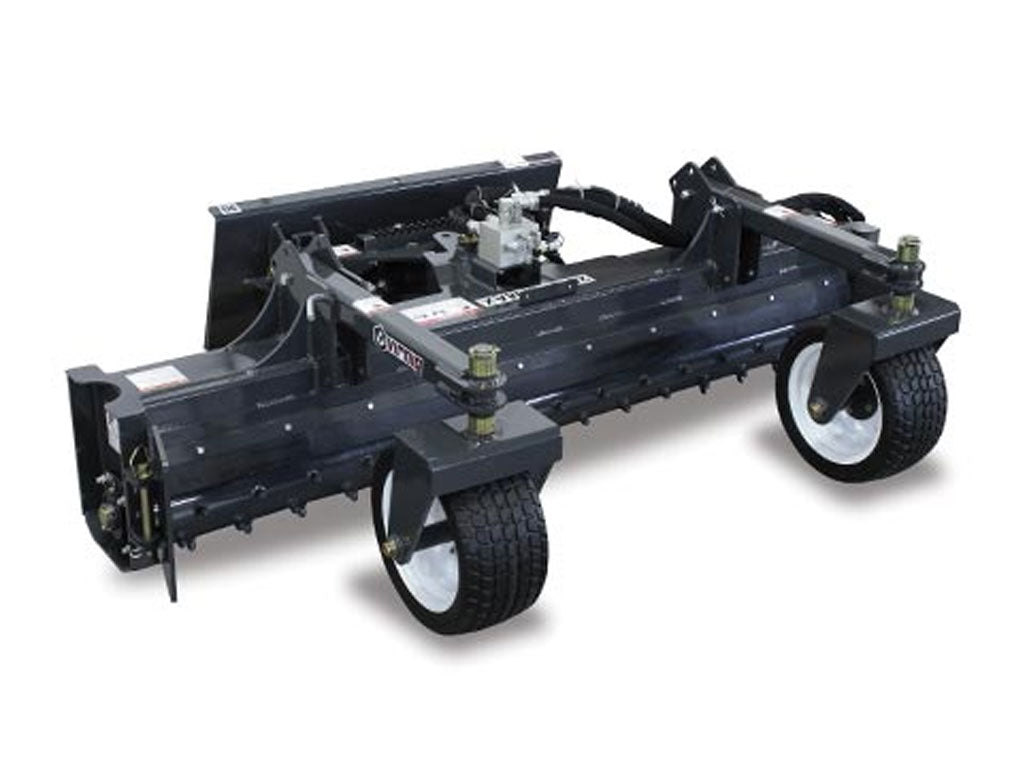

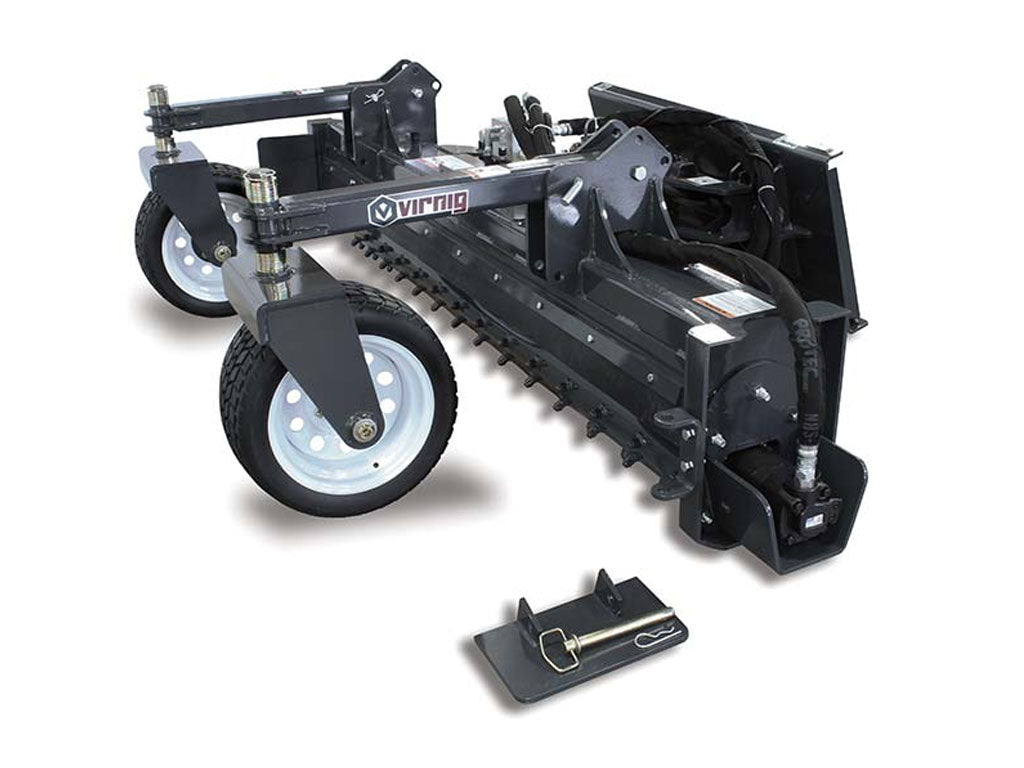

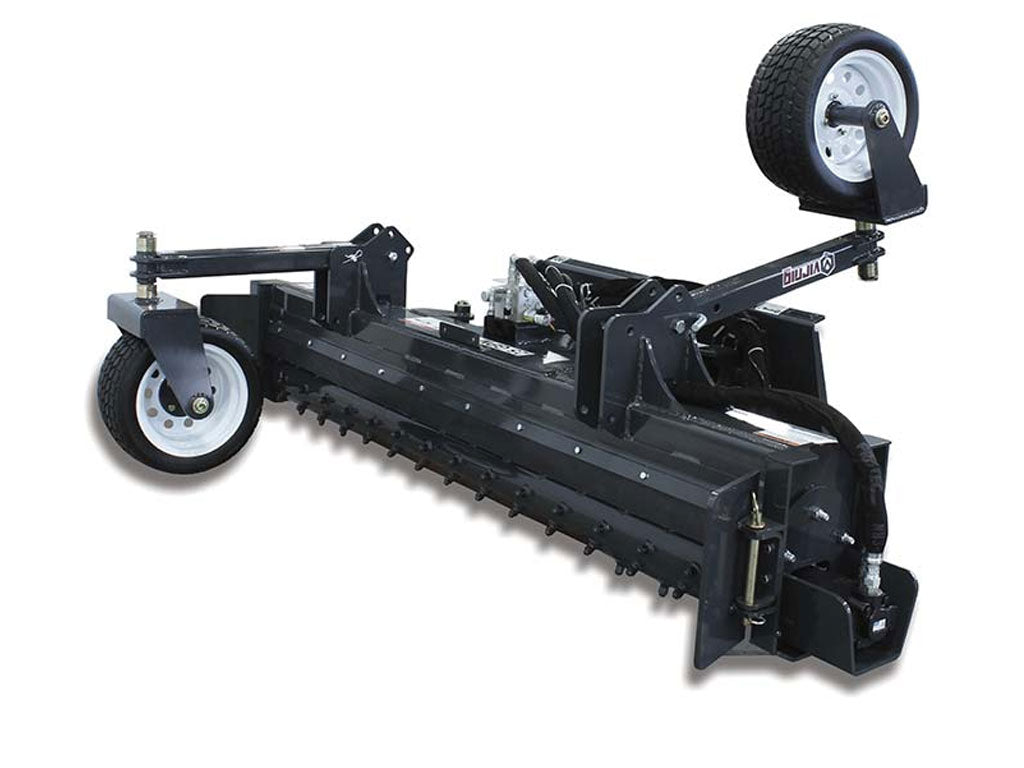

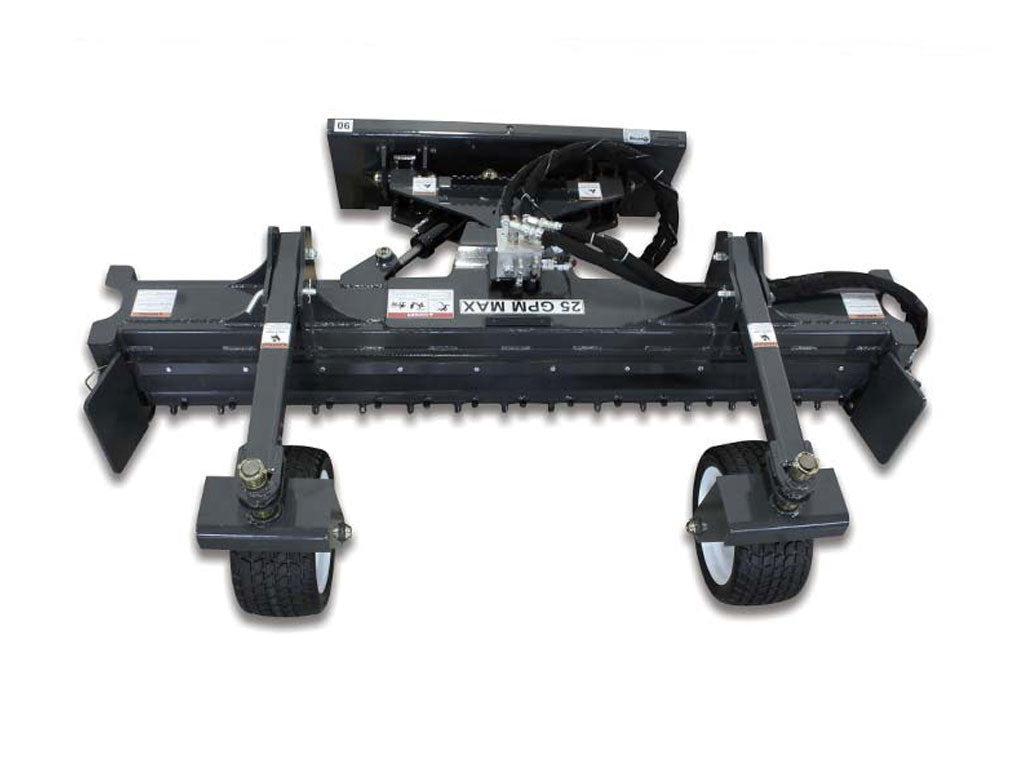

The Virnig Power Rake is a versatile skid steer attachment designed to grade soil and gravel, prepare seedbeds, and remove debris with more torque and less maintenance than chain drive rakes.
Key Features:
- Bi-Directional Operation: Operates efficiently in both forward and reverse directions for effective soil conditioning.
- Adjustable Rake Angle: The rake can be manually angled 25 degrees left or right to windrow debris with precision.
- Floating Design: Maintains a smooth, level finish by allowing full down pressure and leveling capabilities.
- Carbide Tip Teeth: Durable teeth provide exceptional soil penetration and long-lasting performance.
- Flat-Free Urethane-Filled Tires: Eliminates maintenance concerns while ensuring consistent operation.
Specifications:
- Available Widths: Choose from 72 inches and 90 inches to fit various skid steer sizes and project needs.
- Raking Width at Full Angle: 65.3 inches for the 72-inch model and 81.5 inches for the 90-inch model.
- Recommended Flow Rate: Operates effectively with 15-25 GPM standard flow.
- Approximate Weight: 1,335 pounds for the 72-inch model and 1,440 pounds for the 90-inch model.
Applications:

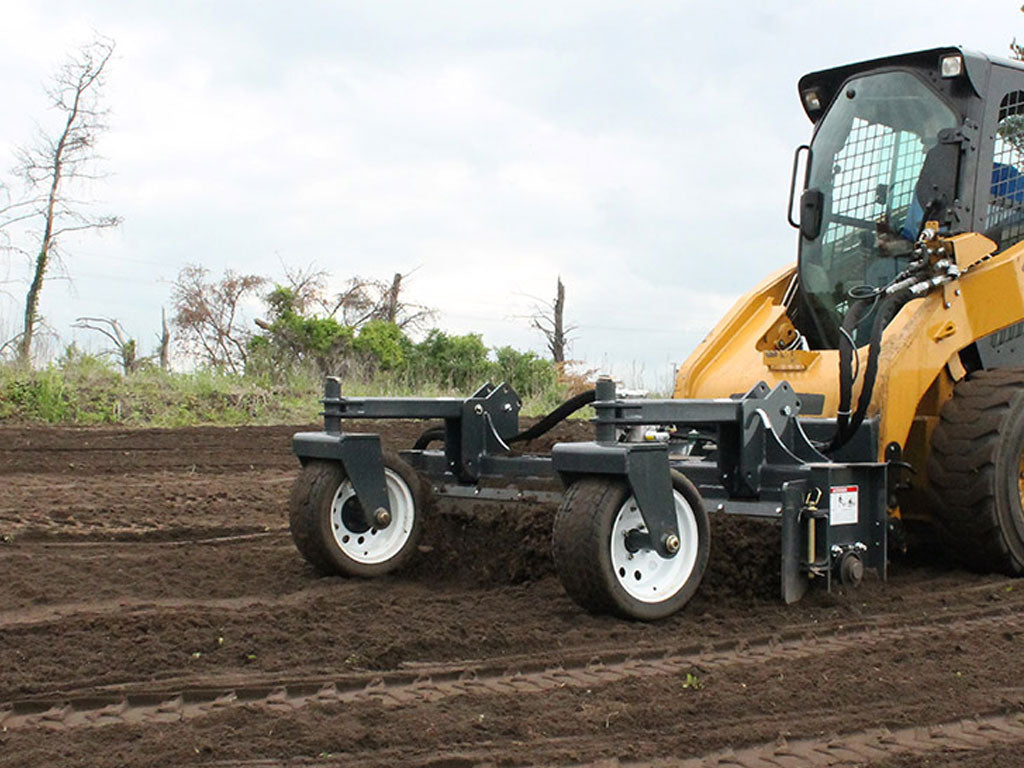

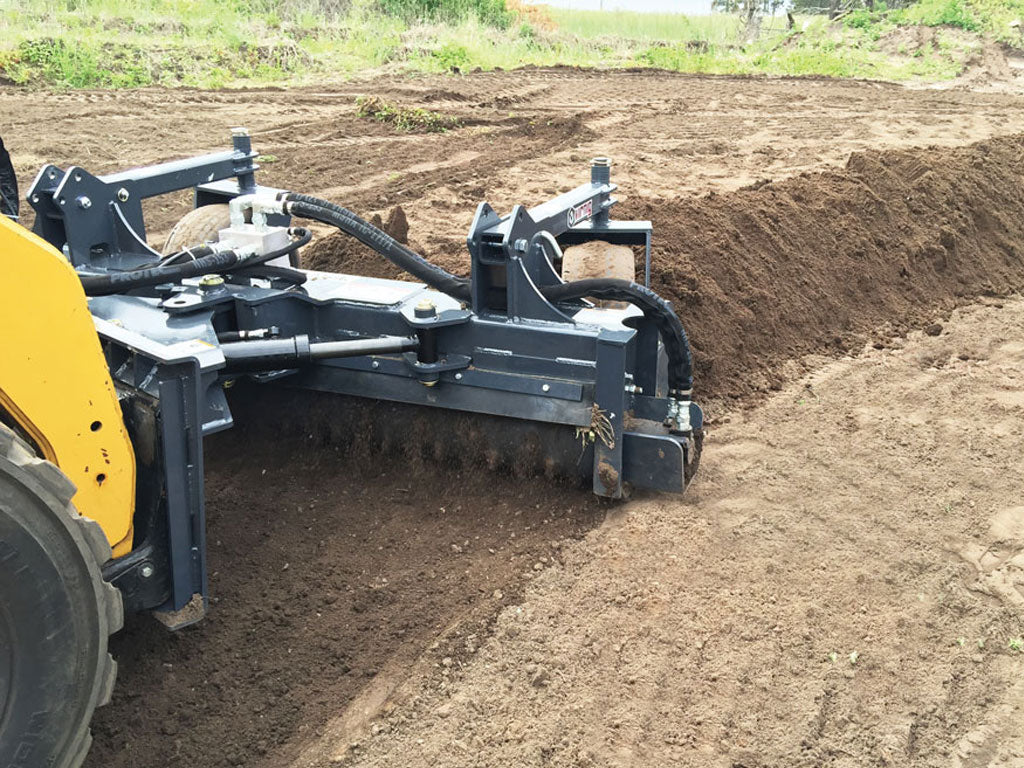

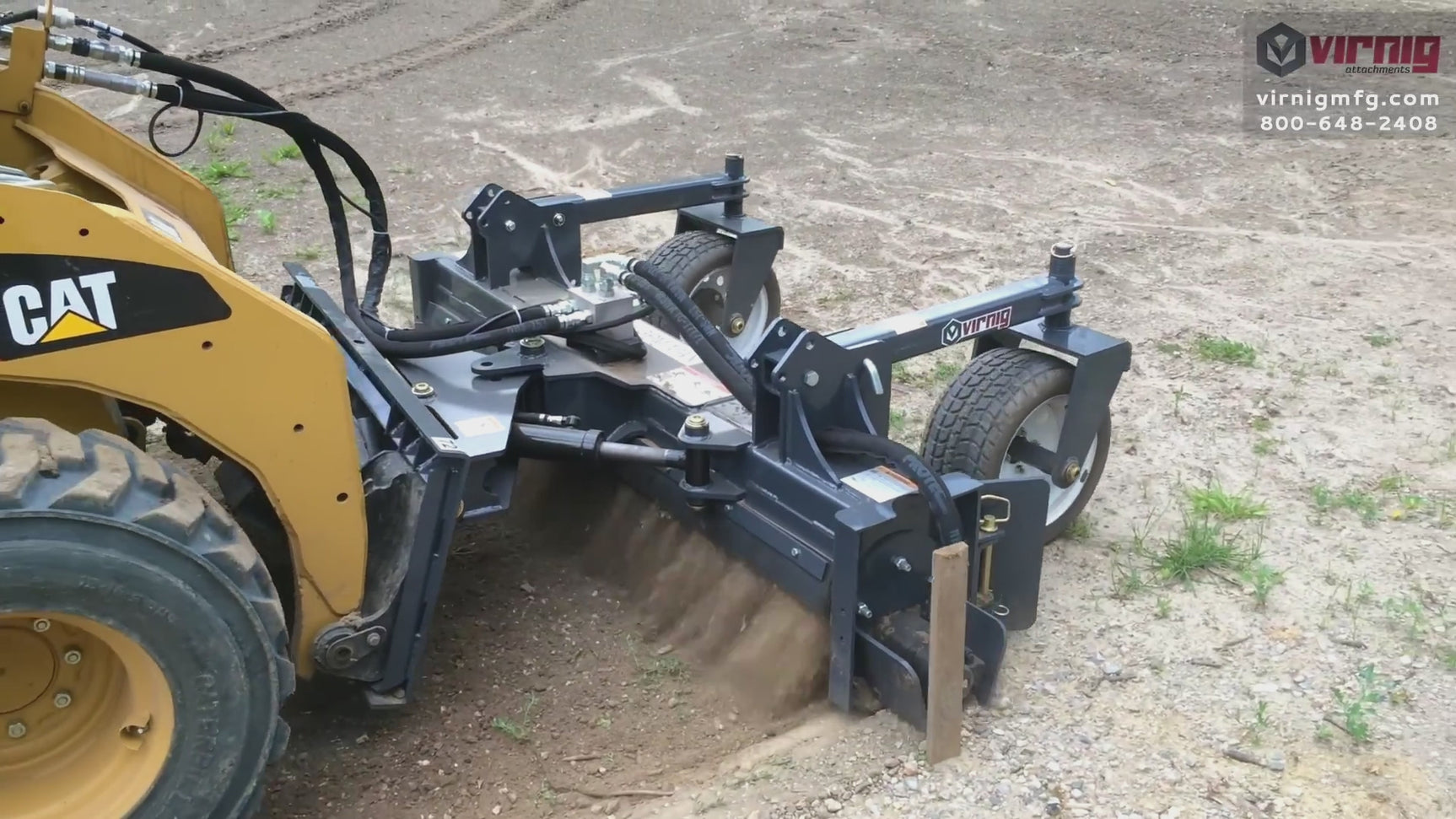

Perfect for landscaping, construction, and agricultural tasks, the Virnig Power Rake prepares seedbeds, levels surfaces, and removes debris efficiently, ensuring smooth and reliable operation for a variety of projects.
The Virnig Power Rake is a dependable choice for those seeking improved productivity and precise soil conditioning.
Virnig Power Rake is available is two styles:
- Manual

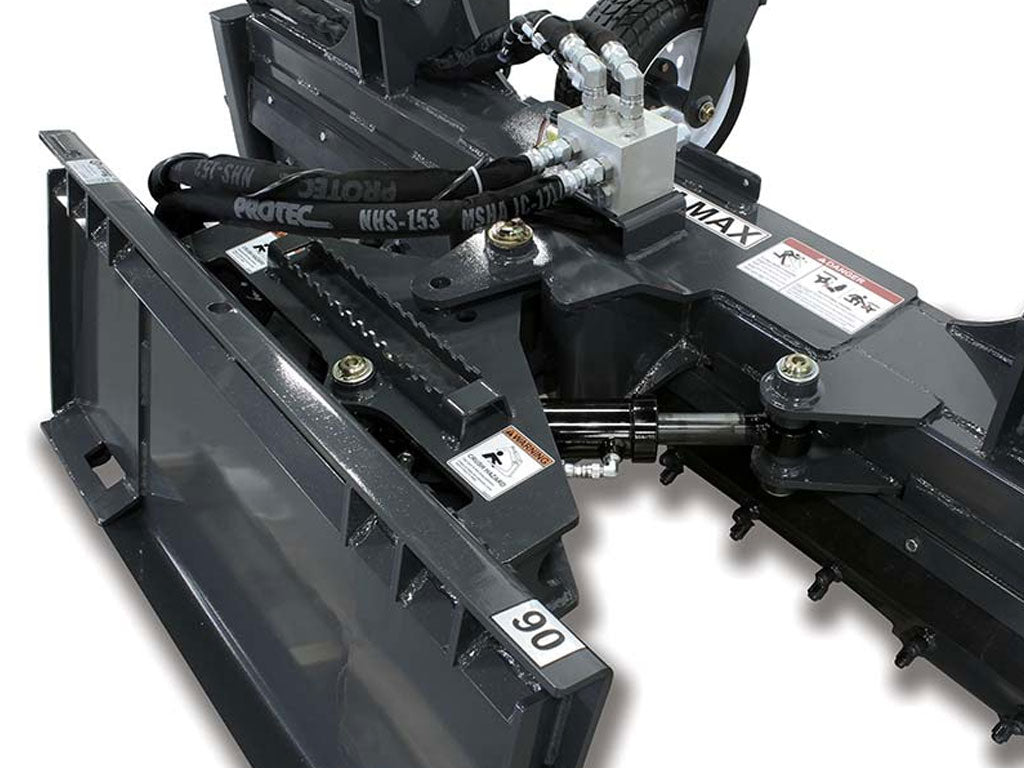

- Hydraulic Angle which allows the operator to quickly angle the rake 25 degrees in either direction to window debris.
-
- One-cylinder design using an electric control valve.
- 2 1/2" bore, 8" stroke cylinder with a Nitro Steel rod.
- Greaseable 1 1/4" cylinder and 1 9/16" linkage pins.
- Requires one of the listed electric control harnesses.
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
SPECS
| Model | PWR72 | PWR90 |
| Raking Width (in) | 72.0 | 90.0 |
| Raking Width at Full Angle (in) | 65.3 | 81.5 |
| Overall Width (in) | 84.0 | 102.0 |
| Overall Depth (in) | 68.5 | |
| Overall Height (in) | 27.5 | |
| Drum Diameter (in) | 8.5 | |
| Number of Teeth | 109 | 139 |
| Float Link Angle (degrees) | 22 | |
| Rake Angle (degrees) | +/- 25 | |
| Recommended Flow Rate (gpm) | 15-25 Standard Flow Only | |
| Approximate Weight (lbs) | 1335 | 1440 |
| Recommended Loader Capacity | Greater than 1500 pounds | |
