Description

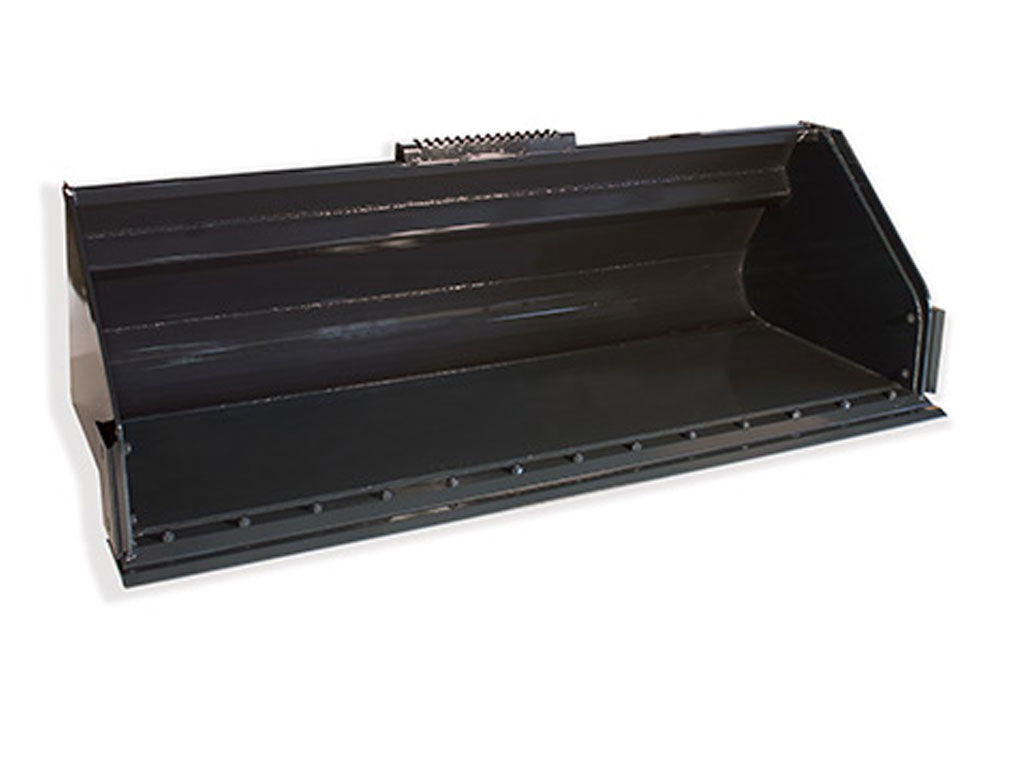

Enhance your skid steer loader's efficiency with the Virnig Manure Slurry Bucket, a robust attachment engineered for optimal handling of manure, slurry, and other liquid materials. Designed to minimize spillage and facilitate easy clean-out, this bucket is essential for agricultural and waste management operations.
Key Features:
-
60° Back Angle & Top Formed Profile: The bucket's design effectively limits spillage, ensuring cleaner and more efficient material transport.
-
Curved Interior: A curved inside profile allows for easier clean-out, reducing downtime and maintenance efforts.
-
Durable Cutting Edge: Equipped with a 3/4" x 6" weld-on edge featuring holes for optional bolt-on edges, enhancing versatility and extending the bucket's lifespan.
-

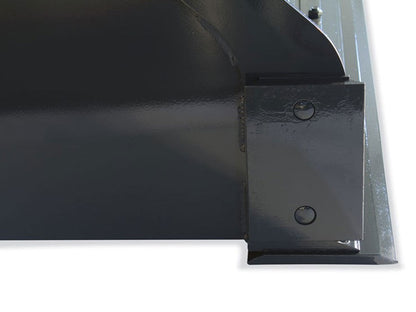

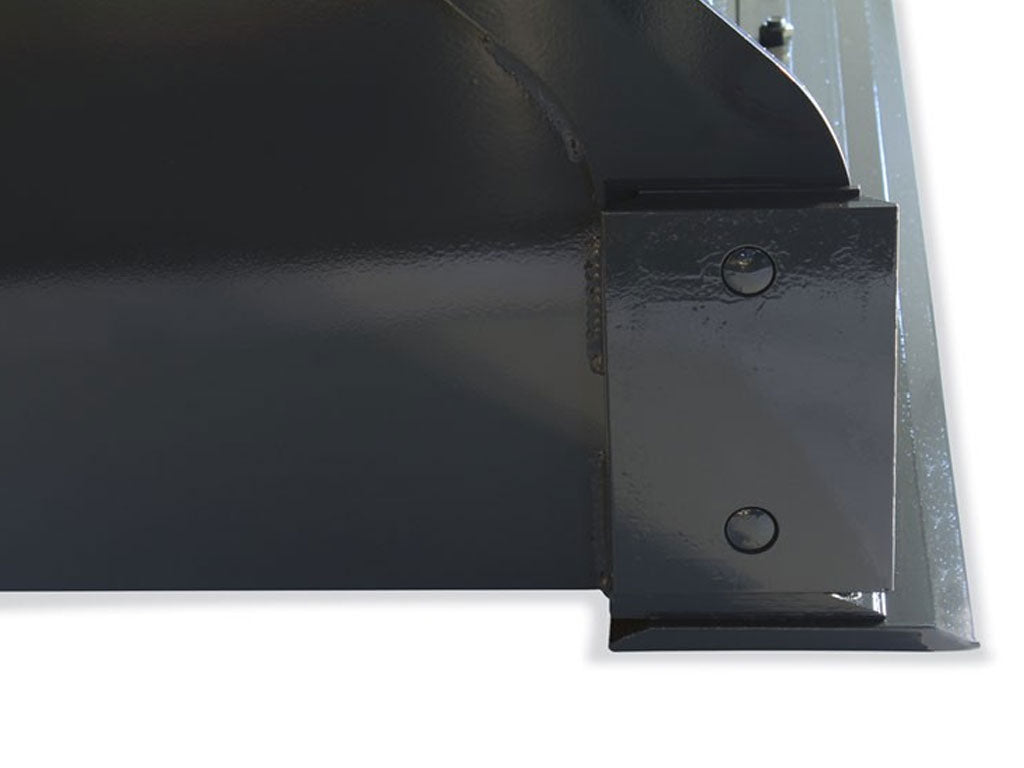

Reversible Bolt-On Side Wear Edges: Standard reversible side wear edges provide additional protection and durability, ensuring long-lasting performance.
Specifications:
-
Available Widths: 66 inches, 72 inches, 78 inches, and 84 inches, accommodating various skid steer sizes and operational needs.
-
Bucket Capacity: Struck capacities range from 16.9 to 21.5 cubic feet, while heaped capacities range from 20.3 to 25.8 cubic feet, depending on the model.
-
Approximate Weight: Ranges from 600 to 810 pounds, ensuring compatibility with loaders having operating capacities greater than 1,500 pounds.
Optional Features:
-
Bolt-On Edge: Enhance the bucket's cutting ability and longevity by adding an optional bolt-on edge.
-
Side Wear Edge Kit: Further protect the bucket's sides with an optional side wear edge kit, extending the attachment's service life.
OPTIONS

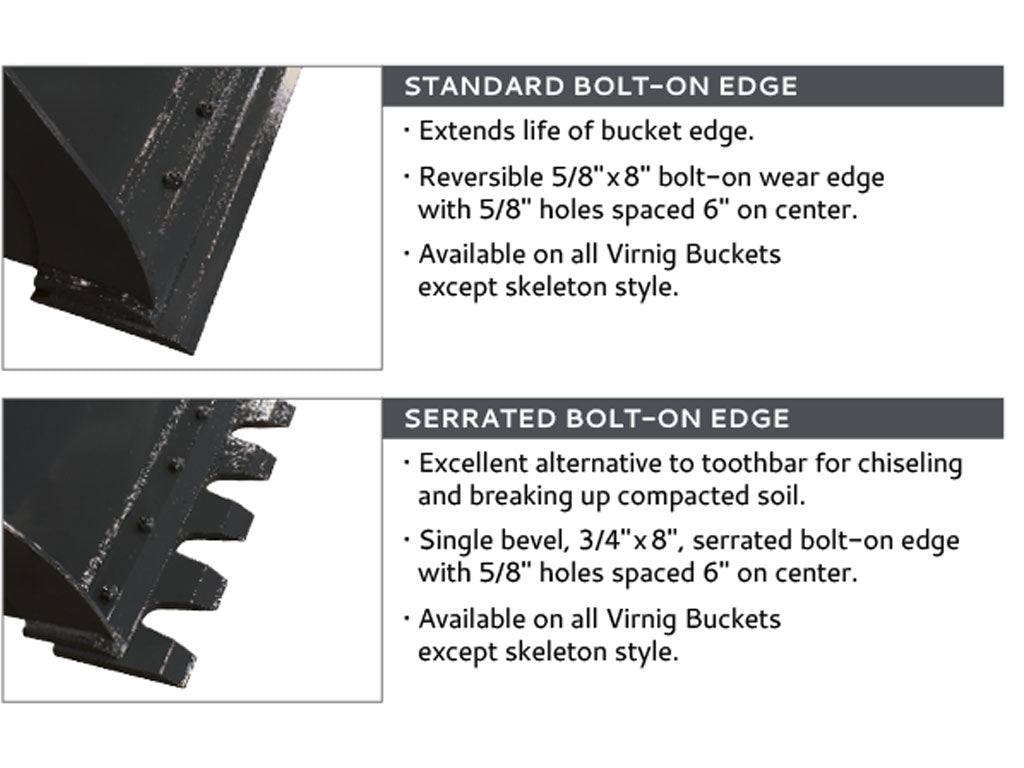

- Bolt on Cutting Edge (BOCE) installed
- Serrated Edge (SE) installed
SPECIFICATIONS
- Recommended loader capacity - Greater than 1500 lbs ROC
| Model | 66" | 72"" | 78" | 84" |
| Overall Width (in) | 68.3 | 74.3 | 80.3 | 86.3 |
| Depth: Overall / Inside (in) | 37.0 / 32.6 | 37.0 / 32.6 | 37.0 / 32.6 | 37.0 / 32.6 |
| Height (in) | 25.3 | 25.3 | 25.3 | 25.3 |
| Struck Capacity (cu ft) | 16.9 | 18.4 | 20.0 | 21.5 |
| Heaped Capacity (cu ft) | 20.3 | 22.1 | 24.0 | 25.8 |
|
Structural Wear Bars Under Bucket 1/2" x 4" |
3 | 3 | 4 | 4 |
| Weight (lbs) | 600 | 710 | 770 | 810 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
