Description

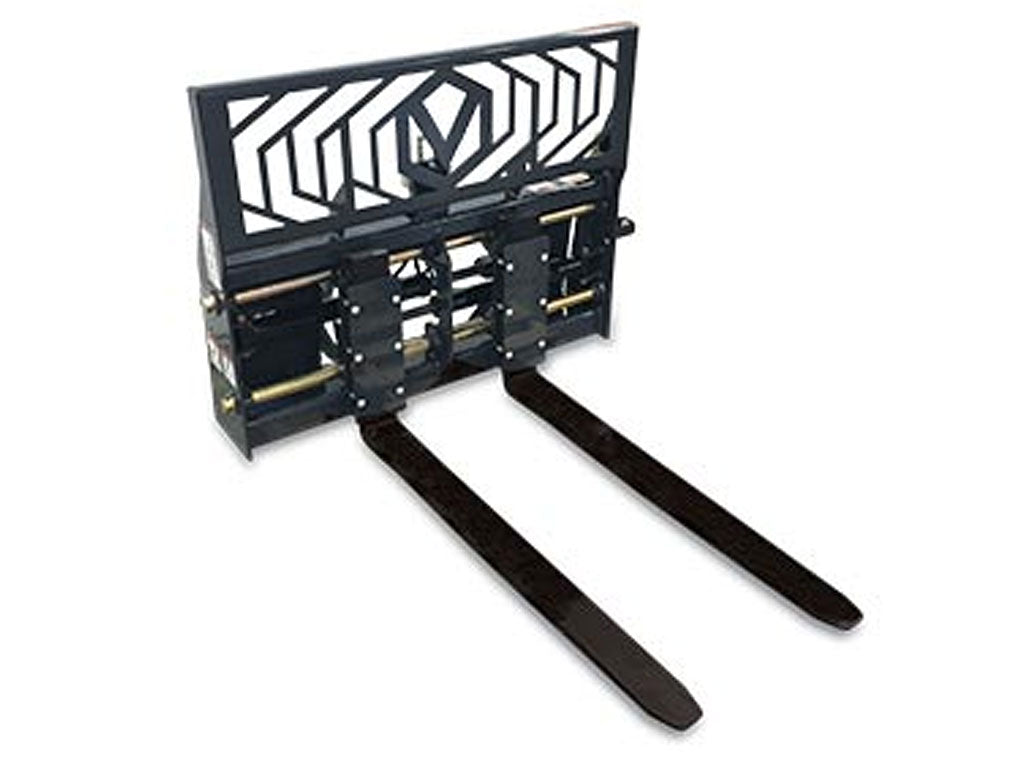

THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
Adjust the tines simultaneously from 8” to 38” wide without leaving the cab.
- Optimized for skid loader use with angles mount plate and high visibility brickguard.
- Standard ITA Class II forged tines rated at 5,500 lbs per pair.
- 1 9/16″ diameter shaft.
- Comes with one step and hardware to install on either side.
- Same frame for USA and Global Tines.
SPECIFICATIONS
Recommended Loader Capacity: Greater than 1500lbs ROC
| Frame Width (in) | 50.1 | ||||
| Overall Height (in) | 40.1 | ||||
| Tine Length (in) | 48.0 | ||||
| Tine Thickness (in) | 1.5 | ||||
| Min Tine Space (in) | 7.8 | ||||
| Max Tine Space (in) | 38.2 | ||||
| Weight (lbs) | 705 | ||||
| Capacity (lbs) | 5500 | ||||
