Description

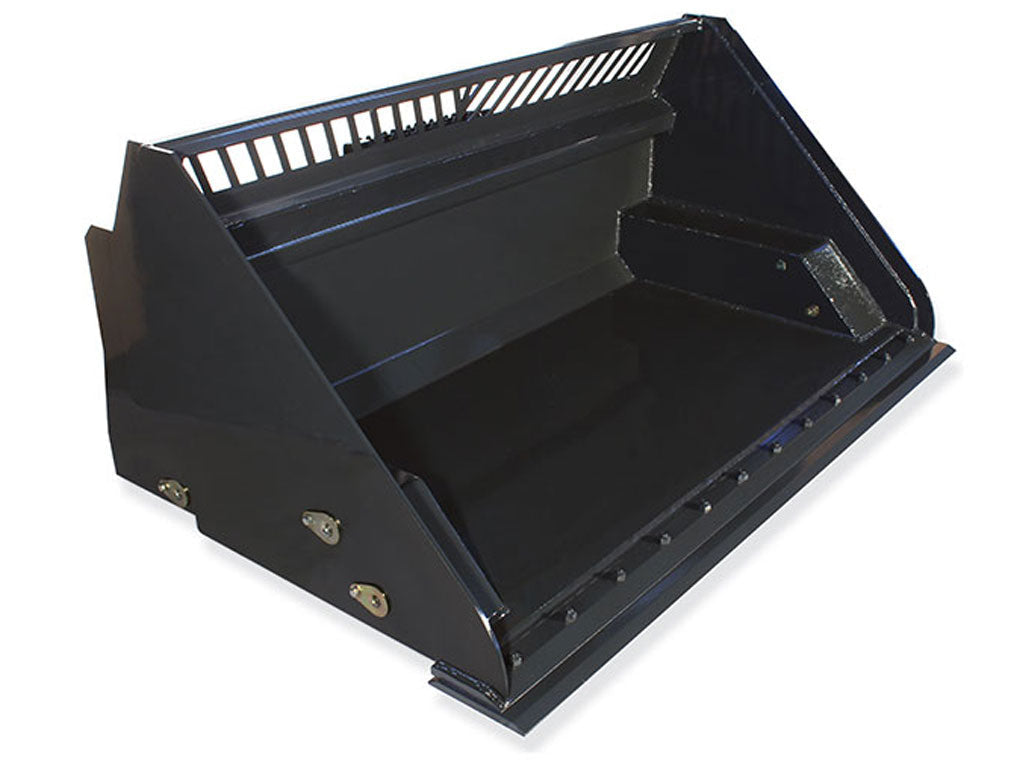

Enhance your skid steer loader's capabilities with the Virnig High Dump Bucket, a premium attachment designed for efficient material handling in a wide range of applications. This bucket increases your loader's dump height and reach, making it ideal for loading feed mixers, trucks, and managing recycling or garbage removal tasks.
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
Key Features:
- Increased Dump Height and Reach: The High Dump Bucket elevates your loader's vertical lift by approximately 44 inches and extends horizontal reach by about 13 inches, allowing for easy loading of tall containers and trucks.
- Enhanced Visibility: Strategically designed windows in the bucket improve operator visibility during material handling, ensuring precise and safe operation.
- Durable Construction: Features high-strength components with superior resistance to wear and corrosion, ensuring long-lasting performance in tough environments.
- Optional Bolt-On Edges: Extend the bucket’s lifespan and functionality by adding an optional bolt-on edge or serrated edge to the standard ¾-inch by 6-inch weld-on edge, catering to diverse material handling needs.
Specifications:
- Available Widths: Offered in 60 inches, 72 inches, 84 inches, and 96 inches to suit various skid steer models and requirements.
- Capacity: Struck capacities range from 22.8 to 36.6 cubic feet, while heaped capacities range from 27.4 to 43.9 cubic feet, depending on the model.
- Recommended Loader Capacity: Designed for loaders with operating capacities greater than 1,800 pounds for optimal performance and safety.
Applications:
The Virnig High Dump Bucket is ideal for agricultural operations, construction sites, and waste management facilities, offering enhanced efficiency in loading and material transport tasks.

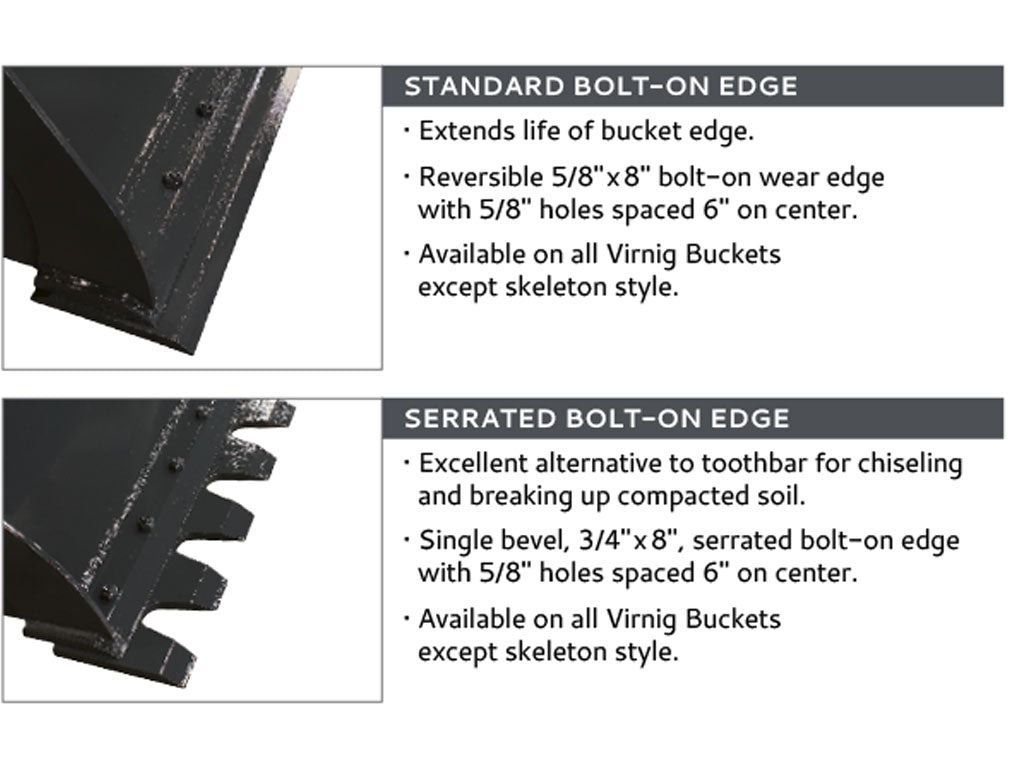

OPTIONS
- Bolt on Cutting Edge (BOCE) installed
- Serrated Edge (SE) installed
SPECIFICATIONS
- Recommended loader capacity - Greater than 1800 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563
| Model | 60" | 72"" | 84" | 96" |
| Overall Width (in) | 61.5 | 73.5 | 85.5 | 97.5 |
| Depth (in) | 47.3 | 47.3 | 47.3 | 47.3 |
| Height (in) | 29.8 | 29.8 | 29.8 | 29.8 |
| Window Height (in) | 4.0 | 4.0 | 4.0 | 4.0 |
| Dump Angle (degrees) | 86.0 | 86.0 | 86.0 | 86.0 |
| Struck Capacity (cu ft) | 22.8 | 27.4 | 32.0 | 36.6 |
| Heaped Capacity (cu ft) | 27.4 | 32.9 | 38.4 | 43.9 |
|
Structural Wear Bars Under Bucket 1/2" x 4" |
3 | 4 | 4 | 4 |
| Weight (lbs) | 1015 | 1115 | 1215 | 1310 |
