Description
Virnig offers five different Hay Handling models with removable machine pointed spears to accommodate round bales and large square bales.
- Main spears and stabilizers made from 1045 Cold Finished Stress Relieved (CFSR) round stock.
- Spears extremely strong and durable. Machined spears are less expensive than forged spears.
- Manufactured with a universal mount to fit most skid steer loaders
Model Options:

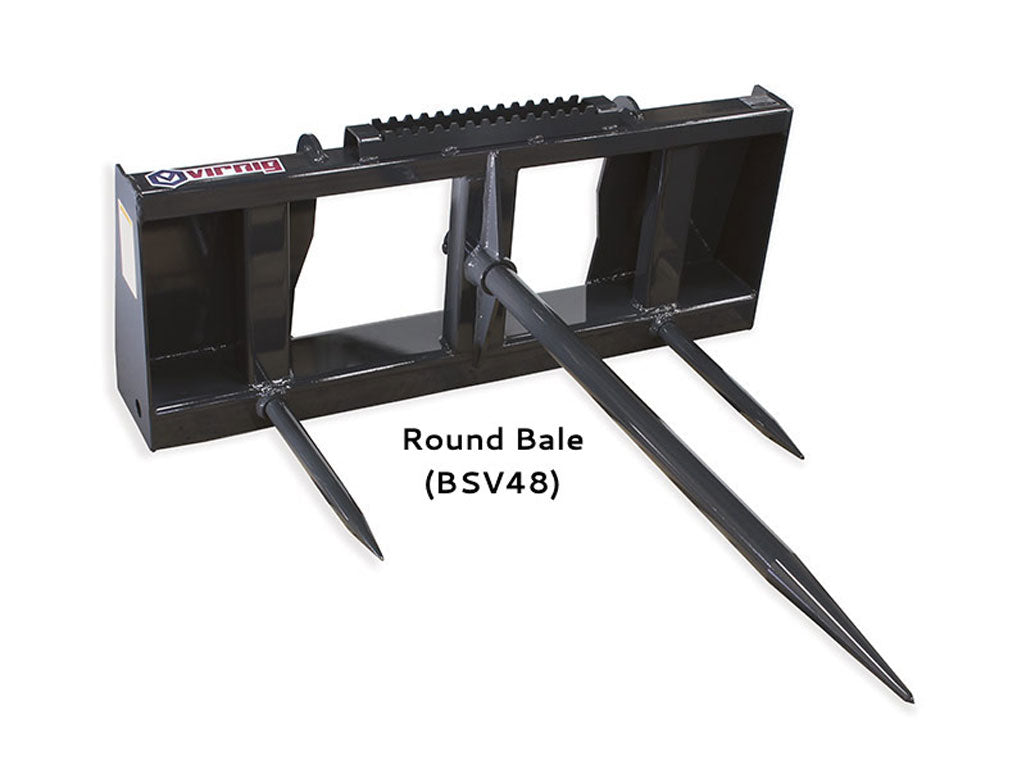

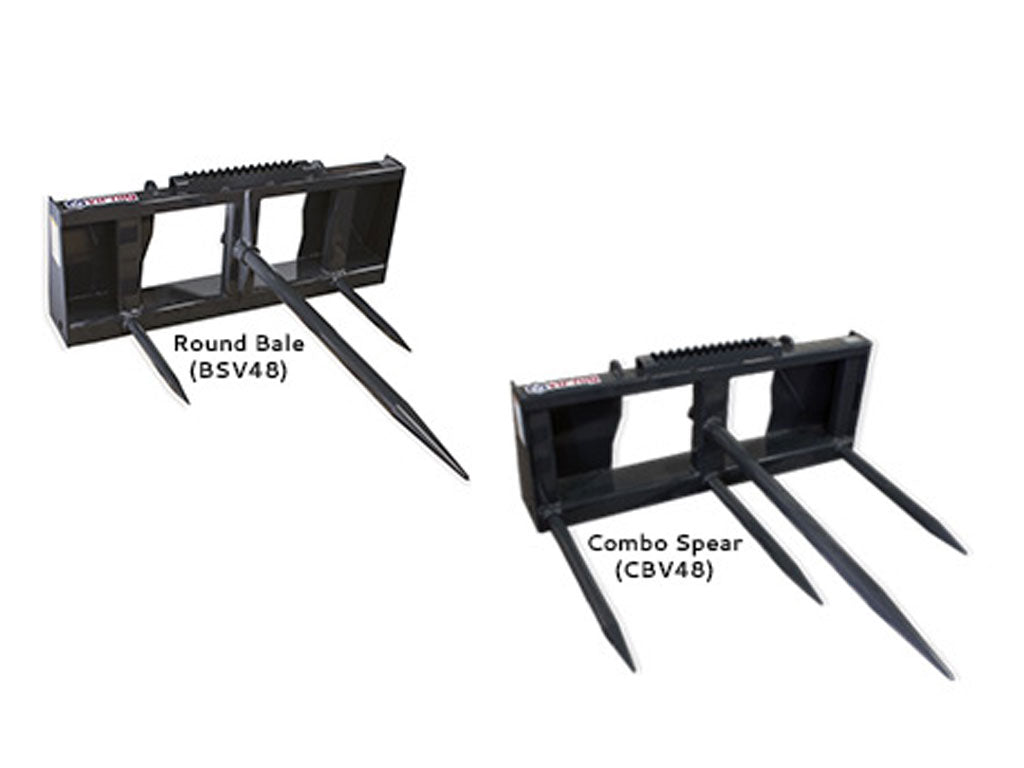

- Round Bale Spear - BSV48
- One 2” x 48” main spear
- Two 1-1/2” x 18" stabilizers
- One bale maximum.

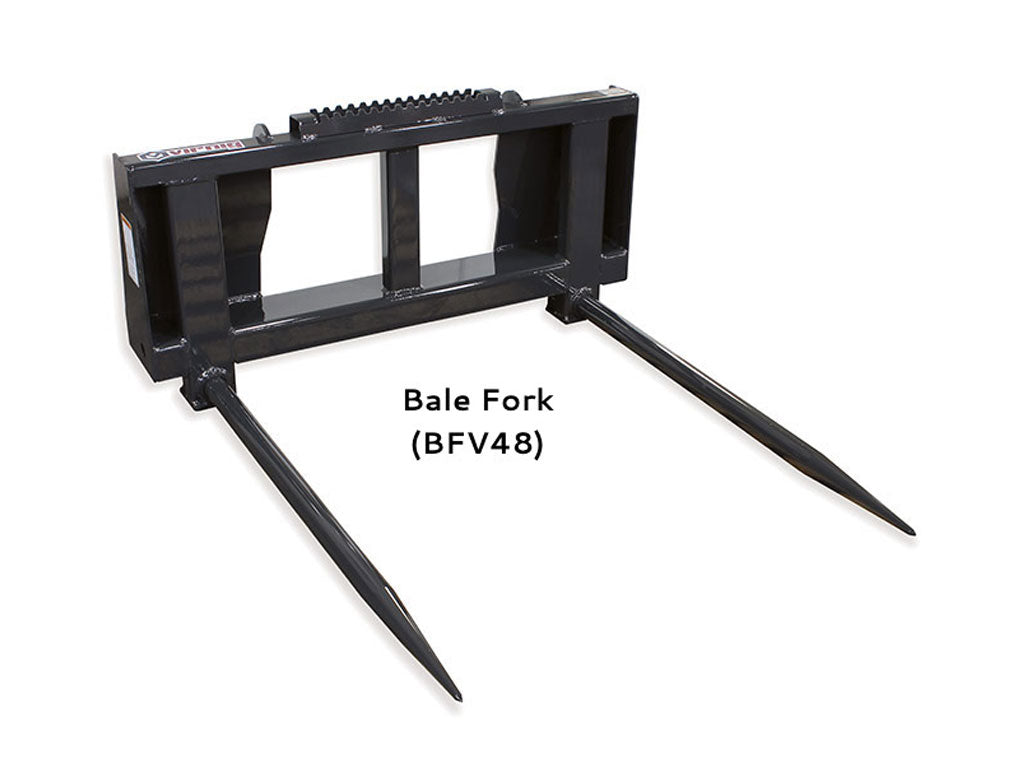

- Bale Fork - BFV48
- Two 2" x 48" spears
- One bale maximum

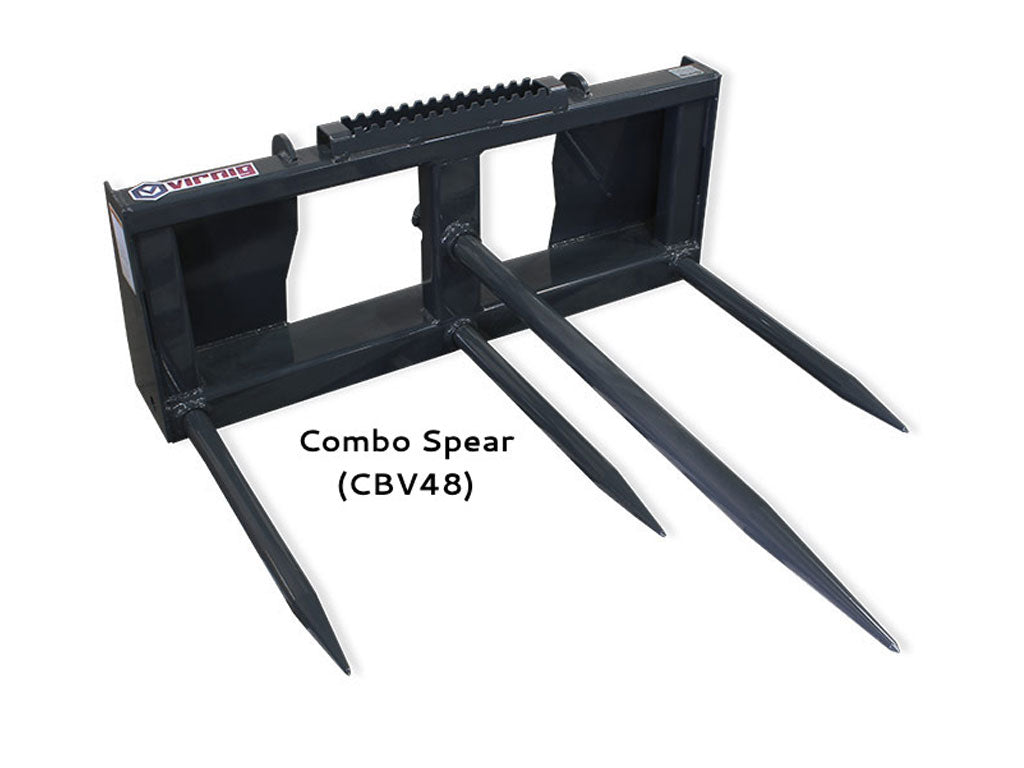

- Round/Square Bale Combo Spear - CBV48
- One 1-3/4” x 42” main spear
- Three 1-3/4” x 30″ stabilizers
- One bale maximum

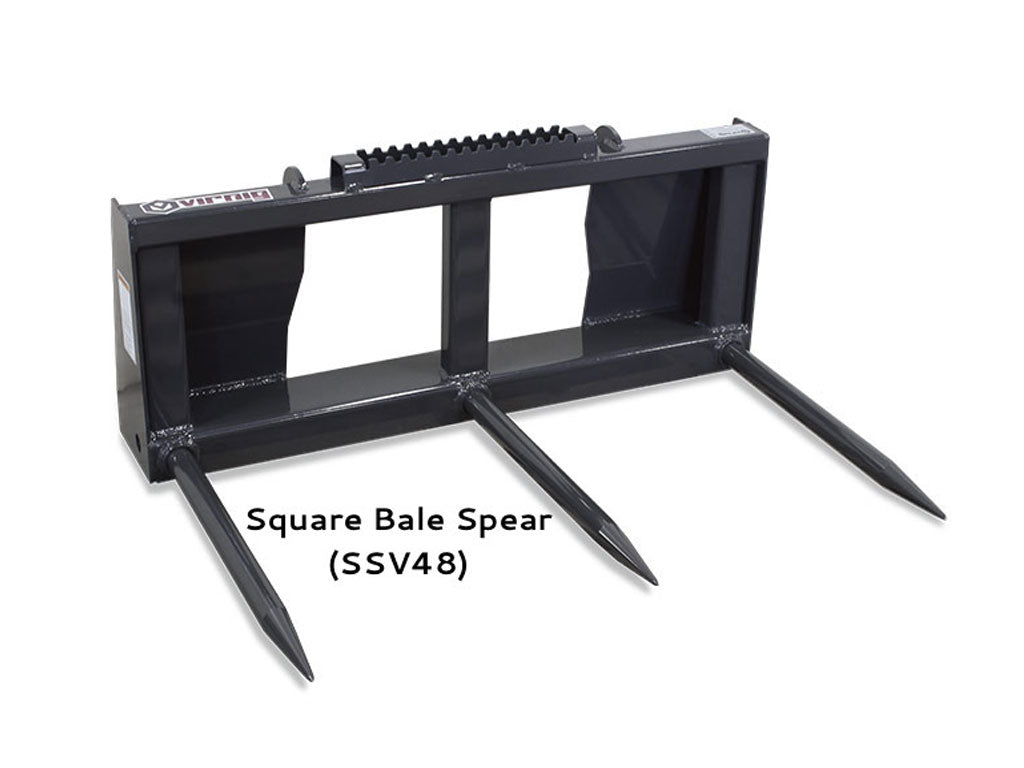

- Square Bale Spear - SSV48
- Three 1-3/4" x 30" main spears
- One bale maximum

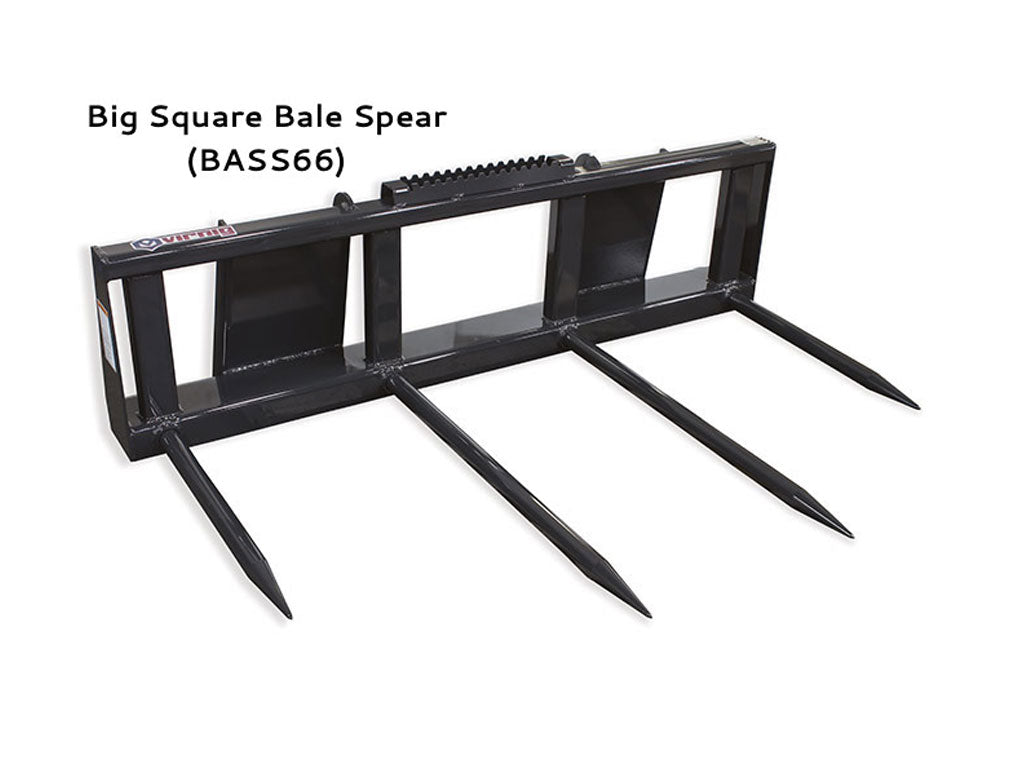

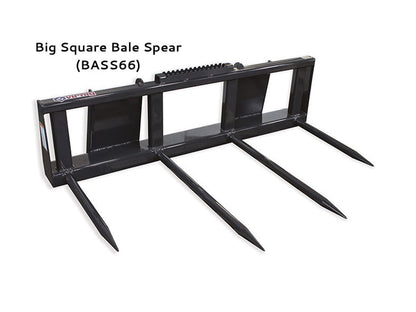

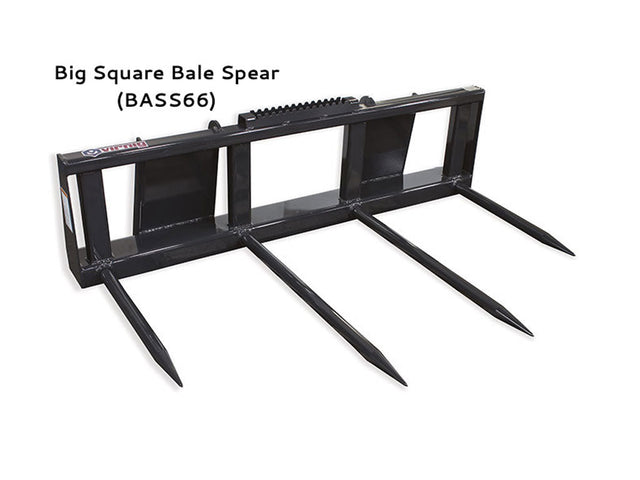

- Big Square Bale Spear - BASS66
- Two 1-3/4” x 42” main spears
- Two 1-3/4” x 30″ stabilizers
- One bale maximum
SPECIFICATIONS
- Capacity with bale against frame: 2000 lbs ROC
- Spears made from 1045 CFSR Round Stock.
| Model | BSV48 | BFV48 | CBV48 | SSV48 | BASS66 |
| Name | Round Bale Spear | Bale Fork | Bale Combo Spear | Square Bale Spear | Big Square Bale Spear |
| Frame Width (in) | 45.5 | 45.5 | 45.5 | 45.5 | 66.5 |
| Number of Main Spears | 1 | 2 | 1 | 3 | 2 |
| Main Spear Usable Length (in) | 42.3 | 42.3 | 37.8 | 25.8 | 37.8 |
| Main Spear Thickness (in) | 2.0 | 2.0 | 1.75 | 1.75 | 1.75 |
| Number of Stabilizer Spears | 2 | - | 3 | - | 2 |
| Stabilizer Spear Usable Length (in) | 17.4 | - | 25.8 | - | 25.8 |
| Stabilizer Spear Thickness (in) | 1.5 | - | 1.75 | - | 1.75 |
| Weight (lbs) | 230 | 270 | 260 | 225 | 310 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
