Description
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

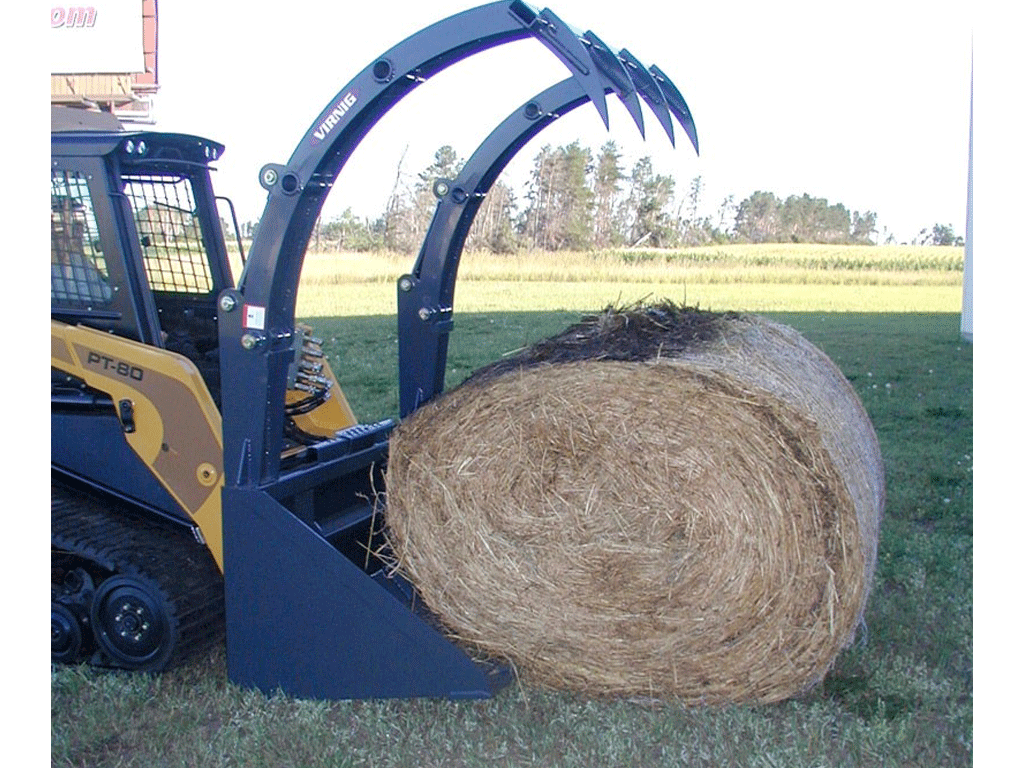

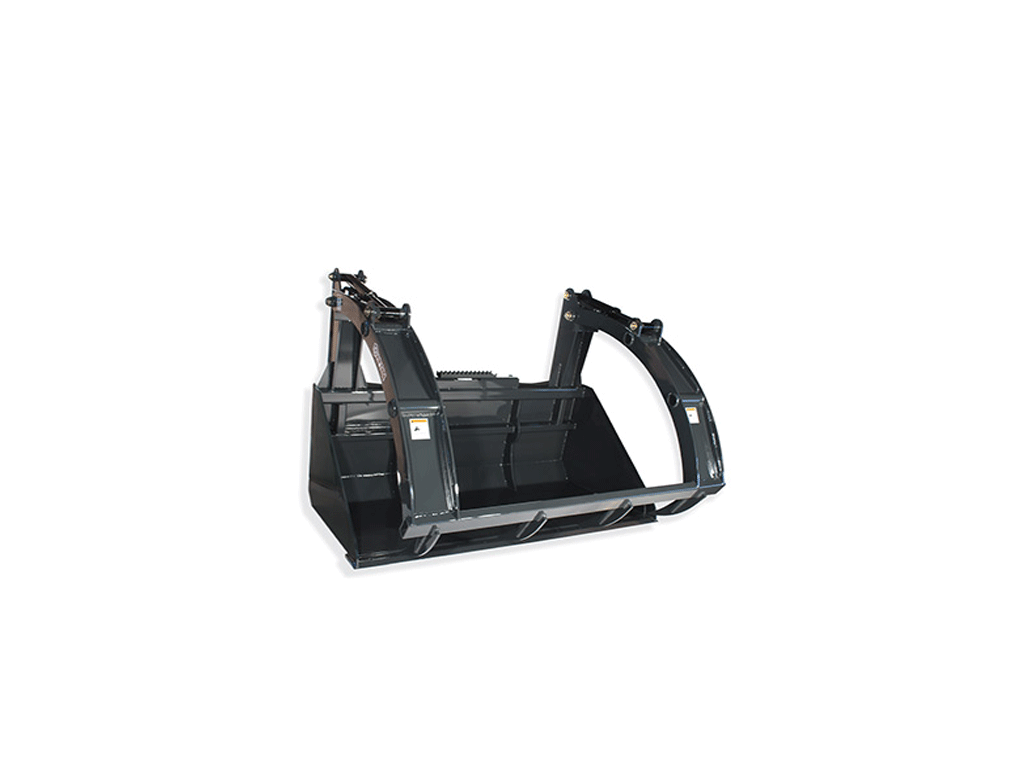

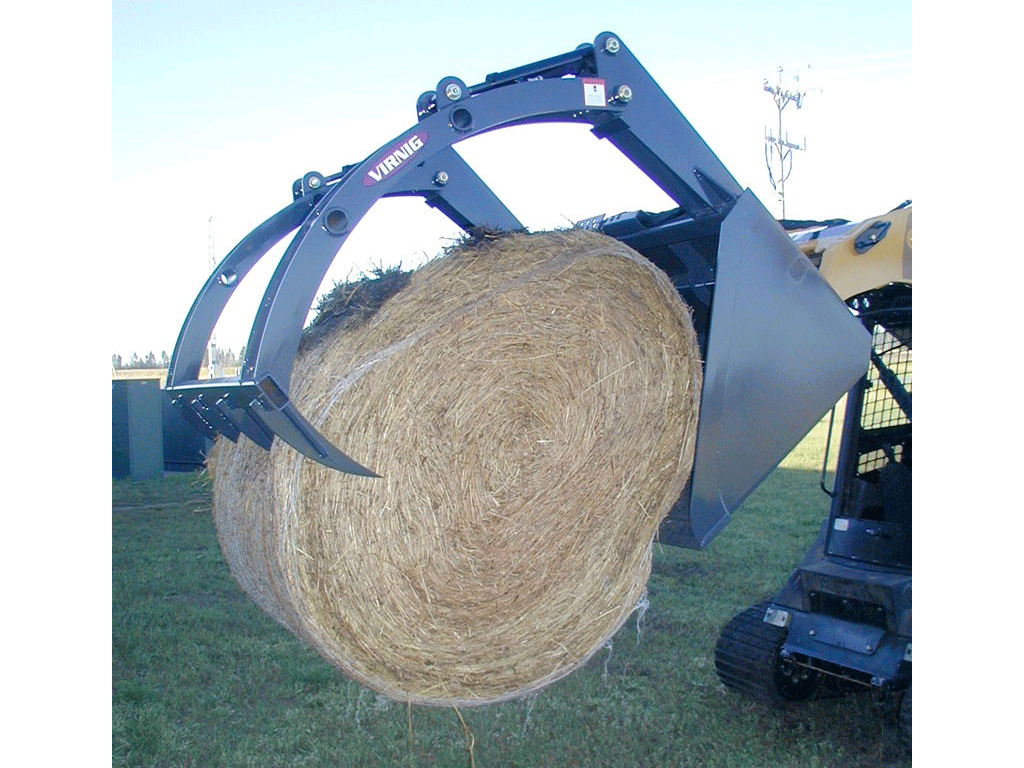

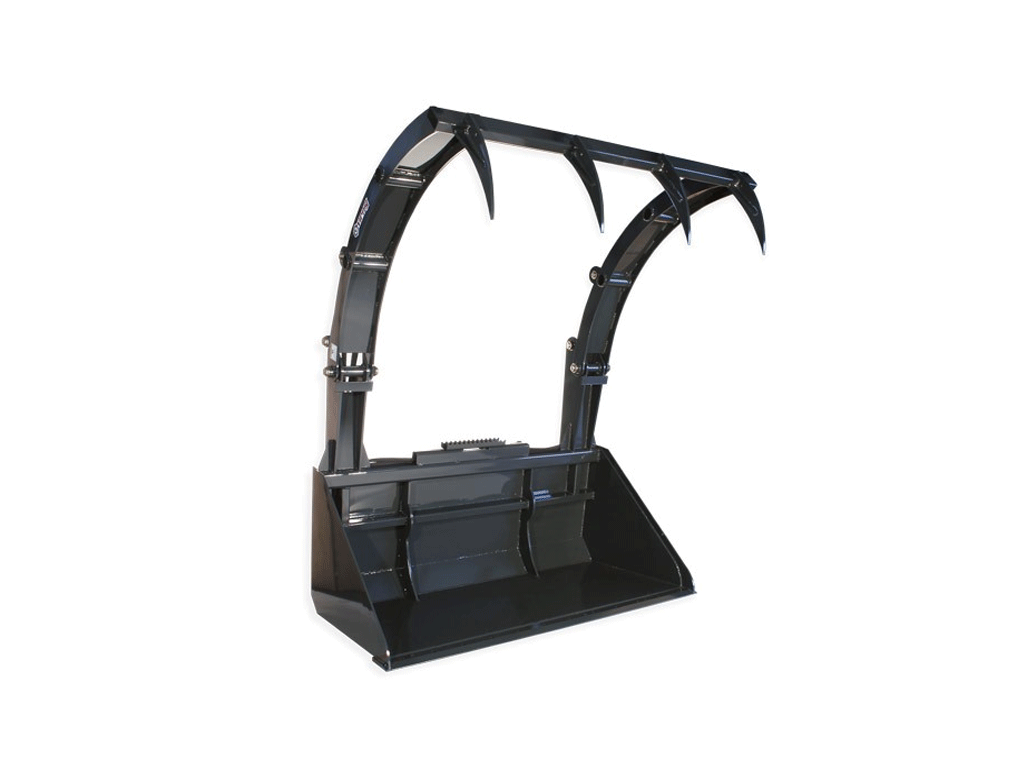

Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
- Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
- 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” diameter cylinder pins.
- Teflon® coated bushings provide lubrication at all pivot locations.
- 3/4” x 6” weld-on cutting edge with holes to accept optional edges.
- Machine specific hydraulic package available.
- Big Bale Grapple with an open bottom also available.
OPTIONS
- Bolt on Cutting Edge (BOCE) installed
- Serrated Edge (SE) installed
SPECIFICATIONS
- Grapple Jaw Opening (in): 74.3"
- Grapple Tine Thickness (in): 0.5"
- Tine Material is Grade 80 Plate
- Recommended loader capacity - Greater than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563
| Model | 72" | 84" |
| Overall Bucket Width (in) | 73.5 | 85.5 |
| Bucket Depth (in) | 40.0 | 40.0 |
| Bucket Height (in) | 31.4 | 31.4 |
| Number Bucket Tines | 4 | 4 |
| Space Between Tines | 19.3 | 19.3 |
| Number Grapple Teeth | 4 | 4 |
| Space Between Grapple Teeth | 19.3 | 19.3 |
| Bucket Struck Capacity (Ft3 | 27.7 | 32.2 |
| Bucket Heaped Capacity | 33.2 | 38.8 |
| Structural Wear Bars under Bucket (1/2" x 4") | 5 | 5 |
| Weight (lbs) | 1350 | 1450 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
