Description
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

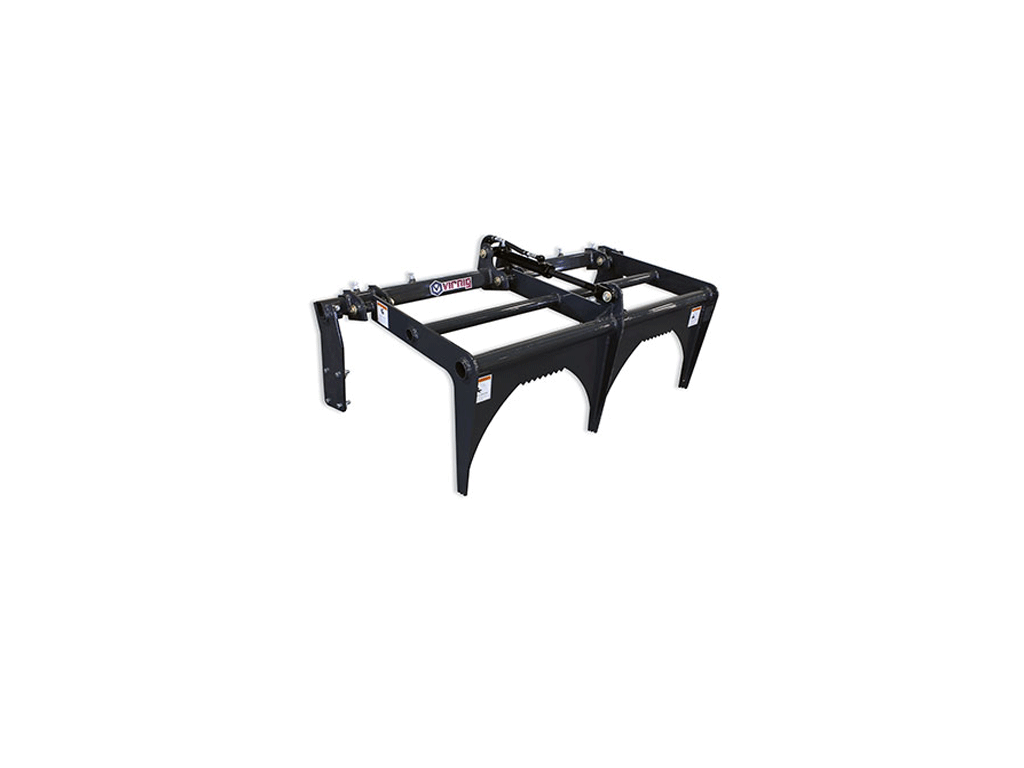

The Virnig Bolt on Grapple makes turning a bucket into a grapple simple. No welding or cutting required.
- Telescoping mount system fits various width and style buckets.
- Corrosion, dent and flake resistant NitroSteel® cylinder rod made in the USA.
- One-cylinder design with machine specific hydraulic package.
- Designed for use on Virnig buckets that are 60”-84” wide. See list in Specifications tab. It is not guaranteed to work on other brands. A fitment guide can be provided upon request.
- Easy to install and can be detached, unlike fixed jaw grapples. Because of the versatility, the Bolt-On Grapple is also a cost effective alternative to buying a purpose specific fixed jaw skid steer grapple.
SPECIFICATIONS
Model | BOGV6084 |
Number of Cylinders | 1 |
Minimum Bucket Width (Inches) | 60* |
Maximum Bucket Width (Inches) | 84* |
Approximate Jaw Opening (Inches) | 7.5** |
Approximate Weight (Pounds) | 275 |
Recommended Loader Capacity | Less than 1800 pounds |
*Mount Tubes Telescope to Fit Various Width Buckets
**Jaw Opening Varies with Type of Bucket and Installation
The Bolt-On Grapple is compatible with:
- V40 Low Profile Dirt Buckets (additional drilling or welding will be required to secure the Bolt-on Grapple to the V40 Low Profile Dirt Bucket)
- V50 Low Profile Dirt Buckets
- V60 Heavy-Duty Low Profile Dirt Buckets
- V50 Utility Buckets
- V60 Utility Buckets
- V40 Skeleton Rock Buckets
- V50 Skeleton Rock Buckets
- V60 Skeleton Rock Buckets
- V40 Utility Forks
*While the Bolt-on Grapple will mount on all the above buckets, the Loader Capacity still needs to be under 1800 lbs.
The Bolt-On Grapple is NOT compatible with:
- All Snow/Light Material Buckets
- V60 High Capacity Dirt Bucket
- Manure Slurry Buckets
- V30 Compact Tractor Utility Forks
- V30 Compact Tractor Rock Buckets
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
