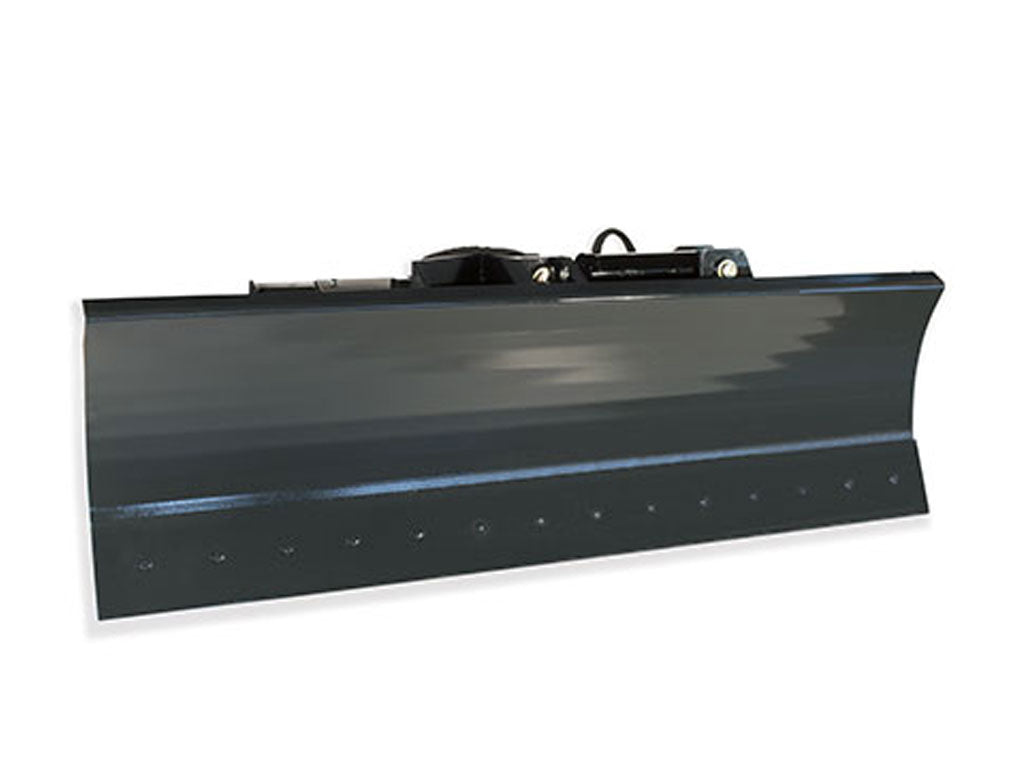

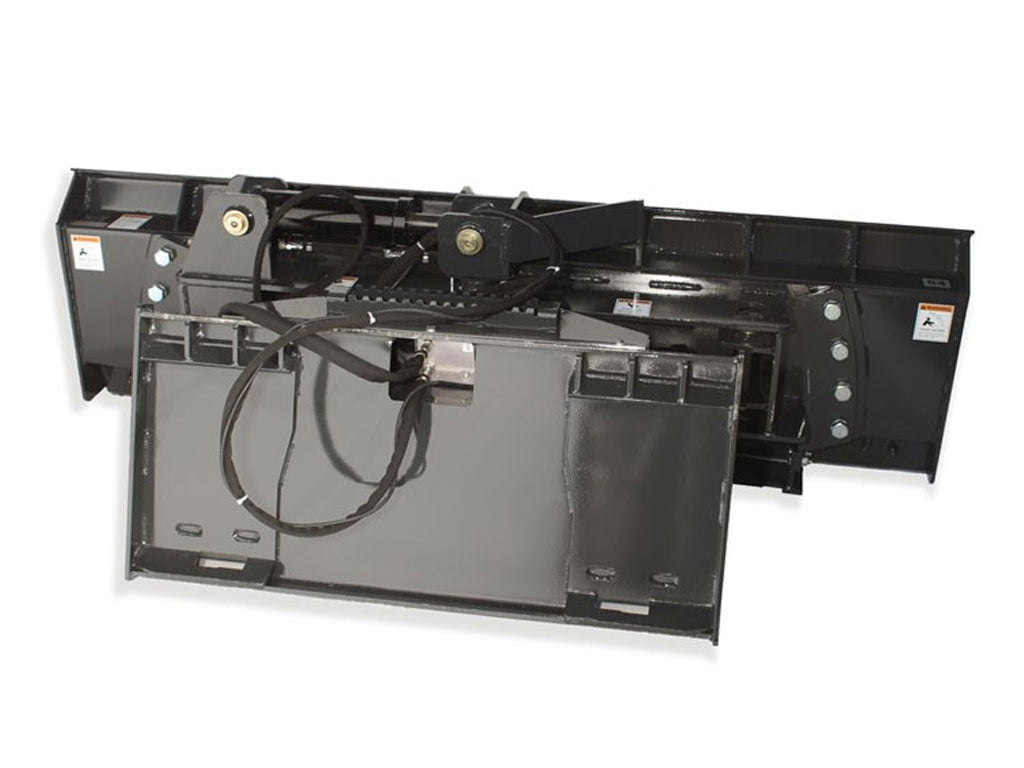

Virnig 6-way Dozer Blade for Skid Steer

 THIS ATTACHMENT INCLUDES

• UNIVERSAL SKID STEER MOUNTING
• HOSES, COUPLERS & FITTINGS

Enhance your skid steer loader's versatility with the Virnig 6-Way Dozer Blade, a robust attachment engineered for precision grading, leveling, and earthmoving tasks. Designed to withstand rigorous conditions, this dozer blade features a heavy-duty frame and a 3/8-inch thick moldboard, ensuring durability and longevity.

Key Features:

• Versatile Blade Positioning: Easily adjust the blade 30 degrees left or right and tilt it 10 degrees from within the cab, allowing for precise control over grading and leveling operations.

• Durable Construction: Equipped with NitroSteel® cylinder rods and Teflon® coated bushings on all pivots, this attachment offers enhanced resistance to wear and corrosion, ensuring smooth operation over time.

• Reversible Cutting Edge: The 5/8-inch by 8-inch reversible steel bolt-on edge extends the blade's lifespan and maintains optimal cutting performance.

• Adjustable Skid Shoes: Customize the blade's ground contact to suit various terrains, providing consistent results across different job sites.

Important Considerations:

Please note that the Virnig 6-Way Dozer Blade is not designed for snow plowing. It lacks a trip edge system and a floating frame link with oscillation, which are essential for effective snow removal. Using this blade for snow plowing could lead to equipment damage or operator injury.

Compatibility:

While compatible with wheeled skid steer loaders, optimal performance is achieved when paired with tracked skid steers. Tracks provide better flotation and stability, especially on soft or uneven surfaces, ensuring a more level work area.

Upgrade your skid steer's capabilities with the Virnig 6-Way Dozer Blade, and experience enhanced efficiency and precision in your earthmoving projects.

Six-way dozer blade with heavy-duty frame, 3/8″ thick moldboard and adjustable skid shoes.

• Two-cylinder hydraulic angle and one-cylinder hydraulic tilt utilizing one electric valve and one loader valve.
• Corrosion, dent and flake resistant NitroSteel® cylinder rods made in the USA.
• 2 1/8” hinge and oscillation pins, replaceable Teflon® coated bushings provide lubrication at all pivot locations.
• 5/8” x 8” reversible, replaceable bolt-on wear edge.
• Tall sides provide capacity, while compact depth provides leverage to pry under stumps and rocks.
• Three flush mount shanks, with replaceable Series 23 cast teeth, welded to a 3/4” x 6” weld-on wear edge.
• Bucket is reinforced on each side with three large gusset plates.
• NOTE: Does not have a trip edge for snow plowing or trip moldboard.

AVAILABLE OPTIONS

• 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
• Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control

SPECS

• Blade Angle (Degrees):  +/- 30
• Blade Oscillation (Degrees):  +/- 10
• Center Edge:  5/8" x 8" Bolt-on
• Cylinder Bore / Stroke:  3.5" / 8.0"
• Pins: Cylinder/ Hinge /Oscillation:  1.563" / 2.125" / 2.125"
• Recommended Loader Capacity: Greater than 1800 lbs ROC
