Description

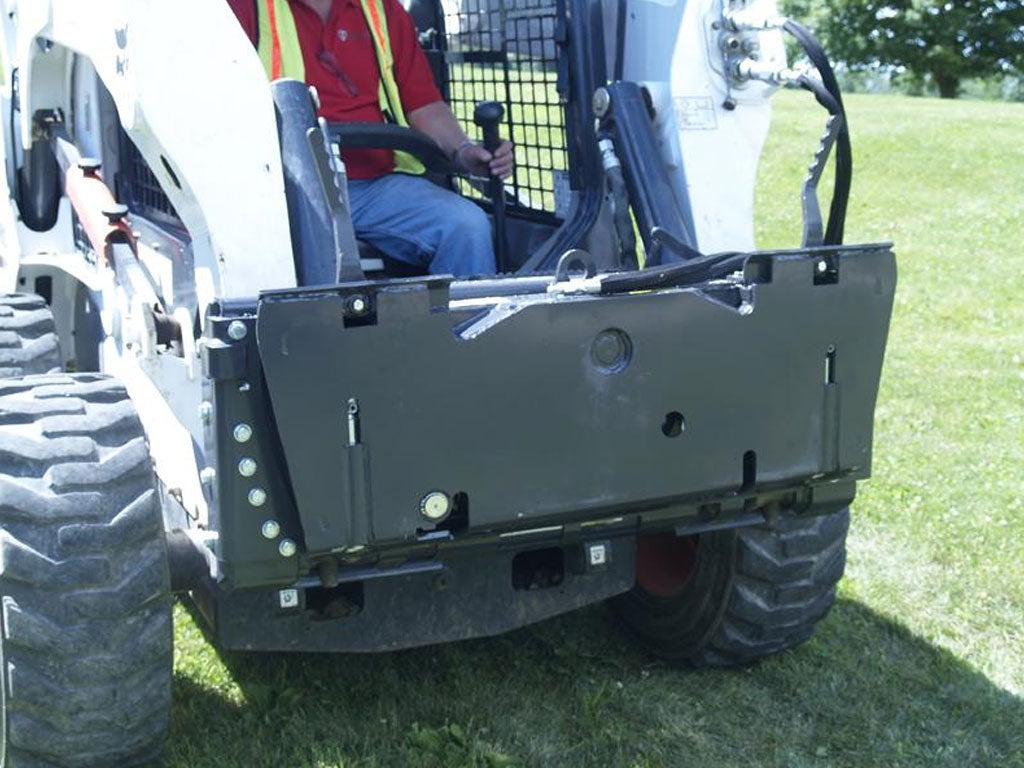

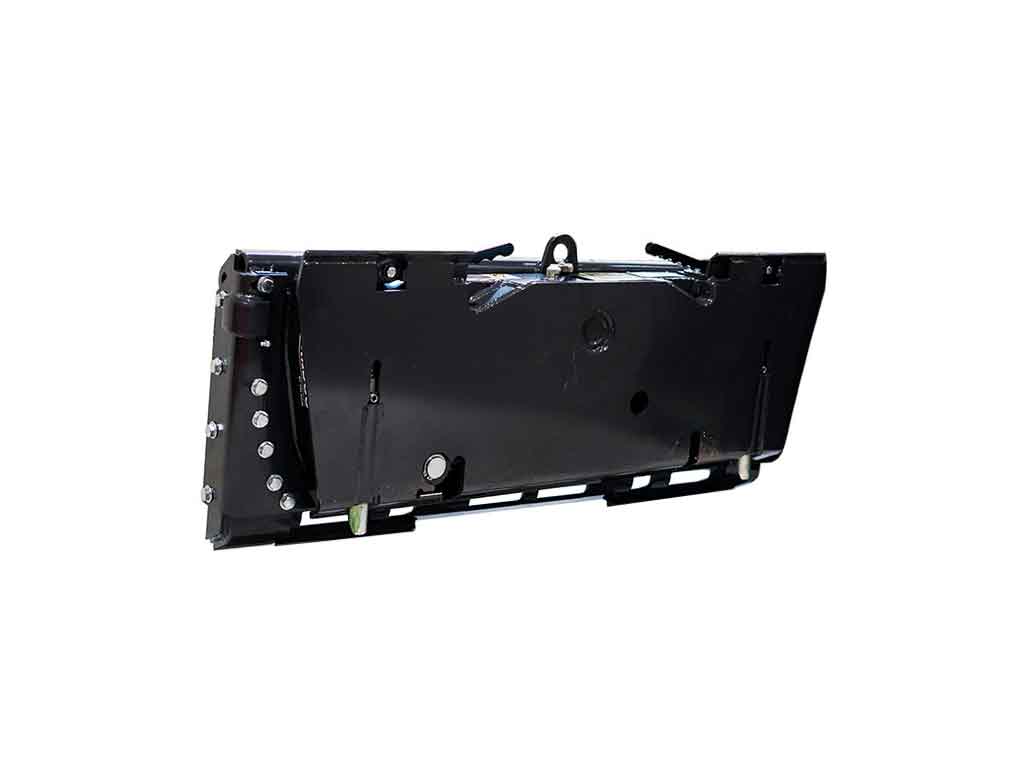

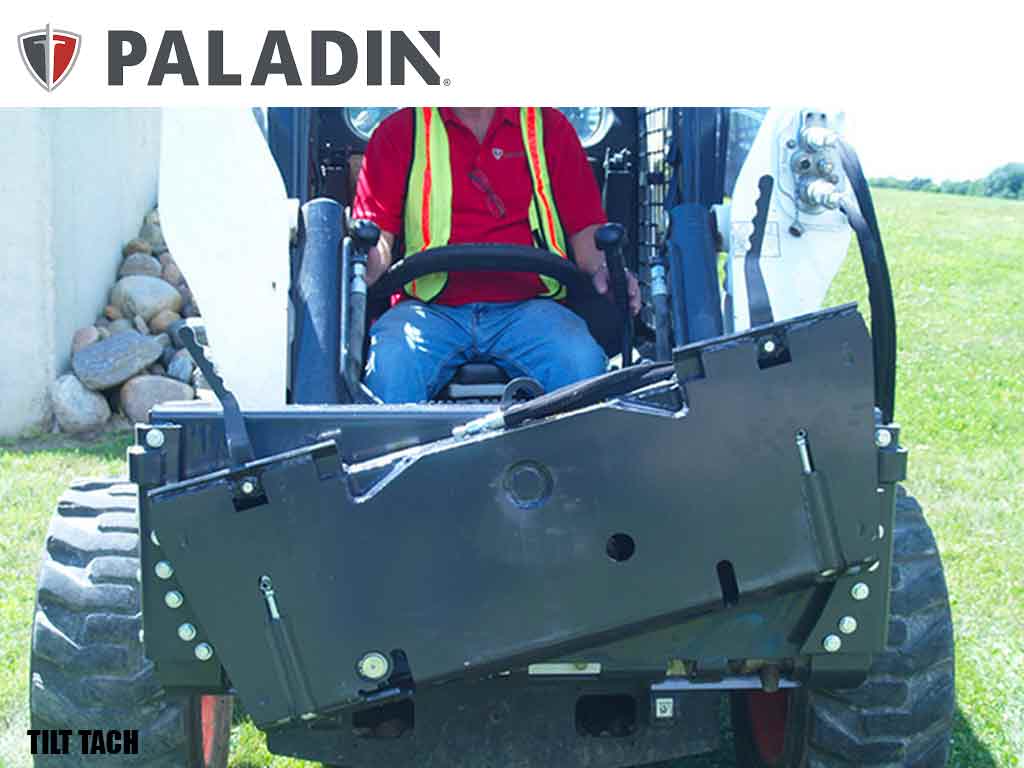

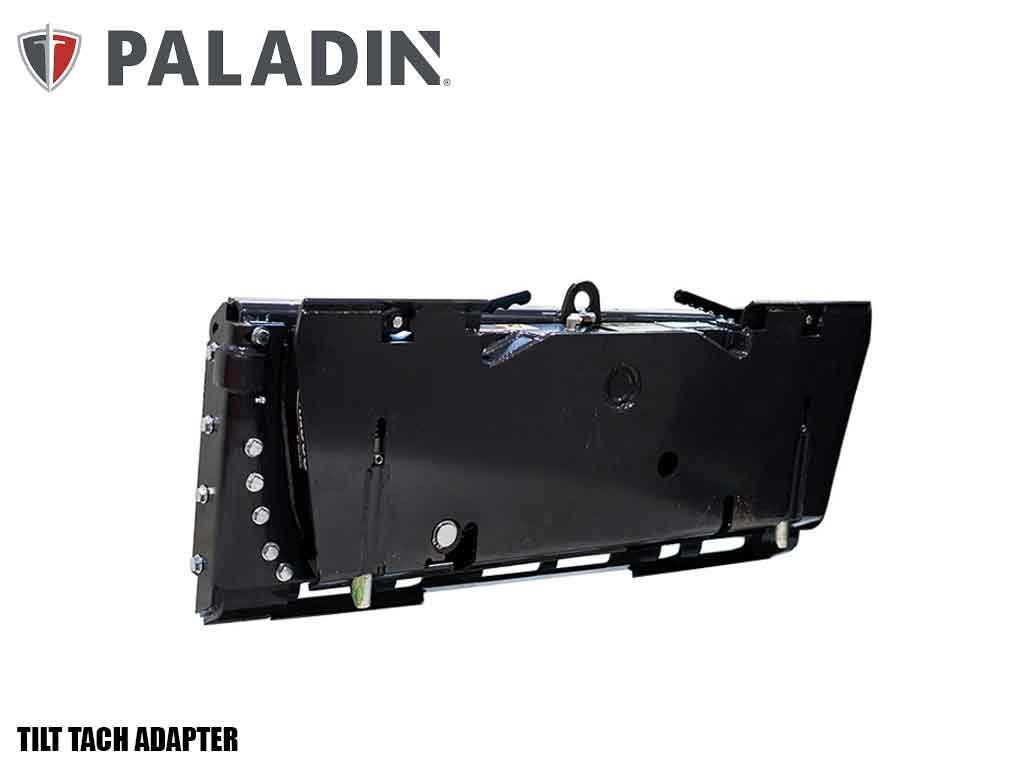

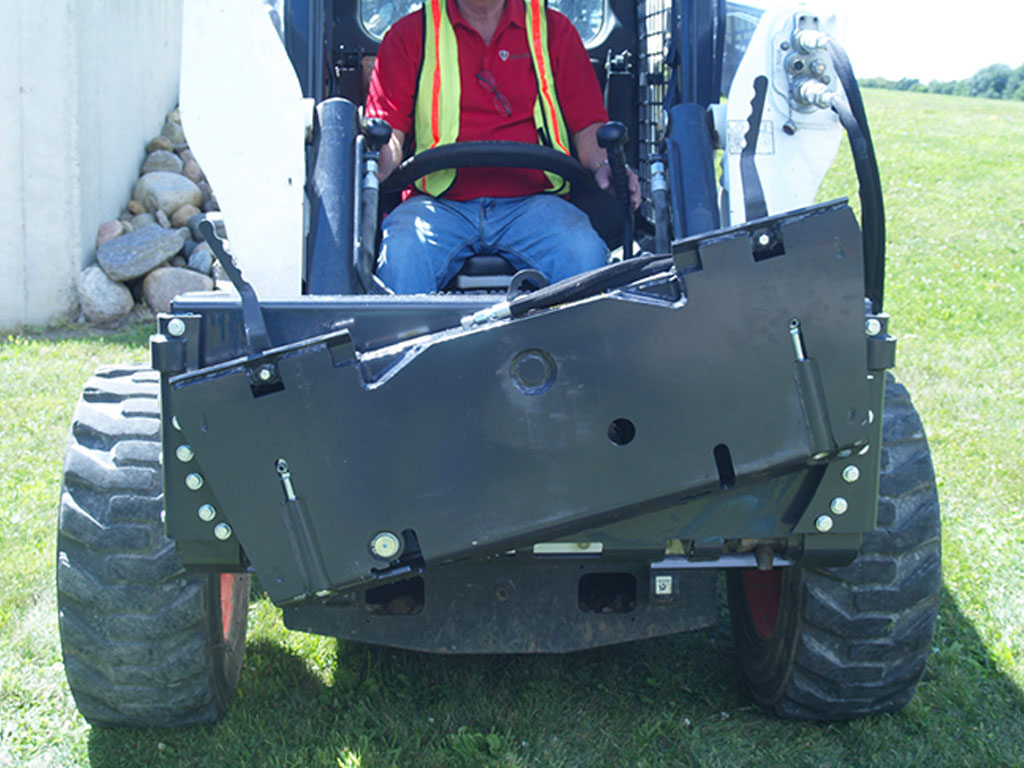

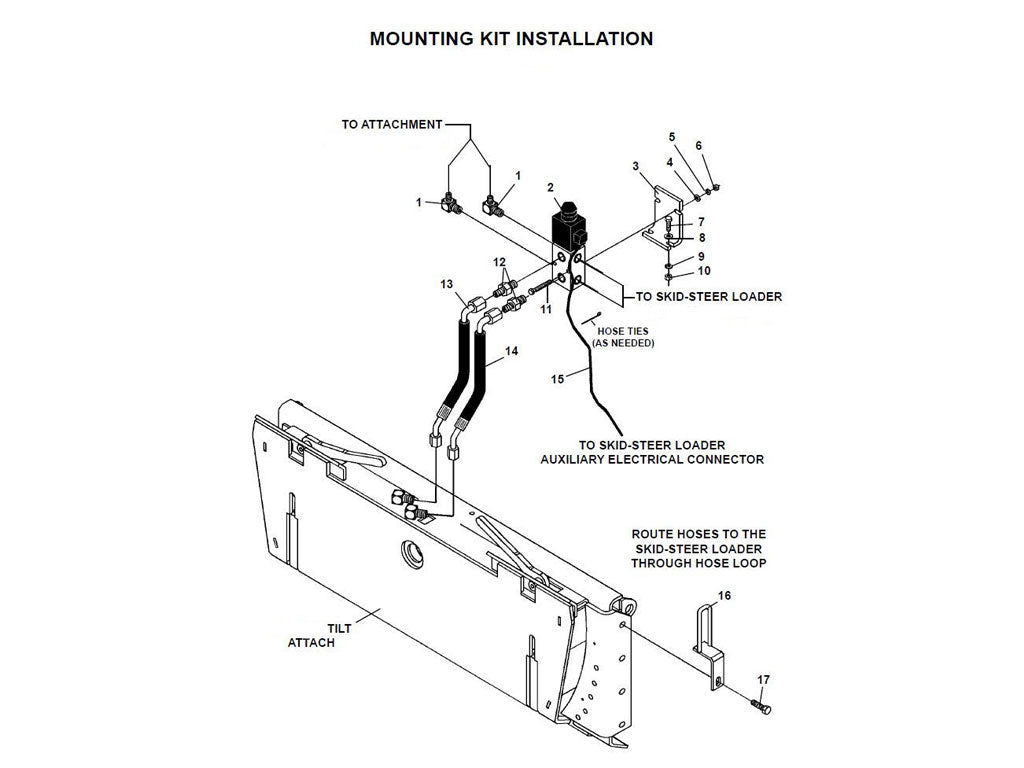

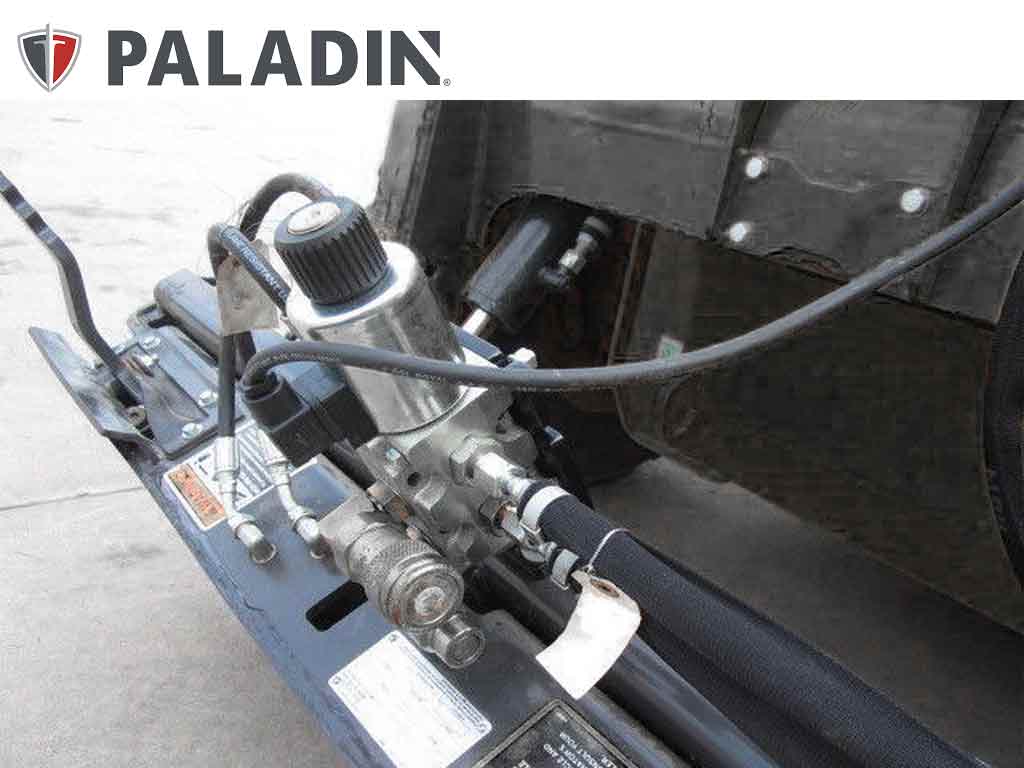

The Bradco Tilt Attach allows full utilization of your skid steer on hilly terrain. It attaches to a skid steer universal hitch to allow 18° left of right of tilt off center line. The Tilt Attach tilts buckets and landscaping implements for more precise grading and leveling. The Valve Package is mounted on Tilt Attach for use with hydraulically powered attachments. Simple connection by electric wiring keeps valves and hoses out of operator's cabin. A large spherical ball bushing in the center pivot allows for extra strength and durability. This product is also available CE certified.
- Attaches to skid steer universal hitch to tilt 18 degrees left and right
- Tilts buckets and landscaping implements for precise grading and leveling
- Trenchers can be tilted to cut a vertical trench
**** 96" HOSE KIT INCLUDED****
SPECIFICATIONS
| WIDTH | 46.8" |
| HEIGHT | 18.5" |
| DEPTH | 4.2" |
| CYLINDER BORE | 2.5" |
| ROD DIAMETER | 1.3" |
| TILT DEGREE | 18 |
| LIFT CAPACITY | 4200 LB |
| WEIGHT | 422 LB |
