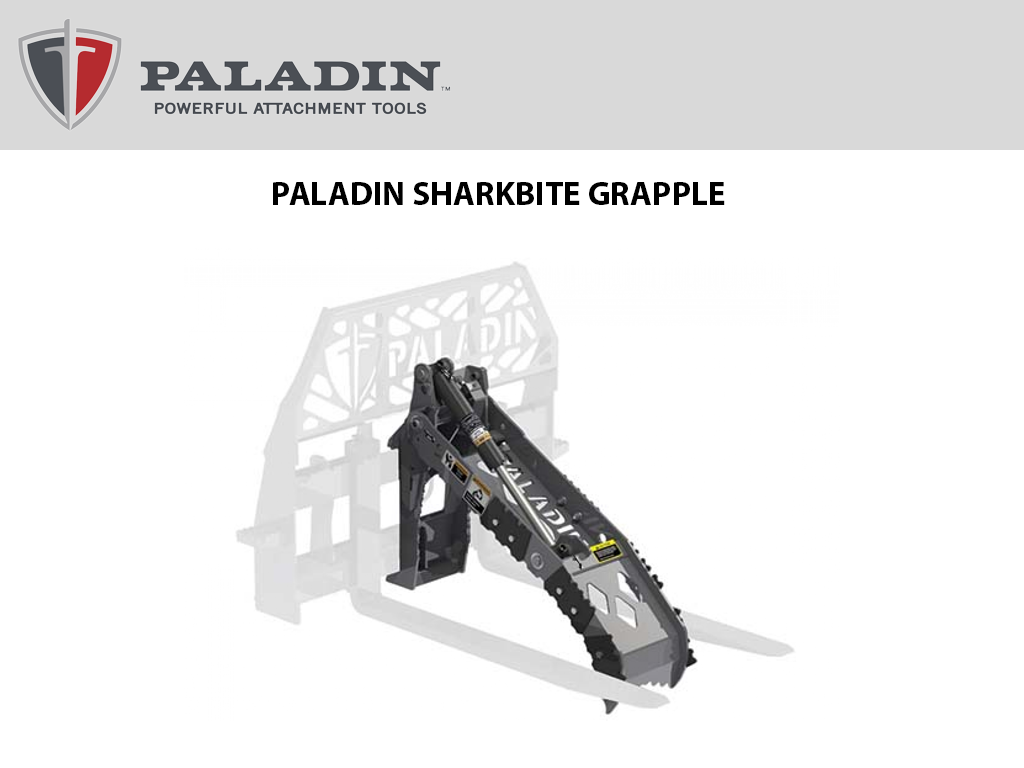

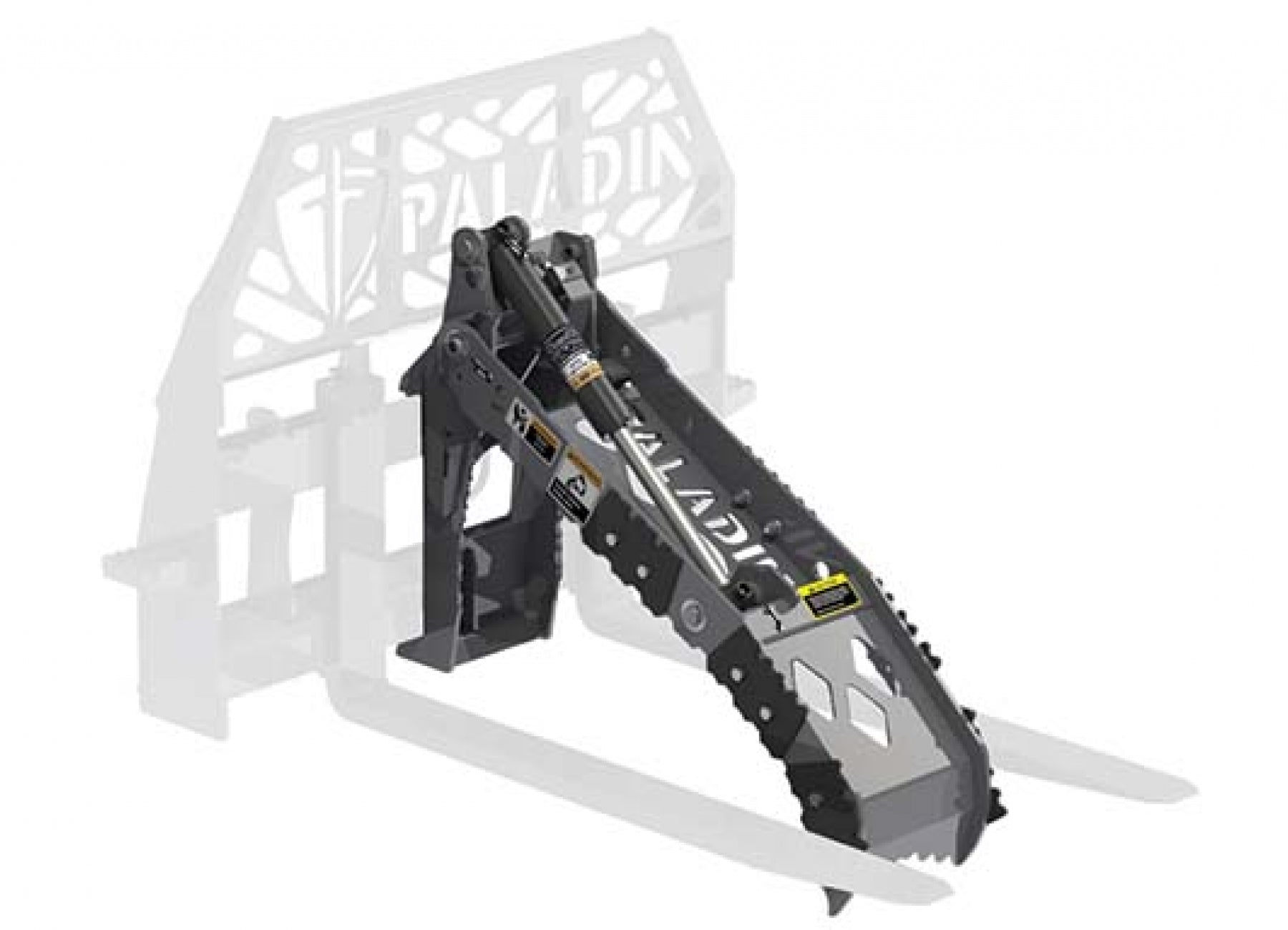

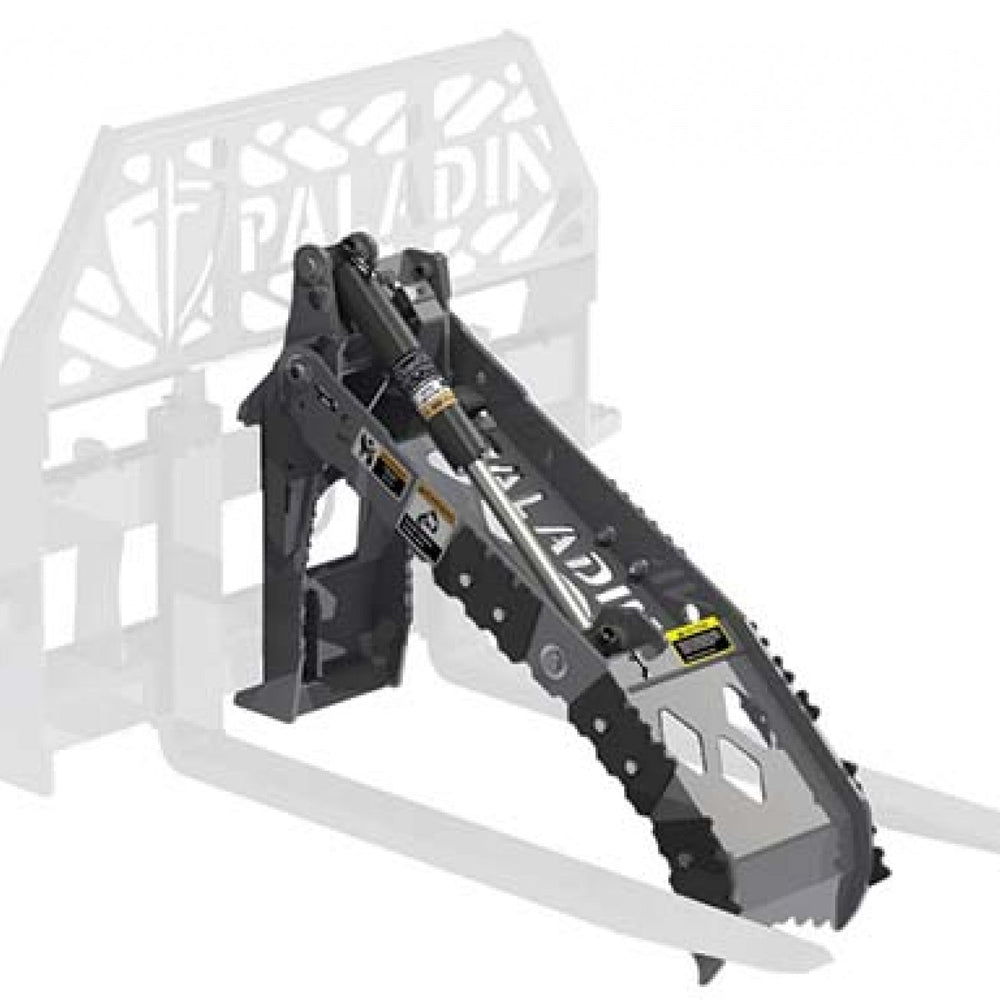

SHARKBITE GRAPPLE
SharkBite™ installs onto any ISO-standard class II ITA fork rail, transforming a regular set of pallet forks into an ultra-versatile grapple. Optional bolt-on Shark Teeth extend the durability and gripping performance of SharkBite, and the high-strength steel construction and powder-coat finish means SharkBite is built to last.
FEATURES
- Fits all standard Class II ITA fork rails
- Field install is under 5 minutes with no tools
- High strength steel construction
- Powder coat finish
SPECIFICATIONS
| Specifications | Standard Measurements (in) | Standard Measurements (m) |
|---|---|---|
| Weight | 175 lbs | 79.3 kg |
| Minimum Load Diameter | 14 | 0.36 |
| Overall Height | 63.5 | 1.61 |
| Depth | 46.3 | 1.18 |
| Min. Envelope | 7.3 | 0.19 |
| Pass-Thru | 7.3 | 0.19 |
| Range of Motion | 117° | 117° |
| Width | 13 | 0.33 |
