Description

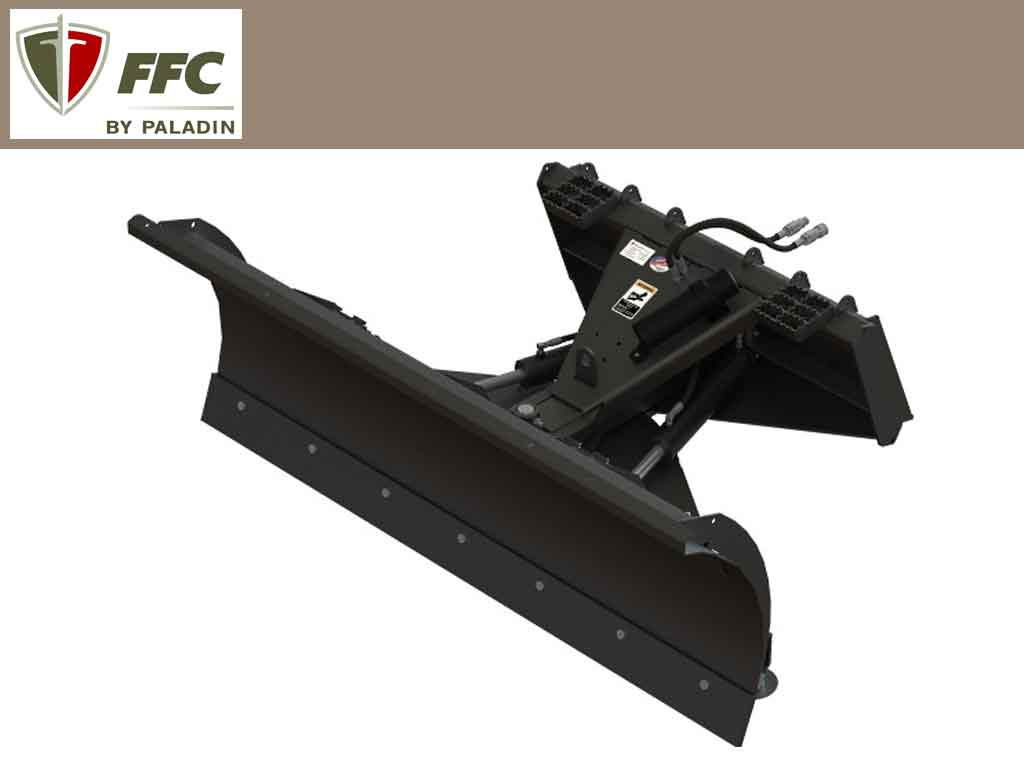

FFC 115 SERIES SNOW BLADE
COMES WITH:
- STEEL SNOW BLADE
- UNIVERSAL SSL MOUNTING
- HOSES AND COUPLERS
Ideal for large skid steers, compact utility loaders and small wheel loaders with universal skid steer mount only. This versatile snow blade comes with a mold board trip mechanism, 30-degree angle left/right in manual or hydraulic angle. The snow blade also comes standard with (2) I-bolts, which can be swapped out with the trip springs for a light dozing application. This product is also available CE certified.
- Hydraulically or manually angles 30 degrees in either direction
- Reversible, replaceable wear edge; optional rubber edge
- Adjustable skid shoes
- Spring-loaded trip mechanism
- Seven-gauge steel blade
SPECIFICATIONS
| MODEL | 11596-0022 | 11508-0022 | 11520-0022 |
| WIDTH | 96" | 108" | 120" |
| WEIGHT | 1180 LBS | 1235 LBS | 1315 LBS |
| OD HEIGHT | 32" | 32" | 32" |
| CARRIER LBS | <20000 | <20000 | <20000 |
| CARRIER LIFT CAP LBS | <11000 | <11000 | <11000 |
| OAL @ 30 DEGREE | 79.5" | 82.5" | 85.5" |
| OAW @ 30 DEGREE | 89" | 100" | 110" |
| ANGLED WIDTH @ 30 DEGREE | 83" | 93.5" | 104" |
|
CENTER OF GAVITY HORIZONTAL |
12" | 12" | 12" |
|
CENTER OF GRAVITY VERTICLE |
25" | 25.5" | 26" |
BIG DAVE
This blade has been around since the 1990's tried and true it works just fine.
