Description

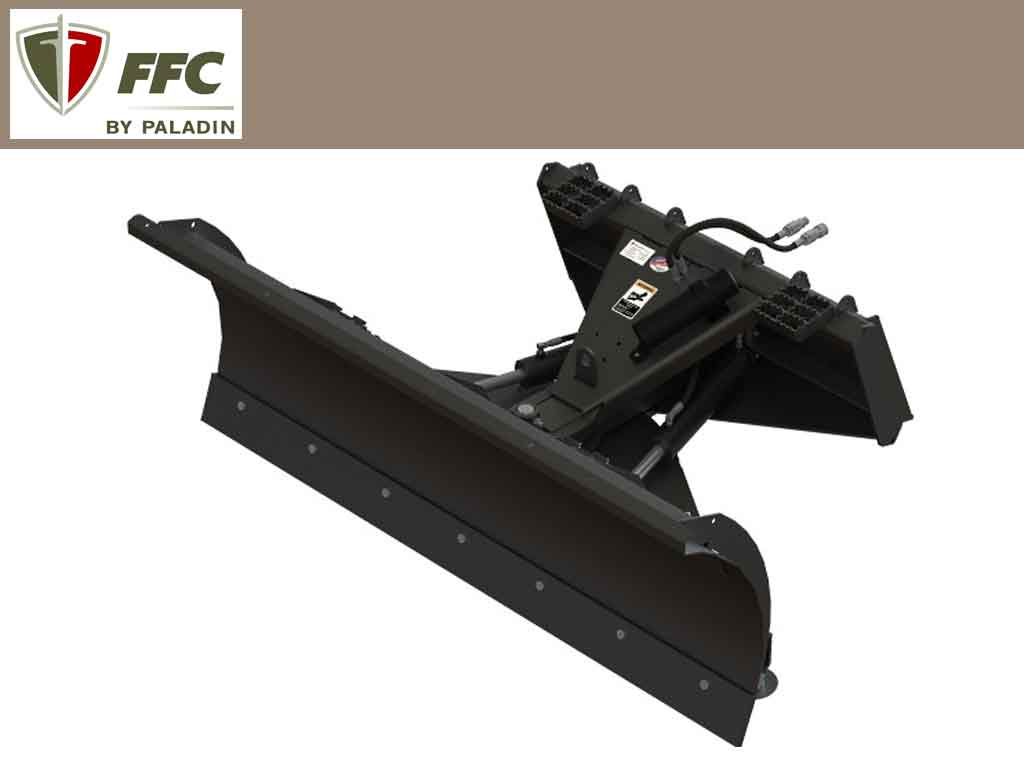

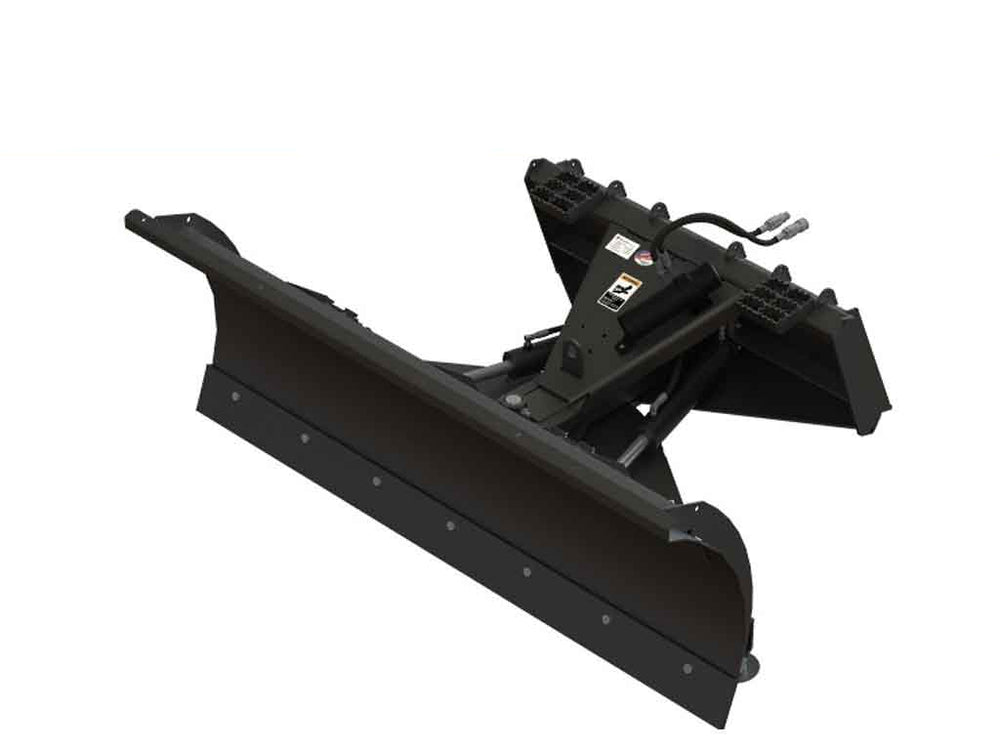

FFC 114 SERIES SNOW BLADE
COMES WITH:
- STEEL SNOW BLADE
- UNIVERSAL SSL MOUNTING
- HOSES AND COUPLERS

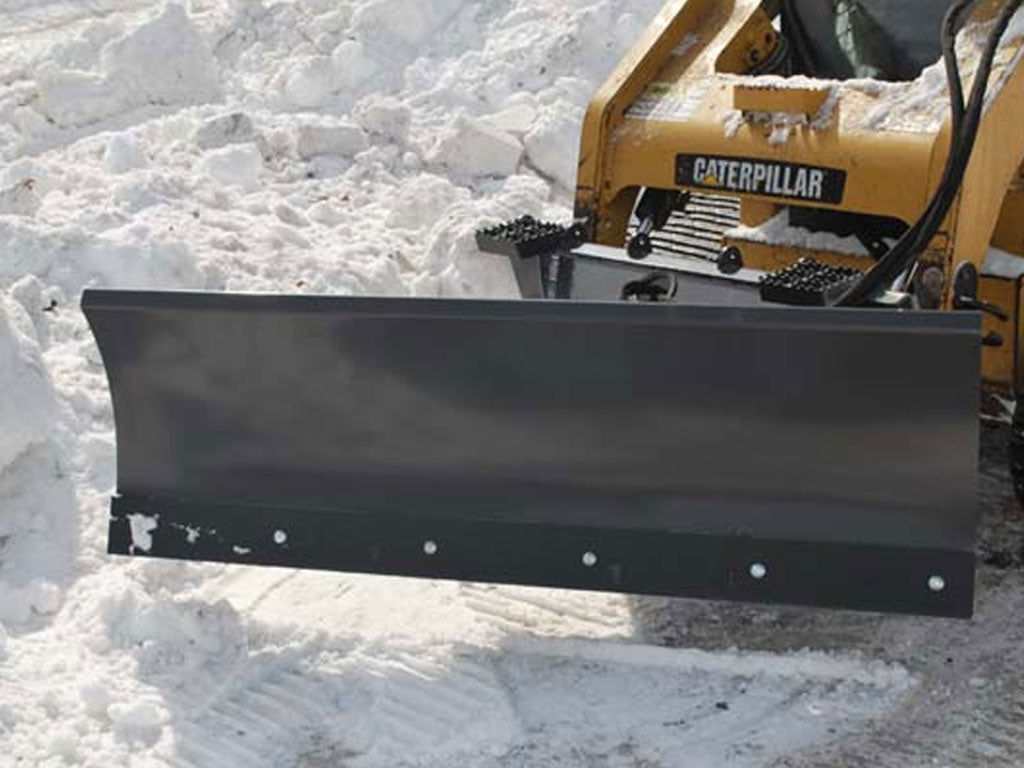

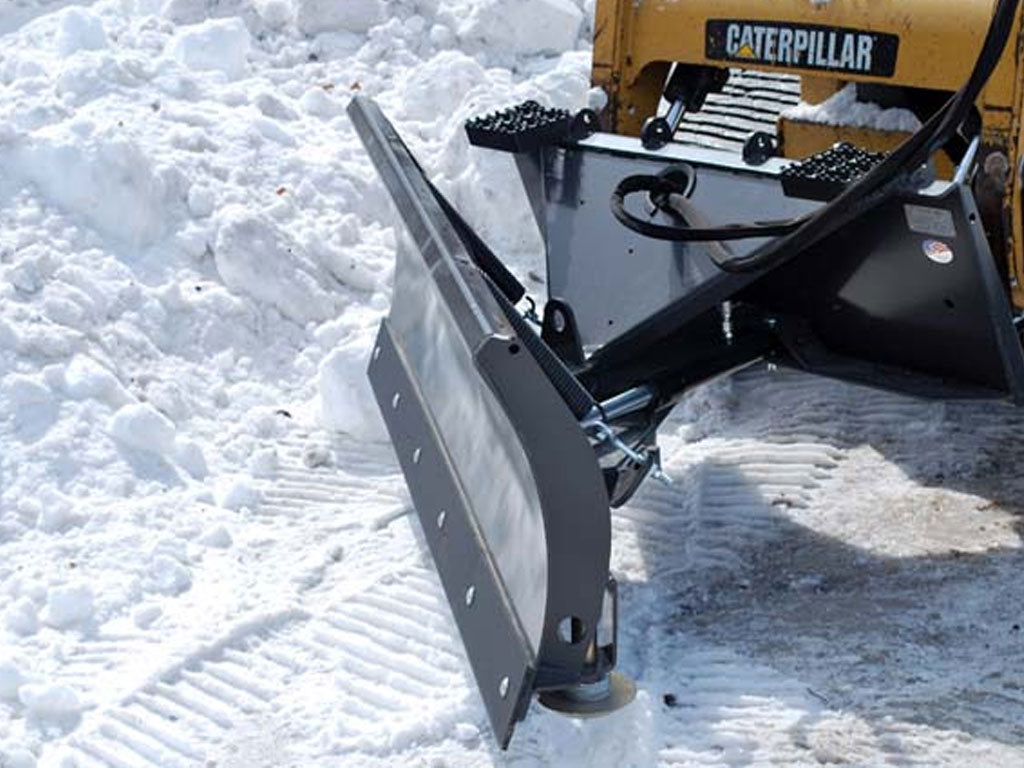

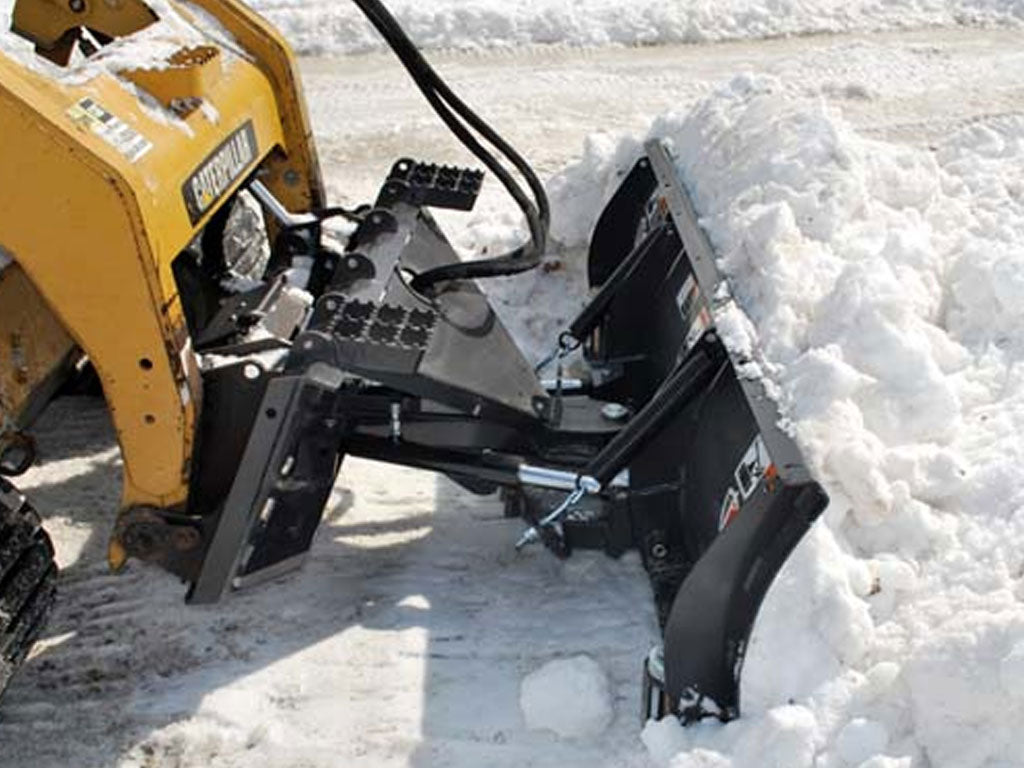

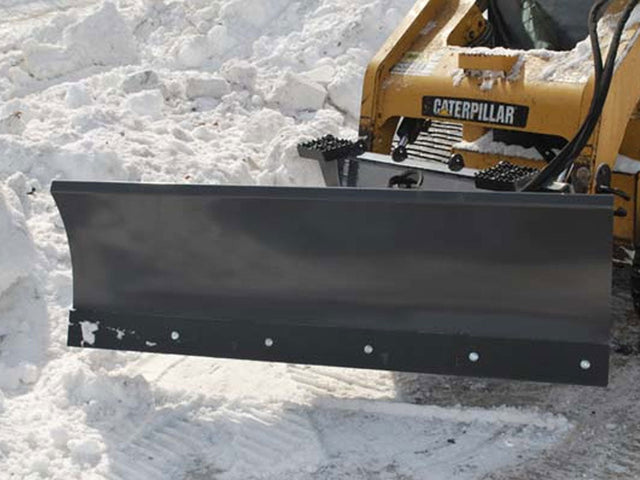

Ideal for the small to mid-range skid steers with universal skid steer mount only. This versatile snow blade comes with a mold board trip mechanism, 30-degree angle left/right in manual or hydraulic angle. The snow blade also comes standard with (2) I-bolts, which can be swapped out with the trip springs for a light dozing application. This product is also available CE certified.
- Hydraulically or manually angles 30 degrees in either direction
- Reversible, replaceable wear edge; optional rubber edge
- Adjustable skid shoes
- Optional spring-loaded trip mechanism
- Seven-gauge steel blade
SPECIFICATIONS
| MODEL | 11460-0022 | 11472-0022 | 11484-0022 | 11496-0022 |
| WIDTH | 60" | 72" | 84" | 96" |
| WEIGHT | 510LB | 595 LB | 635 LB | 650 LB |
| OD HEIGHT | 23" | 23" | 23" | 23" |
| WIDTH ANGLED | 52" | 62" | 73" | 83" |
| CARRIER LB | <8000 | <8000 | <8000 | <8000 |
| CARRIER LIFT CAP | <5000 | <5000 | <5000 | <5000 |
| OAL @ 30 DEGREE | 49.5" | 52.5" | 55.5" | 58.5" |
| OAW @ 30 DEGREE | 59" | 69" | 79.5" | 90" |
| ANGLED WIDTH @ 30 DEGREE | 51.75" | 62" | 72.5" | 83" |
|
CENTER OF GAVITY HORIZONTAL |
13" | 14" | 14" | 15" |
|
CENTER OF GRAVITY VERTICLE |
12" | 12" | 12" | 12" |
