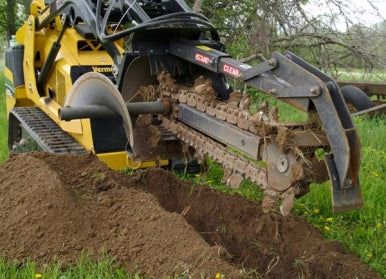

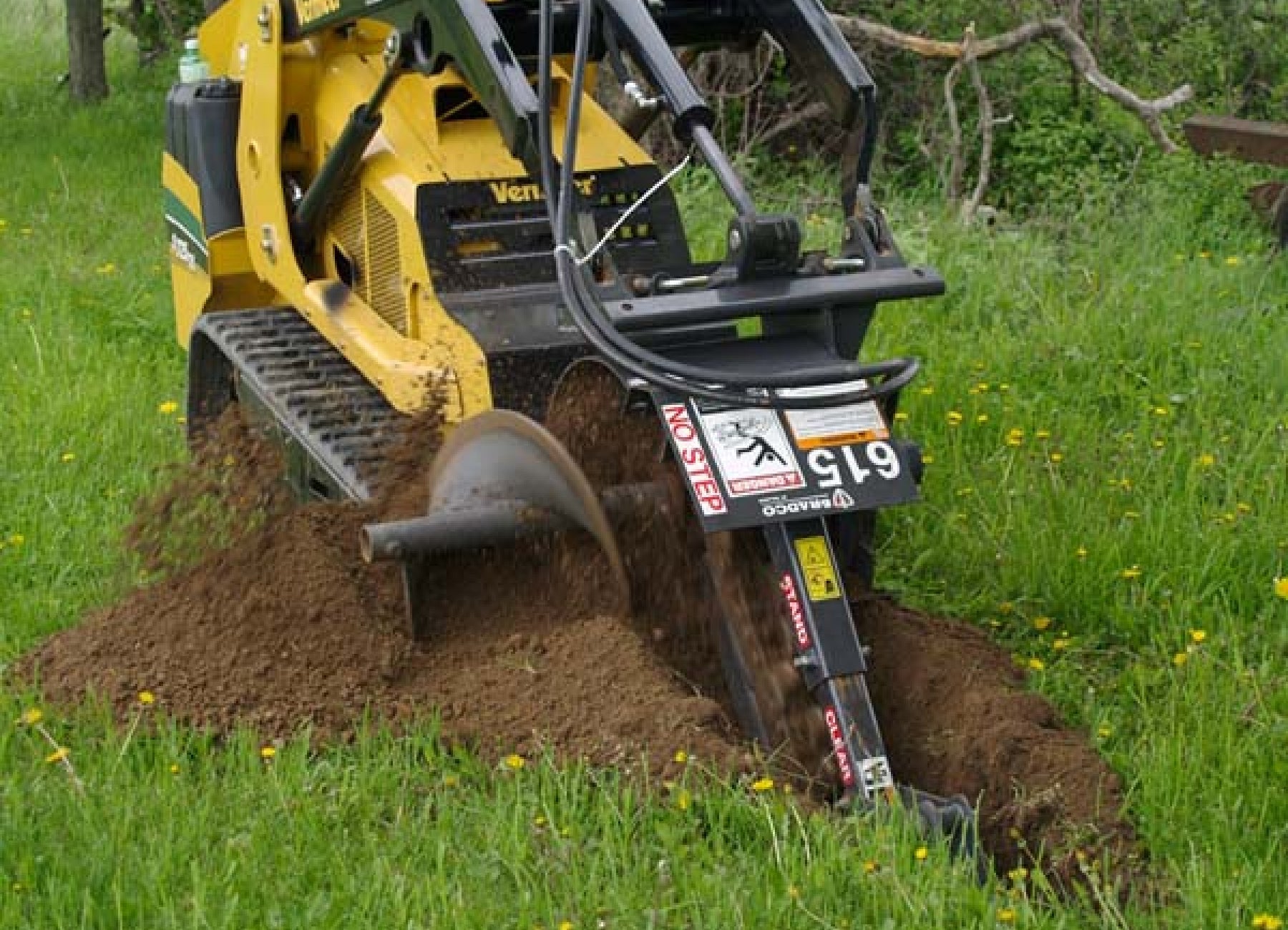

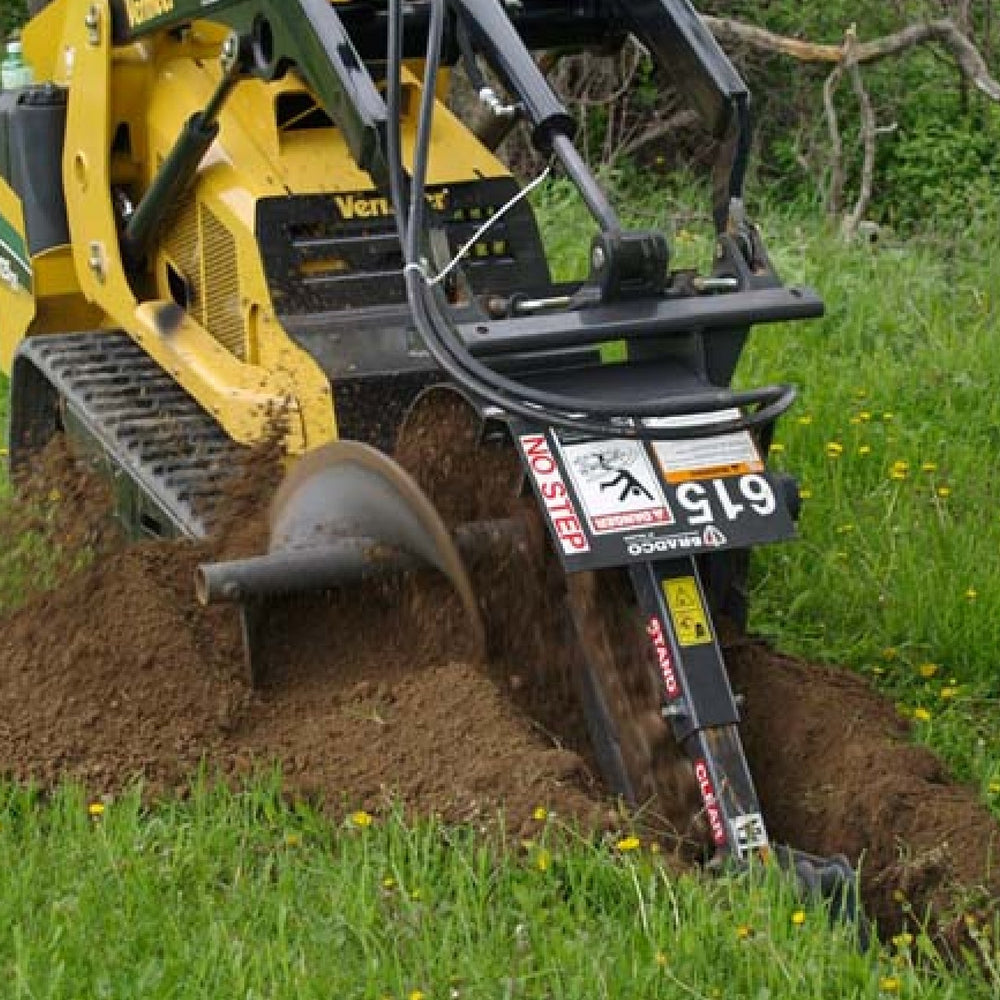

Trenchers, Model 615

Bradco 615 and 36" digging depths to fit most applications and include a heavy-duty boom and crumber.

FEATURES

• Fixed length booms available featuring spring-loaded, self adjusting idler with full rock guards
• Allows tight fit with single-side spoil augering
• Replaces dedicated machines at a fraction of the cost

Soil Type 1: General Purpose // Tooth Configuration: "TES" - Cup-Style Tooth at Every Station

A tooth configuration that is for generally good, normal digging conditions. Light to moderately compacted soils with generally balanced sand and loam content. Also works well in soils with some loose gravel. *In soils with higher clay content, recommend to remove up to 50% of teeth to reduce sticking and gumming

Soil Type 2: Compacted Soils // Tooth Configuration: "70/30" - Combination 70% Shark Teeth, 30% Cup-Style Teeth

Configured for compacted soils, lightly frozen ground, baked hard clay, shale, and rocky soils. Shark teeth provide a cutting action while cup teeth remove debris from the trench.

SPECIFICATIONS

615 SERIES TRENCHER
