Description

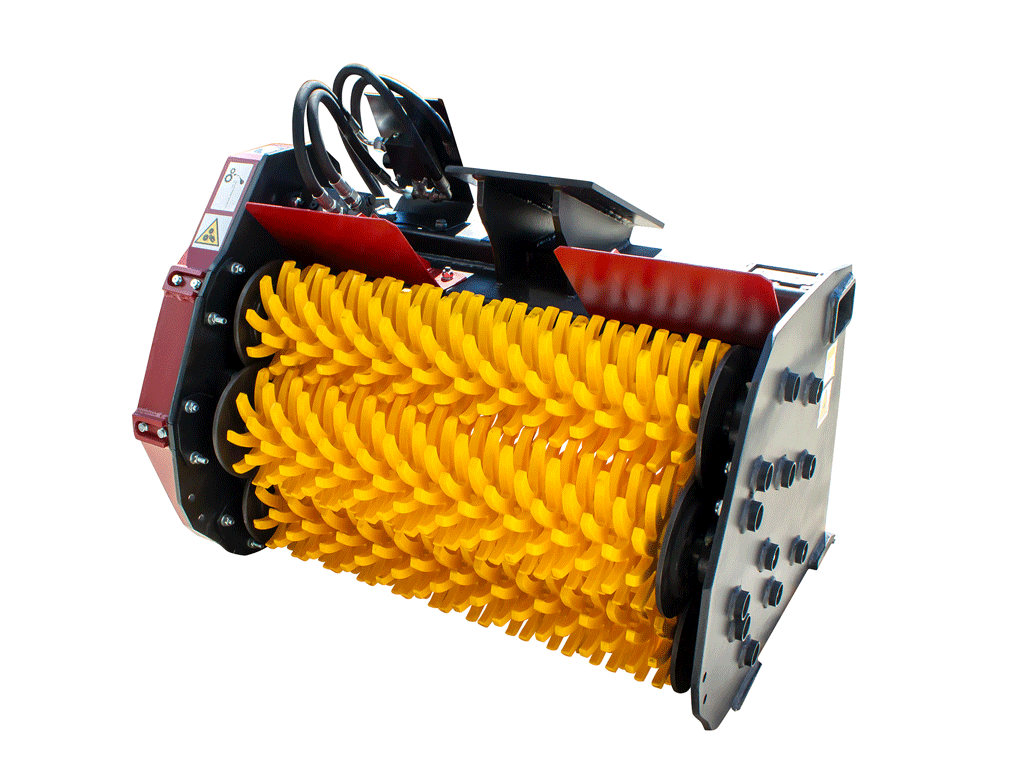

Mongo Excavator Screening Bucket
WHY USE A SCREENING BUCKET?
The Mongo Attachments Screening Bucket allows operators to precisely
screen and separate natural materials on-site. This attachment is
applicable across multiple industries such as construction, road work,
soil and aggregate segregation, recycling, agriculture, and more.
Where there is a need to separate material fractions or fragment and
mix several materials, our screening bucket is here for you!
Achieve precise screening capabilities thanks to the use of
spacer rings. Quickly modify your bucket without
disassembling the shafts.
Spacer rings are available in 3 sizes:
White - 30mm / 1.18”
Black - 20mm / 0.79”
Red - 10mm / 0.39”
** STANDARD SET UP IS 3/4" MATERIAL
Features
- Reinforced design doesn’t lose it’s
geometry even while operating
under heavy loads - Inner covers made of abrasion resistant
steel protect the drive system and
prevent damage for long life - Quick-exchange system allows for
gears and shafts to be easily
serviced or replaced - Customer can specify top mount
to fit their machine - 31”, 35”, and 43” sizes available
- For 1 - 9 T machines
** SEE "FITS" GUIDE FOR MACHINE AND COUPLER HELP
** WE WILL CONTACT YOU IF WE NEED TO CONFIRM MACHINE INFORMATION
** IF YOU HAVE A SPECIAL COUPLER CALL FOR PRICE. EXAMPLE: KLAC, WAIN ROY XLS, OR STEEL WRIST
SPECS
| MODEL |
COMPATIBLE MACHINE SIZE |
SIZE | WEIGHT |
HYDRAULIC REQUIREMENT |
STRUCK CAPACITY |
# OF SHAFTS |
| MSB1 | 1-2 TON | 31" | 573 lbs. | 7.9-10.9 GPM | 4.6 CF | 2 |
| MSB3 | 3-5 TON | 35" | 683.5 lbs. | 10.6-11.9 GPM | 7 CF | 3 |
| MSB6 | 6-9 TON | 43" | 1080.5 lbs. | 13.2-15.9 GPM | 13.4 CF | 4 |
FITS
| 2 MT CLASS | |
| MAKE | MODEL |
| BOBCAT | E20 |
| CASE | CX17B |
| CAT | 301.7C, 301.7D |
| GEHL | Z17 |
| HITACHI | ZX17U-5 |
| HYUNDAI | R17 |
| IHI | 15VX, 17VX,18J |
| JCB | 80187 |
| JOHN DEERE | 17ZTS, 17D, 17G |
| KOBELCO | SK17SR |
| KOMATSU | PC18MR-3 |
| KUBOTA | KX018-4, KX41-3V, U17 |
| MUSTANG | 170Z |
| NEW HOLLAND | E18B |
| SANY | SY16C |
| TAKEUCHI | TB016, TB216 |
| VOLVO | EC20D |
| WACKER NEUSON | EZ17, ET20, 1404 |
| YANMAR | ViO17 |
| 3 MT CLASS | |
| MAKE | MODELS |
| BOBCAT | E26, E32, E32i, E35, E35i |
| CASE | CX31B, CX36B |
| CAT | 302.4D, 302.7DCR, 303E 303.5CR |
| GEHL | Z25, Z35 |
| HITACHI | ZX26U-5, ZX35U-5 |
| HYUNDIA | R25, R35 |
| IHI | 20JX, 25J, 25VX, 28J 30JX, 30V, 35J, 35VX |
| KATO | HD30V4, HD35V4 |
| JCB | 8029, 8035, 8040 |
| JOHN DEERE | 26G,35G, 27ZTS, 27D, 35ZTS, 35D |
| KOBELCO | SK25SR, SK35SR |
| KOMATSU | PC27MR-3, PC35MR-3 |
| KUBOTA | U25S, KX71-3, K91-3S2, B21 B26, L39, L45 L47, L48 |
| LIUGONG | 904D |
| MUSTANG | 250Z, 350Z |
| NEW HOLLAND | E22.2, E27B, E27.2SR, 30B |
| SANY | SY35U |
| TAKEUCHI | TB228, TB230, TB235, TB138FR TB240 |
| TEREX | TC25, TC29 |
| VOLVO | ECR25D, EC35C, ECR38D, ECR40 |
| WACKER NEUSON | EZ28, EZ38, 3503 |
| YANMAR | ViO25, ViO35 |
| 5 MT CLASS | |
| MAKE | MODELS |
| BOBCAT | E42,E45,E50,E63 |
| CASE | CX55B,CX57C,CX60C |
| CAT | 304ECR,304.5ECR,305.5ECR |
| GEHL | Z45,Z55 |
| HITACHI | ZX50,ZX60 |
| HYUNDIA | R55,R55W,R60CR |
| IHI / KATO | 45V,55V,65V |
| JCB | 8045,8052,8060,45Z,48Z,55Z,57C,67C |
| JOHN DEERE | 50G,60G |
| KOBELCO | SK4SRX5,SK55SRX |
| KOMATSU | PC45,PC55 |
| KUBOTA | KX040,KX57,KX121,U45, U48,U55,R520S,R530,R630 |
| LIUGONG | 906D |
| MUSTANG | 450Z,550Z |
| NEW HOLLAND | E55BX,E57C,E60C |
| SANY | |
| TAKEUCHI | TB260 |
| TEREX | |
| VOLVO | ECR55,ECR58,EC60,EW60 |
| WACKER NEUSON | EZ53,6003,ET65 |
| YANMAR | VIO45,VIO55 |
| 8 MT CLASS | |
| MAKE | MODELS |
| BOBCAT | E85 |
| CASE | CX75CSR, CX80C |
| CAT | 307E, 308ECR,309CR,310 |
| DEVELON | DX85R-3 |
| DOOSAN | DX85R |
| GEHL | Z80 |
| HITACHI | ZX75US-5, ZX85USB-6 |
| HYUNDIA | R80CR-9A, R110-7 |
| IHI | 85V-4 |
| KATO | HD85V4 |
| JCB | JS70, 85Z-01, 86C-1, 90Z-1, 100C-1 |
| JOHN DEERE | 75D, 85D, 75G, 85G |
| KOBELCO | SK75SR-3E, SK85CS-3E |
| KOMATSU | PC78US-10, PC88MR-10 |
| KUBOTA | KX080-4, KX080-4S |
| LINK BELT | 75 X3SA, 75MB |
| LIUGONG | 908D |
| LONKING | CMD6085 |
| MUSTANG | 800Z |
| NEW HOLLAND | |
| SANY | SY75C |
| TAKEUCHI | TB280FR |
| TEREX | |
| VOLVO | ECR85D, ECR88D |
| WACKER NEUSON | 8003, ET90, EW100 |
| YANMAR | VIO80-1A, SV100-2A |
