Product Description

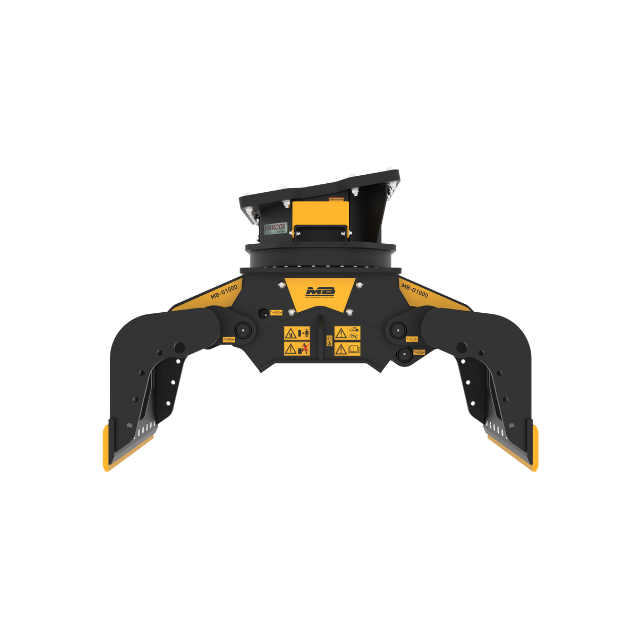

MB Crushers Sorting Grapple | Model MB-G1000 S4 | Width 39.4" | Machine Size 18-25 Tons | For Excavators
DESCRIPTION
The MB Crushers MB-G1000 S4 Sorting Grapple is a versatile and robust attachment built to handle the toughest sorting and material handling jobs. Engineered for excavators with operating weights between 39,683 and 55,116 lbs, this 3,560-lb grapple delivers exceptional performance with its 15.54 ft³ load capacity and 360° hydraulic rotation. Its precise movements and strong closing force ensure efficient and safe handling of materials, regardless of their weight or shape. Whether used for pipeline work, landscaping, or demolitions, the MB-G1000 S4 excels in demanding applications, making it an essential tool for your excavator.
Key Features
- Precise Material Handling: Strong closing force ensures safe and efficient material sorting.
- 360° Hydraulic Rotation: Allows full operational flexibility in any material-handling scenario.
- Durable Design: Built to withstand rugged environments like quarries and demolition sites.
- Efficient Hydraulic System: Optimized for smooth operation with high-pressure hydraulic requirements.
- Versatile Usage: Ideal for construction, forestry, landscaping, and excavation projects.
Applications
- Pipeline and Trenches: Efficiently handles and sorts trench and pipeline materials.
- Urban Job Sites: Maneuvers effectively in confined spaces with precision and control.
- Quarries and Mines: Sorts heavy, irregular materials with ease.
- Demolitions: Safely removes and organizes debris for recycling or disposal.
- Tunnels and Enclosed Spaces: Performs exceptionally well in restricted environments.
- Road Works: Facilitates the preparation and handling of materials for road construction.
- Forest Maintenance: Ideal for clearing logs, branches, and other organic materials.
- Landscaping and Agriculture: Efficiently moves and sorts soil, rocks, and debris.
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | MB-G1000 |
| Weight | 3,560 lbs (1.61 tons) |
| Load Capacity (Claws Closed) | 15.54 ft³ / 116 gallons |
| Rotation | 360° |
| Flow Direction | 10–18 gal/min (38–68 l/min) |
| Pressure (Rotation) | > 3,191 PSI (220 bar) |
| Pressure (Open/Close) | 4,351–5,802 PSI (300–400 bar) |
| Oil Flow (Open/Close) | 18 gal/min (68 l/min) |
| Excavator Compatibility | 39,683–55,116 lbs (18–25 tons) |
| Width | 39.4 in (1,000 mm) |
Manuals & Documents
General Warranty Info:
- Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
