Product Description

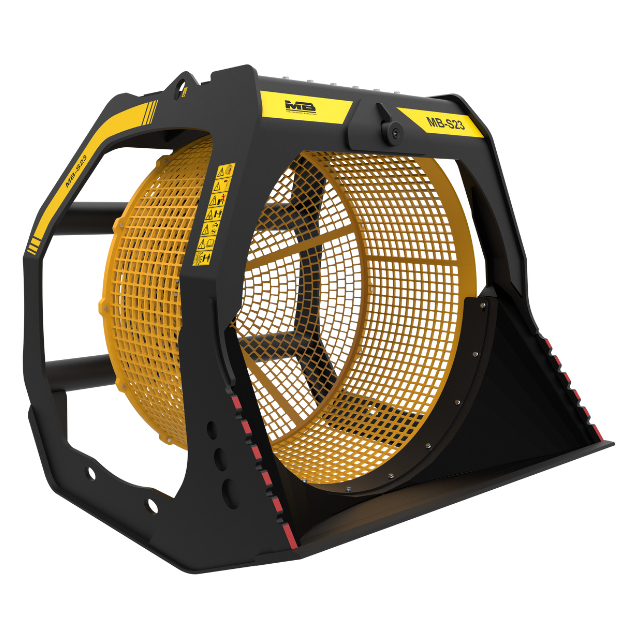

MB Crushers Screening Bucket | Model MB-S23 | Width 91" | Machine Size 35-50 Tons | For Excavators
DESCRIPTION
The MB Crushers MB-S23 Screening Bucket is a powerhouse designed for heavy-duty screening tasks on large-scale excavation projects. Weighing 8,267 lbs and capable of handling up to 6.62 cubic yards of material, this bucket is ideal for excavators ranging from 77,200 to 110,200 lbs. The MB-S23 excels at screening natural materials, such as quarry residues, river stones, and dry soil, either before or after crushing. This screening bucket is a must-have for reducing material volumes, streamlining project timelines, and optimizing the size of processed materials for specific applications. Built for performance and durability, the MB-S23 is an essential tool for large-scale projects requiring efficient material processing.
Key Features
- Unmatched Capacity: The largest screening bucket in the world for heavy-duty applications.
- Versatile Material Handling: Screens natural materials, aggregates, and debris with efficiency.
- Durable Construction: Built to withstand the demands of quarrying, mining, and excavation projects.
- Time and Cost Efficiency: Reduces crushing and processing time by up to 60%.
- High Hydraulic Performance: Operates within specified flow and pressure parameters for reliable performance.
Applications
- Pipeline and Trenches: Screens materials for backfill and trench bedding.
- Quarries and Mines: Processes quarry residues and aggregates on-site.
- Demolitions: Separates and reclaims debris for reuse or further processing.
- Foundries: Screens heavy materials for efficient recycling and repurposing.
- Road Works: Prepares materials for road construction and maintenance.
- Recycling Aggregate: Converts construction debris into reusable resources.
- Excavations and Removal: Optimizes material handling for large-scale excavation projects.
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | MB-S23 |
| Weight | 8,267 lbs |
| Load Capacity | 6.62 cubic yards |
| Pressure | >4,641 PSI |
| Counter Pressure | <73 PSI |
| Oil Flow Range | 42 GPM |
| Excavator Compatibility | 77,200–110,200 lbs (35–50 tons) |
| Width | 91 inches (2300 mm) |
