Product Description

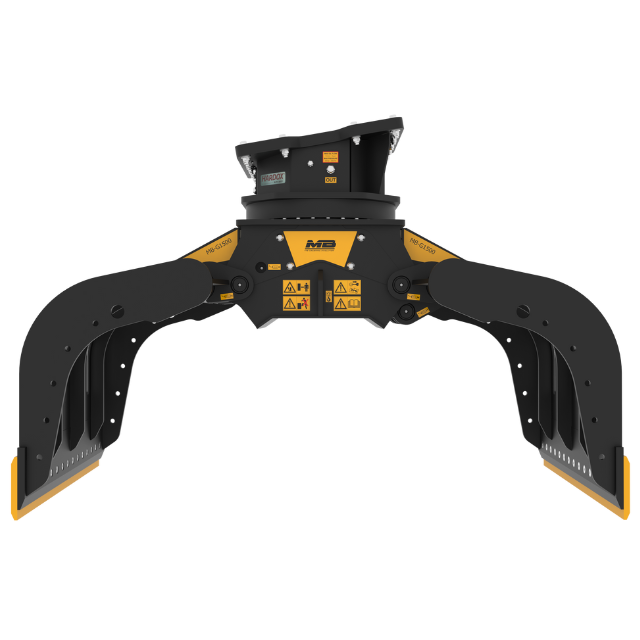

MB Crushers Sorting Grapple | Model MB-G1500 S4 | Width 47.2" | Machine Size 20-30 Tons | For Excavators
DESCRIPTION
The MB Crushers MB-G1500 S4 Sorting Grapple is engineered to meet the rigorous demands of material sorting and handling in demolition, construction, and landscaping. This high-performance attachment is built for excavators ranging from 44,100 to 66,100 lbs, making it a powerful tool for moving, lifting, and sorting heavy loads with ease. Equipped with interchangeable claws and a 360° hydraulic rotation, the MB-G1500 S4 adapts to odd shapes and large loads effortlessly. From demolition to forestry and agricultural projects, this grapple offers reliability, durability, and precision for a variety of industries.
Key Features
- Interchangeable Claws: Customizable claws enhance versatility and extend service life.
- Full Hydraulic Control: Achieves precise movements and optimal productivity with a 360° rotation system.
- Durable Construction: High-strength materials ensure longevity even in harsh environments.
- Adaptable Design: Suitable for a wide range of industries, from demolition to agricultural applications.
- Advanced Safety Standards: Engineered for consistent and reliable performance with maximum operator safety.
Applications
- Pipeline And Trenches
- Urban Job Site
- Quarries And Mines
- Demolitions
- Tunnels And Enclosed Spaces
- Road Works
- Forest Maintenance
- Maintaining Landscaping And Agricultural Area
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | MB-G1500 S4 |
| Weight | 4,520 lbs (2.05 tons) |
| Load Capacity (Claws Closed) | 50 ft³ |
| Hydraulic Rotation | 360° |
| Flow Direction | 5–9 gal/min (19–34 l/min) |
| Pressure (Rotation) | > 3,191 PSI (220 bar) |
| Pressure (Open/Close) | 4,351–5,802 PSI (300–400 bar) |
| Oil Flow (Open/Close) | 19 gal/min (72 l/min) |
| Excavator Compatibility | 44,100–66,100 lbs (20–30 tons) |
Manuals & Documents
General Warranty Info:
- Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
