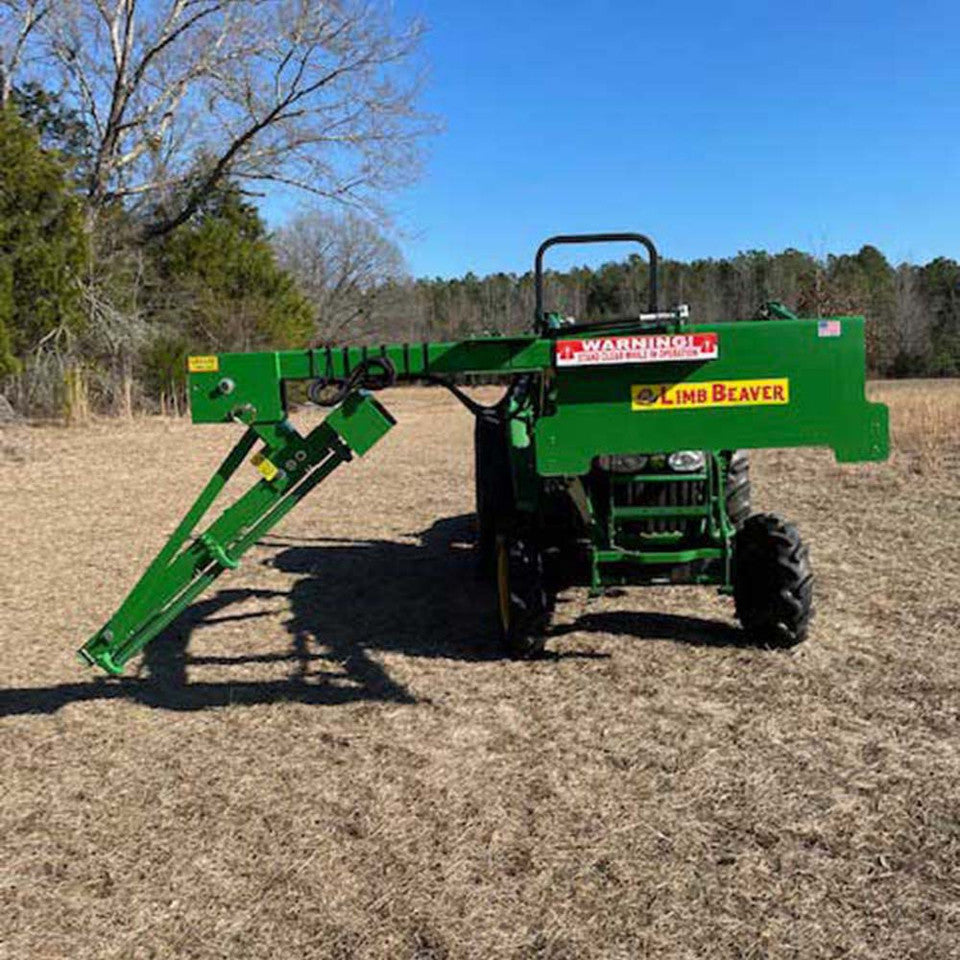

Limb Beaver Brush Cutter | Model LB 4TR | Cutting Width 48"| For Tractor Loader
DESCRIPTION
Limb Beaver is designed for both skid steers and farm tractors. It will cut through limbs up to 6-inches in diameter with minimal debris ejection. Limb Beaver can also rotate to a 45-degree angle to cut ditch banks. Requires minimal maintenance. Made in the USA.
Cut away at hanging branches, thick vegetation, and other shrubbery with the Limb Beaver Tractor Limb Brush Cutter. Featuring a multi-positional design, this allows you and your tractor to operate and cut at a 45-degree angle rotation. Pair the adjustable positioning with 34 double-edged fixed teeth, this is the ideal brush cutter attachment for your tractor to handle the trickiest of tree limbs, brushes, and ditch banks.
For Tractor models of the Limb Brush cutter, ensure that you have a 3/8" case drain line that goes directly back to the tank/ reservoir, Skid Steer Models already have this implemented with the Skid Steer.
Note: This attachment requires a case drain.
Key Features
- 34 Double-Edged Fixed Teeth
- Multi-Positional Design
- 45-Degree Angle Rotation Capabilities
- 180-Degree Swing
- 2500-3000 RPM
- Available in 48" and 72" Cutting Widths
- 48 inch cut path
- 3000 RPM rotation
- Approx weight 950 pounds
- Cutting height depends on your loader (add approx. 70 inches to pin height)
- Hydraulic flow 15 to 25 GPM
- Tilts to horizontal (flat) position
- Offset vertical reach 11.5 feet or 140 inches from center
- Swing is 180 degrees from left and right
Detailed Specifications
| Feature | 48" Model | 72" Model |
|---|---|---|
| Weight | 950 lbs | 550 lbs |
| Cutting Width | 48 inches | 72 inches |
| Tilt Angle | 45 degrees | 45 degrees |
| Teeth | 34 double-edged | 52 double-edged |
| RPM | 3000 | 3000 |
| Hydraulic Flow (GPM) | 15-25 | 15-45 |
| Hydraulic Pressure (PSI) | 2500-3000 | 2500-3000 |
Application
- Encroaching or Overhanging Limb and Brush
- Farm Fields
- Trails - Snowmobile - Side by Side - Walking
- Right of Ways - Pipeline - Electric - Roads - Railroads - City Streets
- Line of Sight
- Easements
- Lake Side
- Creeks and Rivers
- Golf Courses
- Hunt Clubs
- Fence Lines
- Parks
- Recreational Areas
- Forestry Service
