Description

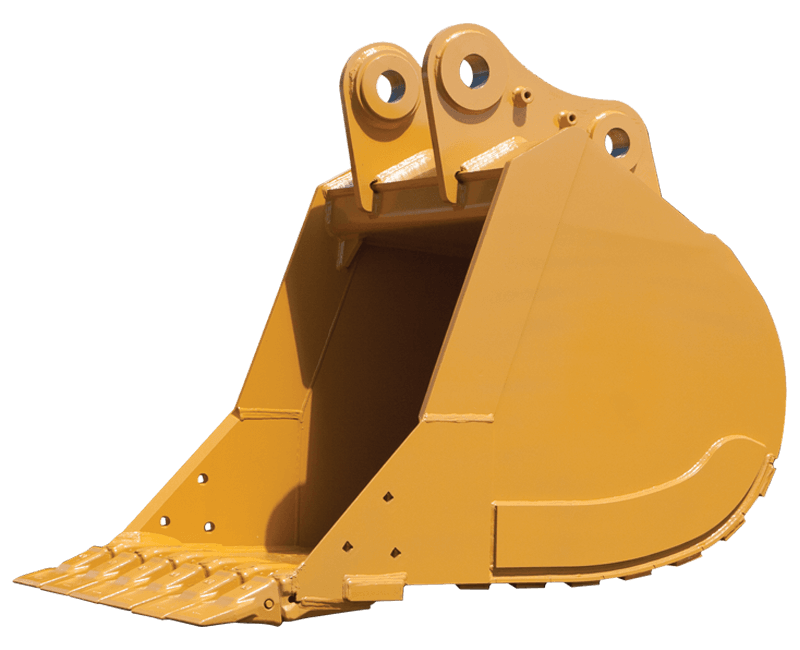

Discover the unmatched performance of the WAIN ROY severe-duty rock buckets for excavators 30,000-41,000 lbs., meticulously engineered for exceptional strength and reliability in the toughest working conditions. These “X” Series buckets are designed to ensure seamless material flow while loading and unloading, thanks to their low profile bridge design that enhances operator visibility.
Key features include:
- Superior Strength: Internal struts and double thickness bridge/moldboard deliver outstanding rigidity and durability.
- Corner Gussets: Strategically placed for added strength without compromising material flow.
- Advanced Interlocking Design: The unique welded joint between the cutting edge and replaceable side cutter insert enhances the bucket's structural integrity.
- Versatile Applications: Perfectly suited for abrasive and high-impact tasks involving shot rock, coral, stratified materials, caliche, and highly compacted materials.
This bucket is available with OEM pin-on mounts and comes in various capacities:
CARRIER WEIGHT
| STD. CAPACITY | CAPACITY CU. YARD | LBS | NO. TEETH |
|---|---|---|---|
| 18" | 0.34 | 1183 | 3 |
| 20" | 0.42 | 1255 | 3 |
| 24" | 0.50 | 1299 | 3 |
| 30" | 0.66 | 1415 | 4 |
| 36" | 0.83 | 1493 | 5 |
| 42" | 1.01 | 1730 | 5 |
| 48" | 1.18 | 1960 | 6 |
SPECS
With compatibility across a range of excavators, including CASE, CAT, DOOSAN, HITACHI, JOHN DEERE, KOBELCO, KOMATSU, and more, this bucket is your go-to solution for heavy-duty excavation tasks. Don’t compromise on quality—choose the WAIN ROY severe-duty rock bucket for your excavator today!
